Package Checklist

The Moxa EDS-505A/508A is shipped with the following items. If any of

these items is missing or damaged, please contact your customer service

representative for assistance.

y1 Moxa EtherDevice Switch (EDS-505A or EDS-508A)

yHardware Installation Guide

yCD-ROM with User’s Manual and Windows Utility

yWarranty Statement

yRJ45 to DB9 Console port cable

yProtective caps for unused ports

yPanel Mounting Kit (optional—must be ordered separately)

—2 —

Panel Layout of EDS-505A/508A

(Standard)

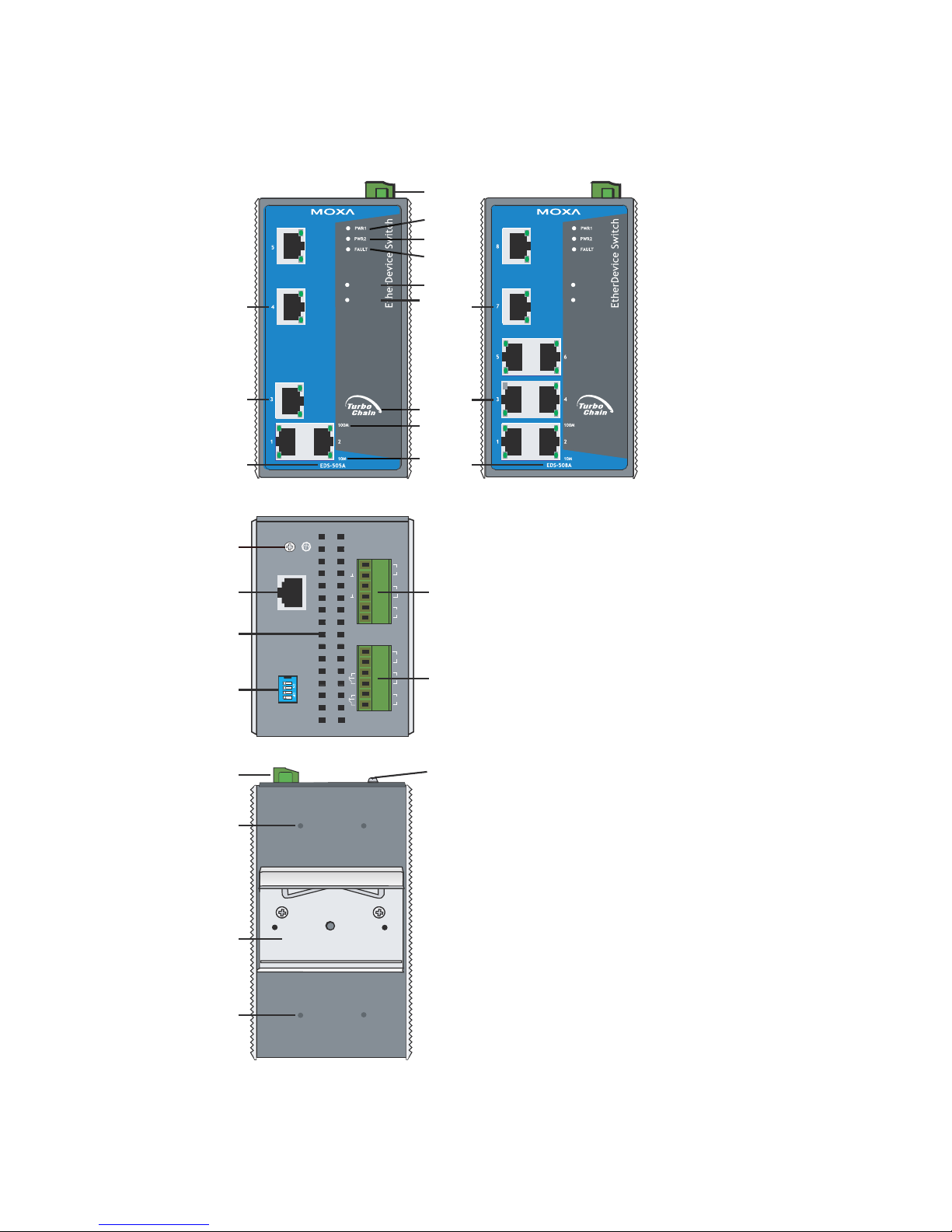

EDS-505A

Front Panel View

EDS-508A

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

RS-232 CONSOLE

------

OFF

MASTER

COUPLER

TURBO

RING

PWR1

PWR2

RELAY2

RELAY1

DI1

DI2

V2-

V2+

V1-

V1+

Top Panel View

Rear Panel View

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. Screw hole for wall mounting kit

17. DIN-Rail kit

—3 —

Panel Layout of EDS-505A/508A

(SC-type)

EDS-505A-MM-SC

Front Panel View

EDS-508A-MM-SC

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

RS-232 CONSOLE

------

OFF

MASTER

COUPLER

TURBO

RING

PWR1

PWR2

RELAY2

RELAY1

DI1

DI2

V2-

V2+

V1-

V1+

Top Panel View

Rear Panel View

NOTE: The appearance of

EDS-505A-SS-SC is identical to that

of EDS-505A-MM-SC.

The appearance of EDS-508A-SS-SC

is identical to that of

EDS-508A-MM-SC.

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

—4 —

Panel Layout of EDS-505A/508A

(ST-type)

EDS-505A-MM-ST

Front Panel View

EDS-508A-MM-ST

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

RS-232 CONSOLE

------

OFF

MASTER

COUPLER

TURBO

RING

PWR1

PWR2

RELAY2

RELAY1

DI1

DI2

V2-

V2+

V1-

V1+

Top Panel View

Rear Panel View

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

—5 —

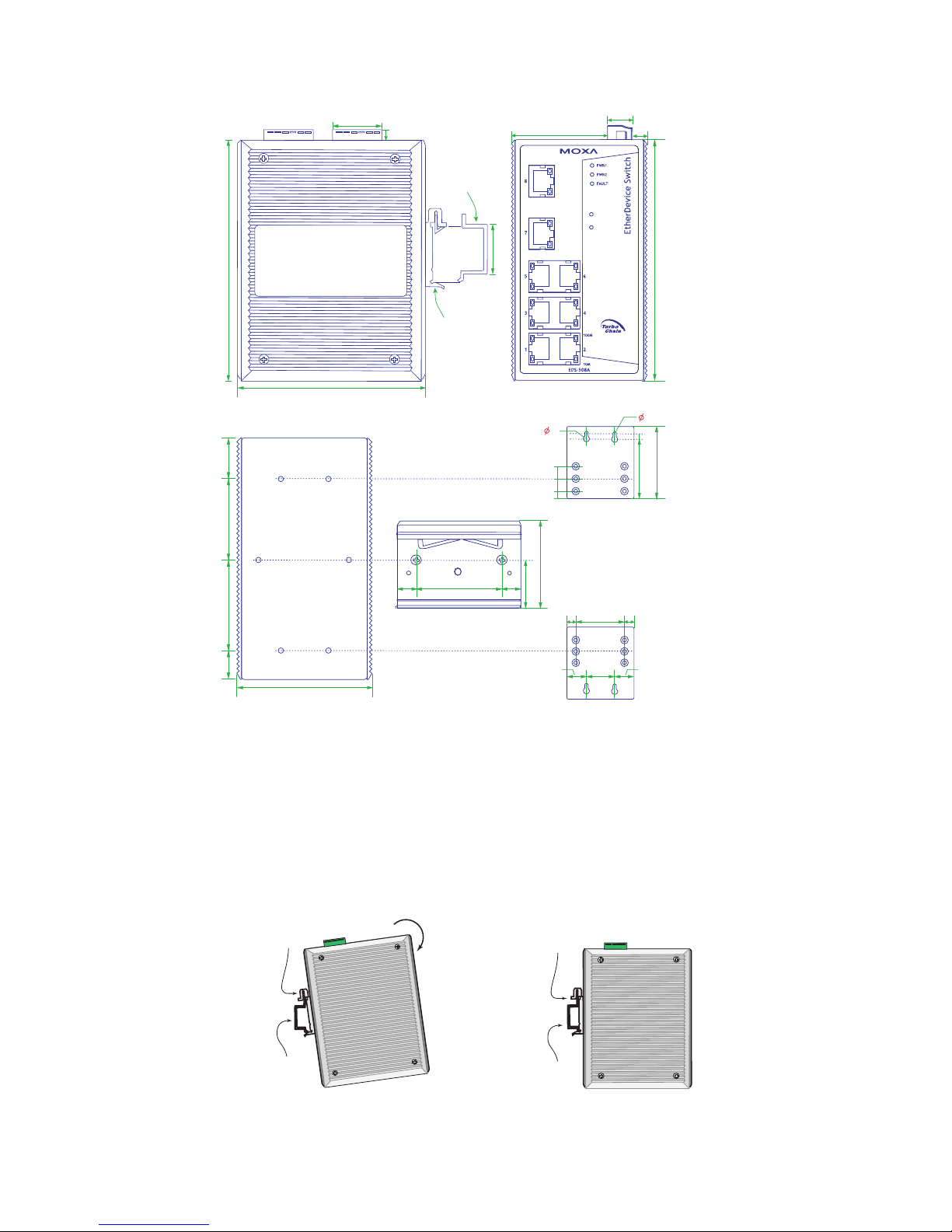

Mounting Dimensions (unit = mm)

Rear View

Side View

Front View

DlN-Rail Kit

DlN-Rail

105.00

9.00

35.00

135.00

24.324.56 46.77 39.37

135.00

Wall Mounting Kit

7.75 30.50 7.75

3.5

66.80

57.05

13.9 18.2 13.9

30.00 15.0

51.3 13.9

80.2

DlN-Rail Kit

7.5 55 7.5

27.20

48.30

MSTR/HEAD

CPLR/TAIL

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the back

panel of the EDS-505A/508A when you take it out of the box.

STEP 1:

Insert the top of the DIN-Rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-Rail attachment unit will

snap into place as shown.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove EDS-505A/508A from the DIN-Rail, simply reverse Steps 1 and 2.

—6 —

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-505A/508A on the wall, as shown in the following figures.

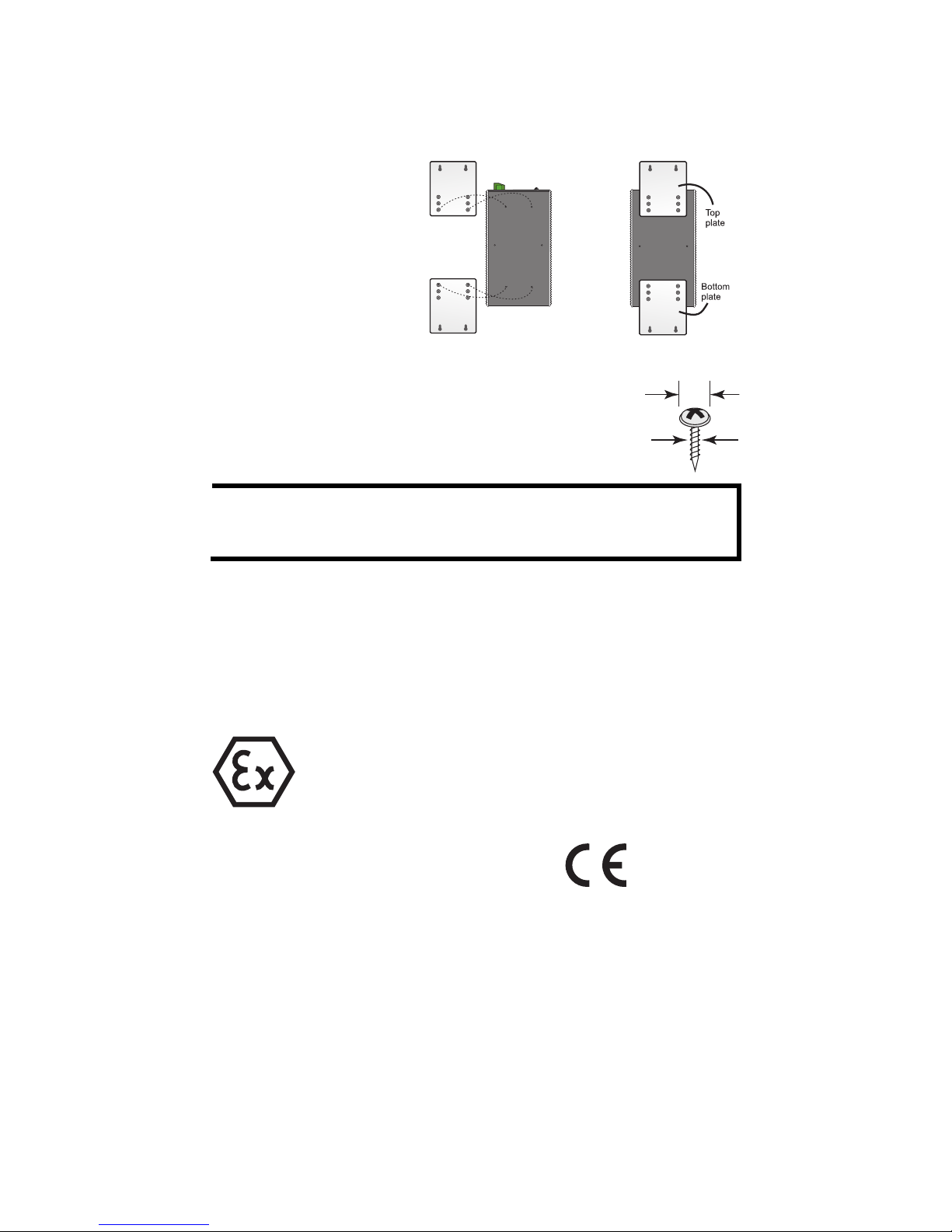

STEP 1: Remove the

aluminum DIN-Rail

attachment plate from the

EDS-505A/508A’s rear

panel, and then attach the

wall mount plates with M3

screws, as shown in the

figures at the right.

⇒

STEP 2:

Mounting the EDS-505A/508A on the wall requires 4 screws.

Use the EDS, with wall mount plates attached, as a guide to

mark the correct locations of the 4 screws. The heads of the

screws should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5 mm in diameter, as shown in the

figure at the right.

6.0 mm

3.5 mm

NOTE Before tightening the screws into the wall, make sure the screw head

and shank size are suitable by inserting the screw into one of the

keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in completely—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

STEP 3: Once the screws are fixed in the wall, insert the four screw heads

through the large parts of the keyhole-shaped apertures, and then slide the

EDS-505A/508A downwards, as indicated. Tighten the four screws for added

stability.

II 3G

ATEX Information

1. Certificate number DEMKO 08 ATEX

0712961X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nC nL IIC T4)

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. The conditions of safe usage:

yThese products must be mounted in an IP54 enclosure.

yInstall in an area of pollution degree 2 or less.

yUse a conductor wire of size 0.2 mm² or greater.

yPROVISIONS SHALL BE MADE, EITHER IN EXTERNAL TO

THE APPARATUS, TO PREVENT THE RATED VOLTAGE BEING

EXCEEDED BY THE TRANSIENTS DISTURBANCES OF MORE

THAN 40 %

—7 —

Wiring Requirements

WARNING

The power for this product is intended to be supplied by a Listed

Power Unit, with output marked LPS, and rated to deliver 12 to

45 VDC at a maximum of 600 mA.

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch. Calculate the maximum

possible current in each power wire and common wire. Observe

all electrical codes dictating the maximum current allowable for

each wire size. If the current goes above the maximum ratings,

the wiring could overheat, causing serious damage to your

equipment.

Please read and follow these important guidelines:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

yNOTE: Do not run signal or communications wiring, and power wiring

through the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

yUse the type of signal transmitted through a wire to determine which wires

should be kept separate. The rule of thumb is that wiring that shares similar

electrical characteristics can be bundled together.

yKeep input wiring and output wiring separate.

yIt is strongly advised that you label wiring to all devices in the system,

when necessary.

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

Wiring the Relay Contact

The EDS-505A/508A has two sets of relay output—relay 1 and relay 2. Each

relay contact consists of two contacts of the terminal block on the

EDS-505A/508A’s top panel. Refer to the next section for detailed instructions

on how to connect the wires to the terminal block connector, and how to attach

the terminal block connector to the terminal block receptor.

—8 —

Relay1 Relay2

The fault circuit will open if::

1. A relay warning event is triggered, OR

2. The EDS-505A/508A is the Master of this Turbo Ring, and the Turbo Ring

is broken, OR

3. Start-up failure.

If none of these three conditions is met, the fault circuit will remain closed.

Wiring the Redundant Power Inputs

The EDS-505A/508A unit has two sets of power inputs—power input 1 and

power input 2. Top and front views of one of the terminal block connectors are

shown below.

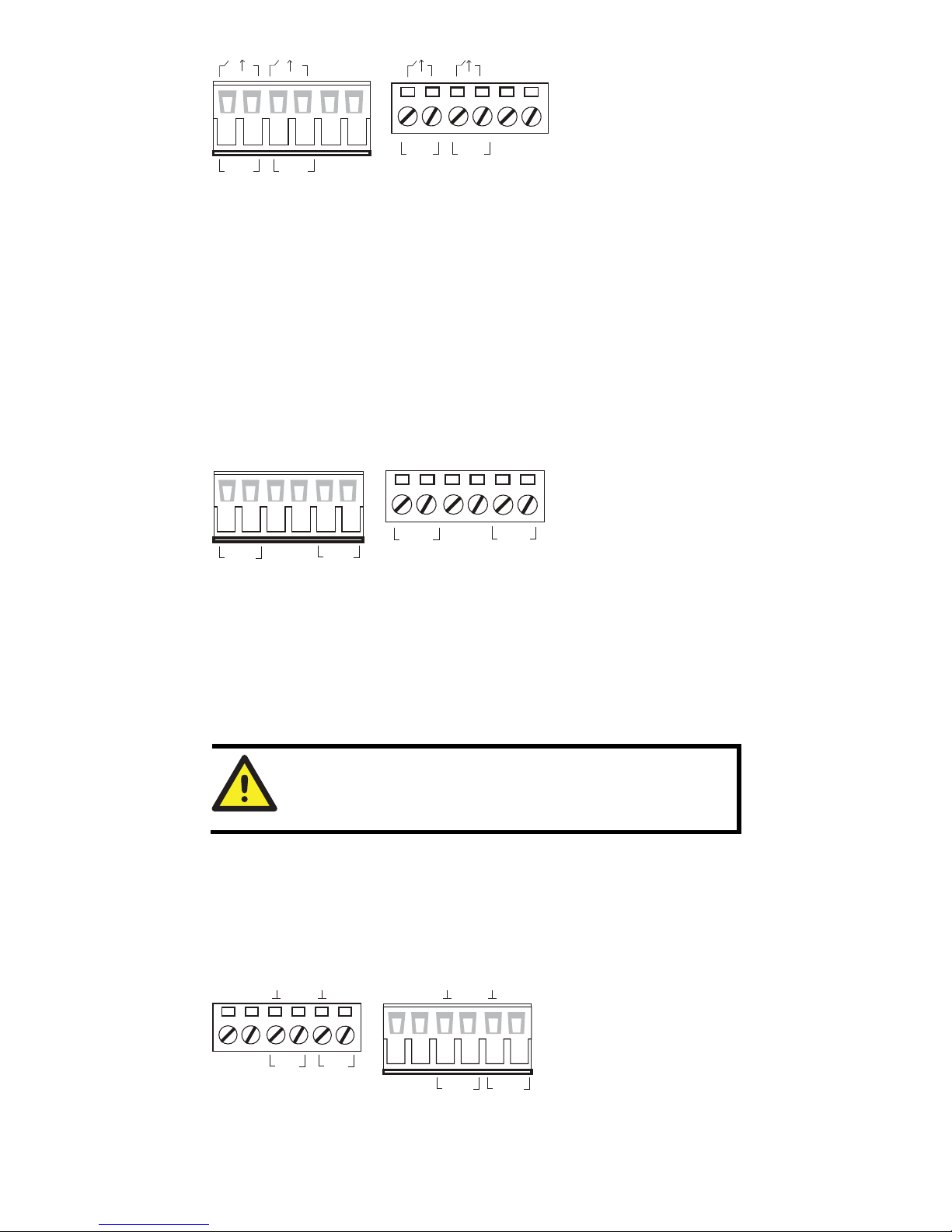

V1- V1+

PWR1

V2- V2+

PWR2

PWR1

PWR2

V1- V1+V2- V2+

Take the following steps to wire the redundant power inputs:

STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals.

STEP 2: To keep the DC wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block connector prongs into the terminal

block receptor, which is located on the EDS’s top panel.

ATTENTION

Before connecting the EDS to the DC power inputs, make sure

the DC power source voltage is stable.

Wiring the Digital Inputs

The EDS-505A/508A unit has two sets of digital inputs, DI 1 and DI 2. Each

DI consists of two contacts of the 6-pin terminal block connector on the EDS’s

top panel. The remaining contacts are used for the EDS’s two DC inputs. Top

and front views of one of the terminal block connectors are shown below.

D2I

D1I

I1I2

D2ID1I

—9 —

Take the following steps to wire the digital inputs:

STEP 1: Insert the negative (ground)/positive DI wires into the ┴/I1

terminals.

STEP 2: To keep the DI wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block connector prongs into the terminal

block receptor, which is located on the EDS-505A/508A’s top panel.

Communication Connections

EDS-508A models have 8 or 6 10/100BaseT(X) Ethernet ports, and 0 (zero) or

2 100BaseFX (SC/ST-type connector) fiber ports. EDS-505A models have 5 or

3 10/100BaseT(X) Ethernet ports, and 0 (zero) or 2 100 BaseFX (SC/ST-type

connector) fiber ports

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on EDS’s front panel are used to connect to

Ethernet-enabled devices.

Next, we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

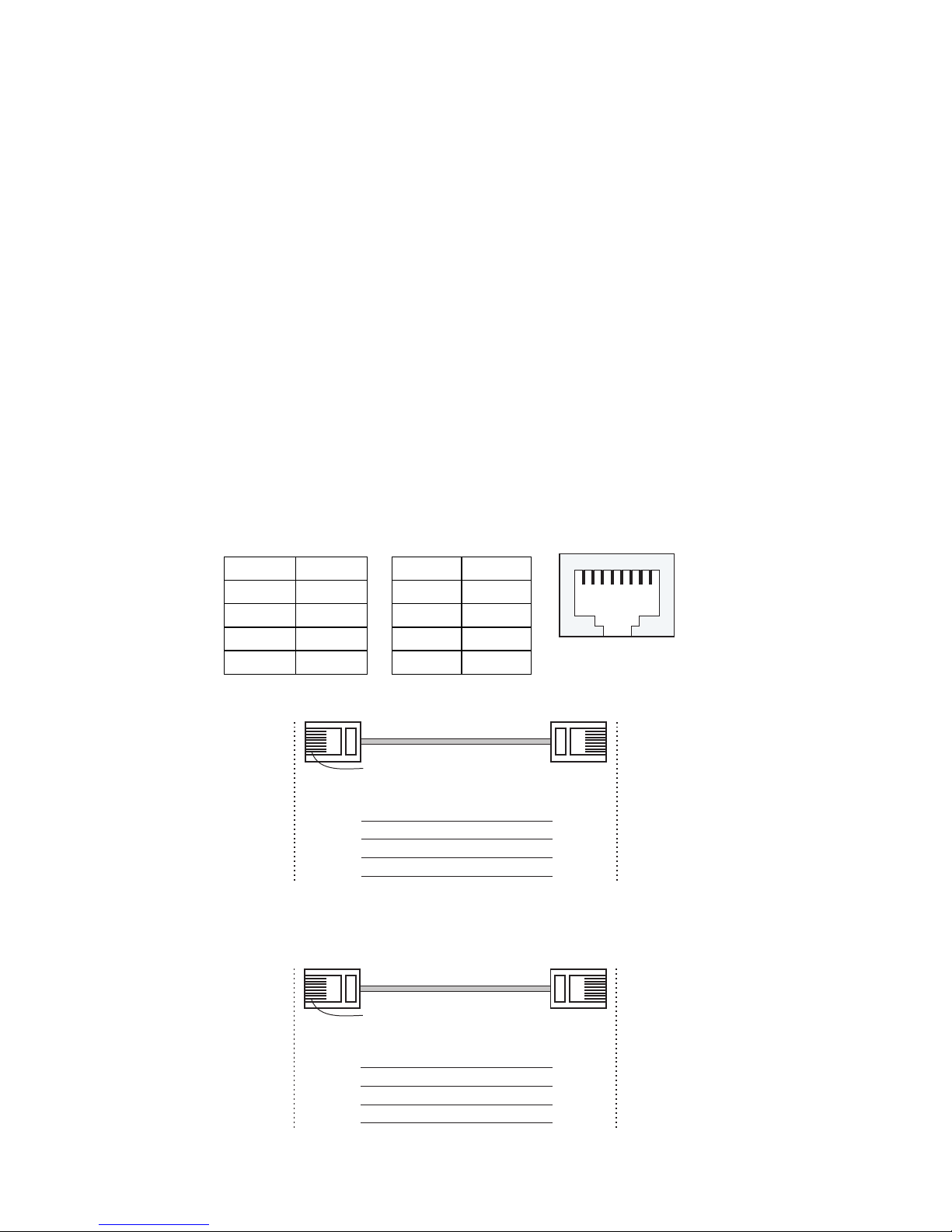

MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45

Pin Signal Pin Signal

1 Tx+ 1 Rx+

2 Tx- 2 Rx-

3 Rx+ 3 Tx+

6 Rx- 6 Tx-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

Straight-Through Cable

RJ45 Plug Pin 1

Switch Port

RJ45

Connector

RJ45

Connecto

Tx+

Tx-

Rx+

Rx-

NIC Port

Cable Wiring

3 3

6 6

1 1

2 2

Rx+

Rx-

Tx+

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

Cross-Over Cable

RJ45 Plug Pin 1

Switch Port

(NIC Port)

RJ45

Connector

RJ45

Connector

Tx+

Tx-

Rx+

Rx-

(Rx+)

(Rx-)

(Tx+)

(Tx-)

(Tx+)

(Tx-)

(Rx+)

(Rx-)

Switch Port

(NIC Port)

Cable Wiring

3 1

6 2

1 3

2 6

Rx+

Rx-

Tx+

Tx-

Altri manuali per EDS-505A Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-30 Manuale

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EDS-510E Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-405A Manuale

Moxa Technologies

Moxa Technologies PT-G503-PHR-PTP Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa Technologies

Moxa Technologies TN-5308-LV-T Manuale utente

Moxa Technologies

Moxa Technologies EDS-G509 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-508 Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-F-24 Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7828 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale utente

Moxa Technologies

Moxa Technologies SDS-3016 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PN Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-G7728 Manuale utente

Moxa Technologies

Moxa Technologies TN-5308 Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
