Moxa Technologies EDS-600 Series Manuale

Moxa EtherDevice™ Switch

EDS-600 Series

Hardware Installation Guide

First Edition, August 2009

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802006000010

- 2 -

Package Checklist

The Moxa EDS-600 series is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

y1 EDS-600 EtherDevice Switch

yHardware Installation Guide

yCD-ROM with User’s Manual and Windows utility

yMoxa product warranty statement

yRJ45 to DB9 console port cable

yProtective caps for unused ports

yWall Mounting Kit (optional—must be ordered separately)

yAnti-Vibration Wiring Kit (optional, must be ordered separately)

Features

Advanced Industrial Networking Capabilities

yIPv6 ready (certified by the IPv6 Logo Committee).

yIEEE 1588 PTP (Precision Time Protocol) for precise time

synchronization of networks.

ySupports LLDP (Link Layer Discovery Protocol)

yDHCP Option 82 for IP address assignment with different policies.

ySupports Modbus/TCP industrial Ethernet protocol.

yTurbo Ring and Turbo Chain (< 20 ms recovery time at full load) and

STP/RSTP (IEEE 802.1w/D).

yIGMP snooping and GMRP for filtering multicast traffic.

yPort-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network

planning.

yQoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism.

yPort Trunking for optimal bandwidth utilization.

yIEEE 802.1X, HTTPS, and SSH to enhance network security.

ySNMPv1/v2c/v3 for different levels of network management.

yRMON for efficient network monitoring and proactive capability.

yBandwidth management prevents unpredictable network status.

yLock port function for blocking unauthorized access based on MAC

address.

yPort mirroring allows for online debugging.

yAutomatic warning by exception through e-mail and relay output.

yDigital inputs to integrate sensors and alarms with IP networks.

- 3 -

Panel Views of the EDS-608

FRONT VIEW

REAR VIEW

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

8. Screw to attach Fast Ethernet Interface Module

Rear Panel:

9. DIN-Rail Attachment Plate

10. Screw holes for wall mounting kit

- 4 -

Panel Views of the EDS-611

FRONT VIEW

REAR VIEW

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 Relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

8. G1 to G3: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo

ports

9. Screw to attach Fast Ethernet Interface Module

10. Gigabit Ethernet LEDs

Rear Panel:

11. DIN-Rail Attachment Plate

12. Screw holes for wall mounting kit

- 5 -

Panel Views of the EDS-616

FRONT VIEW

REAR VIEW

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

8. Screw to attach Fast Ethernet Interface Module

Rear Panel:

9. DIN-Rail Attachment Plate

10. Screw holes for wall mounting kit

- 6 -

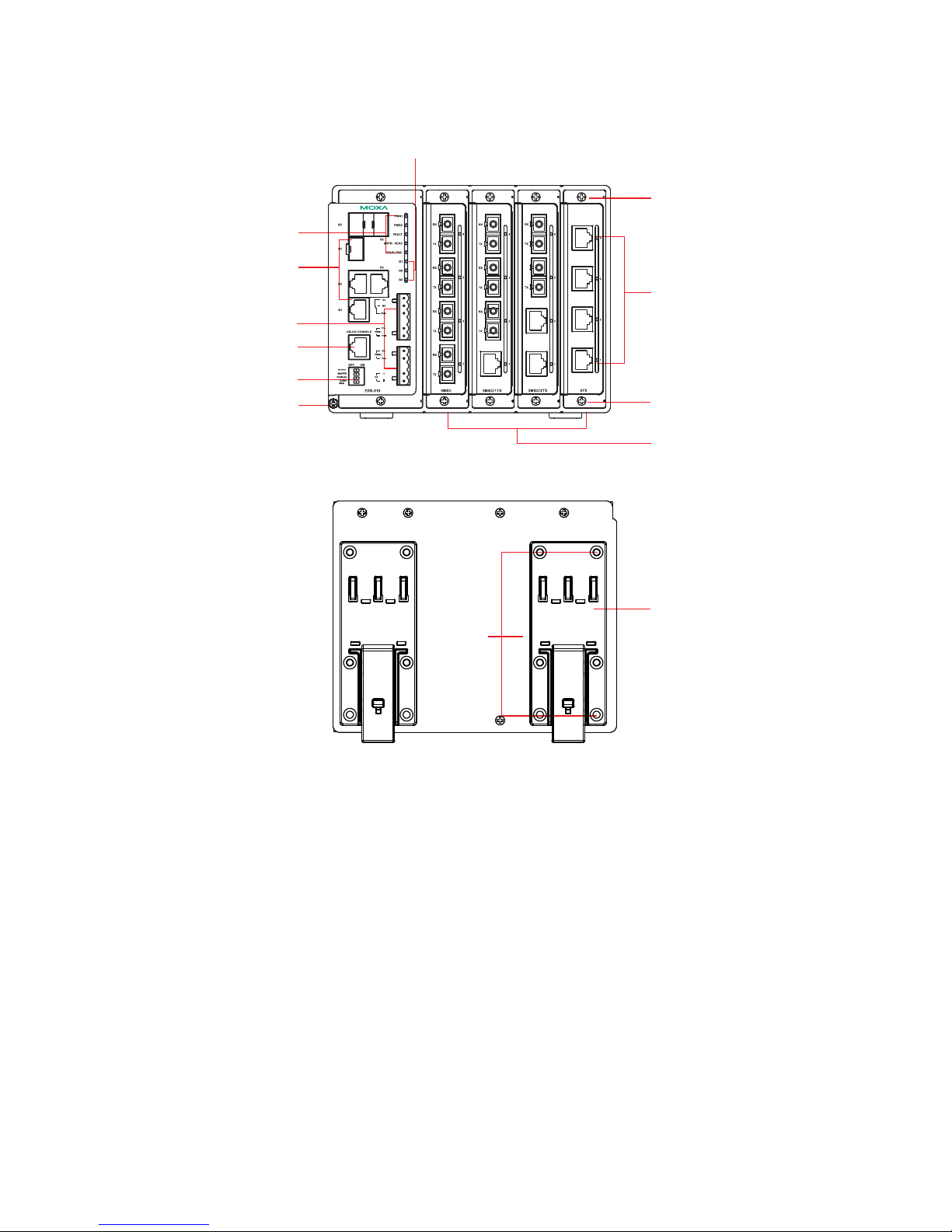

Panel Views of the EDS-619

FRONT VIEW

REAR VIEW

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

8. G1 to G3: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo

ports

9. Screw to attach Fast Ethernet Interface Module

10. Gigabit Ethernet LEDs

Rear Panel:

11. DIN-Rail Attachment Plate

12. Screw holes for wall mounting kit

- 7 -

Mounting Dimensions (unit = mm)

EDS-608/EDS-611

Front View Side View

Rear View

Rear View DIN-Rail Attachment Plate

Panel Mounting KitPanel Mounting Kit

- 8 -

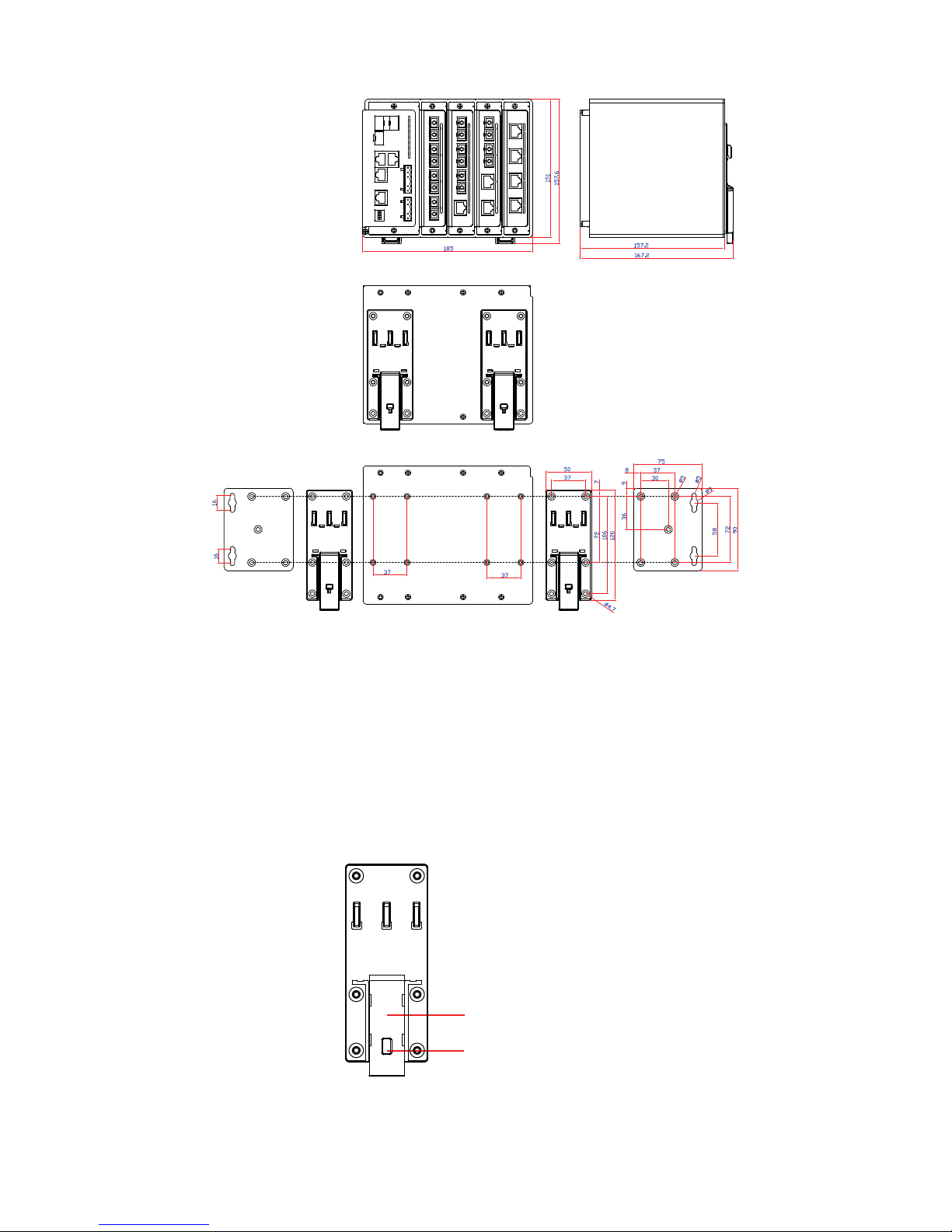

EDS-616/EDS-619

Front View Side View

Rear View

Rear ViewDIN-Rail Attachment Plate DIN-Rail Attachment Plate

Panel Mounting KitPanel Mounting Kit

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the back

panel of the EDS-600 when you take it out of the box. If you need to reattach

the DIN-Rail attachment plate to the EDS-600, be sure the spring-loaded

bracket is situated towards the bottom, as shown in the following figures.

STEP 1: If the spring-loaded bracket is locked in place, push the recessed

button to release it. Once released, you should feel some resistance from the

spring as you slide the bracket up and down a few millimeters in each

direction.

Recessed button

Spring-loaded bracket

- 9 -

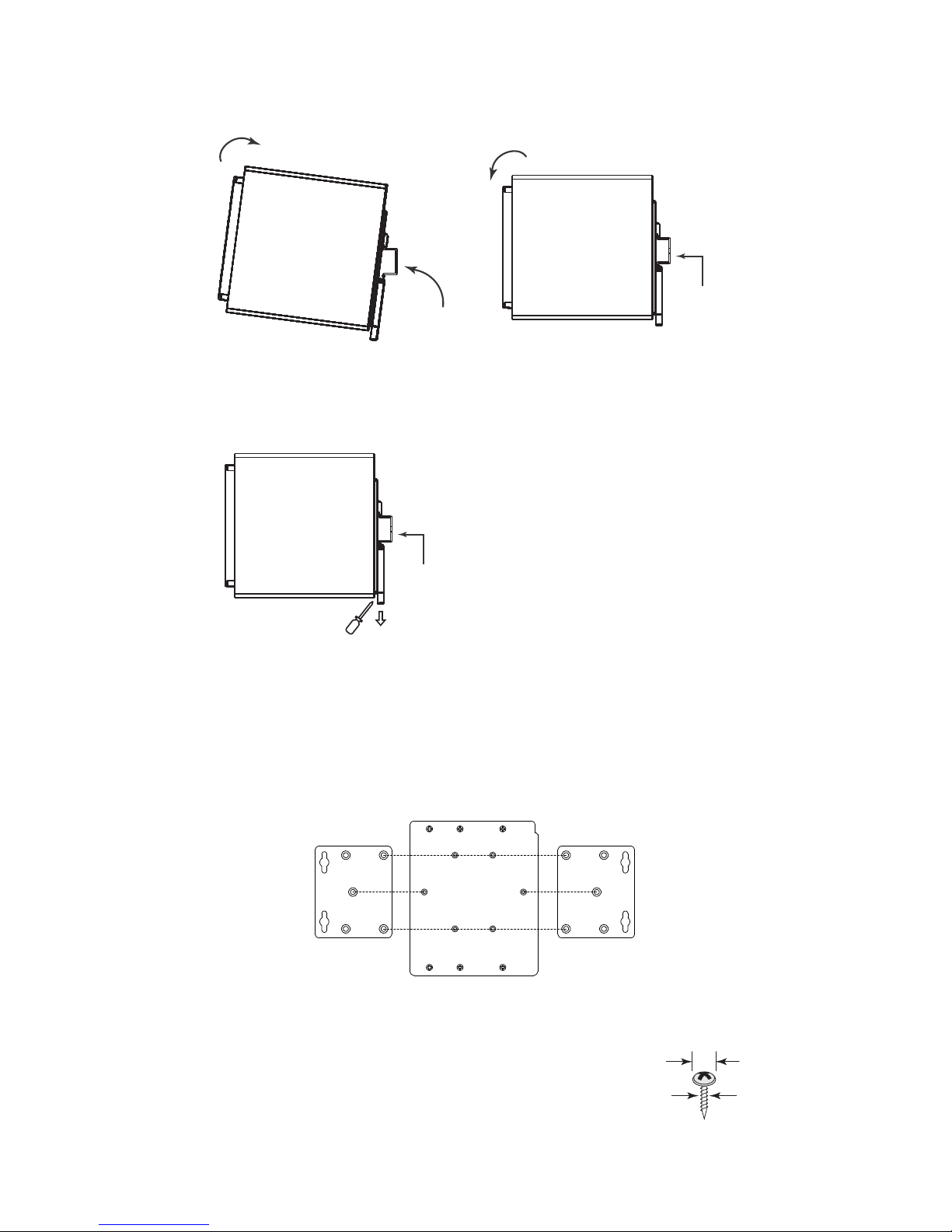

STEP 2—Insert the top of the

DIN-Rail into the top slots on the

DIN-Rail attachment plate.

STEP 3—The DIN-Rail attachment

unit will snap into place as shown in

the following illustration.

DIN-Rail

To remove the Moxa EDS-600 switch from the DIN-Rail, use a screwdriver

to push down the spring-loaded bracket until it locks in place, as shown in the

following diagram. Next, rotate the bottom of the switch upwards and then

remove the switch from the DIN-Rail.

DIN-Rail

Wall Mounting (Optional)

For some applications, you will find it convenient to mount the EDS-600 on

the wall, as shown in the following illustrations:

STEP 1—Remove the aluminum DIN-Rail attachment plate from the rear

panel of the EDS-600, and then attach the wall mount plates with M3 screws,

as shown in the figure at the right.

REAR VIEW

WALL MOUNT KIT WALL MOUNT KIT

STEP 2—Mounting the EDS-600 on the wall requires 4 screws.

Use the EDS-600, with wall mount plates attached, as a guide to

mark the correct locations of the 4 screws. The heads of the

screws should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5 mm in diameter, as shown in the figure at

the right.

6.0 mm

3.5 mm

- 10 -

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

STEP 3—Once the screws are fixed to the wall, insert the four screw heads

through the wide parts of the keyhole-shaped apertures, and then slide the

EDS-600 downwards, as indicated in the figure at the right. Tighten the four

screws for more stability.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

Safety Extra-Low Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

Safety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950-1/ VDE0805.

ATTENTION

This unit is a built-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation IEC 60950-1/EN60950-1

(or similar regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.
