EDS-2005-EL/ELP Series

Quick Installation Guide

Moxa EtherDevice Switch

Version 1.1, January 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The EDS-2005-EL/ELP Series has a 5-port combination to simplify

network expansion. There are two housing types available for the user to

select depending on the requirements of their application. The ELP has a

plastic housing and the EL has a metal housing. The compact switches

provide a cost-effective solution for your industrial Ethernet connection

requirements.

The EDS-2005-EL/ELP Series provides 12/24/48 VDC (9.6 to 60 VDC)

power input, and the switches are available with a standard operating

temperature range from -10 to 60°C. The switches are rugged enough to

operate reliably in harsh industrial environments.

To provide greater versatility for use with applications from different

industries, the EDS-2005-EL/ELP Series also allows users to enable or

disable broadcast storm protection (BSP), Quality of Service (QoS)

function via the DIP switches on the top panel.

The EDS-2005-EL/ELP switches can be easily installed with DIN-rail

mounting as well as distribution boxes. The DIN-rail mounting capability

and IP40 housing with LED indicators ensure that the plug-and-play

EDS-2005-EL/ELP switches are reliable and easy to use.

NOTE

Throughout this Quick Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

ATTENTION

This device complies with part 15 of FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operations.

Package Checklist

Your EDS is shipped with the following items. If any of these items are

missing or damaged, please contact your customer service

representative for assistance.

•Moxa EtherDevice™ Switch

•Quick installation guide (printed)

•Warranty card

- 3 -

Features

High Performance Network Switching Technology

•10/100BaseT(X) auto-negotiation speed, full/half duplex mode, auto

MDI/MDI-X connection.

•IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X).

•IEEE 802.1p for Quality of Service (QoS) traffic prioritized function.

•Store-and-forward switching process type.

Industrial-grade Reliability

•Broadcast storm protection to prevent network devices from crashing

Rugged Design

•Operating temperature range from -10 to 60°C

•IP40, rugged high-strength case

•DIN-rail or panel mounting ability

WARNING

The

power

for this product is intended to be supplied by a Listed

Power Supply, with output marked LPS, and rated to deliver 12 to

48 VDC at a maximum

of 0.11 A.

The DC

jack should be used with an LPS unit that is rated to

deliver 12 to 48 VDC at a minimum of

1.1

A. The product should

not be disassembled by operators or service people.

- 4 -

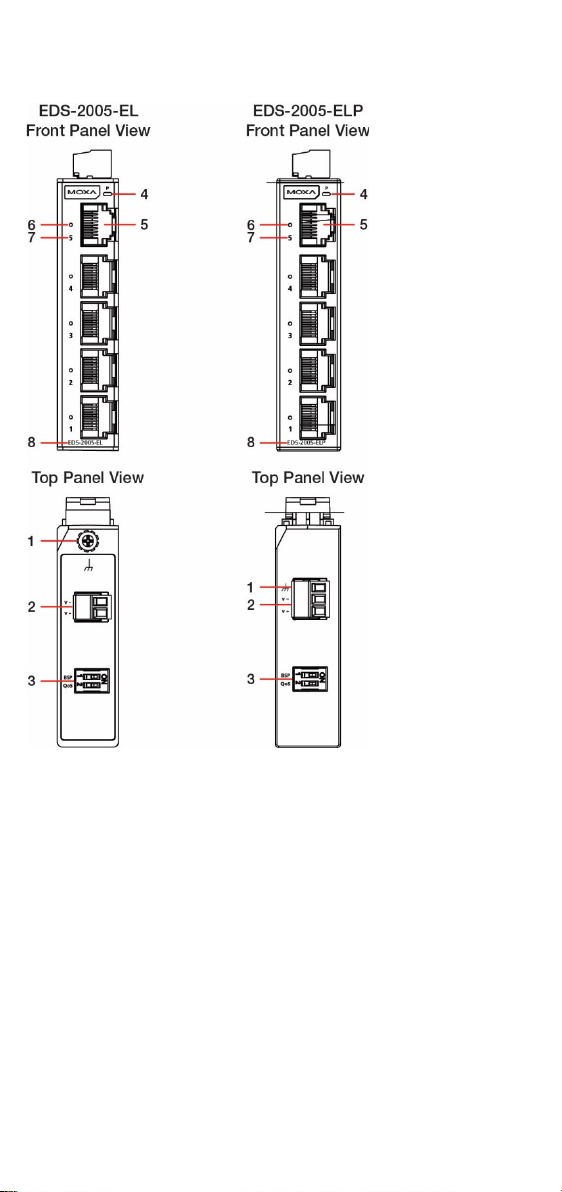

Panel Layout of EDS-2005-EL/EDS-2005-ELP

1. Chassis ground screw

2. Terminal block for power input

3. DIP switch

4. Power LED

5. 10/100 BaseT(X) Port

6. 10/100 BaseT(X) Port LED

7. Port number

8. Model name

- 5 -

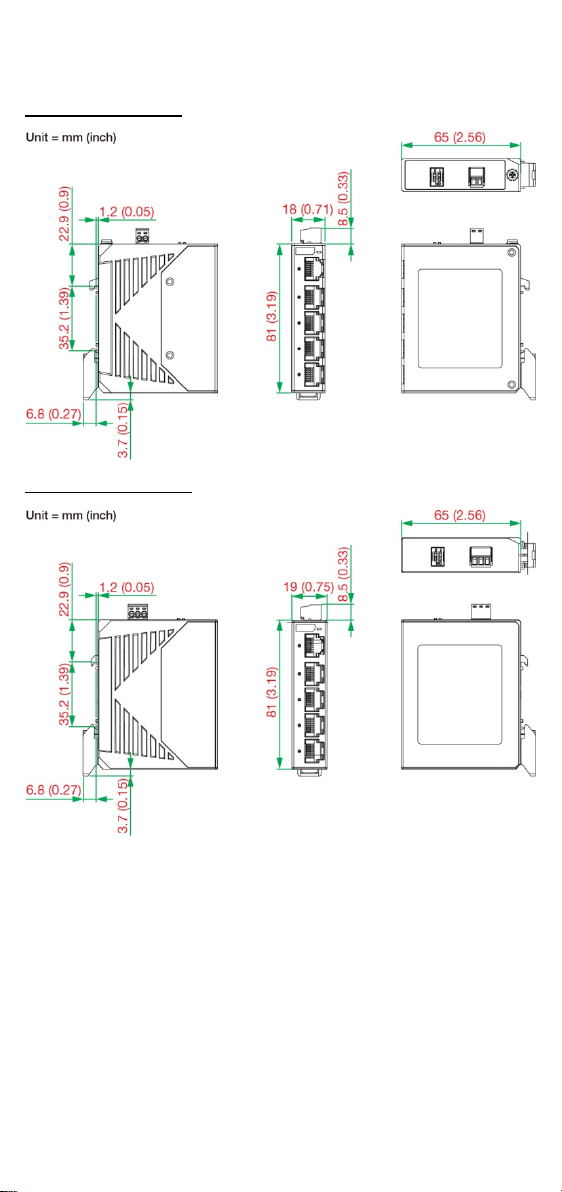

Mounting Dimensions

EDS-2005-EL Series

EDS-2005-ELP Series

- 6 -

DIN-rail Mounting

When shipped, the DIN-rail mounting kit is fixed to the back panel of the

EDS. Mount the EDS on the corrosion-free mounting rail that adheres to

the EN 60715 standard.

Suggested Installation Method

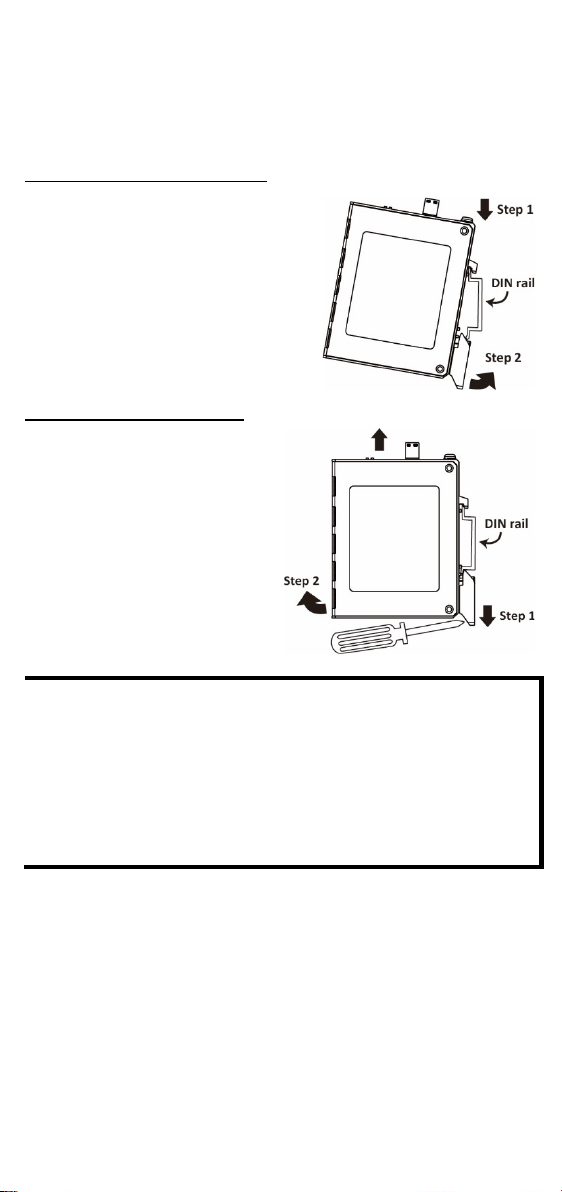

STEP 1:

Insert the upper lip of the DIN

rail

kit into the mounting rail.

TEP 2:

Press the device towards the

mounting rail until it snaps into

place.

Alternatively, you can use a

screwdriver to attach to the

bottom

of the DIN-

rail kit and pull

down.

Suggested Removal Method

STEP 1:

Pull down the latch on the DIN

rail

kit with a screwdriver.

STEP 2:

Slightly pull the device forward

and lift up to remove it from the

mounting rail.

NOTE

If the equipment is used in a manner not specified by the

manufacturer, the protection provided by the equipment may

be impaired.

The installation and the safety of any system incorporating

the equipment is the responsibility of the assembler of the

system.

This is an OPEN TYPE module and should be installed in a

safety enclosure with mechani

cal rigidity and an appropriate

IP rating.

- 7 -

Wall Mounting (optional)

For some applications, you will find it convenient to mount EDS on the

wall, as illustrated below.

There are two options for installation: The first option

is to h

ook the EDS DIN-rail latch on the opening of

the

wall mount kit (see picture above)

and

then mount the

wall

-mount kit on the wall with screws. (The other

option is to perform these two steps i

n the other

order.) The heads of the screws should be less than

6.0 mm in diameter, and the shafts should be less than 3.5 mm in

diameter, as shown in the figure at the right.

NOTE

Before tightening screws into the wall, make sure the screw head

and

shank size are suitable by inserting th

e screw into one of the

keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

Once the screws are fixed in the

wall, insert the

two screw heads

through the large parts of the

keyhole

-shaped apertures, and

then slide EDS downwards, as

indicated. Tighten the

two

screws

for added stability.

WARNING

External metal parts are hot. Take necessary precautions if it is

necessary to touch.

- 8 -

Wiring Requirements

WARNING

Do not disconnect modules or wires unless the power supply has

been switched off or the area is known to be non

-hazardous.

The

devices may

only be connected to the supply voltage shown on

the type plate.

The devices are designed for operation with a

Safety Extra-L

Voltage. Thus, they may only be connected to the supply voltage

connections and to the signal contact with the

Safety Extra-Low

Voltages (SELV) in compliance with IEC950/ EN60950/ VDE0805.

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

Moxa EtherDevice Switch.

Calculate the maximum possible current

in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

- 9 -

Grounding Moxa EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

A 4 mm2conductor must be used when a connection to the external

grounding screw is utilized.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

Wiring the Power Input

The top two contacts and the bottom two contacts of the 2 or 3 contact

terminal block connector on the EDS’s top panel are used for the EDS’s

two DC inputs. Top and front views of one of the terminal block

connectors are shown here.

STEP 1:

Insert the negative/positive DC wires into the V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block connector prongs into the terminal block

receptor, which is located on the EDS’s top panel.

NOTE

The power source comes from secondary circuits. These circuits

are separated from mains circuits by a transformer in which the

primary windings are separated from the secondary windings by

reinforced installation, double installation, or a screen connected

to the protective conductor terminal.

ATTENTION

Before connecting

the EDS to the DC power inputs, make sure

the

DC power source voltage is stable.

- 10 -

ATTENTION

One individual conductor in a clamping point with 28

-14 AWG

wire size, and a torque value of 1.7 lb-in should be used.

ATTENTION

The

cable that is connected to the field wiring terminals

must be

capable of withstanding at least 105°C.

Communication Connections

The EDS-2005-EL/ELP models have 10/100BaseT(X) Ethernet ports.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS’s front panel are used to

connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

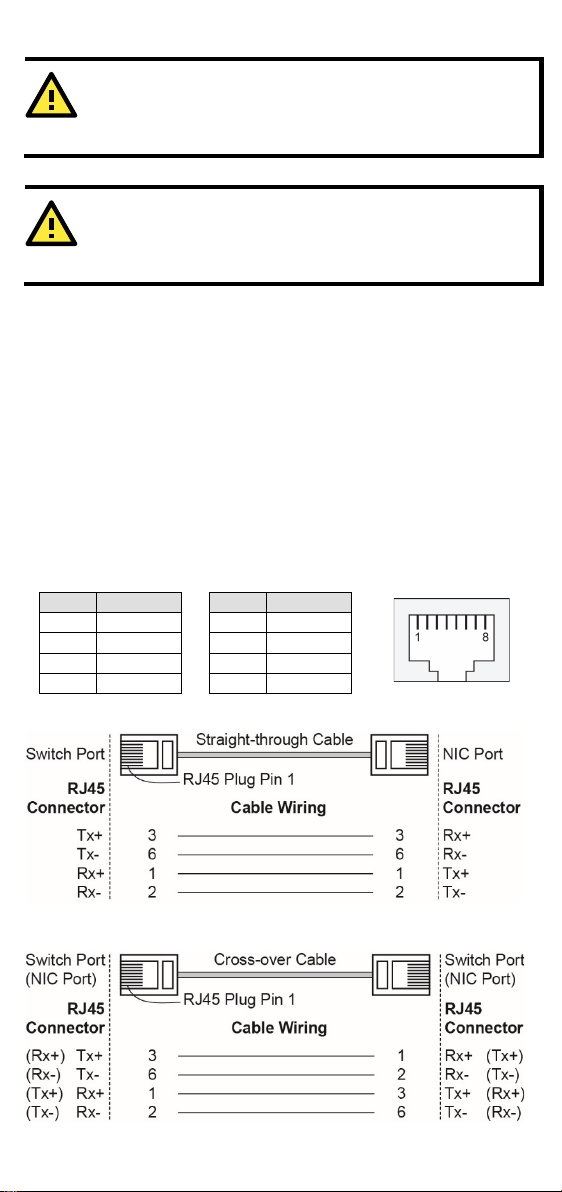

RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies NPort S8458 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuale

Moxa Technologies

Moxa Technologies NPort S8000 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuale utente

Moxa Technologies

Moxa Technologies PT-G503-PHR-PTP Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manuale

Moxa Technologies

Moxa Technologies PT-508 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A-T Manuale

Moxa Technologies

Moxa Technologies EDS-2008-EL Series Manuale utente

Moxa Technologies

Moxa Technologies RKS-G4028 Series Manuale utente

Moxa Technologies

Moxa Technologies TN-G6512 Serie Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE Manuale

Moxa Technologies

Moxa Technologies EDS-405A Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-F-24 Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies PT-7324 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510A-8PoE Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510-T Manuale utente

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
