EDS-G2008-EL/ELP Series

Quick Installation Guide

Moxa EtherDevice Switch

Version 1.0, December 2022

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The EDS-G2008-EL/ELP Series has an 8-port combination to simplify

network expansion. There are two housing types available for the user

to select depending on the requirements of their application. The ELP

has a plastic housing and the EL has a metal housing. The compact

switches provide a cost-effective solution for your industrial Ethernet

connection requirements.

The EDS-G2008-EL/ELP Series provides 12/24/48 VDC power input,

and the switches are available with a standard operating temperature

range from -10 to 60°C, or with a wide operating temperature range

from -40 to 75°C (only available for the –T models in the EL Series).

The switches are rugged enough to operate reliably in harsh industrial

environments.

To provide greater versatility for use with applications from different

industries, the EDS-G2008-EL/ELP Series also allows users to enable or

disable broadcast storm protection (BSP), Quality of Service (QoS)

function via the DIP switches on the top panel.

The EDS-G2008-EL/ELP switches can be easily installed with DIN-rail

mounting as well as distribution boxes. The DIN-rail mounting

capability with LED indicators ensure that the plug-and-play EDS-

G2008-EL/ELP switches are reliable and easy to use.

NOTE

Throughout this Quick Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

ATTENTION

This device complies with part 15

of FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operations.

Package Checklist

Your EDS is shipped with the following items. If any of these items are

missing or damaged, please contact your customer service

representative for assistance.

•Moxa EtherDevice™ Switch

•Quick installation guide (printed)

•Warranty card

- 3 -

Features

High Performance Network Switching Technology

•10/100/1000BaseT(X) auto-negotiation speed, full/half duplex

mode, auto MDI/MDI-X connection.

•IEEE 802.3 for 10BaseT.

•IEEE 802.3u for 100BaseT(X).

•IEEE 802.3ab for 1000BaseT(X).

•IEEE 802.3x for flow control.

•IEEE 802.1p for Quality of Service (QoS) traffic prioritized function.

•Store-and-forward switching process type.

Industrial-grade Reliability

•Broadcast storm protection to prevent network devices from

crashing.

Rugged Design

•Operating temperature range from -10 to 60°C, or extended

operating temperature from -40 to 75°C for “-T” models.

•Rugged high-strength case.

•DIN-rail or wall mounting ability.

WARNING

The

power for this product is intended to be supplied by a

Listed Power Supply, with output marked LPS, and rated to

deliver 12 to 48 VDC at a maximum of 0.33 A.

- 4 -

Panel Layout of EDS-G2008-EL/EDS-G2008-ELP

1. Chassis ground screw

2. Terminal block for power input

3. DIP switch

4. Power LED

5. 10/100/1000BaseT(X) Port

6. 10/100/1000BaseT(X) Port LED

7. Port number

8. Model name

- 5 -

Mounting Dimensions

EDS-G2008-EL Series

EDS-G2008-ELP Series

- 6 -

DIN-rail Mounting

When shipped, the DIN-rail mounting kit is fixed to the back panel of

the EDS. Mount the EDS on the corrosion-free mounting rail that

adheres to the EN 60715 standard.

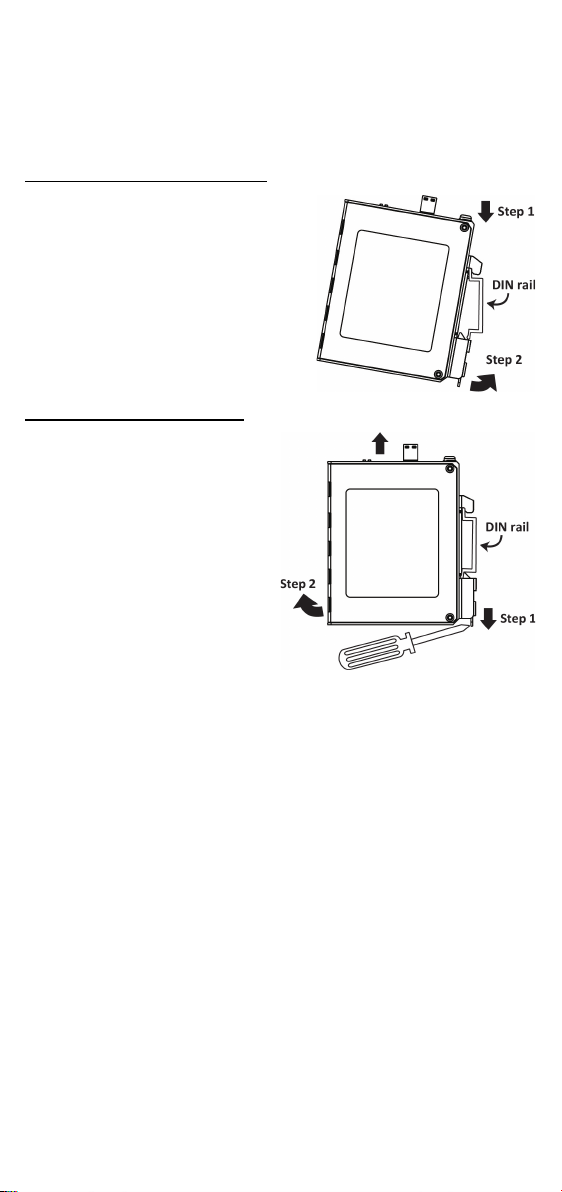

Suggested Installation Method

STEP 1:

Insert the upper lip of the DIN

rail kit into the mounting rail.

TEP 2:

Pres

s the device towards the

mounting rail until it snaps into

place.

Alternatively, you can use

a screwdriver to attach to the

bottom of the DIN

rail kit and pull

down.

Suggested Removal Method

STEP 1:

Pull down the latch on the DIN

rail kit wit

h a flat-head

screwdriver.

STEP 2:

Slightly pull the device forward

and lift up to remove it from the

mounting rail.

- 7 -

ATTENTION

When installing or removing the devices, please insert a flat

head screwdriver into the

latch of the holding clamp and pull

the latch downward rather than pushing it to

wards the DIN rail

side,

when removing the module from the rail.

If you want to change the position of the device on the DIN rail,

please follow the steps shown in the image

s above. First,

remove the device using a flat

-head screwdriver and then re-

install the device in the desired position. Please DO NOT directly

move the device on the DIN rail, without uninstalling it first.

If the equipment is used in a manner not specified b

y the

manufacturer, the protection provided by the equipment may

be impaired.

Please use a flat

-head screwdriver

with a head size of between 4 and 6

mm for proper installation or

removal.

WARNING

The installation and the safety of any system incorporating

the equipment is the responsibility of the assembler of the

system.

This is an open type module and should be installed in a

safety enclosure with mechanical rigidity and an

appropriate IP rating

- 8 -

Wall Mounting (optional)

For some applications, you will find it convenient to mount EDS on the

wall, as illustrated below.

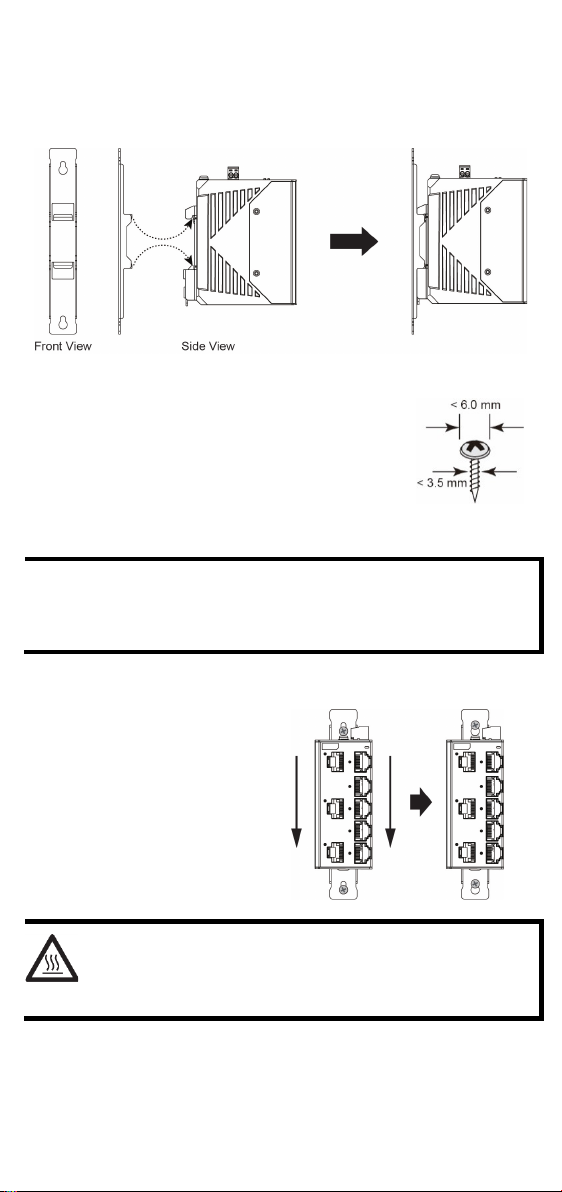

There are two options for installation: The first option

is to h

ook the EDS DIN-rail latch on the opening of

the

wall mount kit (see picture above) and then

mount the wall

-mount kit on the wall with screws.

(The other option is to perform these two steps in

the other order.)

The heads of the screws should be

less than

6.0 mm in diameter, and the shafts should

be less than 3.5 mm i

n diameter, as shown in the

figure at the right.

NOTE

Before tightening screws into the wall, make sure the screw

head and shank size are suitable by inserting th

e screw into

one of the keyhole

-shaped apertures of the Wall Mounting

Plates.

Do not screw the screws in all the way—leave about 2 mm to allow

room for sliding the wall mount panel between the wall and the screws.

Once the screws are fixed in the

wall, insert the

two screw heads

through the large parts of the

keyhole

-shaped apertures, and

then slide EDS downwards, as

indicated. Tighten the

two

screws for added stability.

WARNING

External parts are hot. Take necessary precautions if it is

necessary to touch.

- 9 -

Wiring Requirements

WARNING

Do not disconnect modules or wires unless the power supply

has been switched off or the area is known to be non

hazardous.

The devices may only be connected to the supply

voltage shown on the type

plate.

The devices are designed for operation with a

Safety Extra-L

oltage. Thus, they may only be connected to the supply

voltage connections and to the signal contact with the

Safety

xtra-Low Voltages (SELV) in compliance with

IEC950/EN60950/VDE0805/UL 61010-1/UL 61010-2-201.

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring

could overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power

wiring in the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb

is that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring to all devices in the

system when necessary.

- 10 -

Grounding Moxa EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the ground screw to the grounding surface prior to connecting devices.

A 4 mm2conductor must be used when a connection to the external

grounding screw is utilized.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

NOTE

When using shielded cables to connect two Ethernet devices, a

ground loop may occur if the shielding on the cables generates

an additional grounding connection path. This can cause ground

current to flow through to the Ethernet ports and damage the

devices. Therefore

, STP cables must only be connected to the

ground at one end.

Wiring the Power Input

The top two contacts and the bottom two contacts of the 2 or 3 contact

terminal block connector on the EDS’s top panel are used for the EDS’s

two DC inputs. Top and front views of one of the terminal block

connectors are shown here.

STEP 1:

Insert the negative/positive DC wires into the V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the

terminal block connector.

STEP 3:

Insert the plastic terminal block connector prongs into the terminal

block receptor, which is located on the EDS’s top panel.

NOTE

The power source comes from secondary circuits. These circuits

are separated from mains circuits by a transformer in which the

primary windings are separated from the secondary windings

by reinforced installation, double installation, or a screen

connected to the protective conductor terminal.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies OnCell G3111 Manuale utente

Moxa Technologies

Moxa Technologies ToughNet TN-5510A-2GLSX-ODC Manuale

Moxa Technologies

Moxa Technologies EDS-508A Series Manuale utente

Moxa Technologies

Moxa Technologies ToughNet TN-5510-2GLSX-ODC Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Istruzioni per il montaggio

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manuale

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manuale

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manuale utente

Moxa Technologies

Moxa Technologies NE-4100 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies TRC-190 Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EDS-528E Series Manuale utente

Moxa Technologies

Moxa Technologies TN-5516A Series Manuale

Moxa Technologies

Moxa Technologies UPort 404 Manuale utente

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manuale

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-F-24 Manuale utente

Moxa Technologies

Moxa Technologies PT-G7509 Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies EDS-G4008 Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
