Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa EtherDevice™ Switch

EDS-518A Series

Hardware Installation Guide

Fifth Edition, June 2010

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802005180013

- 2 -

Package Checklist

Moxa EtherDevice™ Switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer service

representative for assistance.

y1 Moxa EtherDevice Switch EDS-518A

yHardware Installation Guide

yCD-ROM with User’s Manual and Windows Utility

yMoxa Product Warranty Booklet

yRJ45 to DB9 Console port cable

yProtective caps for unused ports

yPanel mounting kit (optional—must order separately)

Optional Accessories

yDR-4524—45W/2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

yDR-75-24—75W/3.2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

yDR-120-24—120W/5A DIN-Rail 24 VDC Power Supply with 88 to 132

VAC/176 to 264 VAC input by switch

yEDS-SNMP OPC Server Pro—CD with EDS-SNMP OPC Server

Software and manual

yWK-46—Wall Mounting Kit

yRK-4U—4U-high 19" rack mounting kit

- 3 -

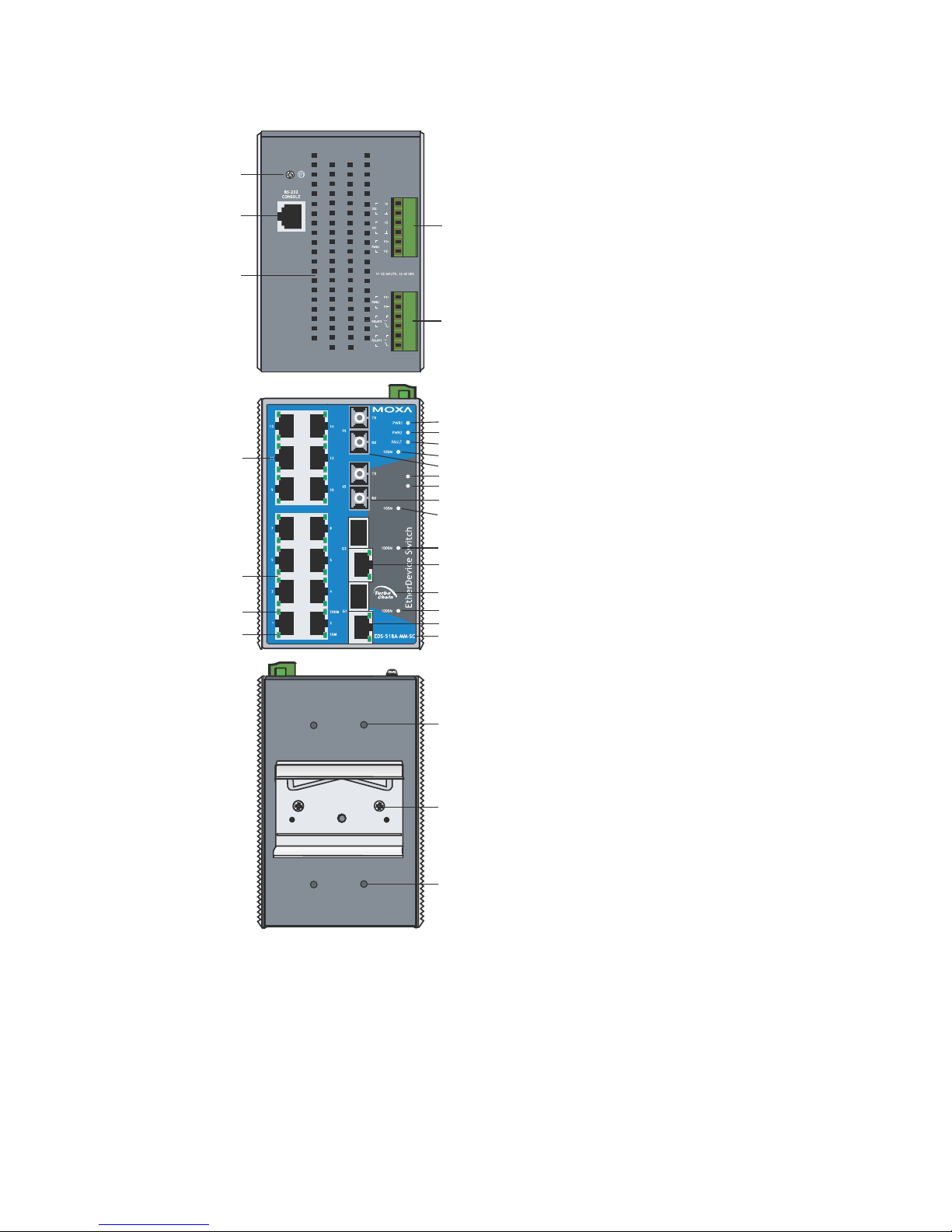

Panel Views of EDS-518A

MSTR/HEAD

CPLR/TAIL

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1, DI

2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 16

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10. MSTR/HEAD LED

11. CPLR/TAIL LED

12. 10/100/1000BaseT(X), port G2

13. 10/100/1000BaseT(X), port G1

14. Turbo Chain Logo

15. 1000 Mbps LEDs

16. TP port’s 100 Mbps LED

17. TP port’s 10 Mbps LED

18. Model Name

19. Screw hole for Wall Mounting

Kit

20. DIN-Rail Kit

- 4 -

Panel Views of EDS-518A

(SC/ST Type)

MSTR/HEAD

CPLR/TAIL

NOTE:

The appearance of EDS-518A-SS-SC

is identical to EDS-518A-MM-SC.

The appearance of EDS-518A-MM-ST is

identical to EDS-518A-MM-SC.

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1, DI

2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 14

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10. MSTR/HEAD LED

11. CPLR/TAIL LED

12. 10/100/1000BaseT(X) Port G2

13. 10/100/1000BaseT(X) Port G1

14. Turbo Chain Logo

15. 1000 Mbps LEDs

16. TP port’s 100 Mbps LED

17. TP port’s 10 Mbps LED

18. Model Name

19. 100BaseFX Port 16

20. 100BaseFX Port 15

21. 100BaseFX LEDs

22. Screw hole for Wall Mounting

Kit

23. DIN-Rail Kit

- 5 -

Mounting Dimensions (unit = mm)

PWR1

PWR2

FAULT

100M

1000M

100M

10M

EDS-518A-MM-SC

1000M

100M

Rear View

Side View

Front View

Wall Mounting Kit

DlN-Rail Kit

DlN-Rail

127.52

7.75 30.50 7.75

936.9113.4

00.53

30.00

00.531

0.79

71.01

15.00

86.80

00.531

7.5 55 7.5

02.72

03.84

3.5

13.9 18.2

13.9

08.66

50.75

MSTR/HEAD

CPLR/TAIL

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the back

panel of EDS-518A when you take it out of the box. If you need to reattach

the DIN-Rail attachment plate to EDS-518A, make sure the stiff metal spring

is situated towards the top, as shown by the following figures.

STEP 1—Insert the top of the

DIN-Rail into the slot just below the

stiff metal spring.

STEP 2—The DIN-Rail attachment

unit will snap into place as shown in

the following illustration.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the EDS-518A from the DIN-Rail, simply reverse Steps 1 and 2

above.

- 6 -

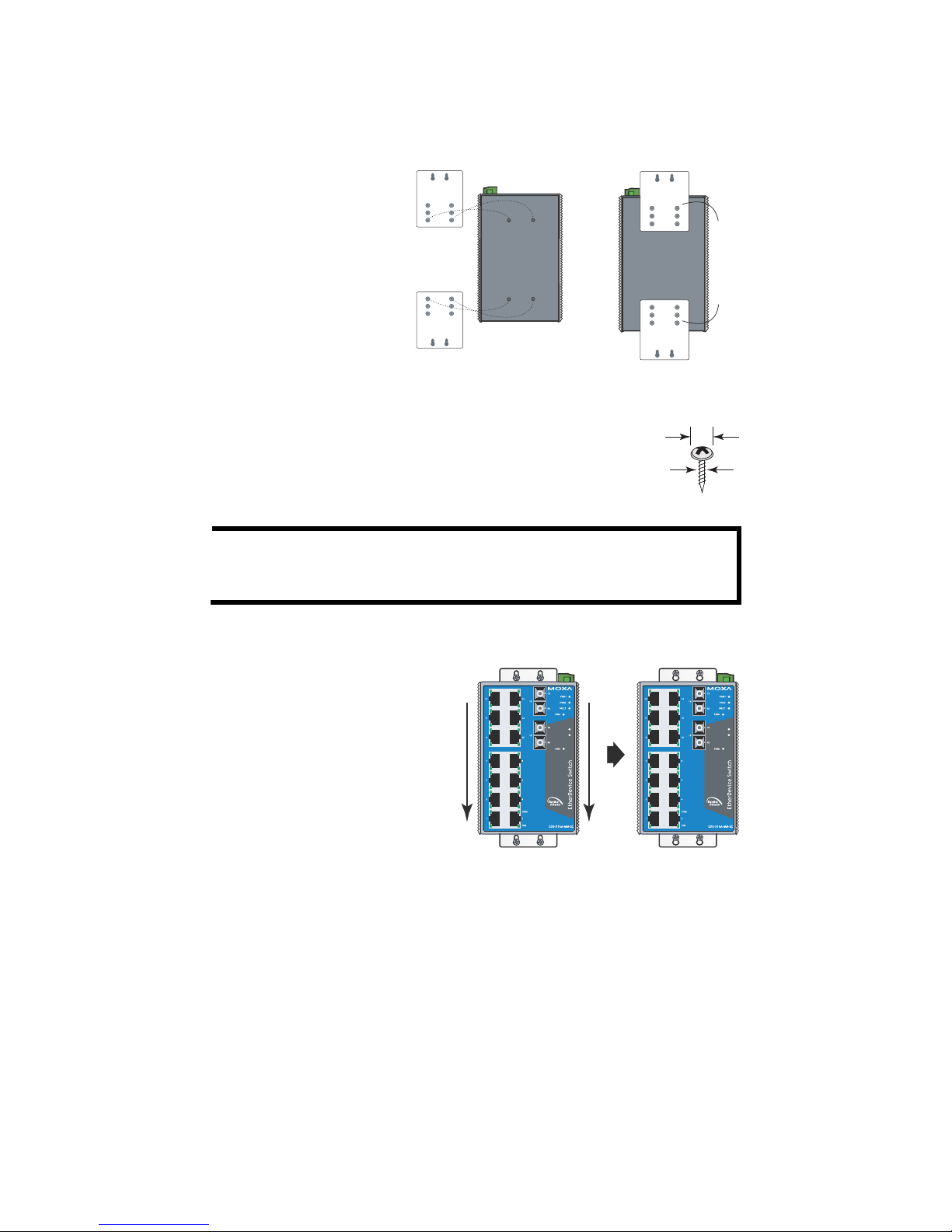

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa EDS-518A

on the wall, as shown by the following illustrations:

STEP 1—Remove the

aluminum DIN-Rail

attachment plate from the

Moxa EDS-518A rear panel,

and then attach the wall mount

plates with M3 screws, as

shown by the figure on the

right.

Top

plate

Bottom

plate

STEP 2—Mounting Moxa EDS-518A on the wall requires 4

screws. Use the EDS-518A, with wall mount plates attached, as a

guide to mark the correct locations of the 4 screws. The heads of

the screws should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5 mm in diameter, as shown by the figure

on the right.

6.0 mm

3.5 mm

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the

way—leave about 2 mm to allow

room for sliding the wall mount

panel between the wall and the

screws.

STEP 3—Once the screws are fixed

to the wall, insert the four screw

heads through the wide parts of the

keyhole-shaped apertures, and then

slide the EDS-518A downwards, as

indicated in the figure at the right.

Tighten the four screws for more

stability.

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

- 7 -

II 3G

ATEX Information

1. Certification number DEMKO 09 ATEX 0812123X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nC IIC T4)

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. The conditions of safe usage:

yThe Ethernet Communication Devices are to be mounted in an IP54

enclosure and used in an area of not more than pollution degree 2 as

defined by IEC60664-1.

yA 4mm2 conductor must be used when connection to the external

grounding screw is utilized.

yConductors suitable for use in an ambient temperature of 93°C must be

used for the Power Supply Terminal.

yProvisions shall be made, either in external to the apparatus, to prevent

the rated voltage being exceeded by the transients disturbances of more

than 40%.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

Safety Extra-Low Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

Safety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

ATTENTION

This unit is a built-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

- 8 -

You should also pay attention to the following points:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point

yNOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring that

shares similar electrical characteristics can be bundled together

ySeparate input wiring and output wiring

yWe advise that you label wiring to all devices in the system when

necessary.

Grounding the Moxa EDS-518A

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface such as a metal panel.

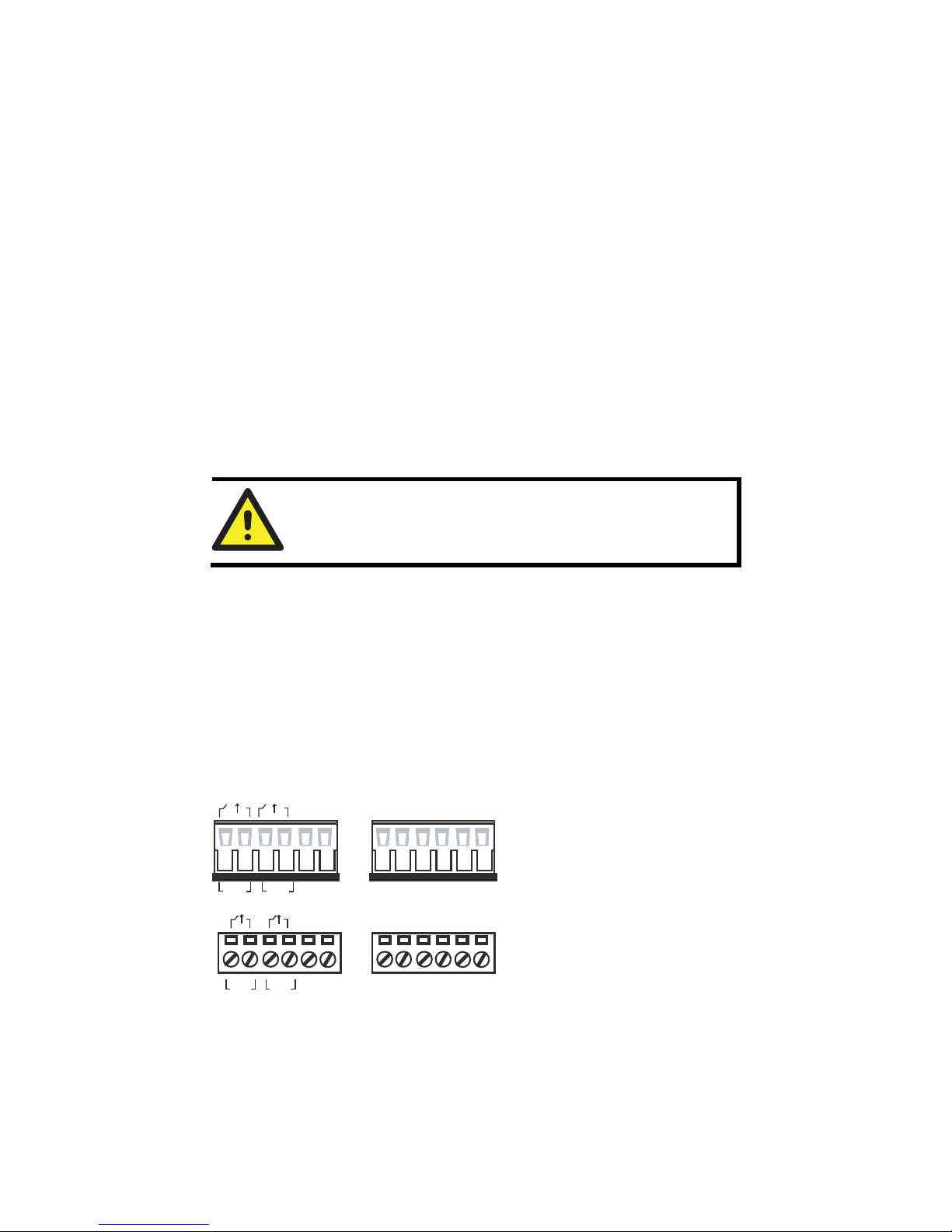

Wiring the Relay Contact

EDS-518A has two sets of relay outputs—relay 1 and relay 2. Each Relay

Contact consists of the two contacts of the terminal block on EDS-518A’s top

panel. You can refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor.

In this section, we will explain the meaning of the two contacts used to

connect the Relay Contact.

Relay1 Relay2

FAULT:

The two sets of relay contacts of

the 6-pin terminal block connector

are used to detect user-configured

events. The two wires attached to

the fault contacts form an open

circuit when a user-configured

event is triggered. If a

user-configured event does not

occur, the fault circuit remains

closed.

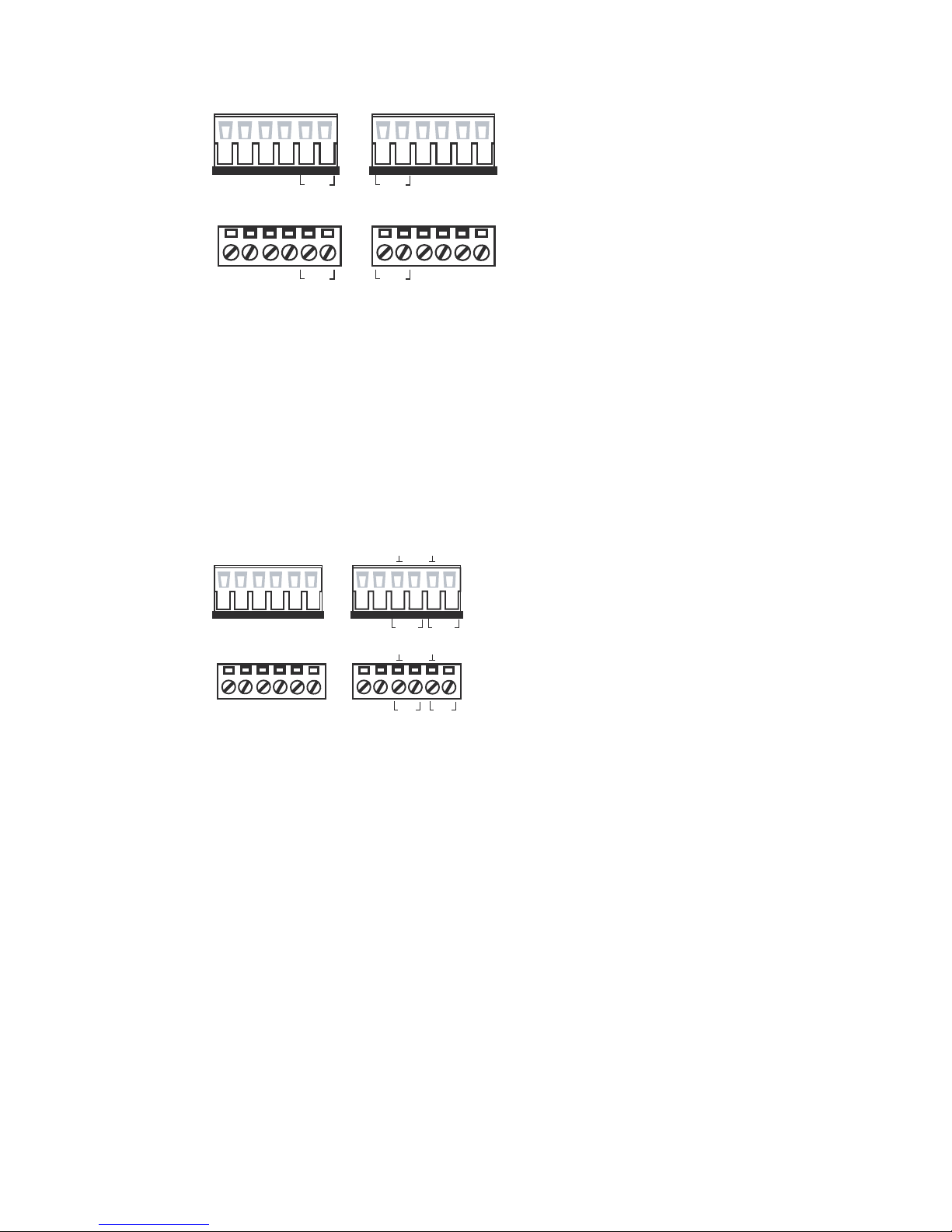

Wiring the Redundant Power Inputs

EDS-518A has two sets of power inputs—power input 1 and power input

2.The top two contacts and the bottom two contacts of the 6-pin terminal

block connector on EDS’ top panel are used for EDS’ two digital inputs. The

top and front views of one of the terminal block connectors are shown here.

- 9 -

PWR1 PWR2

V1- V1+

PWR1

V2- V2+

PWR2

V1- V1+ V2- V2+

STEP 1: Insert the

negative/positive DC wires into

the V-/V+ terminals, respectively.

STEP 2: To keep the DC wires

from pulling loose, use a small

flat-blade screwdriver to tighten

the wire-clamp screws on the front

of the terminal block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-518A’s top

panel.

Wiring the Digital Inputs

EDS-518A has two sets of digital inputs, DI 1 and DI 2. Each DI consists of

two contacts of the 6-pin terminal block connector on EDS’s top panel, which

are used for EDS’s two DC inputs. The top and front views of one of the

terminal block connectors are shown here.

D2I

D1I

I1I2

D2ID1I

STEP 1: Insert the negative

(ground)/positive DI wires into the ┴

/I1 terminals, respectively.

STEP 2: To keep the DI wires from

pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp

screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-518A’s top panel.

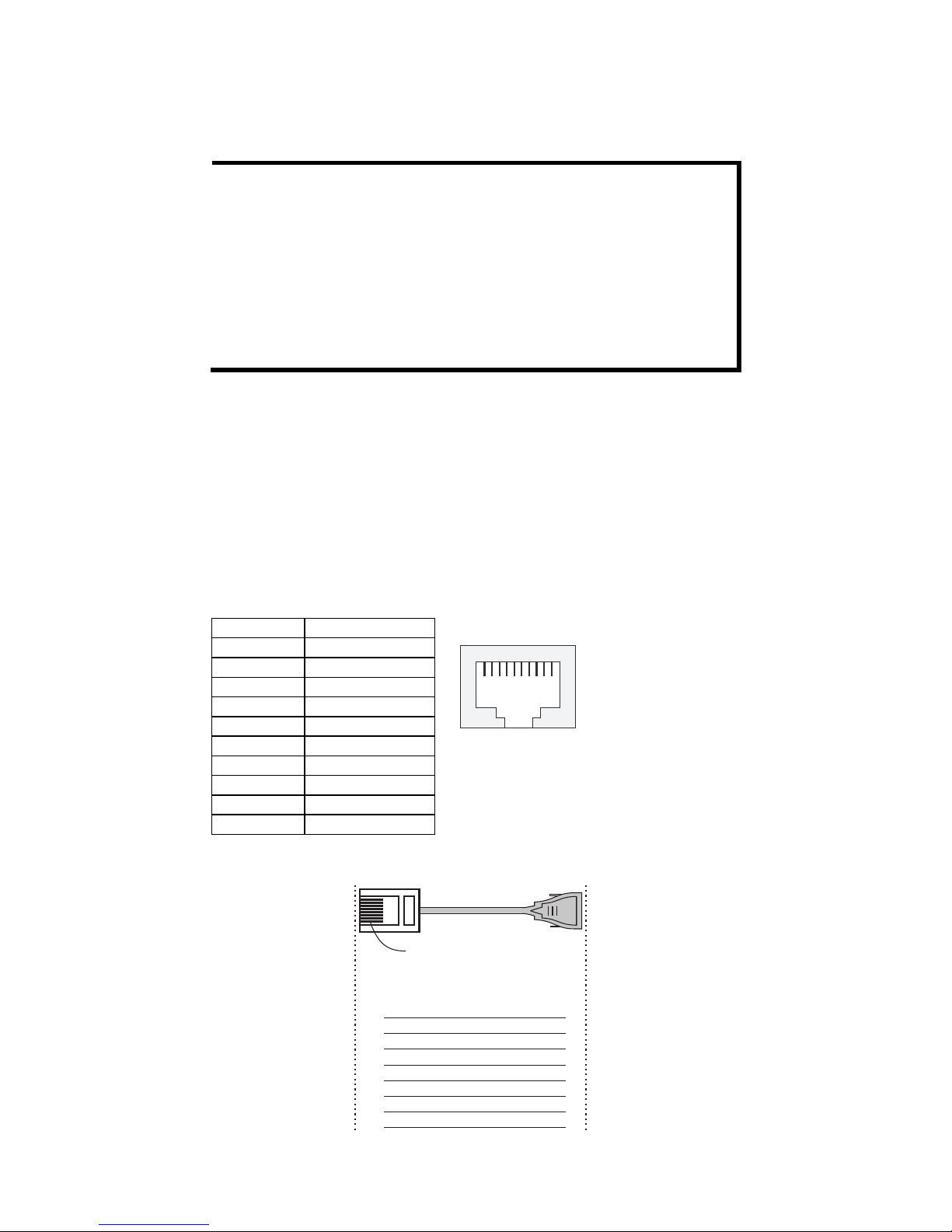

Communication Connections

All models of EDS-518A have one RJ45 console port (RS-232 interface),

between 14 and 16 10/100BaseTX Ethernet ports. Some models also have 2

100BaseFX (SC/ST-type connector) fiber ports.

In this section, we present two types of diagrams—Pinout Diagrams and

Cable Wiring Diagrams—to convey information about the ports and the

cables used to connect Moxa EDS-518A to other devices:

Pinouts—The meaning of the “Pinouts” diagrams is straightforward. The

diagrams simply display the type of signal passing through each of the port’s

pins.

Cable Wiring—Diagrams labeled “Cable Wiring” present standard cable

wiring schemes for cables used to connect Moxa EtherDevice Switch’s ports

to other devices. These diagrams display three pieces of information:

1. When building your own cable, refer to the “pin-to-pin” Cable Wiring

information displayed between the two vertical dashed lines to see

which pin of the connector on the left should be connected to which pin

of the connector on the right.

- 10 -

2. The information to the left of the left vertical dashed lines gives the

pinouts of the relevant Moxa EtherDevice Switch port.

3. The information to the right of the right vertical dashed line gives the

pinouts of the opposing device’s port.

NOTE 1. The pin numbers for male DB9 and DB25 connectors, and

hole numbers for female DB9 and DB25 connectors are

labeled on the connector. However, the numbers are typically

quite small, so you may need to use a magnifying glass to see

the numbers clearly.

2. The pin numbers for both 8-pin and 10-pin RJ45 connectors

(and ports) are typically not labeled on the connector (or port).

Refer to the following Pinout and Cable Wiring diagrams to

see how RJ45 pins are numbered

RS-232 Connection

Moxa EDS-518A has one RS-232 (10-pin RJ45) console port, located on the

top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable (see the cable

following wiring diagrams) to connect Moxa EDS-518A’s console port to

your PC’s COM port. You may then use a console terminal program, such as

Moxa PComm Terminal Emulator, to access Moxa EDS-518A’s console

configuration utility.

RJ45 (10-pin) Console Port Pinouts

Pin Description

1 ------

2 DSR

3 ------

4 GND

5 TxD

6 RxD

7 GND

8 ------

9 DTR

10 ------

110

RJ45 (10-pin) to DB9 (F) Cable Wiring

RJ45 Plug Pin 1

Moxa

EtherDevice

Server

RJ45

Connector

DCD

DSR

RTS

GND

TxD

RxD

CTS

DTR

COM Port

Female DB9

Connector

DCD

DTR

CTS

GND

RxD

TxD

RTS

DSR

Cable Wiring

4/7

Altri manuali per EtherDevice EDS-518A Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Istruzioni per il montaggio

Moxa Technologies

Moxa Technologies EDS-600 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7710 Series Manuale

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manuale utente

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manuale

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-405A Manuale

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EDS-208 series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4POE-1GSFP-T Manuale utente

Moxa Technologies

Moxa Technologies NPort S8000 Series Manuale utente

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7324 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510-T Manuale utente

Moxa Technologies

Moxa Technologies EDS-P206A-4PoE-SS-SC Manuale

Moxa Technologies

Moxa Technologies PT-510 Series Manuale

Moxa Technologies

Moxa Technologies ICS-G7748A Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-726 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
