Moxa EtherDevice™ Switch

EDS-405A/408A Series

Hardware Installation Guide

Seventh Edition, June 2010

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802004000016

—2 —

Overview

The Moxa EtherDevice™ EDS-405A/408A series, which includes both 8 and

5-port smart Ethernet switches, is a cost-effective solution for your Ethernet

connections. In addition, the built-in smart alarm function helps system

maintainers monitor the health of your Ethernet network.

Package Checklist

The Moxa EDS-405A/408A is shipped with the following items. If any of

these items is missing or damaged, please contact your customer service

representative for assistance.

y1 Moxa EtherDevice Switch (EDS-405A or EDS-408A)

yHardware Installation Guide

yCD-ROM with User’s Manual and Windows Utility

yWarranty Statement

yRJ45 to DB9 console port cable

yProtective caps for unused ports

yPanel Mounting Kit (optional—must order separately)

—3 —

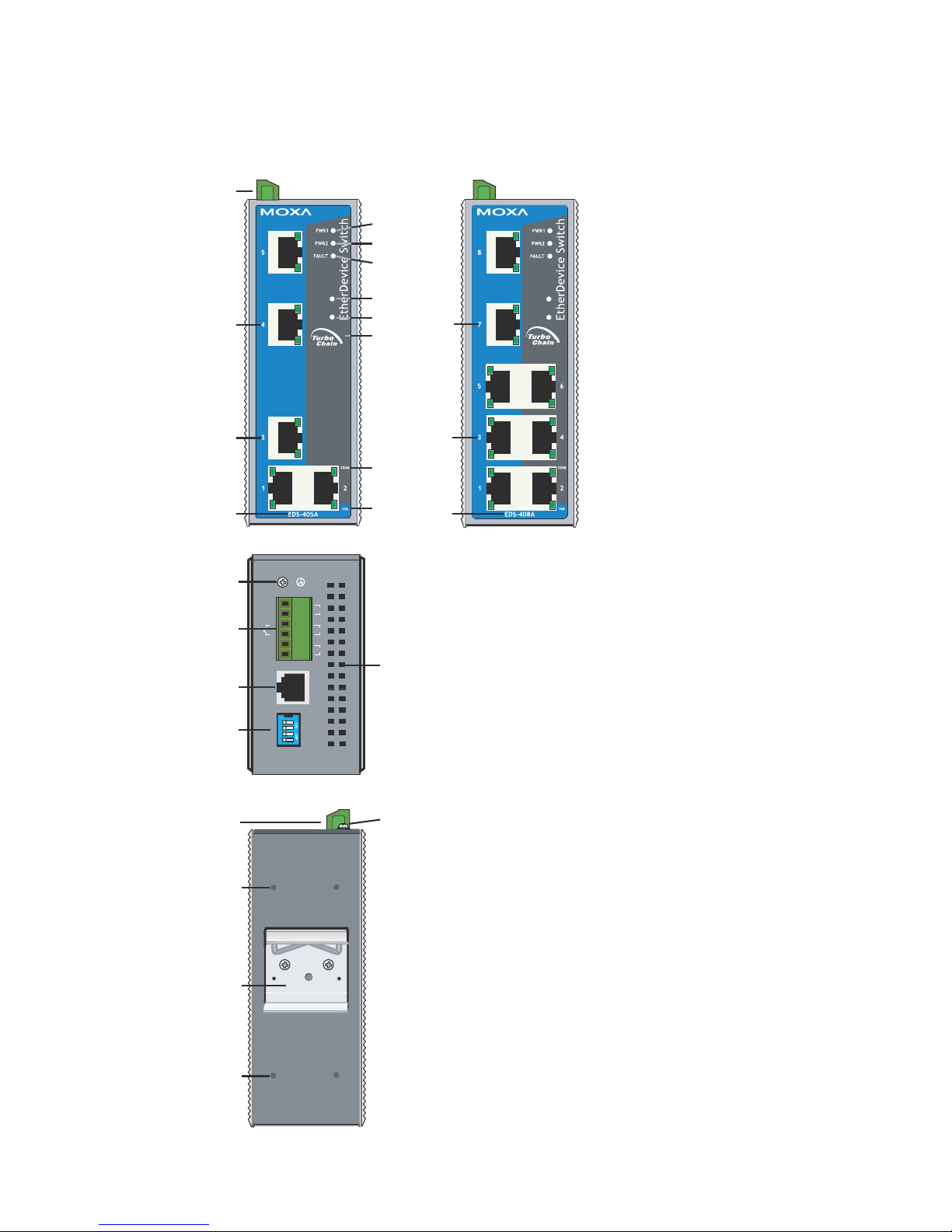

EDS-405A/408A Panel Layout

(Standard)

EDS-405A

Front Panel View

EDS-408A

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

V2+

V2-

V1-

V1+

RS-232 CONSOLE

------

MASTER

COUPLER

TURBO

RING

ONOFF

PWR2

RELAY

PWR1

Top Panel View

Rear Panel View

4321

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. Screw hole for wall mounting kit

17. DIN-Rail kit

—4 —

EDS-405A/408A-MM (SC-type)

Panel Layout

EDS-405A-MM-SC

Front Panel View

EDS-408A-MM-SC

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

V2+

V2-

V1-

V1+

RS-232 CONSOLE

------

MASTER

COUPLER

TURBO

RING

ONOFF

PWR2

RELAY

PWR1

Top Panel View

Rear Panel View

4321

NOTE: The appearance of

EDS-405A-SS-SC is identical to that of

EDS-405A-MM-SC.

The appearance of EDS-408A-SS-SC is

identical to that of EDS-408A-MM-SC.

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

—5 —

EDS-405A/408A-MM (ST-type)

Panel Layout

EDS-405A-MM-ST

Front Panel View

EDS-408A-MM-ST

Front Panel View

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

V1, V2 INPUTS: 12-45 VDC

V2+

V2-

V1-

V1+

RS-232 CONSOLE

------

MASTER

COUPLER

TURBO

RING

ONOFF

PWR2

RELAY

PWR1

Top Panel View

Rear Panel View

4321

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

—6 —

EDS-408A-3M Panel Layout

(SC/ST-type)

EDS-408A-3M-SC

Front Panel View Front Panel View

EDS-408A-3M-ST

MSTR/HEAD

CPLR/TAIL

MSTR/HEAD

CPLR/TAIL

RS-232 CONSOLE

------

MASTER

COUPLER

TURBO

RING

ONOFF

Top Panel View

Rear Panel View

NOTE: The appearance of

EDS-408A-3S-SC,

EDS-408A-1M2S-SC and

EDS-408A-2M1S-SC are identical to

that of EDS-408A-3M-SC.

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Console port

4. DIP switches

5. Heat dissipation orifices

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. 10/100BaseT(X) ports

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. 100BaseFX ports

15. 1 FX port’s 100Mbps LEDs

100M-M: multi mode FX port

100M-S: single mode FX port

16. Model Name

17. Screw hole for wall mounting kit

18. DIN-Rail kit

—7 —

Mounting Dimensions (unit = mm)

Rear View

Side View

Front View

Wall Mounting Kit

DlN-Rail Kit

DlN-Rail

105.00

7.75 30.50 7.75

9.00 32.30

35.00

30.00

135.00

25.29

13 18 13

27.20

48.30

23.56 46.61 39.54

135.00

13.10 15.10 25.40

EDS-405A

3.5

66.80

57.05

13.9 18.2 13.9

MSTR/HEAD

CPLR/TAIL

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the back

panel of the EDS-405A/408A when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate, make sure the stiff metal spring is

situated towards the top, as shown in the following figures.

STEP 1:

Insert the top of the DIN-Rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-Rail attachment unit will

snap into place as shown.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the Moxa EtherDevice switch from the DIN-Rail, simply reverse

Steps 1 and 2.

—8 —

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-405A/408A on the wall, as shown in the following figures.

STEP 1:

Remove the aluminum

DIN-Rail attachment plate

from the EDS-405A/408A’s

rear panel, and then attach the

wall mount plates with M3

screws, as shown in the

diagram at the right.

⇒

top

plate

bottom

plate

STEP 2:

Mounting the EDS-405A/408A on the wall requires

4 screws. Use the switch, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the shafts should be

less than 3.5 mm in diameter, as shown in the figure

at the right.

6.0 mm

3.5 mm

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one of

the keyhole-shaped apertures of the wall mounting plates.

Do not screw the screws in completely—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

STEP 3: Once the screws are fixed on the wall, insert the four screw heads

through the large parts of the keyhole-shaped apertures, and then slide the

EDS-405A/408A downwards, as indicated. Tighten the four screws for added

stability.

II 3G

ATEX Information

1. Certificate number DEMKO 08 ATEX 0712961X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nC nL IIC T4)

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. The conditions of safe usage:

•These products must be mounted in an IP54 enclosure.

•Install in an area of pollution degree 2 or less.

•Use a conductor wire of size 0.2 mm² or greater.

•PROVISIONS SHOULD BE MADE, EXTERNAL TO THE

APPARATUS, TO PREVENT THE RATED VOLTAGE FROM

BEING EXCEEDED BY TRANSIENT DISTURBANCES OF

MORE THAN 40 %.

—9 —

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Be sure to read and follow these important guidelines:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

yUse the type of signal transmitted through a wire to determine which wires

should be kept separate. The rule of thumb is that wiring that shares similar

electrical characteristics can be bundled together.

yKeep input wiring and output wiring separate.

yIt is strongly advised that you label wiring to all devices in the system,

when necessary.

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

Wiring the Relay Contact

The Relay Contact consists of the two middle contacts of the terminal block on

the EDS-405A/408A’s top panel. Refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector, and

how to attach the terminal block connector to the terminal block receptor.

In this section, we explain the meaning of the two contacts used to connect the

Alarm Contact.

Relay

FAULT: The two middle contacts of the 6-contact

terminal block connector are used to detect both

power faults and port faults. The two wires attached

to the fault contacts form an open circuit when:

—10 —

Relay

1. A relay warning event is triggered.

2. The EDS-405A/408A is the Master of this Turbo

Ring, and the Turbo Ring is broken.

3. Start-up failure.

If none of these three conditions is satisfied, the fault

circuit will remain closed.

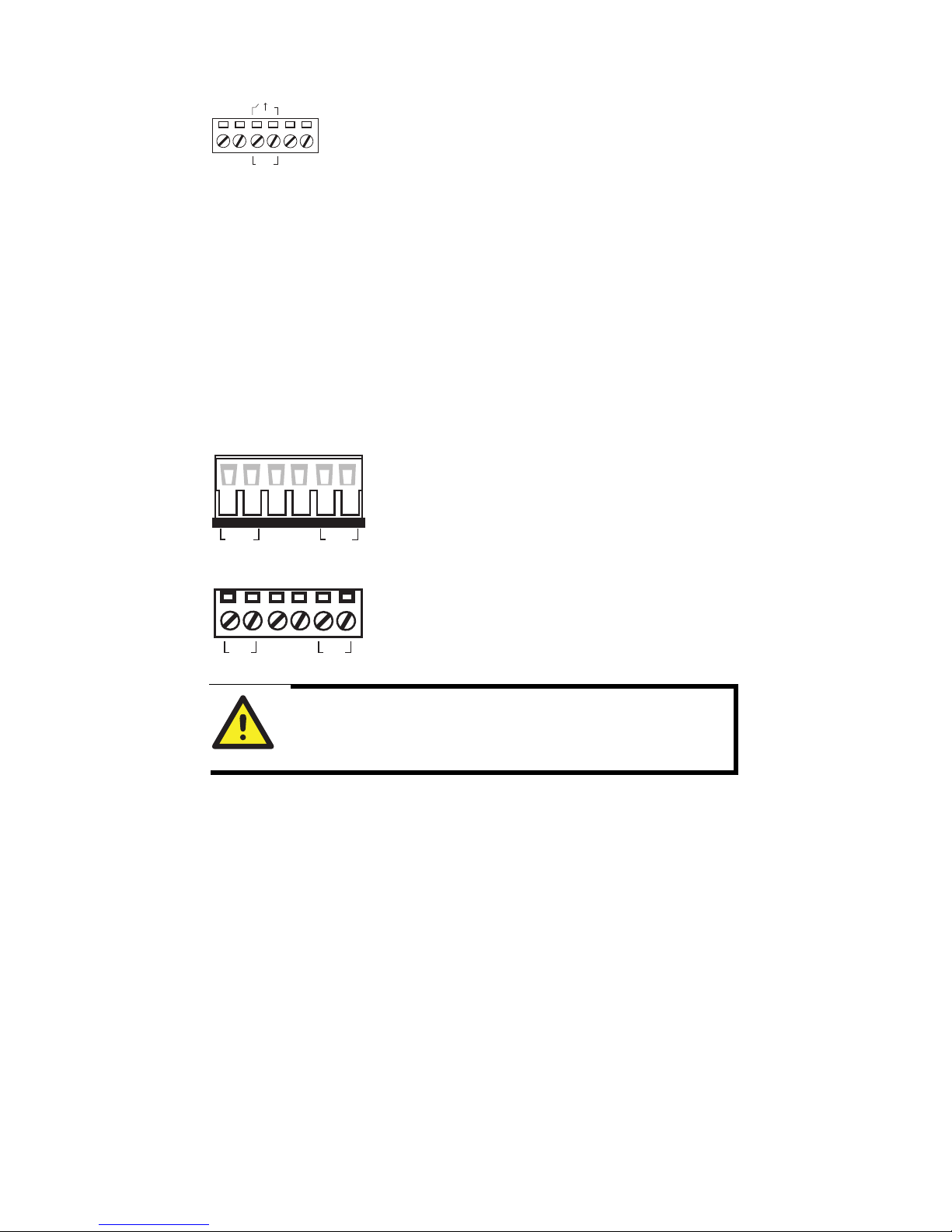

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact terminal

block connector on the EDS-405A/408A’s top panel are used for the

EDS-405A/408A’s two DC inputs. Top and front views of one of the terminal

block connectors are shown in the following figures:

PWR1 PWR2

V1- V1+ V2- V2+

PWR1 PWR2

STEP 1: Insert the negative/positive DC wires

into the V-/V+ terminals, respectively.

STEP 2: To keep the DC wires from pulling

loose, use a small flat-blade screwdriver to tighten

the wire-clamp screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block receptor,

which is located on the EDS-405A/408A’s top

panel.

ATTENTION

Before connecting the EDS-405A/408A to the DC power inputs,

make sure the DC power source voltage is stable.

Communication Connections

EDS-408A models have 8, 6, or 5 10/100BaseT(X) Ethernet ports, and 0 (zero),

2, or 3 100BaseFX (SC/ST-type connector) fiber ports. EDS-405A models

have 5 or 3 10/100BaseT(X) Ethernet ports, and 0 (zero) or 2 100 BaseFX

(SC/ST-type connector) fiber ports.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS’s front panel are used to

connect to Ethernet-enabled devices.

Next, we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

Altri manuali per EDS-405A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuale

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manuale utente

Moxa Technologies

Moxa Technologies EDS-2005-ELP Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-405A Manuale

Moxa Technologies

Moxa Technologies UPort 404 Manuale utente

Moxa Technologies

Moxa Technologies ToughNet TN-5510-2GLSX-ODC Manuale

Moxa Technologies

Moxa Technologies PT-G510 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-528E Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies IKS-G6524 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale utente

Moxa Technologies

Moxa Technologies TN-5308 Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-P206A-4PoE-SS-SC Manuale

Moxa Technologies

Moxa Technologies PT-7710 Series Manuale

Moxa Technologies

Moxa Technologies PT-G7509 Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
