Moxa EtherDevice Switch

EDS-205A/208A Series

Hardware Installation Guide

Fourth Edition, October 2009

Reproduction without permission is prohibited.

P/N: 1802002050023

- 2 -

Overview

The EDS-205A/208A series of industrial Ethernet switches are entry-level

industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE 802.3u,

and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX

auto-sensing.

The EDS-205A/208A series provides 12/24/48 VDC (9.6 to 60VDC)/18 to 30

VAC redundant power inputs that can be connected simultaneously to a live

AC/DC power source. The switches are available with a standard operating

temperature range from -10 to 60°C, or with a wide operating temperature

range from -40 to 75°C, and IP30 metal housing makes them rugged enough

for any harsh industrial environment.

To provide greater versatility for use with applications from different industries,

the EDS-205A/208A also allow users to enable or disable broadcast storm

protection with DIP switches on the outer panel.

The EDS-205A/208A switches can be easily installed with DIN-Rail mounting

as well as distribution boxes. The DIN-rail mounting capability and IP30 metal

housing with LED indicators make the plug-and-play EDS-205A/208A

switches reliable and easy to use.

NOTE Throughout this Hardware Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

Package Checklist

Your EDS is shipped with the following items. If any of these items is missing

or damaged, please contact your customer service representative for assistance.

yMoxa EtherDevice™ Switch

yHardware Installation Guide

yMoxa Product Warranty booklet

Features

High Performance Network Switching Technology

yEDS-205A: 10/100BaseT(X) (RJ45), 100 BaseFX (SC/ST connector,

multi/single-mode)

yEDS-208A series: 10/100BaseT(X) (RJ45), 100 BaseFX (SC/ST connector,

multi/single-mode)

y10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing

yIEEE 802.3/802.3u/802.3x

yStore and Forward switching process type, 1024 address entries

Rugged Design

yRedundant dual 12/24/48 VDC (9.6 to 60VDC) or 18 to 30 VAC at 47 to

63 Hz power input

yOperating temperature range from -10 to 60°C ,or extended operating

temperature of -40 to 75°C for (-T) models.

yIP30 metal housing

yDIN-rail or panel mounting ability

- 3 -

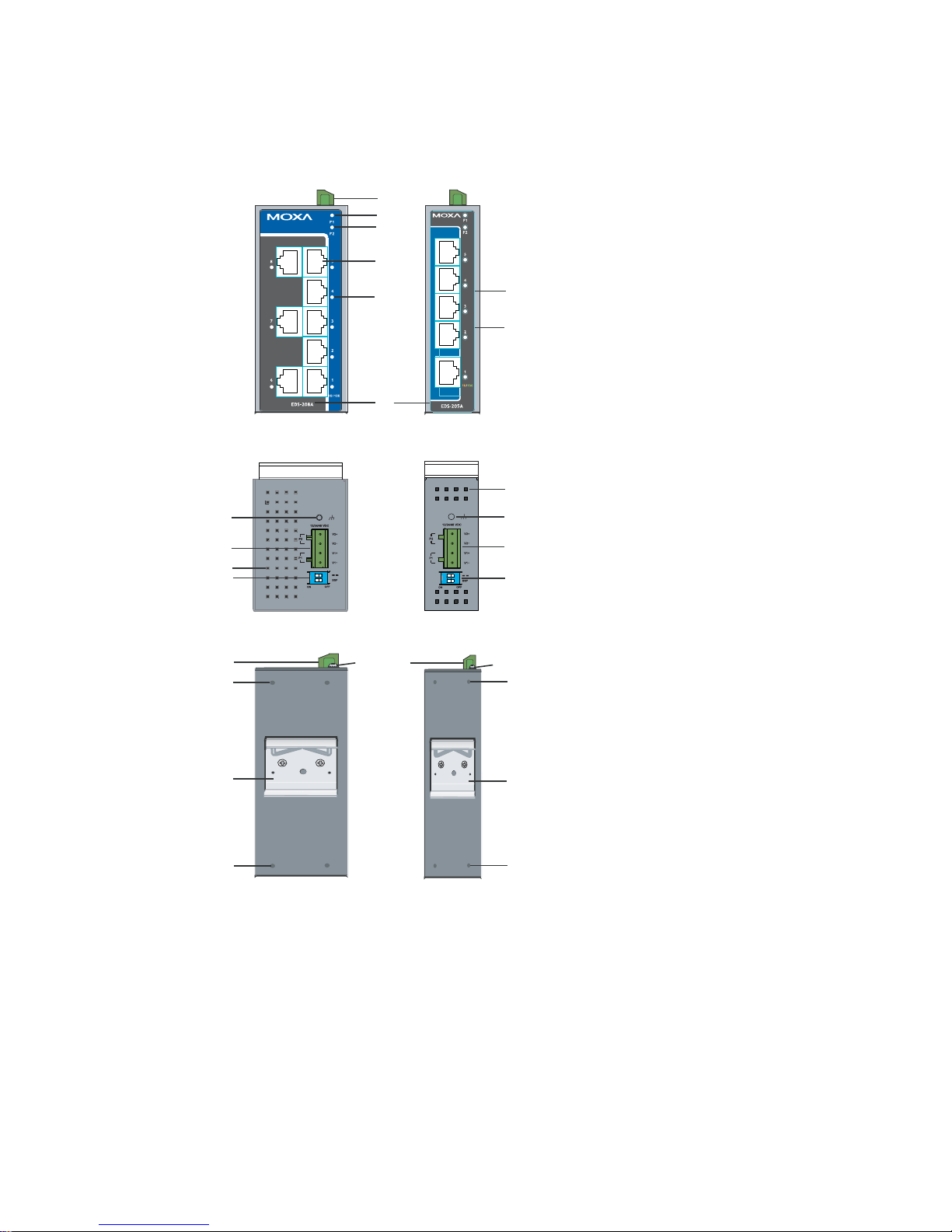

Panel Layout of EDS-205A/208A

(Standard)

Top Panel View Top Panel View

Rear Panel View Rear Panel View

10 10

EDS-208A

Front Panel View

EDS-205A

Front Panel View

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100

Mbps LED

9. Model Name

10. Screw hole for wall

mounting kit

11. DIN-Rail Kit

- 4 -

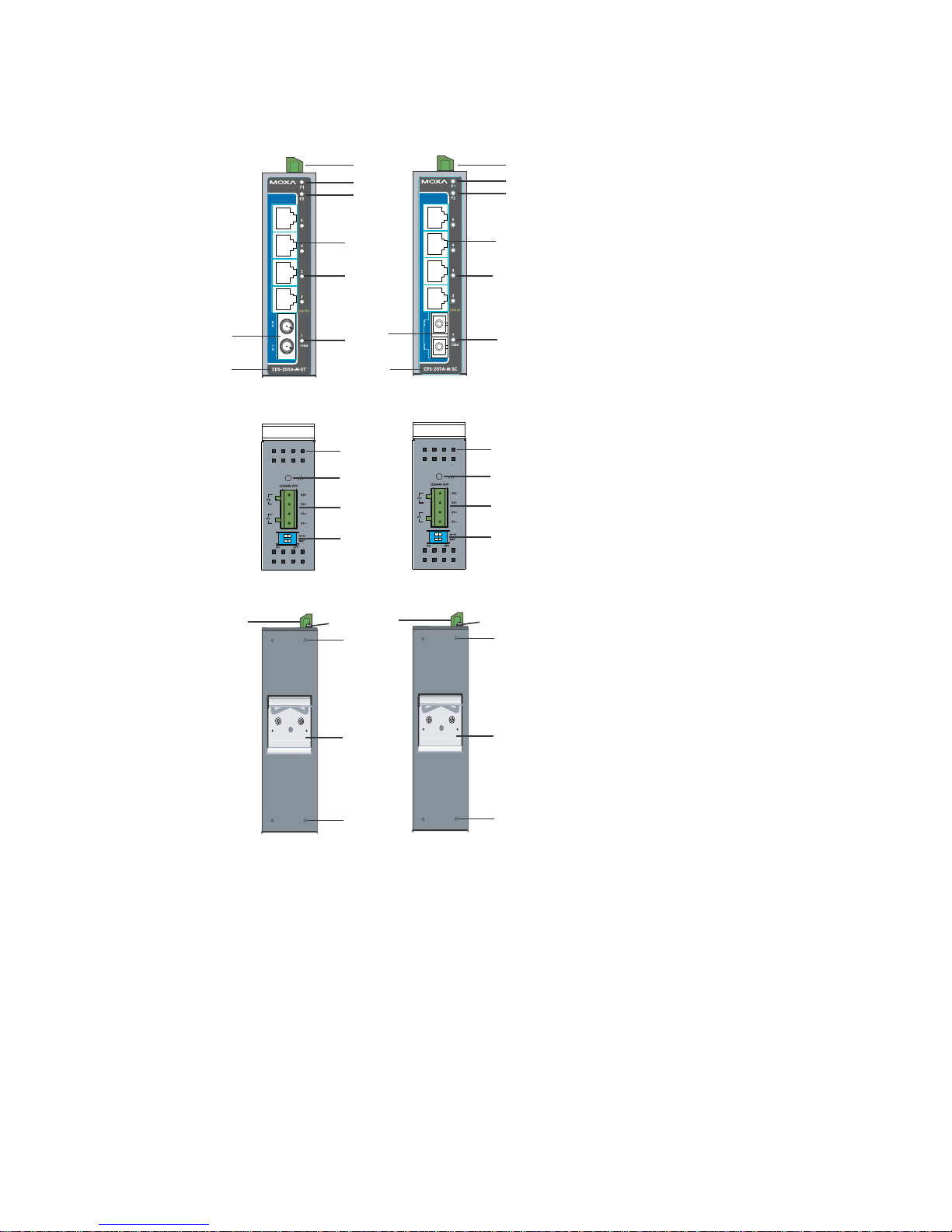

Panel Layout of EDS-205A-M-SC/ST

Top Panel View

Rear Panel View

212

EDS-205A-M-SC

Front Panel View

Top Panel View

Rear Panel View

212

EDS-205A-M-ST

Front Panel View

11 11

10 10

NOTE:

The appearance of

EDS-205A-S-SC is

identical to

EDS-205A-M-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100

Mbps LED

9. Model Name

10. 100BaseFX Port

11. FX port’s 100 Mbps

LED

12. Screw hole for wall

mounting kit

13. DIN-Rail Kit

- 5 -

Panel Layout of EDS-208A-M-SC/ST

Top Panel View

Rear Panel View

EDS-208A-M-SC

Front Panel View

Top Panel View

Rear Panel View

EDS-208A-M-ST

Front Panel View

NOTE:

The appearance of

EDS-208A-S-SC is

identical to

EDS-208A-M-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100

Mbps LED

9. Model Name

10. 100BaseFX Port

11. FX port’s 100 Mbps

LED

12. Screw hole for wall

mounting kit

13. DIN-Rail Kit

- 6 -

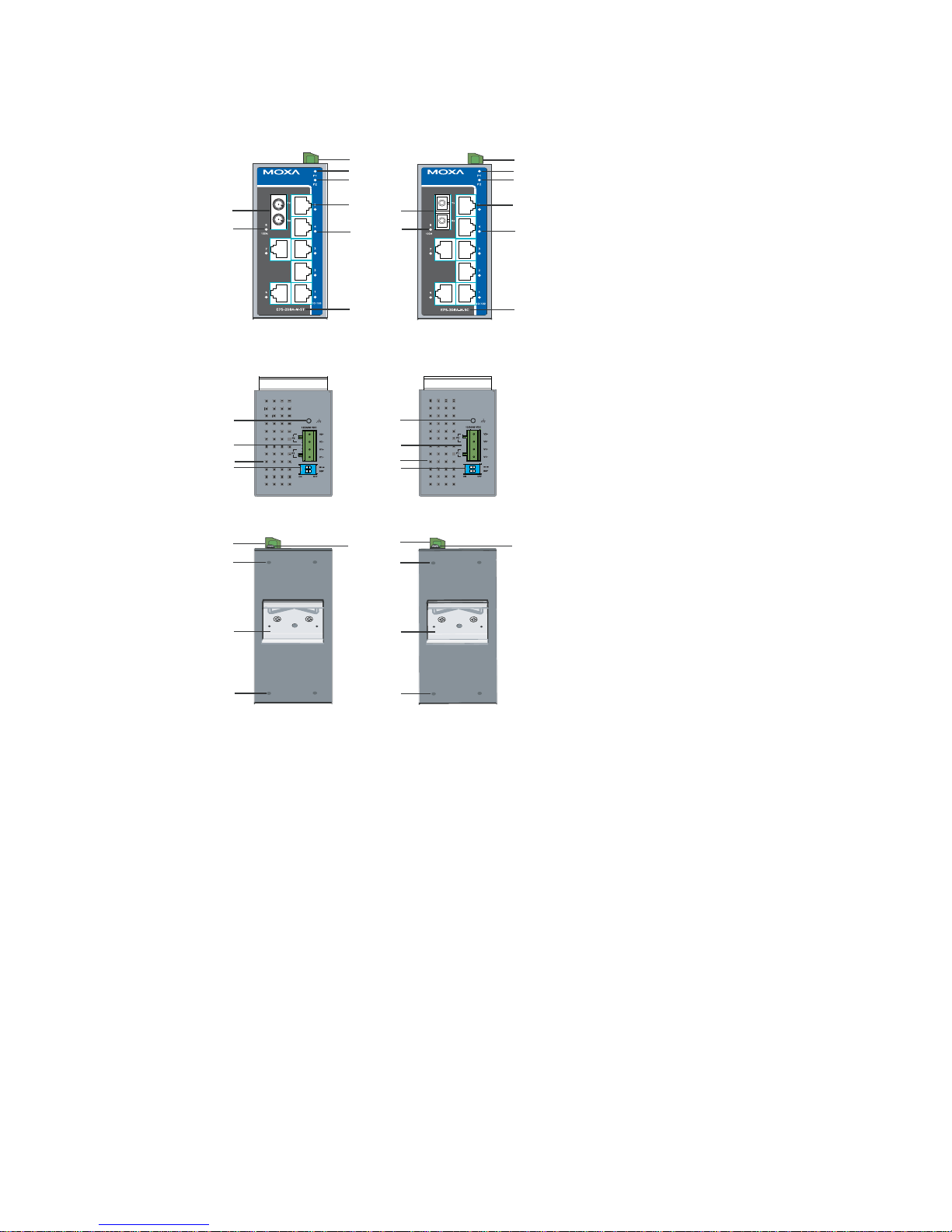

Panel Layout of EDS-208A-MM-SC/ST

Top Panel View

Rear Panel View

EDS-208A-MM-SC

Front Panel View

Top Panel View

Rear Panel View

EDS-208A-MM-ST

Front Panel View

NOTE:

The appearance of

EDS-208A-SS-SC is

identical to

EDS-208A-MM-SC.

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100

Mbps LED

9. Model Name

10. 100BaseFX Port

11. FX port’s 100 Mbps

LED

12. Screw hole for wall

mounting kit

13. DIN-Rail Kit

- 7 -

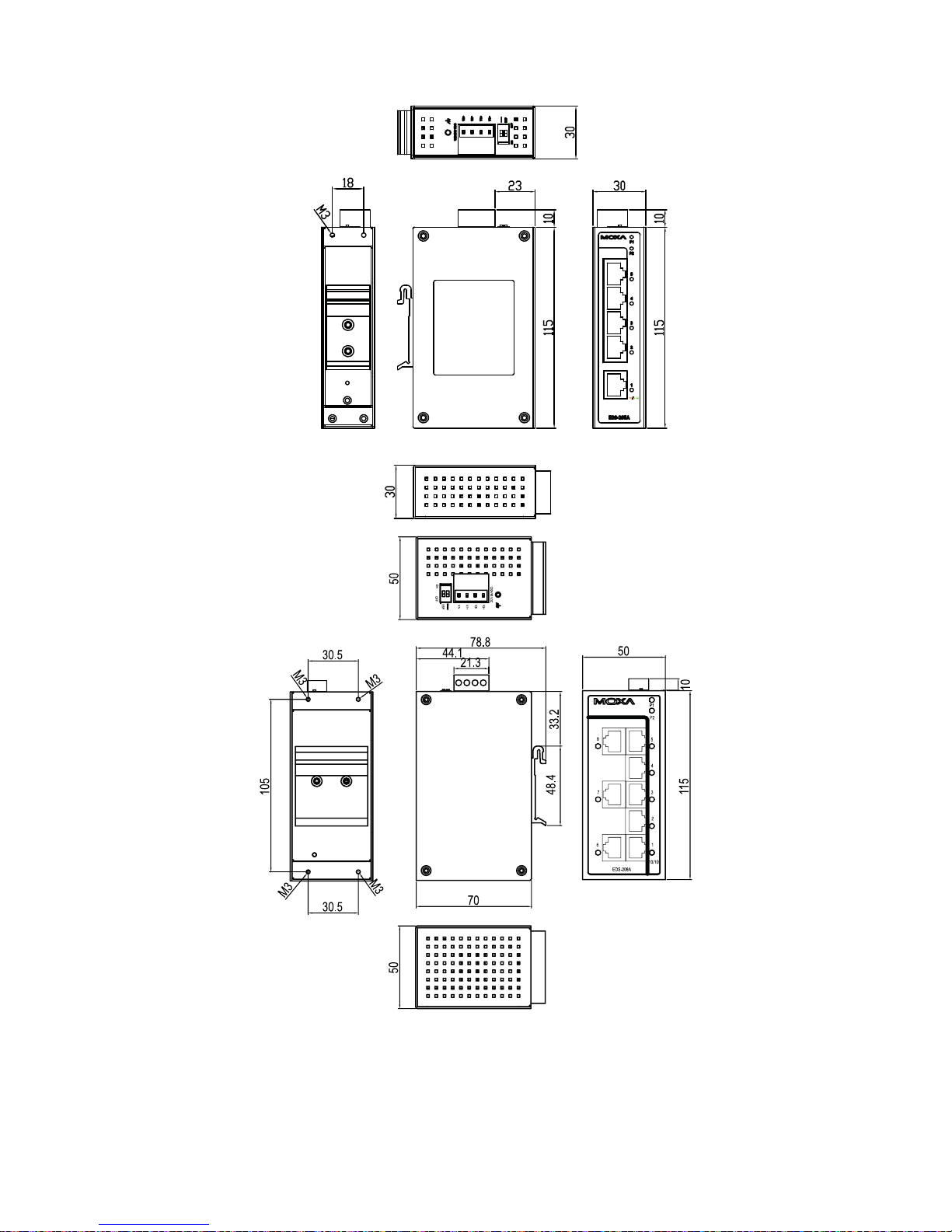

Mounting Dimensions (unit = mm)

- 8 -

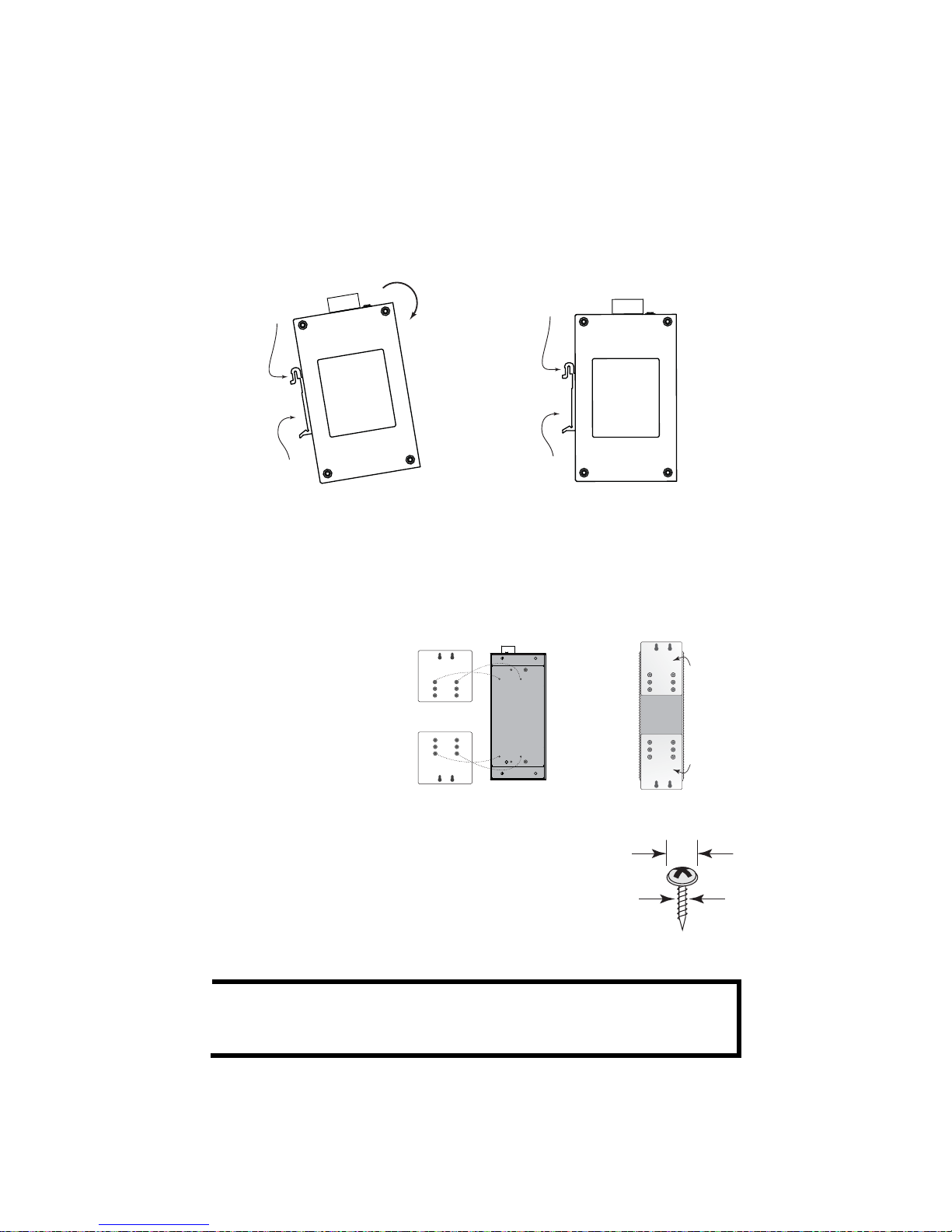

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the back

panel of the EDS when you take it out of the box. If you need to reattach the

DIN-rail attachment plate, make sure the stiff metal spring is situated towards

the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN-Rail into

the slot just below the stiff metal

spring.

STEP 2:

The DIN-Rail attachment unit will

snap into place as shown below.

DIN-Rail

Metal

Spring

Metal

Spring

DIN-Rail

To remove the EDS from the DIN-Rail, simply reverse Steps 1 and 2 above.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-205A/208A on the wall, as shown in the following figures.

STEP 1: Remove the

aluminum DIN-Rail

attachment plate from the

EDS-205A/208A’s rear

panel, and then attach the

wall mount plates as shown

in the diagram at the right.

⇒

top

plate

bottom

plate

STEP 2:

Mounting the EDS-205A/208A on the wall requires 4

screws. Use the switch, with wall mount plates attached,

as a guide to mark the correct locations of the 4 screws.

The heads of the screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5 mm in

diameter, as shown in the figure at the right.

6.0 mm

3.5 mm

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one of

the keyhole-shaped apertures of the wall mounting plates.

Do not screw the screws in completely—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

- 9 -

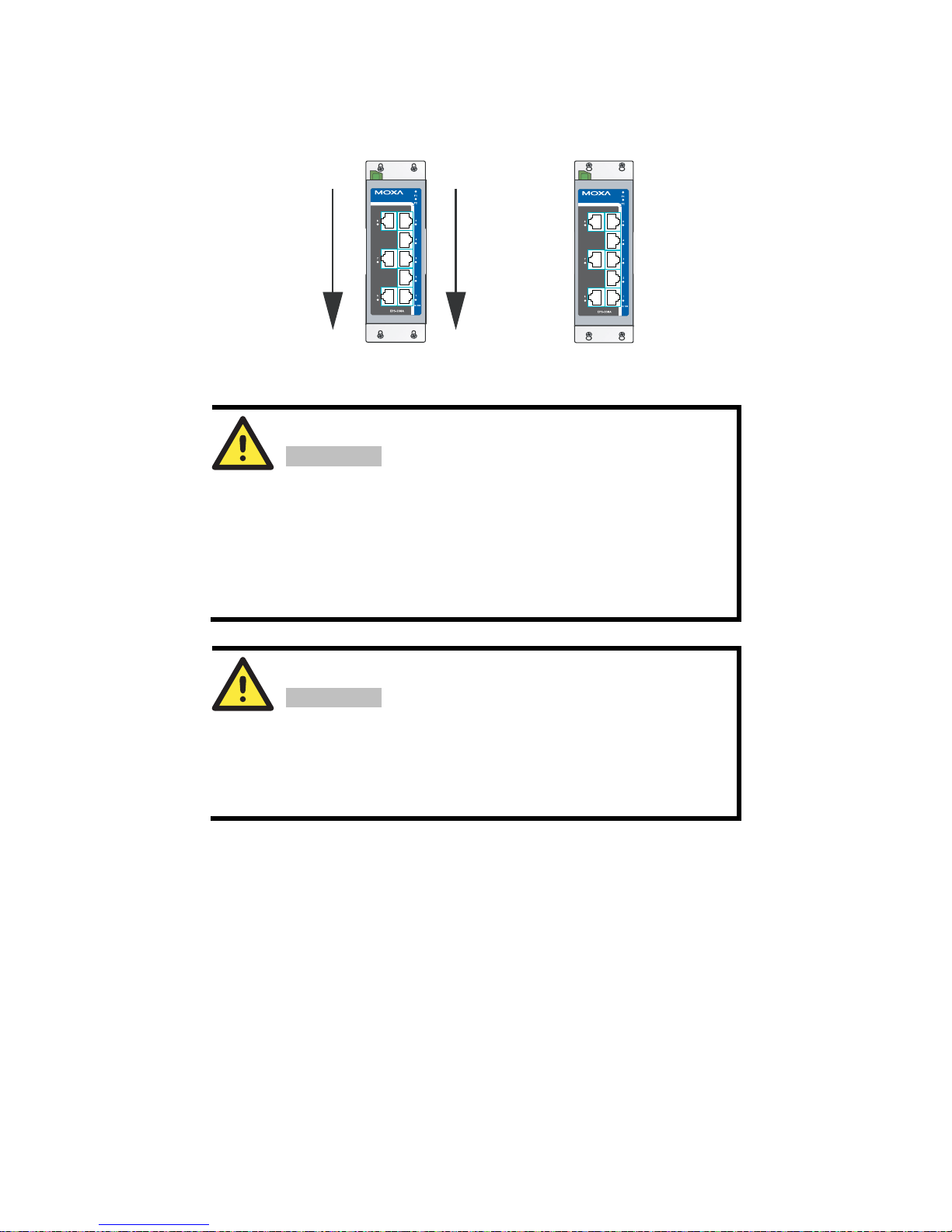

STEP 3:

Once the screws are fixed on the wall, insert the four screw heads through the

large parts of the keyhole-shaped apertures, and then slide the

EDS-205A/208A downwards, as indicated. Tighten the four screws for added

stability.

⇒

Wiring Requirements

WARNING

Safety First!

Turn the power off before disconnecting modules or wires. The

correct power supply voltage is listed on the product label. Check

the voltage of your power source to make sure that you are using

the correct voltage. Do NOT use a voltage greater than what is

specified on the product label.

These devices must be supplied by a SELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following points:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring that

shares similar electrical characteristics can be bundled together.

yKeep input wiring and output wiring separated.

yIt is strongly advised that you label wiring to all devices in the system when

necessary.

- 10 -

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface such as a metal panel.

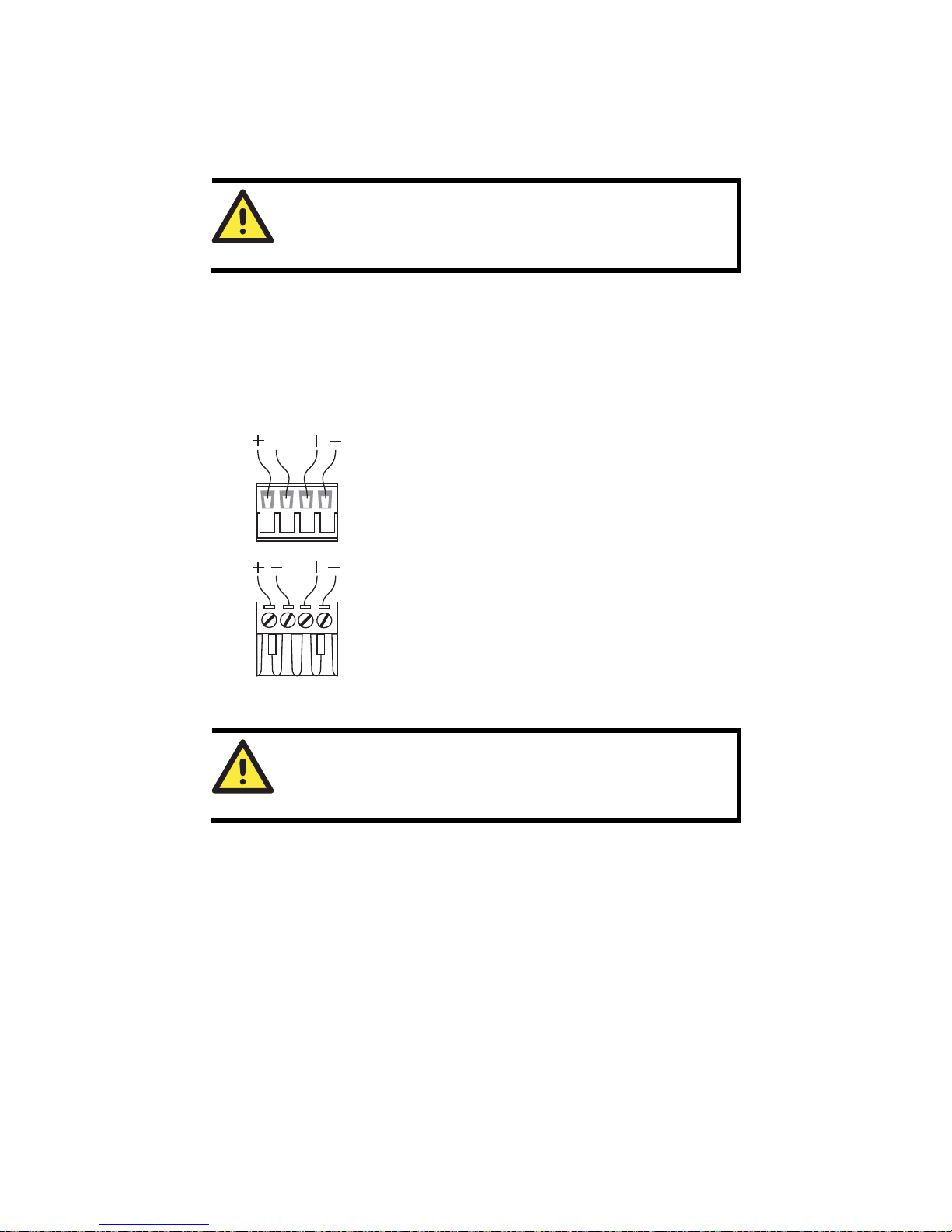

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 4-contact terminal

block connector on the EDS’s top panel are used for the EDS’s two AC/DC

inputs. Top and front views of one of the terminal block connectors are shown

here.

Top View

Front View

STEP 1: Insert the negative/positive AC/DC

wires into the V-/V+ terminals.

STEP 2: To keep the AC/DC wires from pulling

loose, use a small flat-

lade screwdriver to tighten

the wire-clamp screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block receptor,

which is located on EDS’s top panel.

ATTENTION

Before connecting the EtherDevice Switch to the AC/DC power

inputs, make sure the AC/DC power source voltage is stable.

Communication Connections

The EDS-205A models have 4 or 5 10/100BaseT(X) Ethernet ports, and 1 or 0

(zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports. The

EDS-208A models have 6, 7 or 8 10/100BaseT(X) Ethernet ports, and 2, 1 or 0

(zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS’s front panel are used to

connect to Ethernet-enabled devices. Below we show pinouts for both MDI

(NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable

wiring diagrams for straight-through and cross-over Ethernet cables.

Altri manuali per EtherDevice EDS-205A series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A-3GT Manuale

Moxa Technologies

Moxa Technologies NPORT 6610 Manuale utente

Moxa Technologies

Moxa Technologies PT-G7828 Manuale utente

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8/16-LX Manuale utente

Moxa Technologies

Moxa Technologies IKS-6700A series Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-G4500 Series Manuale utente

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale

Moxa Technologies

Moxa Technologies EDS-508 Series Manuale utente

Moxa Technologies

Moxa Technologies TN-5308 Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa Technologies

Moxa Technologies NE-4100 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-516A Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-30 Manuale

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506E-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manuale

Moxa Technologies

Moxa Technologies EDS-208 series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
