Moxa Technologies MDS-G4000 Series Manuale utente

P/N: 1802040000005

*1802040000005*

MDS-G4000/MDS-G4000-L3

Series

Quick Installation Guide

Version 1.3, August 2022

Technical Support Contact Information

www.moxa.com/support



2022 Moxa Inc. All rights re served.

- 2 -

Package Checklist

Moxa’s MDS-G4000/MDS-G4000-L3 Series industrial m odular DIN-rail

switch is shipped with the following items. If any of these items are

m issing or damaged, please contact your customer service

representative for assistance.

•1 MDS-G4000 or MDS-G4000-L3 Series s wit ch

•RJ45-to-RS-232 9-pin female console cable

•2 protective caps for unused ports

•Pre-installed DIN-rail kit

MDS-G4012 and MDS-G4012-L3: x 1

MDS-G4020 and MDS-G4020-L3: x 2

MDS-G4028 and MDS-G4028-L3: x 2

•Quick installation guide (printed)

•Substance Disclosure Table

•Pro duct Certificate of Quality Inspection (Sim plified Chinese)

•Pro duct Notices (Sim plifie d Chinese)

•Warranty card

NOTE

You can find information and software downloads on the

relevant p

roduct pages lo c ated on Moxa’s website:

www.moxa.com

Default Settings

•IP address: 192.168.127.253

•Subnet Mask: 255.255.255.0

•Username: admin

•Password: moxa

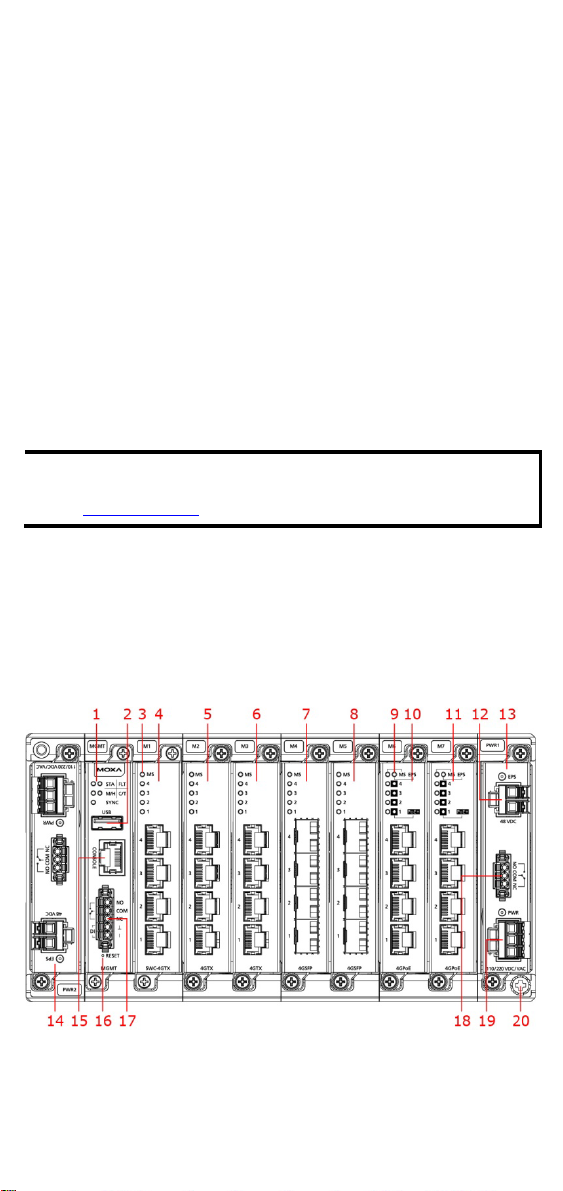

Panel Layouts

1. Syste m status LEDs (from left to right, top to bottom)

STATE, FAULT, MASTER/HEAD, COUPLER/TAIL, and SYNC LED

indicators

2. USB port (Reserved for future use)

- 3 -

3. Module status

4. Switch and Control module s lot 1 (Embedded)

5. Ethernet m odule s lot 2

6. Ethernet m odule s lot 3

7. Ethernet m odule s lot 4 (Fo r MDS-G4020/28, MDS-G4020/28-L3)

8. Ethernet m odule s lot 5 (Fo r MDS-G4020/28, MDS-G4020/28-L3)

9. External power input status from EPS

10. Ethernet m odule s lot 6 (Fo r MDS-G4028, MDS-G4028-L3)

11. Ethernet m odule s lot 7 (Fo r MDS-G4028, MDS-G4028-L3)

12. External po wer supply input for PoE

13. Redundant power module slot 1

14. Redundant power module slot 2

15. RS232 console port with RJ45 interface

16. Reset button (Pin hole 0.9 mm)

17. Relay output and Digital Input port

18. Relay output

19. Power input

20. Grounding screw

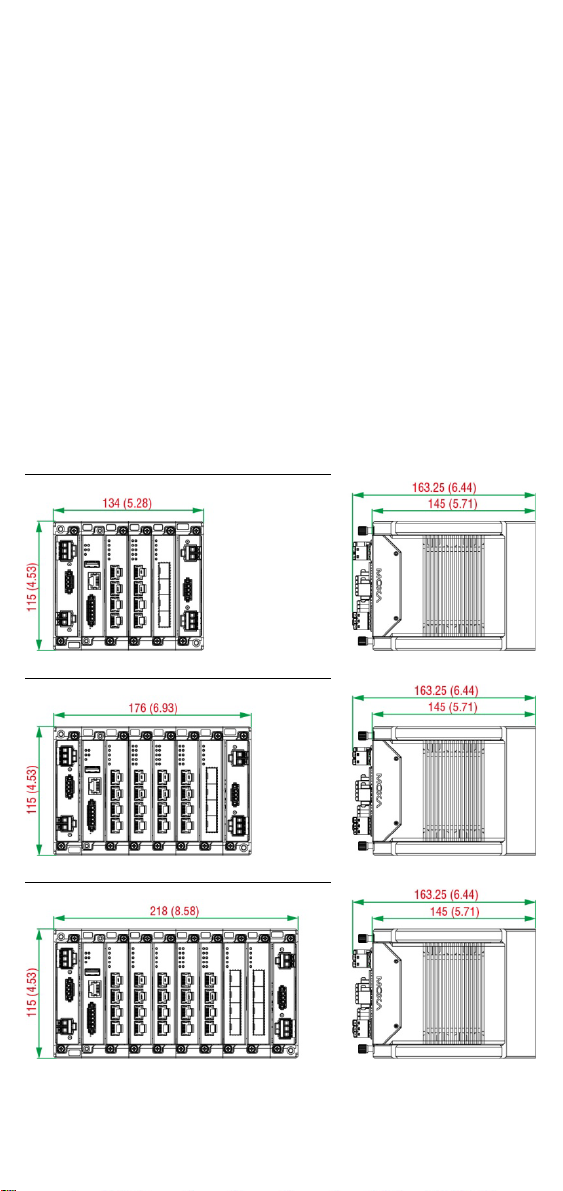

Dimensions

MDS-G4012 and MDS-G4012-L3 Series

MDS-G4020 and MDS-G4020-L3 Series

MDS-G4028 and MDS-G4028-L3 Series

Unit: m m (inc h)

- 4 -

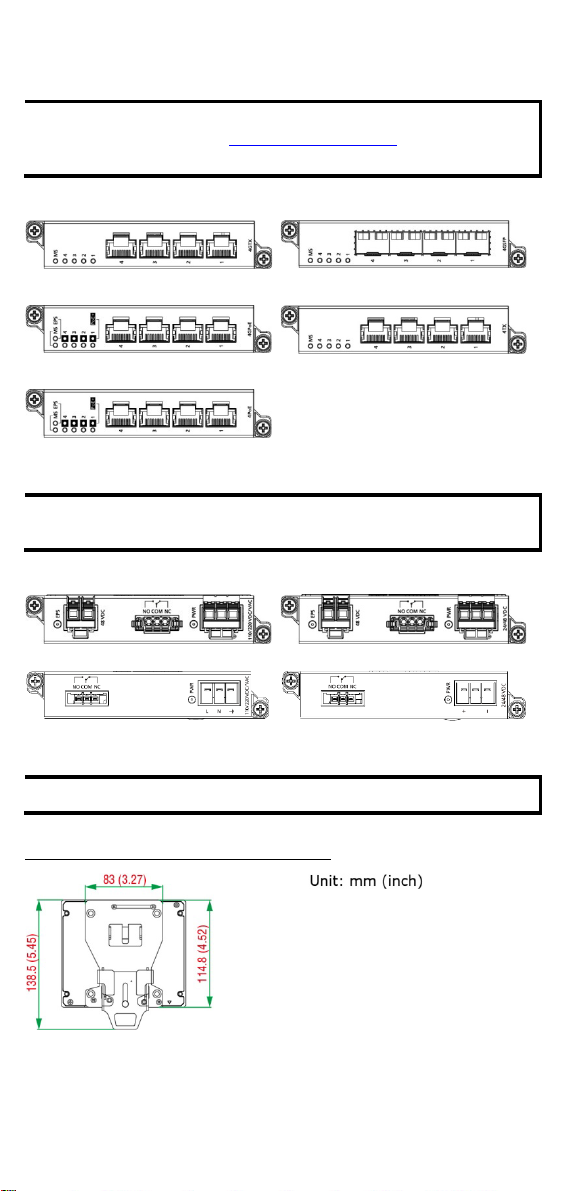

Ethernet Modules (Hardware Rev.2.0.0 and above)

NOTE

Transceivers for the LM-7000H-4GSFP module are sold

separately. Refer to

Supported SFP Module s for list of

supported transceivers.

LM-7000H-4GTX

LM-7000H-4GSFP

LM-7000H-4GPoE

LM-7000H-4TX

LM-7000H-4PoE

Power Modules (Hardware Rev.2.1.0 and above)

NOTE

The PWR-LV-P48 po wer m odule is certified for Hazardous

Location use.

PWR-HV-P48

PWR-LV-P48

PWR-HV-NP

PWR-LV-NP

DIN-rail Dimensions and Instructions

NOTE

The DIN rail kit is certifie d for Hazardous Location usage.

MDS-G4012 and MDS-G4012-L3 Series

- 5 -

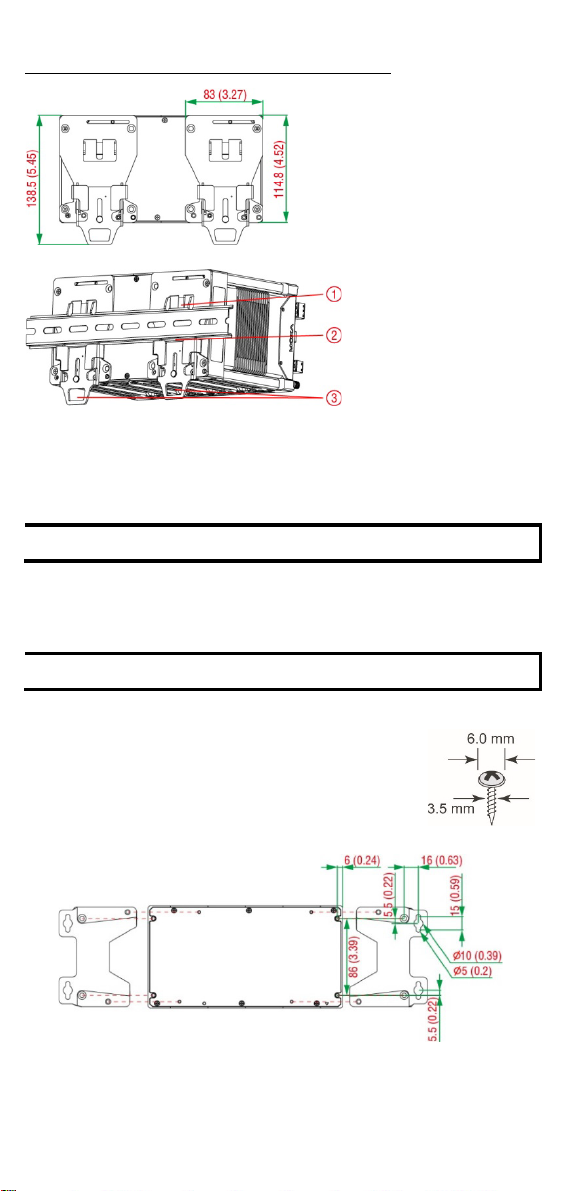

MDS-G4020/28 and MDS-G4020/28-L3 Series

1. Insert the upper lip of the DIN rail into the DIN-rail m ounting kit.

2. Press the device towards the DIN rail until it snaps into place.

3. Pull down the two latches one by one to release the DIN-rail kit

and lift up to rem ove the device from the DIN rail.

NOTE

The DIN rail m us t us e the TS35 (15 mm) specification.

Wall-mounting Dimensions and Instructions

(Optional: WK-112-01)

NOTE

The wall-m ount kit is certified for Hazardous Location usage.

Mounting the switch to a wall requires

four

screws. The

heads of the screws should be between 6.0 to

.0 mm

in diam eter, and the diameter of screw thread should

be between 3.5 to 4 mm, as shown in the figure on the

right

. Use the switch with the wall-m ounting kit

attached as a guide to m ark the c orrect loc ations of

the eight screws.

- 6 -

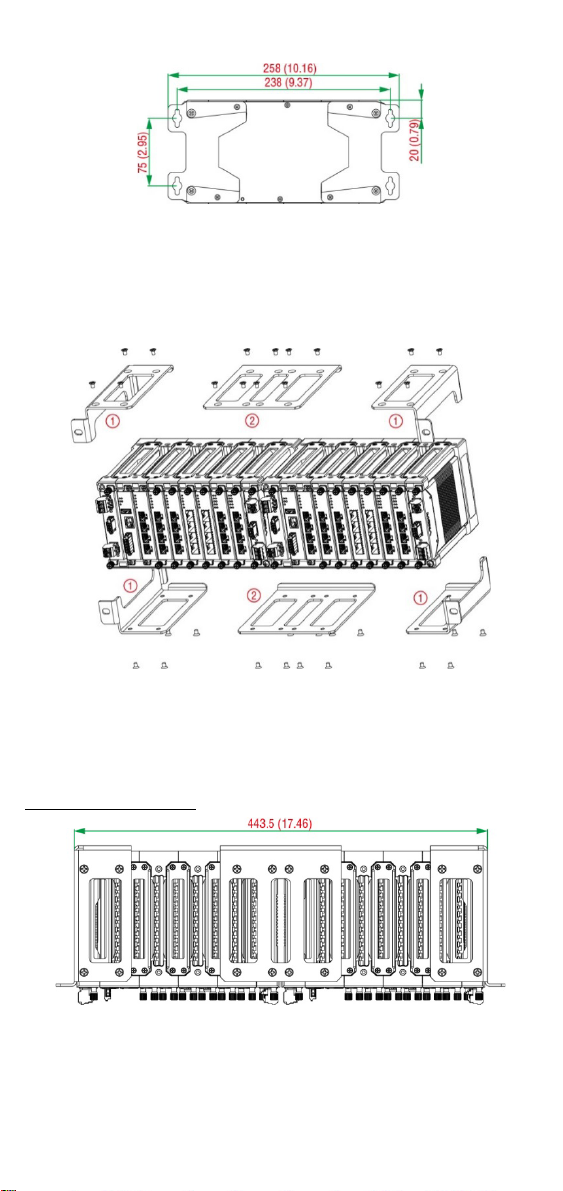

Rack-mounting Dimensions and Instructions

(Optional: RK-3U-01)

The rack mount kit is designed for two MDS-G4028 or MDS-G4028-L3

products.

1. Assemble the right and left part of the kit (indicated with No. 1 in

the diagram) with four screws each.

2. Assemble the part of the rack kit (indicated with No. 2 in the

diagram ) with e ight screws in order to combine two MDS-G4028 or

MDS-G4028-L3 products.

Rack Mount Top View

- 7 -

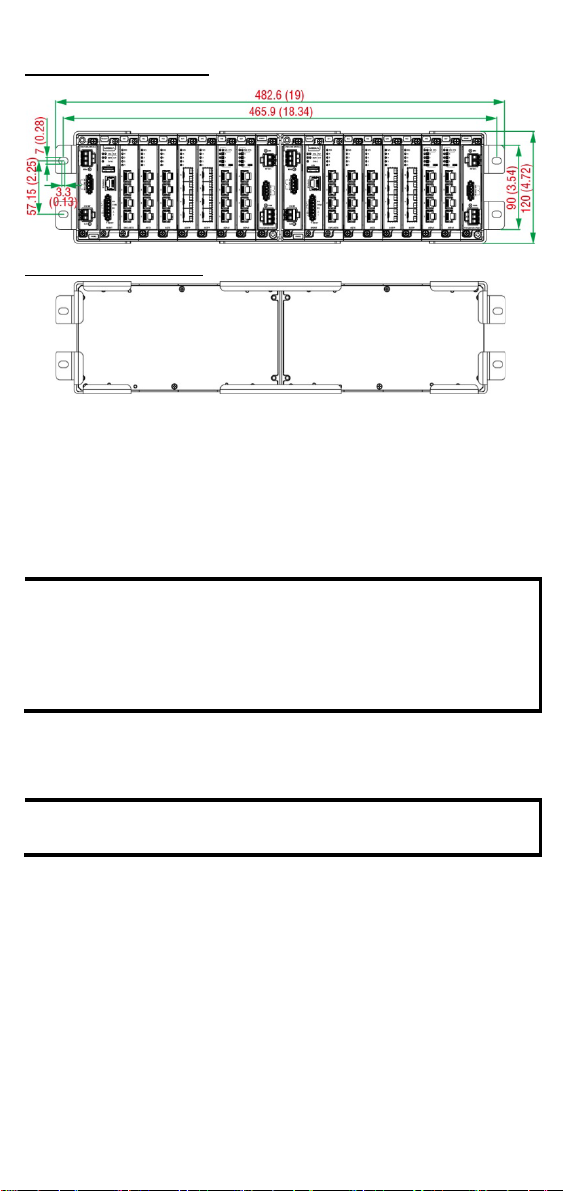

Rack Mount Front View

Rack Mount Rear View

Matters That Require Attention

1. Elevated Operating Temperature:If installed in a closed or

m ulti-unit rack assembly, the operating ambient temperature of

the rack environment m ay be greater than room temperature.

Therefore, consideration should be given to installing the

equipment in an environment compatible with the maximum

am bient temperature (Tm a) specified by the manufacturer.

NOTE

In order to ensure reliable operations, please make sure the

operating temp

erature

of the environment does not exceed the

spec. When moun

ting a rack-mo unted s witch with other

operating units in a cabinet without forced ve ntilation, it is

recommended that 1U of space is reserved between each rack

m ounted switch and/or device.

2. Required Air Flow: Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of

the equipment is not compromised.

NOTE

The optimal keep-out zone is 50 mm for the top, bottom, left,

and right side of the device.

3. Mechanical Loading: Mounting of the equipment in the rack

should be such that a hazardous condition is not achieved due to

uneven mechanical loading.

4. Circuit Overloading: Consideration should be given to the

connection of the equipment to the supply circuit and the effect

that overloading of the circuits might have on overcurrent

protection and supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this

concern.

5. Reliable Grounding: Reliable grounding of rack-mounted

equipment should be maintained. Particular atte ntion should be

given to supply connections other than direct connections to the

branch circuit (e.g. use of power strips).

- 8 -

ATTENTION

Safety First

Be sure to disconnect the power cord

before installing and/or

wiring your Ethernet Switch. Calculate the m aximum possible

current in each power wire and common wire. Observe all

electrical codes dictating the maximum current allowable for

each wire size. If the current goes above the maximum ratings,

the wiring could overheat,

which can cause serious damage to

your equipment.

Connecting the Power Inputs

The MDS-G4000 and MDS-G4000-L3 Series s upp ort 4 types of power

supply:

•PWR-HV-P48: one 110/220 VAC/VDC (90 to 264 VAC, 88 to 300

VDC), o ne 48 VDC PoE power input for PoE+ ports.

•PWR-LV-P48: one 24/48 VDC (18 to 72 VDC), one 48 VDC PoE

power input for PoE+ ports.

NOTE

The required power module depends on the choice of LM-7000H

m odule. Refe r to the following power/module combination

requirements.

•

LM-7000H non-PoE modules:

Any po we r m odule

•

LM-7000H PoE modules:

PWR-HV-P48, PWR-LV-P48 only

NOTE

The PWR

-LV-P48 power m odule is certified for Hazardous

Location use.

•PWR-HV-NP: one 110/220 VAC/VDC (90 to 264 VAC, 88 to 300

VDC) power input.

•PWR-LV-NP: one 24/48 VDC (18 to 72 VDC) power input.

For the PWR-HV-P48, the 110/220 VAC/VDC power supplies provide

power to the switch. Separate 48 VDC power supplies are required to

provide power to all PoE+ ports (50 to 57 VDC is recommended for

IEEE 802.3at devices. The max. PoE output from an external power

supply is 720 W when the operating temperature is under 60°C; 360 W

when the operating temperature is under 75°C.).

For the PWR-LV-P48 m odels, the 24/48 VDC power supplies provide

power to the switch. Separate 48 VDC power supplies are required to

provide power to all PoE+ ports (50 to 57 VDC is recommended for

IEEE 802.3at devices. The max. PoE output from an external power

supply is 720 W when the operating temperature is under 60°C; 360 W

when the operating temperature is under 75°C.).

- 9 -

ATTENTION

or Hazardous Location Use

The

PoE capacity of the PWR-LV-P48 is only certified for use in

azardous locations up to a maximum power budget of 369.6

W and a m axim um o utput o f up to 15.4 W per port.

For the PWR-HV-NP, the 110/220 VAC/VDC power supplies provide

power to the switch.

For the PWR-LV-NP, the 24/48 VDC power supplies provide power to

the switch.

Power Terminal Blocks

The connection for power input and PoE external power supply is on the

power modules.

PWR-HV-P48/PW R-HV-NP

1. Insert the neutral/line (L/N/Ground) AC wires into the terminals.

2. Insert the terminal block connector into the terminal block

receptor.

PWR-LV-P48/PWR-LV-NP

1. Rem ove 8 to 9 mm of the DC wires ’ protective cover.

2. Use a tool to push the spring mechanism inwards to open it.

3. Inse rt the negative/positive (-/+) DC wires into the terminals.

4. Release the spring mechanism.

5. Insert the terminal block connector prongs into the terminal block

receptor.

- 10 -

PoE Power Terminal Blocks

1. Rem ove 8 to 9 m m of the DC wire s’ protective cover.

2. Use a tool to push the spring mechanism inwards to open it.

3. Insert the negative/positive (-/+) DC wires into the terminals.

4. Release the spring mechanism.

5. Inse rt the terminal block connector prongs into the terminal block

receptor.

NOTE

In order to have higher levels of protection against surge, it is

suggested to install a

surge protector in front of the power

input

of the PoE powered device so that it is suitable for use in

IEC 61850 conditions.

NOTE

When wiring the power input, we suggest using the cable type -

AWG (Am erican Wire Gauge) 1

6-20 (1.31-0.519 mm2

) and the

corresponding pin type cable te rminals. The rated temperature

of wiring should be at least 105°C.

NOTE

When wiring the

PoE power input, we suggest using the cable

type

- AWG (Am erican Wire Gauge) 16 (1.31 mm2) and the

corresponding pin type cable te rminals. The rated temperature

of wiring should be at least 105°C.

NOTE

When two power units are installed on the switch, both power

units will be activated simultaneously, which will enable power

redundancy.

NOTE

The reve rse power input connection will not activate the device

or PoE input

. In addition, the PoE will only activate when the

external power supply is installed on the same power unit.

Wiring the Relay Contact

Each power module has one relay output that can provide two types of

relay output. Refer to the table below for detailed information.

The relay contact is used to detect user-configured events. Two wire s

are attached to the relay pins with normally close and normally o pen

options.

1. Rem ove 8 to 9 m m of the DC wires’ protective cover.

2. Use a tool to push the spring mechanism inwards to open it.

3. Inse rt the wires into the terminals.

4. Release the spring mechanism.

5. Inse rt the terminal block connector prongs into the terminal block

receptor.

Altri manuali per MDS-G4000 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuale utente

Moxa Technologies

Moxa Technologies IESH-MB205G-C2E-R Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7324 Series Manuale utente

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manuale utente

Moxa Technologies

Moxa Technologies UPort 400A Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Istruzioni per il montaggio

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manuale

Moxa Technologies

Moxa Technologies EDS-2008-EL Series Manuale utente

Moxa Technologies

Moxa Technologies TN-5308-LV Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-728 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-208A series Manuale

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale utente

Moxa Technologies

Moxa Technologies OnCell G3111 Manuale utente

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manuale

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manuale

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuale

Moxa Technologies

Moxa Technologies IKS-6728-8PoE Manuale

Moxa Technologies

Moxa Technologies PT-7528-24TX-HV Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series Manuale utente

Moxa Technologies

Moxa Technologies IKS-G6524 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
