Moxa Technologies PT-7728 Series Manuale

Moxa PowerTrans Switch

PT-7728/7828

Hardware Installation Guide

Fifth Edition, June 2010

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802077280013

- 2 -

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer service

representative for assistance.

y1 Moxa PowerTrans Switch

yHardware Installation Guide

yCD-ROM with User’s Manual and SNMP MIB file

yMoxa Product Warranty Statement

yRJ45 to DB9 console port cable

yProtective caps for unused ports

y2 rack-mount ears

Panel Layout

LNK/ACT SPEED FDX/HDX

FAULT MASTER COUPLER

STAT PWR1 PWR2

RING PORT

COUPLER

PORT

MODE

4 8

2 6

482 6

LNK/ACT SPEED FDX/HDX

FAULT MASTER COUPLER

STAT PWR1 PWR2

RING PORT

COUPLER

PORT

MODE

3 7

4 82 6

3 7

1 5

PT-7728

135

246

TX RX TX RX TX RX

24 6

135

TX RX TX RX TX RX

PT-7728

Front view (Front Cabling)

Front view (Rear Cabling)

Rear view (Front Cabling)

Rear view (Rear Cabling)

510

STAT

FAULT

PWR1

MASTER

PWR2

COUPLER

LNK/ACT SPEED FDX/HDX

RINGPORT COMUPLER

PORT

MODE

PT-7728

13 5

TX RX

M4M3M2M1 PT-7728

CONSOLE

1. System status LEDs

2. Interface Module mode LEDs

3. Interface Module port LEDs

4. Push-button switch to select mode for Interface Module

5. Model Name

6. Fast Ethernet Interface Modules

7. Gigabit Ethernet Interface Modules

8. Serial Console port

9. 10-pin terminal block for power inputs, and relay output

10. Rack Mounting Kit

- 3 -

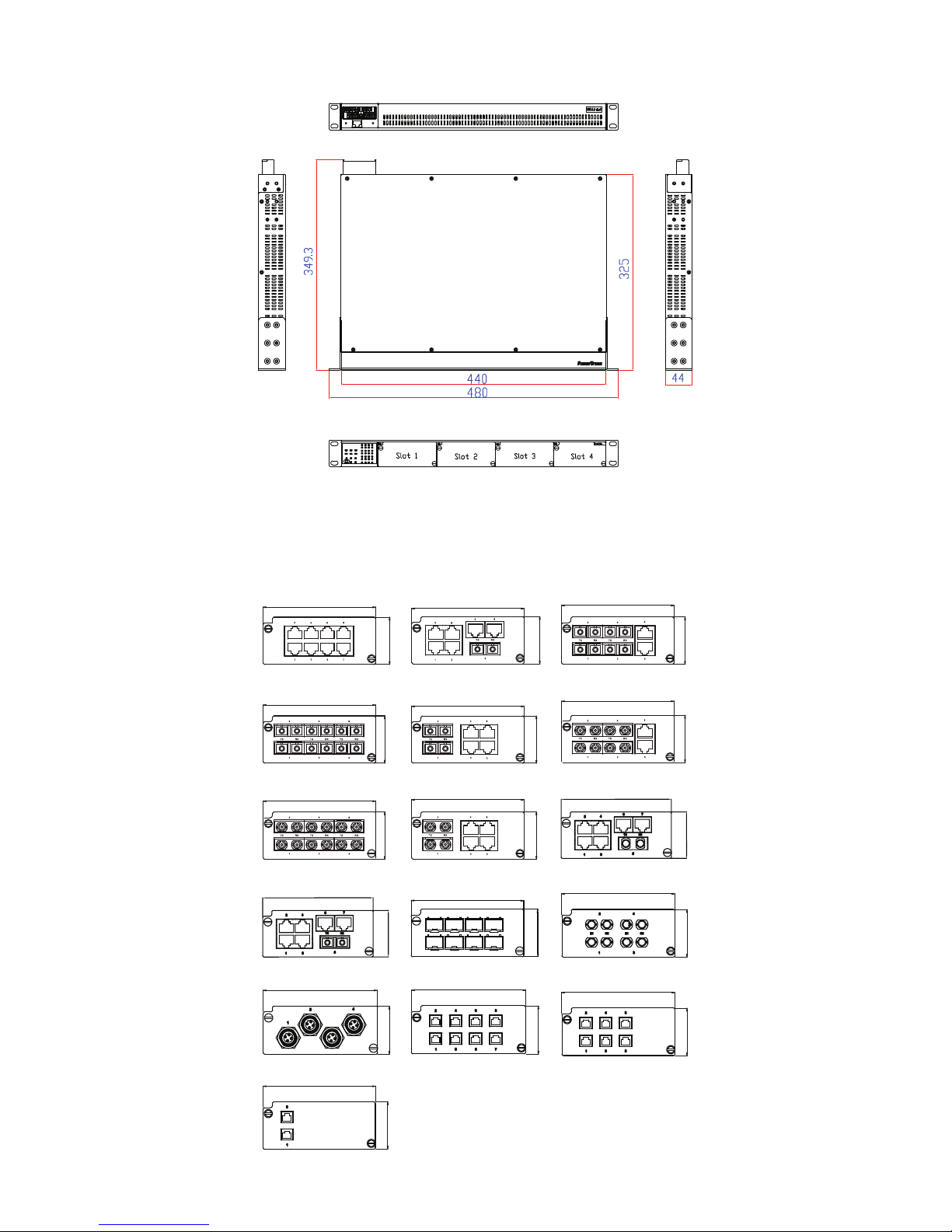

Dimensions (unit = mm)

Rear View

Side ViewSide View

Front View

Top View

Fast Ethernet Interface Modules

(for slots 1, 2, and 3)

40.7

96.8

PM-7200-8TX

96.8

40.7

PM-7200-1LSC6TX

40.7

96.8

PM-7200-4MSC2TX/PM-7200-4SSC2TX

96.8

40.7

PM-7200-6MSC/PM-7200-6SSC

96.8

40.7

PM-7200-2MSC4TX/PM-7200-2SSC4TX PM-7200-4MST2TX

40.7

96.8

PM-7200-6MST

96.8

40.7

PM-7200-2MST4TX

96.8

40.7

96.8

40.7

PM-7200 1MST6TX

PM-7200-8SFP

96.8

40.7

96.8

PM-7200 1SSC6TX/1MSC6TX

40.7

96.8

PM-7200-4M12

40.7

96.8

PM-7200 4MST-FL

40.7

96.8

PM-7200 8MTRJ

40.7

96.8

PM-7200 6MTRJ

40.7

96.8

PM-7200 2MTRJ

- 4 -

Gigabit Ethernet Interface

Modules (for slot 4)

40.7

86.6

40.7

PM-7200-4GTXSFP PM-7200-2GTXSFP

Rack Mounting

Use four screws to attach the PT switch to a standard rack.

Note: Two additional rack-mount ears can be ordered as an option. Use them

to secure the rear of the chassis in high-vibration environments.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Grounding Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

Wiring the Power Inputs

The PT series of switches supports dual redundant power supplies: “Power

Supply 1 (PWR1)” and “Power Supply 2 (PWR2)”. The connections for PWR1,

PWR2 and the RELAY are located on the terminal block. The front view of the

terminal block connectors are shown below.

- 5 -

Wiring the Relay Contact

Each PT switch has one relay output. Refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector, and

how to attach the terminal block connector to the terminal block receptor.

FAULT: The relay contact of the 10-pin terminal block connector are used to

detect user-configured events. The two wires attached to the RELAY contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the RELAY circuit will be closed.

Wiring the Redundant Power Inputs

Each PT switch has two sets of power inputs: power input 1 and power input 2.

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and PWR2

terminals (+ →pins 1, 9; - →pins 2, 10). Or insert the L/N AC wires into

PWR1 and PWR2 terminals (L →pin 1, 9; N →pin 2,10)

STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws on the front of the terminal block connector.

Note 1: The PT switch with dual power supplies uses PWR2 as the first

priority power input by default.

Note 2: For dielectric strength (HIPOT) test, users must remove the metal

jumper located on terminals 3, 4, and 7, 8 of the terminal block to avoid

damage.

- 6 -

LED Indicators

LED Color State Description

System LEDs

On System has passed self-diagnosis test

on boot-up and is ready to run.

GREEN

Blinking System is undergoing the

self-diagnosis test.

STAT

RED On

System failed self-diagnosis on

boot-up.

On Power is being supplied to the main

module’s power input PWR1.

PWR1 AMBER

Off Power is not being supplied to the

main module’s power input PWR1.

On Power is being supplied to the main

module’s power input PWR2.

PWR2 AMBER

Off Power is not being supplied to the

main module’s power input PWR2.

The corresponding PORT alarm is

enabled and a user-configured event

has been triggered.

FAULT RED

Off

The corresponding PORT alarm is

enabled and a user-configured event

has not been triggered, or the

corresponding PORT alarm is

disabled.

This PT switch is set as the Master

of the Turbo Ring, or as the Head of

the Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the

Head of the Turbo Chain, after the

Turbo Ring or the Turbo Chain went

down.

MSTR/HEAD GREEN

Off

The PT switch is not the Master of

this Turbo Ring or is set as a

Member of the Turbo Chain.

The PT switch coupling function is

enabled to form a back-up path, or it

is set as the Tail of the Turbo Chain.

Blinking Turbo Chain is down.

CPLR/TAIL GREEN

Off

This PT switch disabled the coupling

function, or is set as a Member of

the Turbo Chain.

Mode LEDs

On The corresponding module port’s

link is active.

Blinking The corresponding module port’s

data is being transmitted.

LNK/ACT GREEN

Off The corresponding module port’s

link is inactive.

Off The corresponding module port’s

data is being transmitted at 10 Mbps.

SPEED GREEN

The corresponding module port’s

data is being transmitted at 100

Mbps.

- 7 -

Blinking

The corresponding module port’s

data is being transmitted at

1000 Mbps.

The corresponding module port’s

data is being transmitted in full

duplex mode.

FDX/HDX GREEN

Off

The corresponding module port’s

data is being transmitted in half

duplex mode.

The corresponding module’s port is

the ring or chain port of this PT

switch.

RING/CHAIN

PORT GREEN

Off

The corresponding module’s port is

not the ring or chain port of this PT

switch.

On The corresponding module’s port is

the coupler port of this PT switch.

COUPLER

PORT GREEN

Off

The corresponding module’s port is

not the coupler port of this PT

switch.

Specifications

Technology

Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D,

802.1w, 802.1Q, 802.1p, 802.1X, 802.3ad

Flow control IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet 10/100BaseT(X) or 100BaseFX (SC/ST connector or

SFP slot)

Gigabit Ethernet 10/100/1000BaseT(X), 1000BaseSX/LX/LHX/ZX

(SFP slot, LC connector)

System LED

Indicators

STAT, PWR1, PWR2, FAULT, MSTR/HEAD,

CPLR/TAIL

Module LED

Indicators

LNK/ACT, FDX/HDX, SPEED, RING /CHAIN

PORT, COUPLER PORT

Alarm Contact One relay output with current carrying capacity of 3A

@ 30 VDC or 3A @ 240 VAC

Optical Fiber (100BaseFX)

Distance Multi-mode

0 to 5 km, 1300 nm (50/125μm, 800 MHz*km)

0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km)

Single-mode

0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

0 to 80 km, 1550 nm (9/125um, 19 PS/(nm*km))

Min. TX Output Multi-mode: -20 dBm; Single-mode: -5 dbm

Single-mode 80 km: -5 dBm

Max. TX Output Multi-mode: -10 dBm; Single-mode: 0 dbm

Single-mode 80 km: 0 dBm

RX Sensitivity Multi-mode: -32 dBm; Single-mode: -34 dbm

Single-mode 80 km: -34 dBm

Power

Input Voltage 24 VDC (18 to 36V)or 48 VDC (36 to 72V)or 110/220

VDC/VAC

(88 to 300 VDC and 85 to 264 VAC)

Input Current Max. 2.58A @ 24VDC

- 8 -

Max. 1.21A @ 48VDC

Max. 0.64/0.33A @ 110/220VDC

Max. 0.53/0.28A @ 110/220VAC

Physical Characteristics

Housing IP 30 protection, metal case

Dimensions

(W x H x D) 440 x 44 x 325 mm (17.32 x 1.73 x 12.76 in.)

Weight 5900 g

Installation 19” rack mounting

Regulatory Approvals

Safety UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

Power Automaton IEC61850-3, IEEE 1613

Road Traffic NEMA TS2

Rail Traffic EN50121-4, EN50155

EMI FCC Part 15, CISPR (EN55022) class A

Environmental Limits

Operating Temp. -40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40°C

Storage Temp. -40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity. 5 to 95% (non-condensing)

Warranty 5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-10-6872-3958

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Altri manuali per PT-7728 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EDS-408A Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale

Moxa Technologies

Moxa Technologies ICS-G7526A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manuale

Moxa Technologies

Moxa Technologies EDS-405A Manuale utente

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manuale utente

Moxa Technologies

Moxa Technologies NPort S8000 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort S8458 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-510E Series Manuale utente

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuale

Moxa Technologies

Moxa Technologies EDS-G4014 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509-T Manuale

Moxa Technologies

Moxa Technologies IKS-G6524 Manuale

Moxa Technologies

Moxa Technologies EDS-4014 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-508 Series Manuale utente

Moxa Technologies

Moxa Technologies NE-4100 Series Manuale utente

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manuale utente

Moxa Technologies

Moxa Technologies NSwitch Outdoors Manuale utente

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP Manuale utente

Moxa Technologies

Moxa Technologies EDS-600 Series Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies EDS-2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-516A Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
