PT-7710 Series

Quick Installation Guide

Moxa PowerTrans Switch

Edition 5.1, September 2015

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



www.ipc2u.ru

www.moxa.pro

- 2 -

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 Moxa PowerTrans Switch

•RJ45 to DB9 console port cable

•2 rack-mount ears or wall-mount ears

•Hardware installation guide

•CD-ROM with User’s Manual and SNMP MIB file

•Warranty card

Panel Layout

1. System status LEDs

2. Interface module mode LEDs

3. Interface module port LEDs

4. Push-button switch to select mode for Interface Module

5. Model name

6. Fast Ethernet interface modules

7. Gigabit Ethernet interface modules

8. Serial console port

9. 10-pin terminal block for power inputs, and relay output

10. Rack mounting kit

11. Wall mounting kit

www.ipc2u.ru

www.moxa.pro

- 3 -

Dimensions (unit = mm)

Fast Ethernet Interface Modules (slot 1)

www.ipc2u.ru

www.moxa.pro

- 4 -

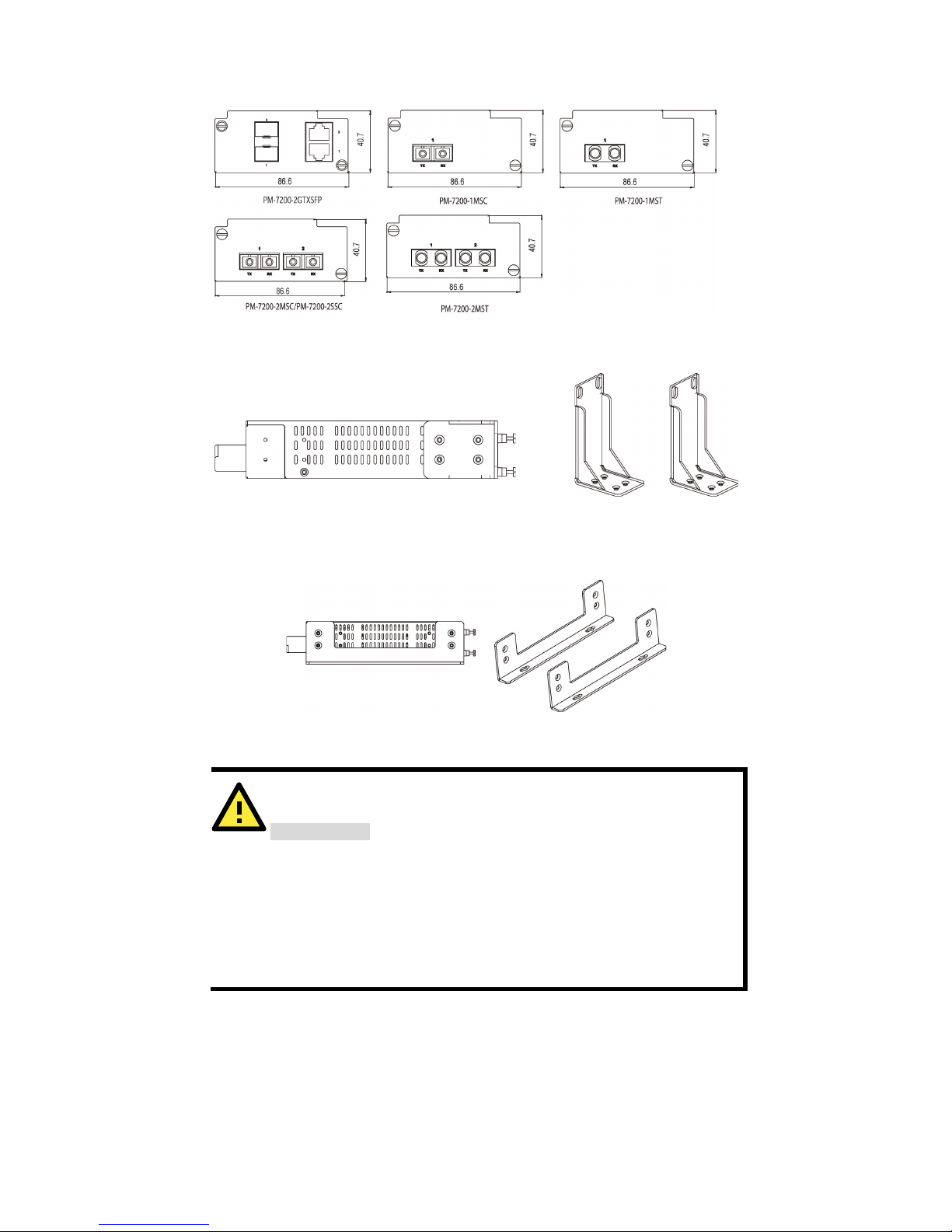

Gigabit / Fast Ethernet Interface Modules (slot 2)

Rack Mounting

Use four screws to attach the PT switch to a

standard rack.

Wall Mounting

Use four screws to attach the PT switch to a Moxa wall mounting kit.

Wiring Requirements

WARNING

Safety First!

•

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

•

Calculate the maximum possible current in each power wire

and common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

•

If the current goes above the maximum ratings, the wiring

could overheat, causing serious damage to your equipment.

Grounding the Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

www.ipc2u.ru

www.moxa.pro

- 5 -

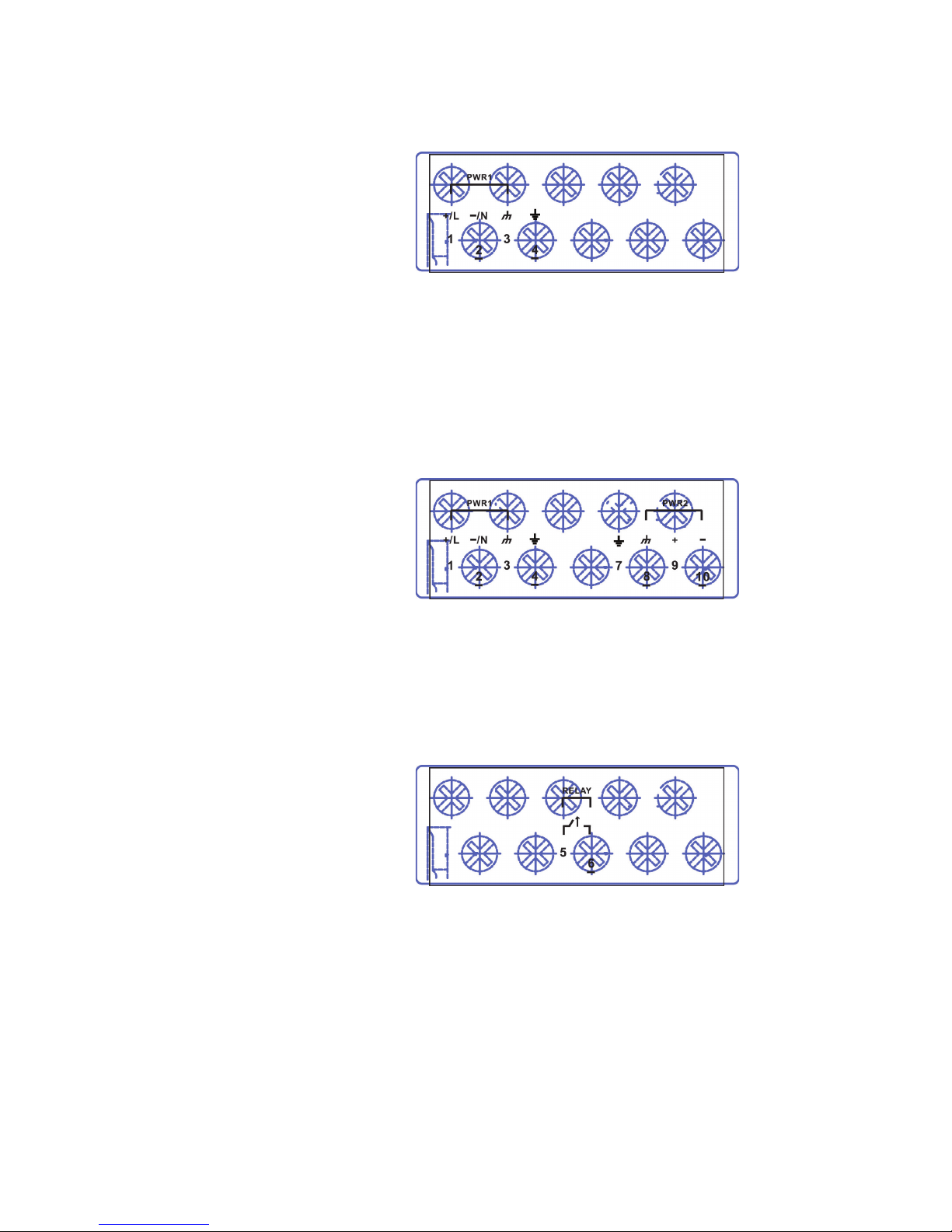

Wiring the Power Input (110/220 VDC/VAC

models)

The PT-7710 (110/220

VDC/VAC

models) has one

set of power inputs,

referred to as power input

1. The front view of the

terminal block connector is

shown here.

STEP 1: Insert the L/N AC wires into the PWR1 terminals (L pin 1, N 

pin 2).

STEP 2: To keep the AC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws on the front of the terminal block.

Wiring the Redundant Power Inputs (12/24/48

VDC models)

The PT-7710 (12/24/48

VDC models) has two sets

of power inputs, referre

to as power input 1 and

power input 2. The front

view of the terminal block

connector is shown here.

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and

PWR2 terminals (+ pins 1, 9; - pins 2, 10).

STEP 2: To keep the DC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws on the front of the terminal block.

Wiring the Relay Contact

Each PT switch has one

relay output. Refer to the

next section for detailed

instructions on how to

connect the wires to the

term

inal block connector,

and how to attach the

terminal block connector to the terminal block receptor.

FAULT: The RELAY contacts of the 10-pin terminal block connector are

used to detect user-configured events. The two wires attached to the

RELAY contacts form an open circuit when a user-configured event is

triggered. If a user-configured event does not occur, the RELAY circuit will

be closed.

www.ipc2u.ru

www.moxa.pro

- 6 -

LED Indicators

The front panel of the PT switch contains several LED indicators. The

function of each LED is described in the table below.

LED

Color

State

Description

System LEDs

STAT

GREEN

System has passed self-diagnosis test

on boot-up and is ready to run.

Blinking System is undergoing the

self-diagnosis test.

RED On

System failed self-diagnosis on

boot-up.

PWR1 AMBER

Power is being supplied to the main

module’s power input PWR1.

Off Power is not being supplied to the main

module’s power input PWR1.

PWR2 AMBER

Power is being supplied to the main

module’s power input PWR2.

Off

Power is not being supplied to the main

module’s power input PWR2.

FAULT RED

The corresponding PORT alarm is

enabled and a user-configured event

has been triggered.

Off

The corresponding PORT alarm is

enabled and a user-configured event

has not been triggered, or the

corresponding PORT alarm is disabled.

MSTR/HEAD

GREEN

This PT switch is set as the Master of

the Turbo Ring, or as the Head of the

Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the Head

of the Turbo Chain, after the Turbo

Ring or the Turbo Chain went down.

Off

The PT switch is not the Master of this

Turbo Ring or is set as a Member of the

Turbo Chain.

CPLR/TAIL GREEN

When this PT switch is enabled to form

a back-up path, or it is set as the Tail of

the Turbo Chain.

Blinking

Turbo Chain is down.

Off

This PT switch disabled the coupling

function, or is set as a Member of the

Turbo Chain.

www.ipc2u.ru

www.moxa.pro

- 7 -

LED

Color

State

Description

Mode LEDs

LNK/ACT GREEN

The corresponding module port’s link is

active.

Blinking

The corresponding module port’s data

is being transmitted.

Off

The corresponding module port’s link is

inactive.

SPEED GREEN

Off The corresponding module port’s data

is being transmitted at 10 Mbps.

The corresponding module port’s data

is being transmitted at 100 Mbps.

Blinking

The corresponding module port’s data

is being transmitted at

1000 Mbps.

FDX/HDX GREEN

The corresponding module port’s data

is being transmitted in full duplex

mode.

Off

The corresponding module port’s data

is being transmitted in half duplex

mode.

RING/CHAI

N PORT GREEN

The corresponding module’s port is the

ring or chain port of this PT switch.

Off The corresponding module’s

port is not

the ring or chain port of this PT switch.

COUPLER

PORT GREEN

The corresponding module’s port is the

coupler port of this PT switch.

Off

The corresponding module’s port is not

the coupler port of this PT switch.

*Slot 2 (M2) is mainly used for Gigabit modules. If 100BaseFX modules

are used in Slot 2 (M2), the modules will not support “Far End Fault”. The

Link/ACT LED indicator will stay at “Green (ON)” status when Fiber TX

cable is unplugged.

Specifications

Technology

Standards

IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x,

802.1D, 802.1W, 802.1Q, 802.1p, 802.1X, 802.3ad

Flow control

IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet

Slot 1 (M1) for any combination of 4-,6-, 7-, or

8-port PM-7200 fast Ethernet modules with

10/100BaseT(X) (TP/M12 interface) or 100BaseFX

(SC/ST connector), or 100BaseSFP; Slot 2 (M2)

for a

1- or 2-port interface modules with 100BaseFX

(SC/ST connector)

Gigabit Ethernet

Slot 2 (M2) for 2-port PM-7200 Gigabit Ethernet

combo module with 100/1000BaseT(X) or

1000BaseSFP slots (Slot 2 does not support 10M

FDX/HDX)

Console

RS-232 (RJ45)

System LED

Indicators

STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

www.ipc2u.ru

www.moxa.pro

- 8 -

Mode LED

Indicators

LNK/ACT, FDX/HDX, RING/CHAIN PORT, COUPLER

PORT, SPEED

Alarm Contact

One relay output with current carrying capacity of 3A

@ 30 VDC or 3A @ 240 VAC

Optical Fiber (100BaseFX)

Distance

Multi-mode:

0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km)

0 to 4 km, 1300 nm (62.5/125 μm, 500 MHz*km)

Single-mode:

0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))

Min. TX Output

Multi-mode: -20 dBm; single-mode: -5 dbm

Max. TX Output

Multi-mode: -10 dBm; single-mode: 0 dbm

RX Sensitivity

Multi-mode: -32 dBm; single-mode: -34 dbm

Power

Input Voltage

12/24/48 VDC (9 to 60 V), or 110/220 VDC/VAC (88

to 300 VDC and 85 to 264 VAC)

Input Current

Max. 0.81 A @ 24 VDC

Max. 0.42 A @ 48 VDC

Max. 0.17/0.10 A @ 110/220 VDC

Max. 0.38/0.20 A @ 110/220 VAC

Physical Characteristics

Housing

IP30 protection, metal case

Dimensions

(W x H x D)

266.7 x 44 x 195 mm (10.5 x 1.73 x 7.68 in.)

Weight

2200 g

Environmental Limits

Operating Temp.

-40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40°C

Storage Temp.

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity.

5 to 95% (non-condensing)

Regulatory Approvals

Safety

EN 60950-1

Power Automation

IEC 61850-3, IEEE 1613

Road Traffic

NEMA TS2

Rail Traffic

EN 50121-4

EMI

FCC Part 15, CISPR (EN 55022) class A

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

www.ipc2u.ru

www.moxa.pro

Altri manuali per PT-7710 Series

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies S9450I Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EOM-104 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510-T Manuale utente

Moxa Technologies

Moxa Technologies TN-5508A Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-208A series Manuale

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510A-8PoE Series Manuale

Moxa Technologies

Moxa Technologies SPL-24 Manuale utente

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205-T Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuale

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-505A Series Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
