EDS-405A/408A Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

Eighth Edition, November 2010

- 2 -

Overview

The Moxa EtherDevice™ EDS-405A/408A series, which includes both 5

and 8-port smart Ethernet switches, is a cost-effective solution for your

Ethernet connections. In addition, the built-in smart alarm function helps

system maintainers monitor the health of your Ethernet network.

Package Checklist

The Moxa EDS-405A/408A switches are shipped with the following items.

If any of these items is missing or damaged, please contact your

customer service representative for assistance.

•EDS-405A or EDS-408A Ethernet switch

•RJ45-to-DB9 console port cable

•Protective caps for unused ports

•Panel mounting kit (optional—must order separately)

•Hardware installation guide

•CD-ROM with user’s manual and Windows utility

•Warranty card

- 3 -

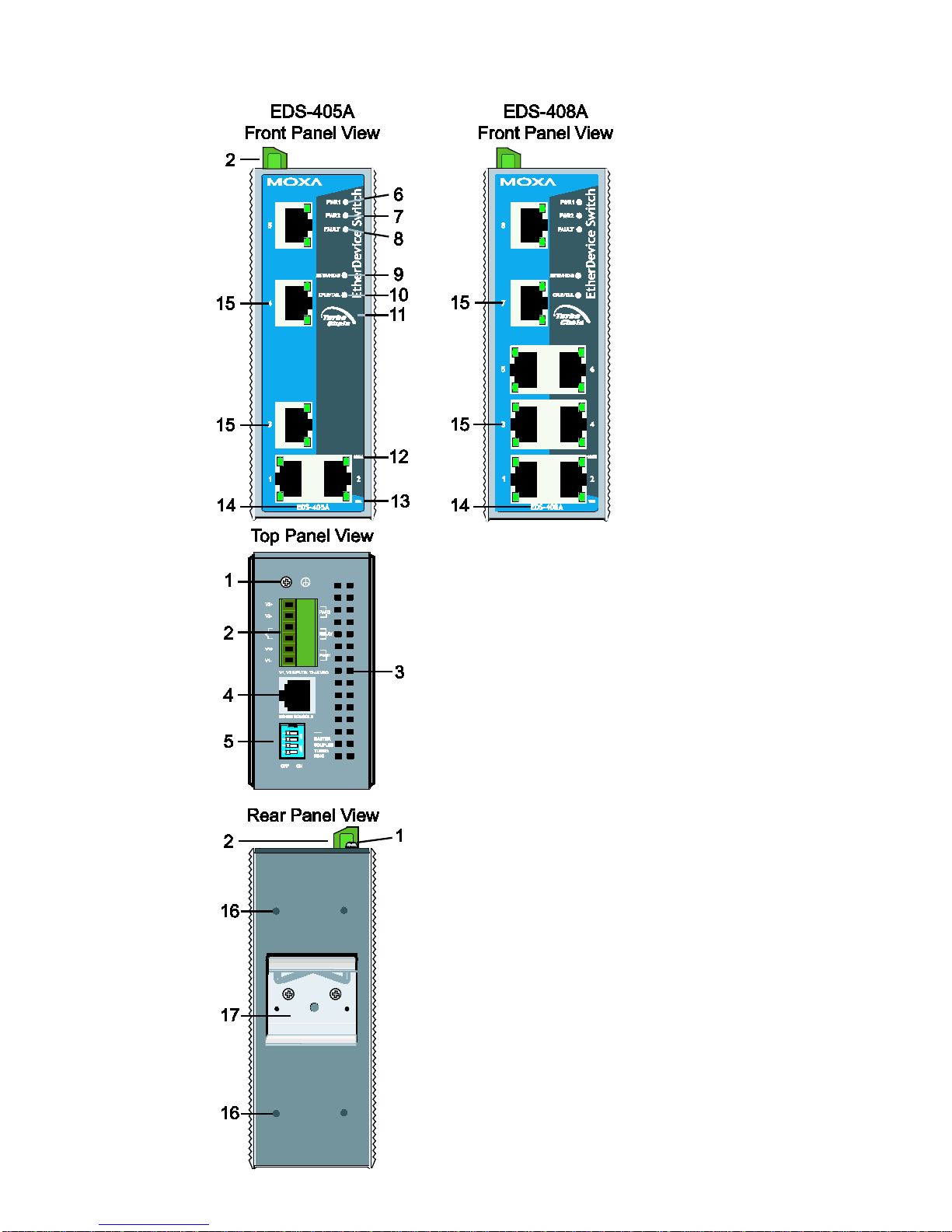

EDS-405A/408A Panel Layout (standard)

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation vents

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. Screw hole for wall mounting kit

17. DIN-Rail kit

- 4 -

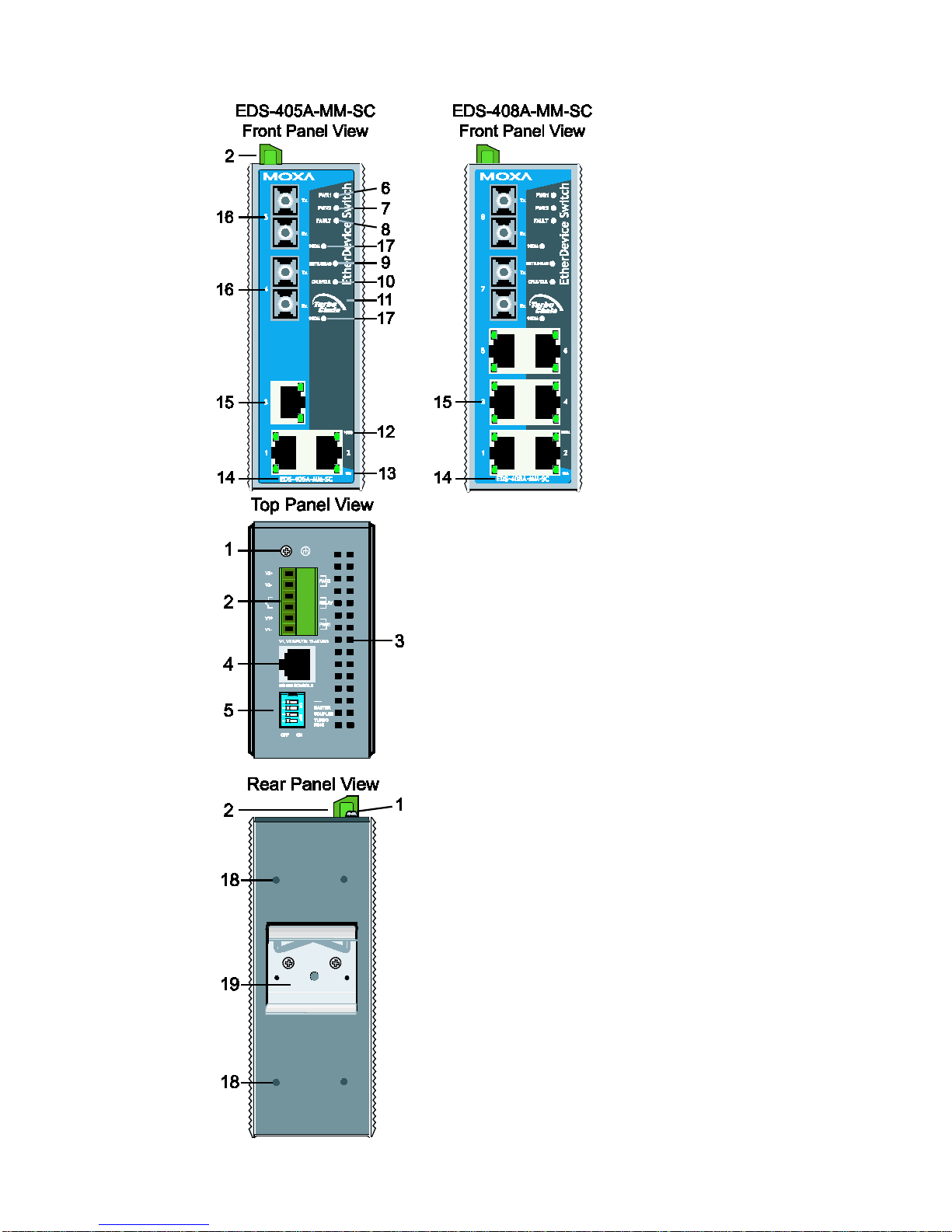

EDS-405A/408A-MM (SC-type) Panel Layout

NOTE:

The appearance of the EDS-405A-SS-SC is

identical to that of the EDS-405A-MM-SC.

The appearance of the EDS-408A-SS-SC is

identical to that of the EDS-408A-MM-SC.

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation vents

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

- 5 -

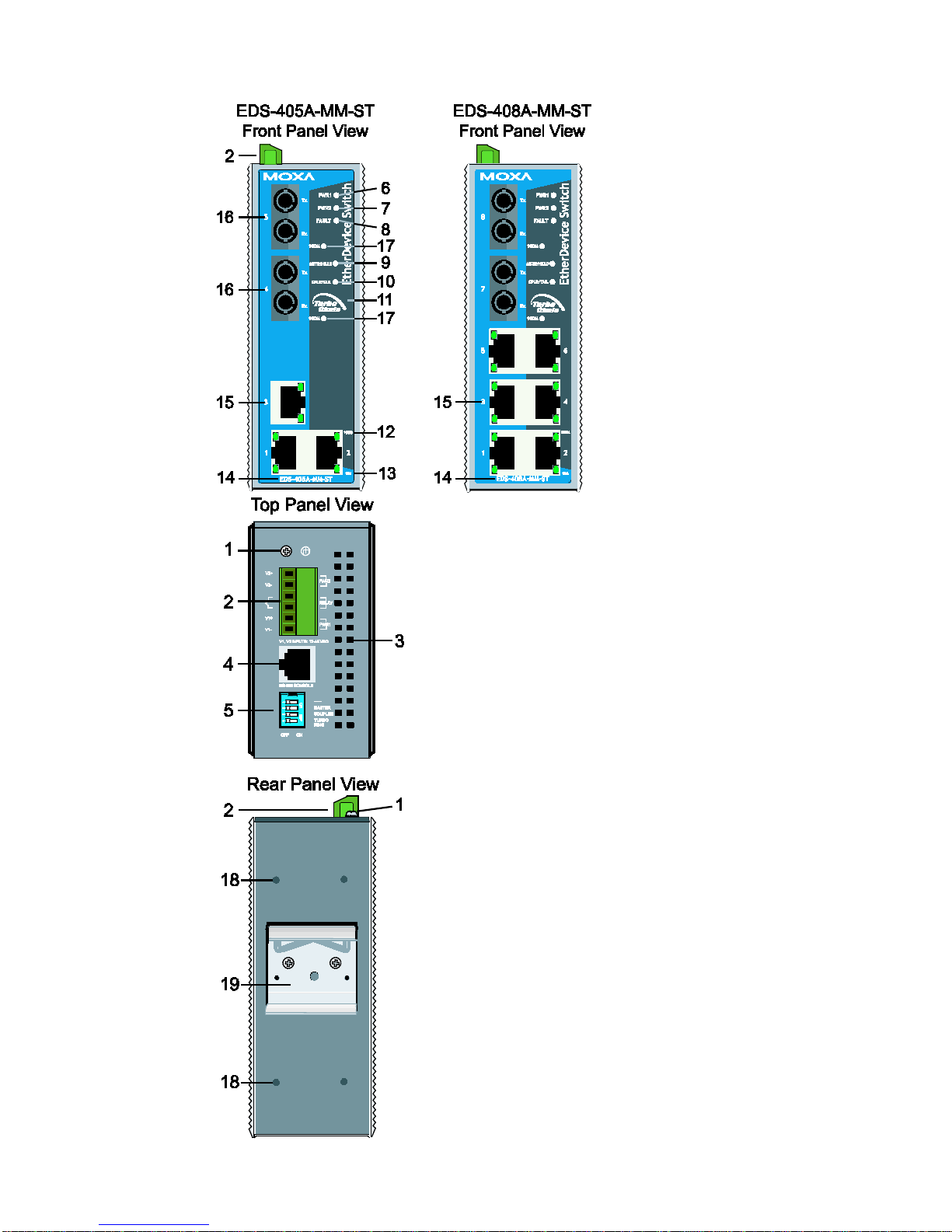

EDS-405A/408A-MM (ST-type) Panel Layout

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Heat dissipation vents

4. Console port

5. DIP switches

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. Turbo Chain logo

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 10/100BaseT(X) ports

16. 100BaseFX ports

17. FX port’s 100 Mbps LEDs

18. Screw hole for wall mounting kit

19. DIN-Rail kit

- 6 -

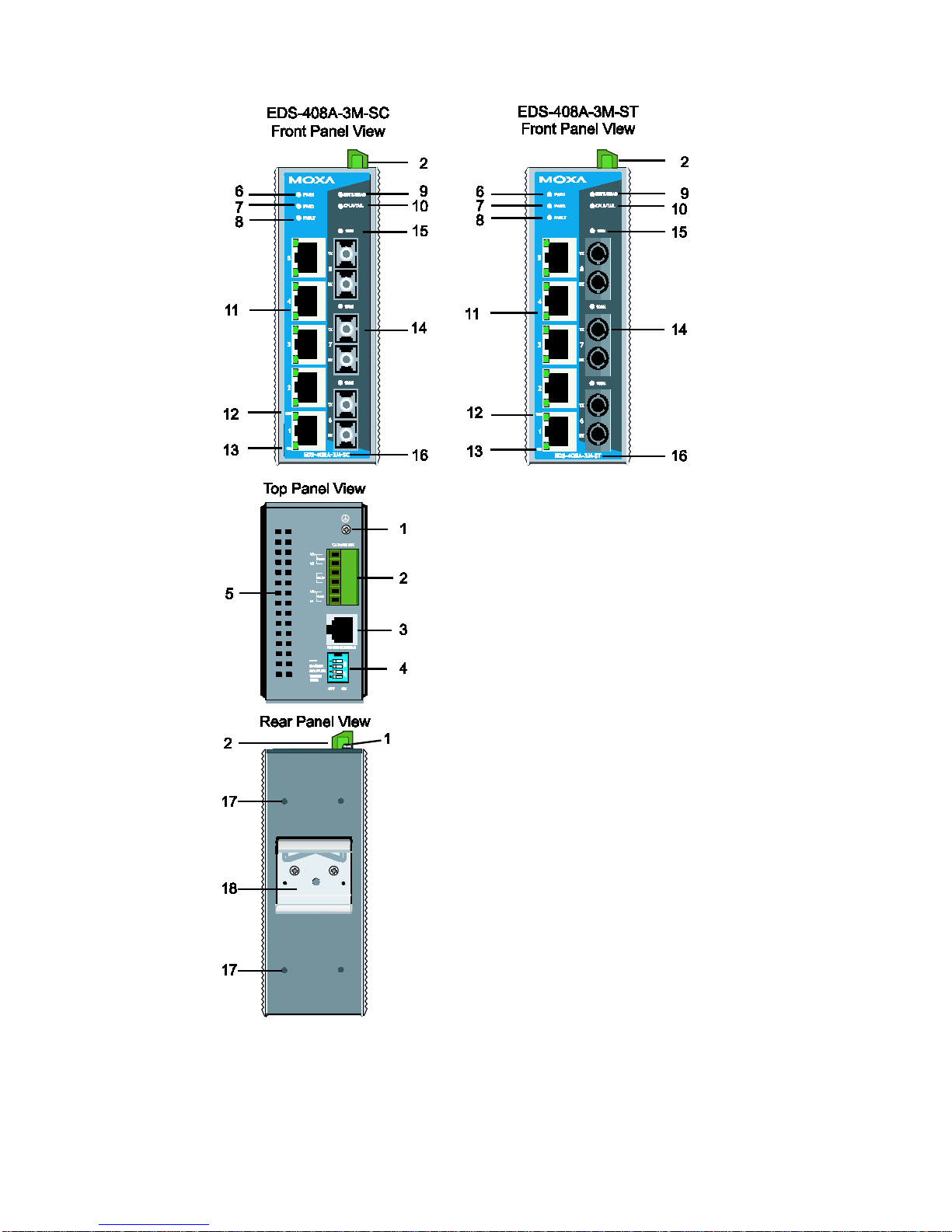

EDS-408A-3M Panel Layout (SC/ST-type)

NOTE:

The appearance of the

EDS-408A-3S-SC,

EDS-408A-1M2S-SC, and

EDS-408A-2M1S-SC are identical to

that of the EDS-408A-3M-SC.

1. Grounding screw

2. Terminal block for power input

PWR1/PWR2 and relay output

3. Console port

4. DIP switches

5. Heat dissipation vents

6. Power input PWR1 LED

7. Power input PWR2 LED

8. Fault LED

9. MSTR/HEAD: LED indicator

10. CPLR/TAIL: LED indicator

11. 10/100BaseT(X) ports

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. 100BaseFX ports

15. 1 FX port’s 100Mbps LEDs

100M-M: multi mode FX port

100M-S: single mode FX port

16. Model Name

17. Screw hole for wall mounting kit

18. DIN-Rail kit

- 7 -

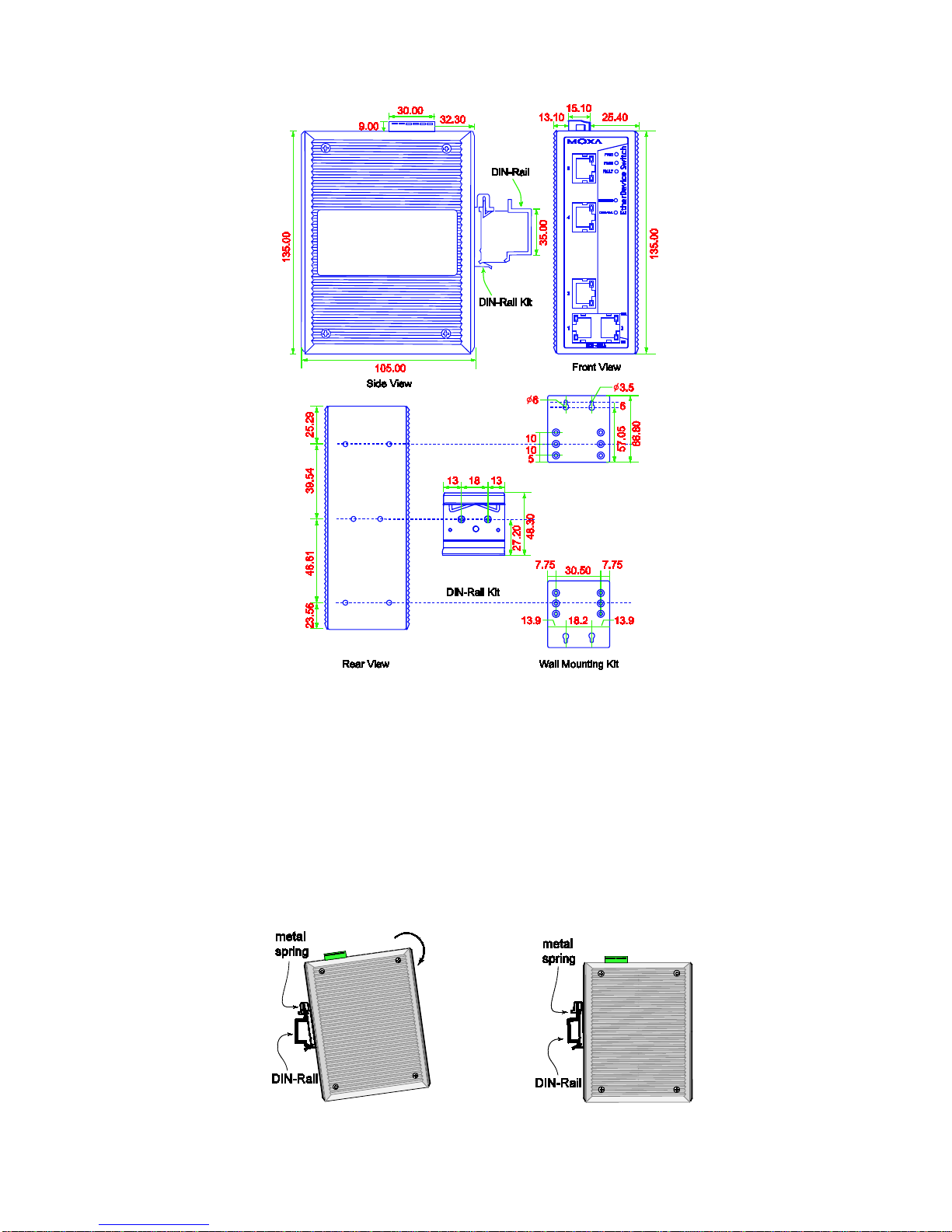

Mounting Dimensions (unit = mm)

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the EDS-405A/408A when you take it out of the box. If you

need to reattach the DIN-Rail attachment plate, make sure the stiff metal

spring is situated towards the top, as shown in the following figures.

STEP 1:

Insert the top of the DIN-Rail into

the slot just below the stiff metal

spring.

STEP 2:

The DIN-

Rail attachment unit will

snap into place as shown.

To remove the Moxa EtherDevice switch from the DIN-Rail, simply

reverse Steps 1 and 2.

- 8 -

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-405A/408A on the wall, as shown in the following figures.

STEP 1:

Remove the aluminum

DIN-Rail attachment plate

from the EDS-405A/408A’s

rear panel, and then attach

the wall mount plates with

M3 screws, as shown in the

diagram at the right.

⇒

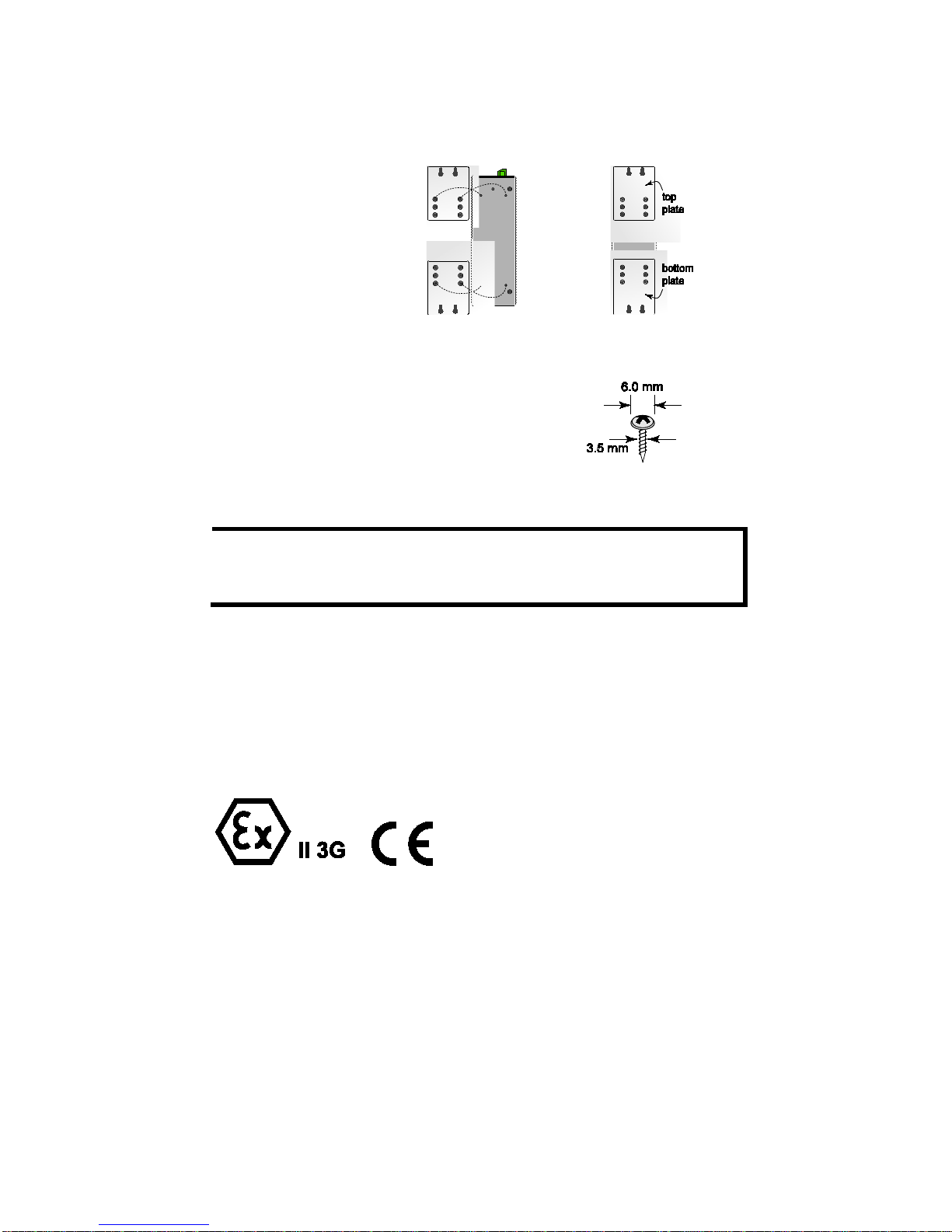

STEP 2:

Mounting the EDS-405A/408A on the wall

requires 4 screws. Use the switch, with wall

mount plates attached, as a guide to mark the

correct locations of the 4 screws. The heads of

the screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5

mm in diameter, as shown in the figure at the

right.

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one

of the keyhole-shaped apertures of the wall mounting plates.

Do not screw the screws in completely—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

STEP 3: Once the screws are fixed in the wall, insert the four screw heads

through the large parts of the keyhole-shaped apertures, and then slide

the EDS-405A/408A downwards, as indicated. Tighten the four screws for

added stability.

ATEX Information

1. Certificate number: DEMKO 08 ATEX 0712961X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nC nL IIC T4)

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. The conditions of safe usage:

•These products must be mounted in an IP54 enclosure.

•Install in an area of pollution degree 2 or less.

•Use a conductor wire of size 0.2 mm² or greater.

•PROVISIONS SHOULD BE MADE, EXTERNAL TO THE APPARATUS,

TO PREVENT THE RATED VOLTAGE FROM BEING EXCEEDED BY

TRANSIENT DISTURBANCES OF MORE THAN 40%.

- 9 -

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Be sure to read and follow these important guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

•NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•Use the type of signal transmitted through a wire to determine which

wires should be kept separate. The rule of thumb is that wiring that

shares similar electrical characteristics can be bundled together.

•Keep input wiring and output wiring separate.

•When necessary, you should label the wiring to all devices in the

system.

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

Wiring the Relay Contact

The Relay Contact consists of the two middle contacts of the terminal

block on the EDS-405A/408A’s top panel. Refer to the next section for

detailed instructions on how to connect the wires to the terminal block

connector, and how to attach the terminal block connector to the terminal

block receptor.

In this section, we explain the meaning of the two contacts used to

connect the Alarm Contact.

FAULT: The two middle contacts of the 6-contact

terminal block connector are used to detect both

power faults and port faults. The two wires

attached to the fault contacts form an open

circuit

when:

- 10 -

A relay warning event is triggered.

The EDS-405A/408A is the Master of this Turbo

Ring, and the Turbo Ring is broken.

There is a start-up failure.

If none of these three conditions is satisfied, the

fault circuit will remain closed.

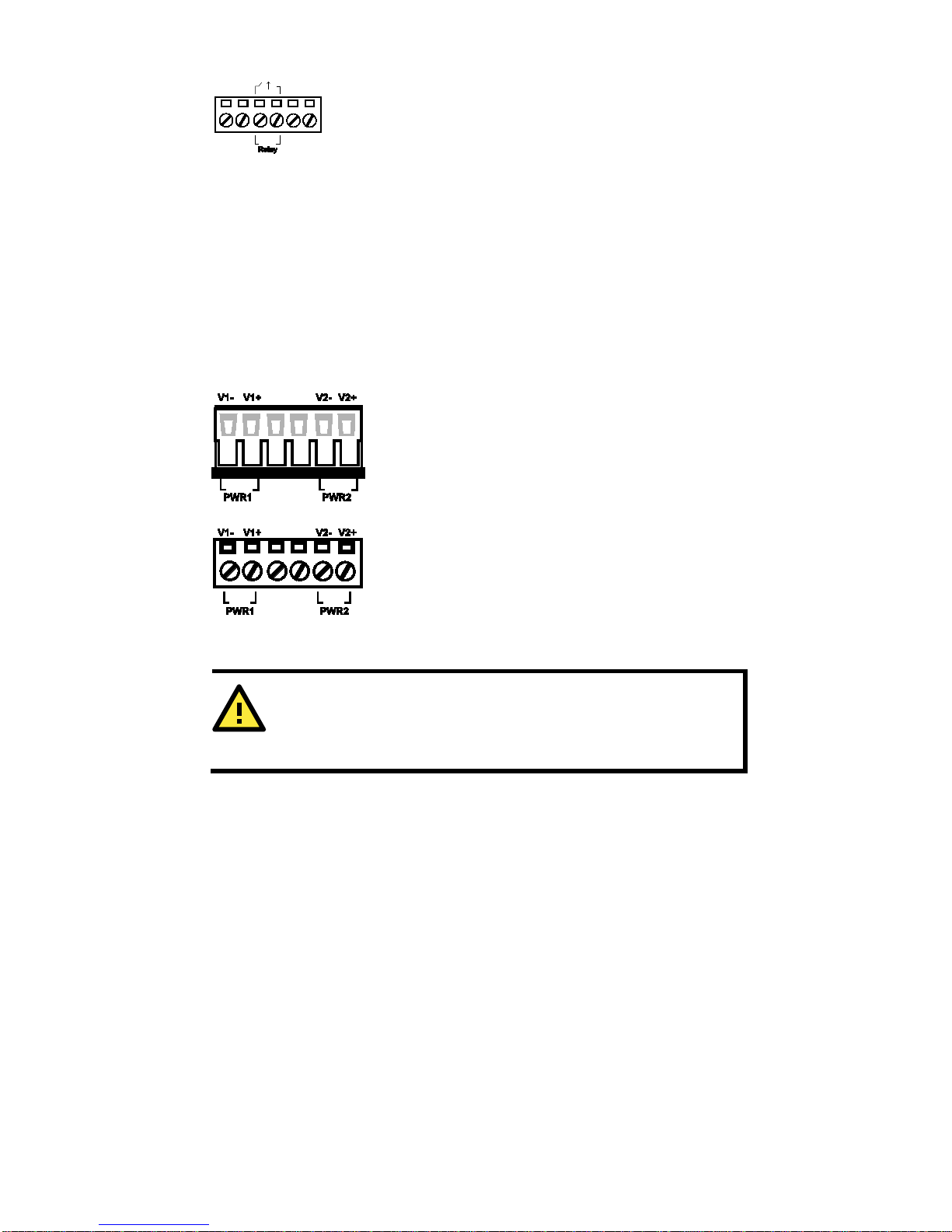

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact

terminal block connector on the EDS-405A/408A’s top panel are used for

the EDS-405A/408A’s two DC inputs. Top and front views of one of the

terminal block connectors are shown in the following figures:

STEP 1: Insert the negative/positive DC wires into

the V-/V+ terminals, respectively.

STEP 2: To keep the DC wires from pulling

loose,

use a small flat-blade screwdriver to tighten the

wire-clamp screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block receptor,

which is located on the EDS-405A/408A’s top

panel.

ATTENTION

Before connecting the EDS-405A/408A to the DC power inputs,

make sure the DC power source voltage is stable.

Communication Connections

EDS-408A models have 5, 6, or 8 10/100BaseT(X) Ethernet ports, and 3,

2, or 0 (zero) 100BaseFX (SC/ST-type connector) fiber ports. EDS-405A

models have 3 or 5 10/100BaseT(X) Ethernet ports, and 2 or 0 (zero) 100

BaseFX (SC/ST-type connector) fiber ports.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS’s front panel are used to

connect to Ethernet-enabled devices.

Next, we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7728 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7710 Series Manuale

Moxa Technologies

Moxa Technologies EDS-516A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-516A Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manuale

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies EDS-726 Series Manuale

Moxa Technologies

Moxa Technologies EDS-G308-T Manuale

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuale

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manuale

Moxa Technologies

Moxa Technologies NSwitch Outdoors Manuale utente

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP Manuale utente

Moxa Technologies

Moxa Technologies PT-G7728 Manuale utente

Moxa Technologies

Moxa Technologies PT-G510 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manuale utente

Moxa Technologies

Moxa Technologies EDS-2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 Manuale utente

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2-HV Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
