AWK-3131

Hardware Installation Guide

Moxa AirWorks

Second Edition, June 2014

- 2 -

Overview

Moxa's new AWK-3131 3-in-1 industrial wireless Access Point meets the

growing need for faster data transmission speeds and wider coverage by

supporting IEEE 802.11n technology with a net data rate of up to 300

Mbps. The AWK-3131 combines two adjacent 20 MHz channels into a

single 40 MHz channel to deliver a potent combination of greater

reliability and more bandwidth. The two redundant DC power inputs

increase the reliability of the power supply, and the AWK-3131 can be

powered via PoE to make deployment easier. The AWK-3131 can operate

on either the 2.4 or 5 GHz bands and is backward-compatible with

existing 802.11a/b/g deployments to future-proof your wireless

investments.

Package Checklist

Moxa’s AWK-3131 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•AWK-3131

•2 dual-band omni-directional antennas (2dBi, RP-SMA, 2.4/5 GHz)

•Cable holder with one screw

•2 plastic RJ45 protective caps

•1 plastic SFP protective cap

•DIN-rail kit

•Documentation and software CD

•Quick installation guide (printed)

•Warranty card

- 3 -

Recommended SFP Accessories

SFP-1G series

•SFP-1GSXLC:

Small form factor pluggable transceiver with 1000BaseSX, LC, 0.5 km,

0 to 60°C

•SFP-1GSXLC-T:

Small form factor pluggable transceiver with 1000BaseSX, LC, 0.5 km,

-20 to 75°C

•SFP-1GLSXLC:

Small form factor pluggable transceiver with 1000BaseLSX, LC, 2 km,

0 to 60°C

•SFP-1GLSXLC-T:

Small form factor pluggable transceiver with 1000BaseLSX, LC, 2 km,

-40 to 85°C

•SFP-1GLXLC:

Small form factor pluggable transceiver with 1000BaseLX, LC, 10 km,

0 to 60°C

•SFP-1GLXLC-T:

Small form factor pluggable transceiver with 1000BaseLX, LC, 10 km,

-40 to 85°C

•SFP-1GLHLC:

Small form factor pluggable transceiver with 1000BaseLH, LC, 30 km,

0 to 60°C

•SFP-1GLHLC-T:

Small form factor pluggable transceiver with 1000BaseLH, LC, 30 km,

-40 to 85°C

•SFP-1GLHXLC:

Small form factor pluggable transceiver with 1000BaseLHX, LC, 40

km, 0 to 60°C

•SFP-1GLHXLC-T:

Small form factor pluggable transceiver with 1000BaseLHX, LC, 40

km, -40 to 85°C

•SFP-1GZXLC:

Small form factor pluggable transceiver with 1000BaseZX, LC, 80 km,

0 to 60°C

•SFP-1GZXLC-T:

Small form factor pluggable transceiver with 1000BaseZX, LC, 80 km,

-40 to 85°C

•SFP-1GEZXLC:

Small form factor pluggable transceiver with 1000BaseEZX, LC, 110

km, 0 to 60°C

•SFP-1GEZXLC-120:

Small form factor pluggable transceiver with 1000BaseEZX, LC, 120

km, 0 to 60°C

- 4 -

Panel Layout of the AWK-3131

1. Grounding screw (M3)

Terminal block for PWR1,PWR2,

relay, DI1, and DI2

3. Reset button

4. System LEDs: PWR1, PWR2,

PoE, FAULT, and STATE LEDs

5. LEDs for signal strength

6. WLAN LED

7. Ethernet or Fiber LED

8. RS-232 console port

9. LANs: 10/100/1000 BaseT(X)

RJ45 Port or 1000Base SFP

10.

Main Antenna A

11.

Main Antenna B

12.

Model name

13.

Screw hole for wall mounting Kit

14.

DIN-Rail mounting kit

- 5 -

Mounting Dimensions (unit = mm)

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should be fixed to the back

panel of the AWK-3131 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to the AWK-3131, make sure the

stiff metal spring is situated towards the top, as shown in the figures

below.

STEP 1:

Insert the top of the DIN

-Rail into

the slot just

below the stiff metal

spring.

STEP 2:

The DIN

-Rail attachment unit will

snap into place as

shown below.

To remove the AWK-3131 from the DIN-Rail, simply reverse Steps 1 and

- 6 -

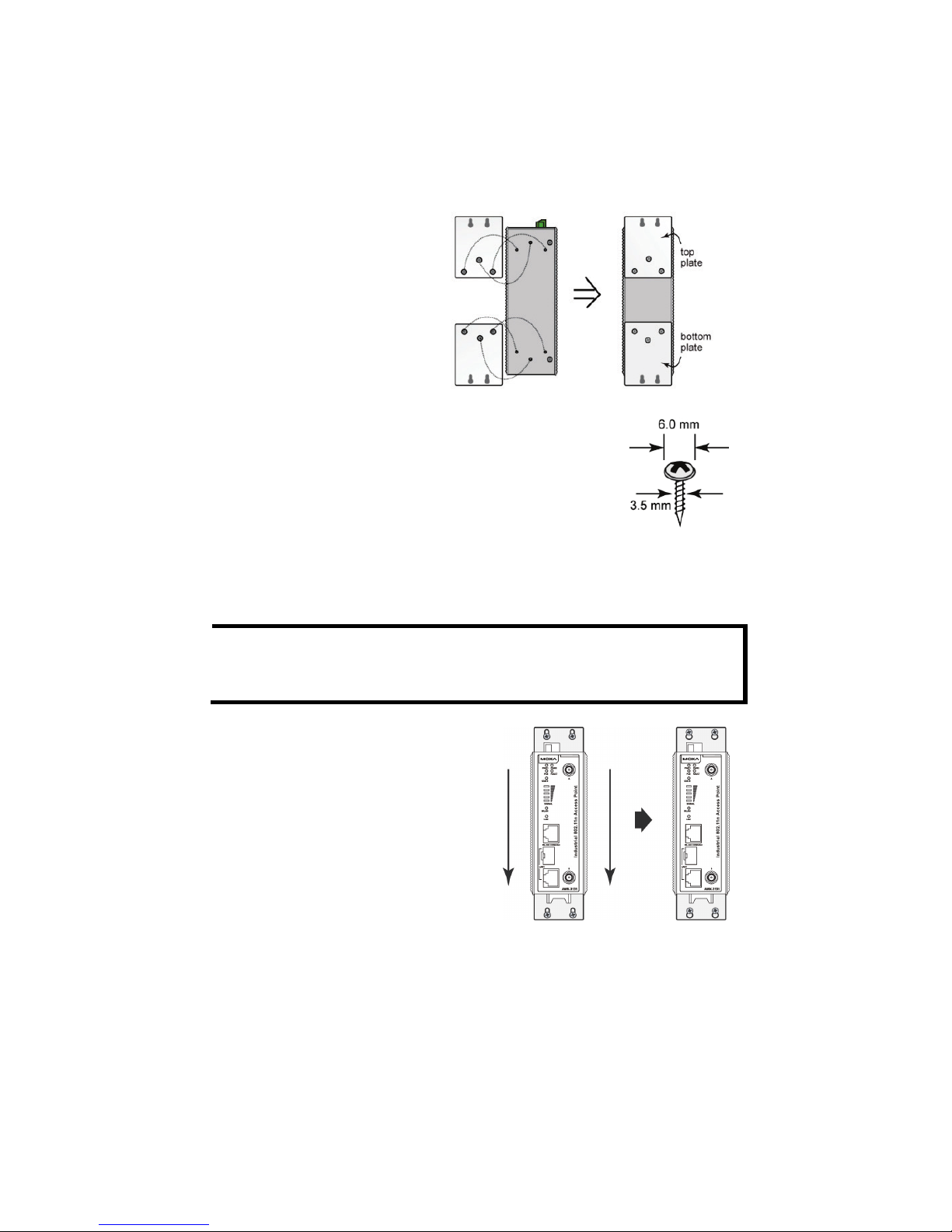

Wall Mounting (optional)

For transportation applications that require an EN 50155 certification

report, we strongly recommend the purchase of the optional AWK-3131

wallmount kit, which has passed EN 50155 testing. This wallmount kit is

also convenient for other applications that require mounting the

AWK-3131 to a wall.

STEP 1:

Remove the aluminum

DIN

-Rail attachment plate

from the

AWK-3131, and

then attach the wall

mount

plates with M3 screws, as

shown in the adjacent

diagrams.

STEP 2:

Mounting the

AWK-3131 to a wall requires 3 screws.

Use the

AWK-3131 device, with wall mount plates

attached, as a guide to mark the correct locations of

the

3 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be less

than 3.5 mm in diameter, as shown in the figure at the

right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the wall mount panel between the wall and the

screws.

NOTE

Test the screw head and shank size by inserting the screw into

one of the keyhole shaped apertures of the Wall Mounting Plates

before it is screwed into the wall.

STEP 3:

Once the screws are fixed into the wall,

insert the four screw heads through

the large opening of the

keyhole

-shaped apertures, and then

slide the

AWK-3131 downwards, as

indicated to the right. Tighten the

three

screws for added stability.

- 7 -

WARNING

•

This equipment is intended to be used in a Restricted

Access

Location, such as a dedicated computer room. Access can

only be gained by SERVICE PERSONS or by USERS who have

been instructed about the fact that the

metal chassis of the

equipment is extremely hot and may cause burns.

•

Service persons or users have to pay special attention and

take special precaution before handling the equipment.

•

Access is to be controlled through the use of

a lock and key or

a security identity system, controlled by the authority

responsible for the location. Only authorized, well-trained

professionals are allowed to access the restricted access

location.

•

External metal parts are hot!! Pay special attention or use

special protection before handling.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa AWK-3131.

WARNING

Safety First!

Calculate the maximum possible current in each power wire

and

common wire. Observe all electrical codes dictating the

maximum current allowed for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

- 8 -

ATTENTIO

This product is intended to be supplied by a Listed Power Unit

marked

“Class 2” or “LPS” and rated O/P: 8.5W,12 to 48 VDC,

700mA (max.), 25°C.

ATTENTION

Make sure

the external power adapto

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

ATTENTION

Do not use

the PoE Injector. Instead, please use an

IEEE802.3af

or IEEE802.3at

compliant PSE (Power Sourcing Equipment) for

PoE (Power over Ethernet) device.

Grounding the Moxa AWK-3131

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

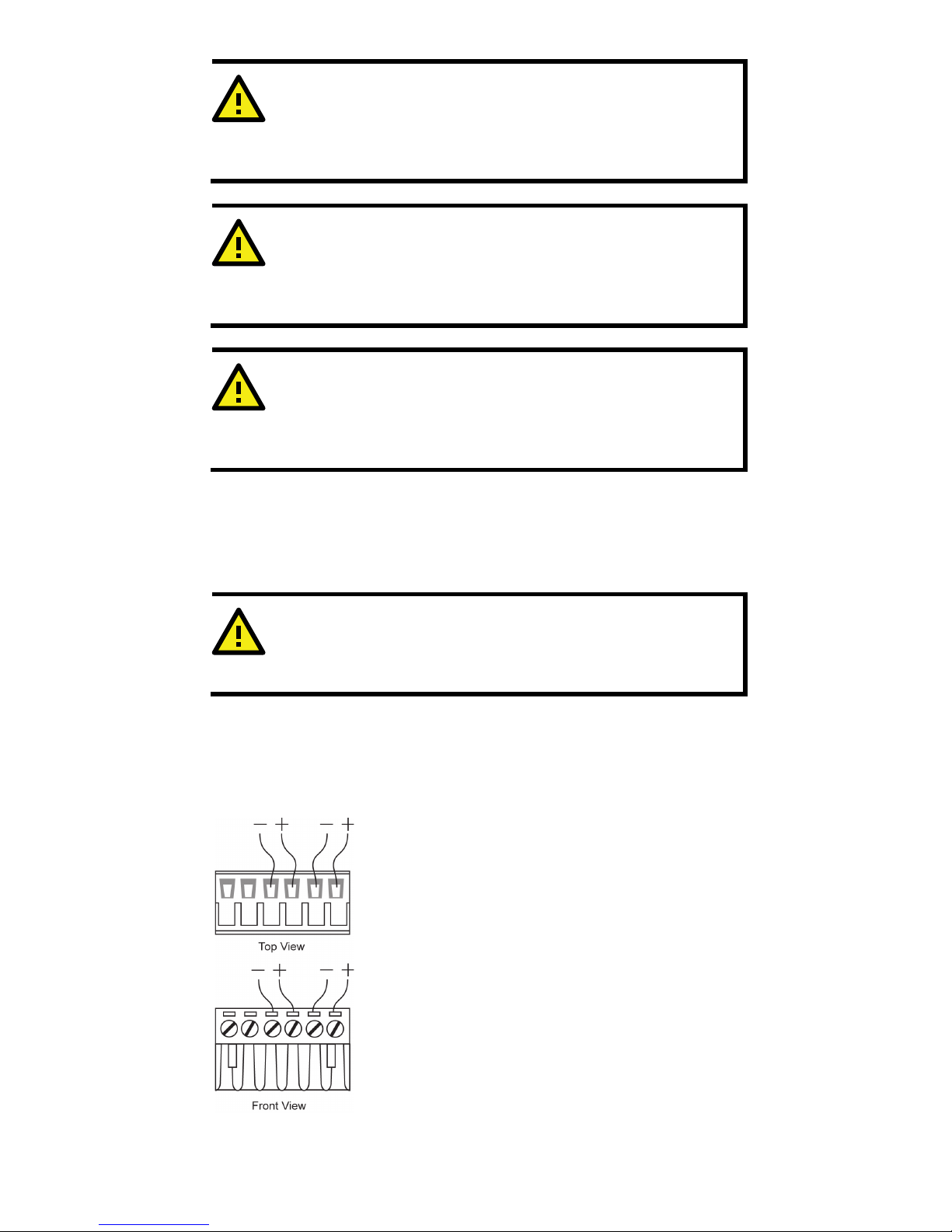

Wiring the Redundant Power Inputs

The top two pairs of contacts of the 10-contact terminal block connector

on the AWK-3131’s top panel are used for the AWK-3131’s two DC inputs.

Top and front views of the terminal block connector are shown below.

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is

located on the AWK-3131’s t

panel.

- 9 -

ATTENTION

Before connecting the

AWK-3131

to the DC power inputs, make

sure the DC power source voltage is stable.

Wiring the Relay Contact

The AWK-3131 has one relay output, which consists of the two contacts of

the terminal block on the AWK-3131’s top panel. Refer to the previous

section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector

to the terminal block receptor. These relay contacts are used to indicate

user-configured events. The two wires attached to the Relay contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the Relay circuit will be closed.

Wiring the Digital Inputs

The AWK-3131 has two sets of digital input—DI1 and DI2. Each DI

comprises two contacts of the 10-pin terminal block connector on the

AWK-3131’s top panel. You can refer to the “Wiring the Redundant Power

Inputs” section for detailed instructions on how to connect the wires to

the terminal block connector, and how to attach the terminal block

connector to the terminal block receptor.

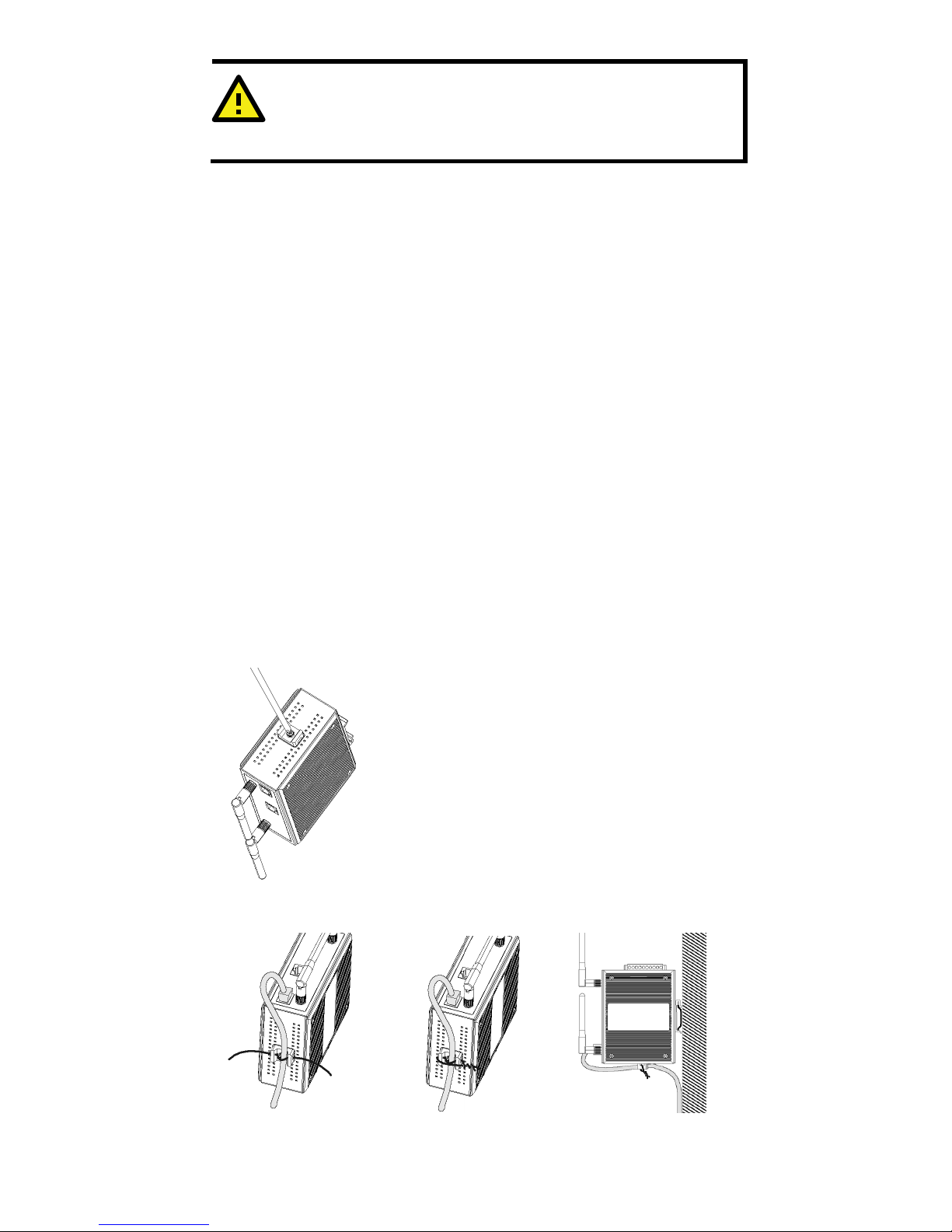

Cable Holder Installation

You can attach the cable holder to the bottom of the AWK-3131. This

helps to keep cabling neat and avoid accidents that result from untidy

cables.

STEP 1: Screw the cable holder onto the bottom

of the

AWK-3131.

STEP 2:

After mounting the AWK-3131 and plugging in the LAN cable,

tighten the cable along the device and wall.

- 10 -

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-3131’s front panel are

used to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over

copper wires.

MDI/MDI-X Port Pinouts

Signal

TRD(0)+

TRD(0)-

TRD(1)+

TRD(2)+

TRD(2)-

TRD(1)-

TRD(3)+

TRD(3)-

RS-232 Connection

The AWK-3131 has one RS-232 (8-pin RJ45) console port located on the

front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-3131’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-3131 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

-----

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

-----

Altri manuali per AWK-3131

Indice

Altri manuali Moxa Technologies Punto di accesso wireless

Moxa Technologies

Moxa Technologies AirWorks AWK-1151C Series Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manuale utente

Moxa Technologies

Moxa Technologies AWK-1121 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manuale utente

Moxa Technologies

Moxa Technologies AWK-3131A-RTG Series Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3121-M12-RTG Manuale utente

Moxa Technologies

Moxa Technologies TAP-213 Manuale utente

Moxa Technologies

Moxa Technologies WAC-1001 Series Manuale utente

Moxa Technologies

Moxa Technologies Airworks AWK-3131A-M12-RCC Manuale utente

Moxa Technologies

Moxa Technologies WAC-1001 Series Manuale utente

Moxa Technologies

Moxa Technologies TAP-6226 Manuale utente

Moxa Technologies

Moxa Technologies airworks awk-5232 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3191 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-5222 Manuale utente

Moxa Technologies

Moxa Technologies AWK-3121B Series Manuale utente

Moxa Technologies

Moxa Technologies AirWorksAWK-6232-M12 Manuale

Moxa Technologies

Moxa Technologies AirWorks AWK-1200-AP Manuale utente

Moxa Technologies

Moxa Technologies AWK-4121 Manuale utente

Moxa Technologies

Moxa Technologies AWK-4121 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A-M12-RCC-EU Manuale utente

Moxa Technologies

Moxa Technologies AWK-3131 Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-3251A-M12-RCC Series Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
