MP Speaker E5T Manuale utente

Speaker System

Owner`s Manual

Nature Sound

Speaker

Installation Guide

Desiened and Engineered by MPspeaker

Introducation

Welcome to MPSpeaker

Congratulations on your purchase of a MP loudspeaker system. The MP range of products have been

painstakingly engineered in the United States to offer genuine state-of-the-art performance.

Partnered with suitable equipment, MP loudspeakers and subwoofers will provide audio performance

far beyond that of their competitors and will equal or better the performance of products costing many

times their purchase price.

A notable feature of all MP loudspeakers, is the unusually precise imaging, having a panorama and

depth rarely heard at any price. The total lack of 'hot seat' type imaging also means that many people

can enjoy the music simultaneously.

Don't just take our word for it, try listening to a well recorded piece at extreme listening positions...

Please read and follow this instruction manual, paying particular attention to the Connection,

Positioningand Product Care sections. Subwoofer customers should pay particular attention to the

Subwoofer Headroom, Placement and Setting Up sections. This manual has been written to enable

you to achieve the very best performance and maximum listening pleasure from your investment.

Your new MP loudspeakers require running-in before performing to their design brief.

We wish you many years of surprising listening... Move Your World!

With best regards

The MP Team.

VERY IMPORTANT

Before connecting your new MP speakers to your system, please ensure that your ampliﬁer is

switched off and unplugged from the mains supply for safety.

Connection Options Glossary

Connections

Toconnectyourspeakertoyourreceiveryouwillneedstandard2conductor,strandedspeaker

wire.Forinstructionson installation,pleasereadbelow.

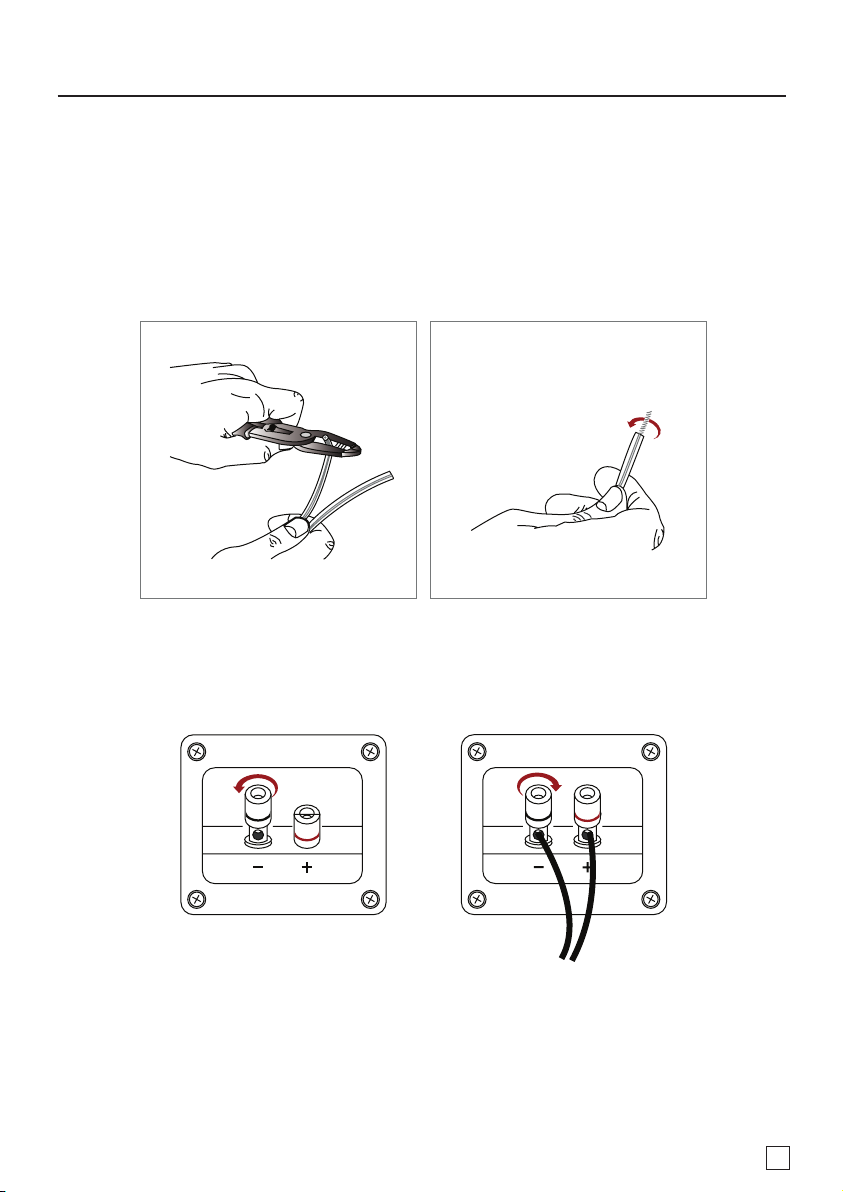

Preparing the Wire

1) Separate the last 4" of your speaker wire into two pieces.

2) Strip 1/2" off the shielding off of the end of each wire (see A below).

3) Twist the exposed copper strands with your ﬁngers until they are tightly uniﬁed. Be sure

there are no “ﬂyaway”strands (see B below).

If You’re Using Bare Wire

1) Unscrew the binding posts on the back of your speaker by turning counter-clockwise.

2) Insert the bare speaker wire into the hole in the binding post and tighten it securely by

turning clockwise

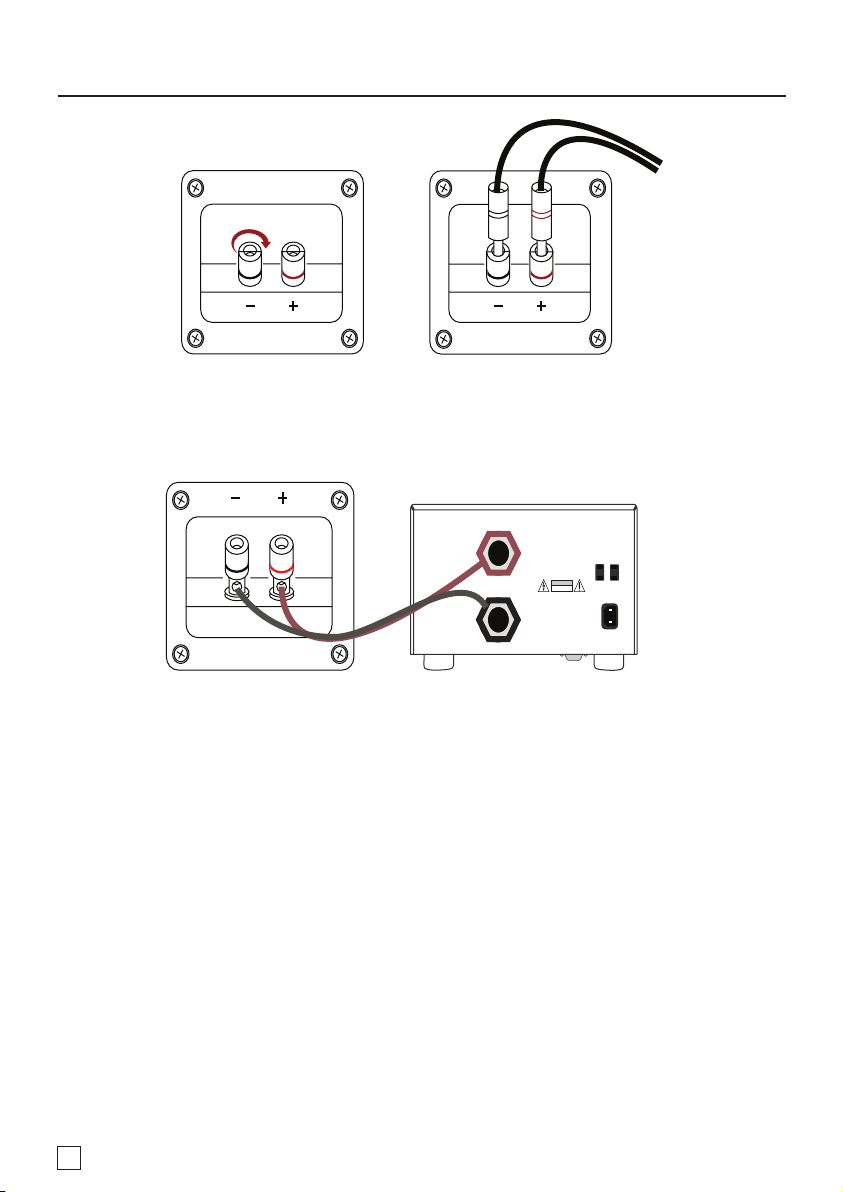

If You’re Using Banana Plugs

1) Be sure to follow the instructions on your banana plugs to attach them to the wire.

2) Screw the binding posts incompletely by turning clockwise.

3) Insert them into the open end of the binding post.

CA U TI O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Connection Options Glossary

Note: As you make your connections, be sure to connect the positive terminals on your

receiver to the positive terminals on your speakers. Most two conductor wire has screen

printing on one side to help you differentiate between the two strands (see image below).

Bi-wiring

Bi-wiring is an increasingly popular and affordable system upgrade. This entails the use of two

separate runs of speaker cable from the ampliﬁer to each speaker, one run for the woofer and

one for the tweeter.

If bi-wiring, connect one cable (as in single cabling above) to the woofer terminals, then

connect the second cable to the tweeter connections in the same way.

The links should be removed and stored safely for possible later use. It is crucial that the cable

polarities are carefully observed to ensure correct system performance.

If considering bi-wiring as an easy upgrade, bear in mind that, as a rule, you will get better

performance from a single run of high quality cable than bi-wiring with two runs of lesser

quality.

Bi-amping

The most expensive option is bi-amping. separate ampliﬁers are used for the woofer and the

tweeter. If using this method, run separate cables from each ampliﬁer and connect to the

speakers as in bi-wiring. It is vital that the links are removed otherwise permanent damage will

occur to the ampliﬁers.

Speaker placement guidelines

MP Enclosure Systems are highly ﬂexible in application and can be used in stereo pairs, 5.1

home theatre systems, or any variety of combinations for faithful sound reproduction. In

general, stereo speakers are placed approximately 12' from each other but room acoustics play

a large role in acoustic performance so we recommend experimenting if you have placement

options available. You may ﬁnd an optimum placement that best suits your own satisfaction.

See more detailed instructions following.

The MP Bookshelf can be placed either in horizontal or vertical position but can also be

mounted on-wall for rear channel home theatre surround sound. As previously mentioned,

once you decide what position is best for you,apply the rubber feet. The LCR model can also be

used as bookshelf speakers or for left, Right and Center channels for your home theatre. In this

instance, the LCR model should be placed near your viewing screen (in the LCR positions) for

lifelike video source voicing. The LCR enclosures can also be mounted on-wall for rear channel

home theatre applications.

Tower speakers are obviously provided ﬂoor space, and again, if space allows, try a 12'

spacing for stereo separation but feel free to experiment with the inherent acoustic qualities.

Spacing from 6' to 15', angled toward the listener, will yield satisfactory results. Regardless of

where you ﬁnally position Aeries enclosures, you will be completely satisﬁed with a truly high

ﬁdelity experience.

Placement Detailed

Home Theater System

The illustration below shows a typical home theater conﬁguration for your reference. Please

note the rear channel speakers behind the listener are optional.

Any combination of MP enclosures may be used to create lifelike video sound reproduction,

whether bookshelf, LCR or Towers.

Place the Left, Center, Right enclosures parallel with the viewing screen. You may experiment

with ﬁnal locations for best personal results.

Surround enclosures should each be placed adjacent and higher than the listener position. We

recommend these both be placed slightly behind the listener.

You may aim the rear speakers toward the listener to accentuate each rear channel.

Alternatively, directing each enclosure away from the listener will create a greater sense of

spaciousness.

Typical

Listening

Area

L R

R R

S S

45 to 60

Left Front Right Front

Speaker placement guidelines

Stereo Separation

Place both left and right speakers with tweeters at ear height. If your installation requirements

are for surround channel, place them slightly higher.

If placed on a bookshelf or integrated into a cabinet, keep the cabinet front edge and bookshelf

or cabinet edge ﬂush.

Arrange the speakers on the same plane with each other, equal distance from ﬂoor and to the

listener. If possible, keep the speakers the same distance from any adjacent walls. Bass output

is signiﬁcantly inﬂuenced by positioning, so place them as close as possible to these

boundaries.

Wide coverage can be obtained by moving the speakers far apart from one another. In this

case, stereo separation will decrease but will result in well-balanced and spacious sound

reproduction.

Product Speciﬁcation

Speciﬁcation

Model: E5T

Tweeter Dome................................................. Silk composite material

Tweeter Diameter............................................. 1"(25mm)

Woofer Cone.................................................... Composite woven-ﬁberglass

Woofer Diameter.............................................. 5.25"(133mm)

Frequency Response........................................45----20KHz

Impedance........................................................4ohms

Power Handling.................................................5-120watts

Sensitivity.........................................................88dB

Diameter...........................................................927x160x200

Model: E5B

Tweeter Dome................................................. Silk composite material

Tweeter Diameter............................................. 1"(25mm)

Woofer Cone.................................................... Composite woven-ﬁberglass

Woofer Diameter.............................................. 5.25"(133mm)

Frequency Response........................................55----20KHz

Impedance........................................................8ohms

Power Handling.................................................5-80watts

Sensitivity.........................................................85dB

Diameter...........................................................305x170x200

Model: E5C

Tweeter Dome................................................. Silk composite material

Tweeter Diameter............................................. 1"(25mm)

Woofer Cone.................................................... Composite woven-ﬁberglass

Woofer Diameter.............................................. 5.25"(133mm)

Frequency Response........................................50----20KHz

Impedance........................................................8ohms

Power Handling.................................................5-100watts

Sensitivity.........................................................87dB

Diameter...........................................................490x186x200

Model: HT950-IWLCR-8

Tweeter Dome................................................. Silk composite material

Tweeter Diameter............................................. 1.1"(28mm)

Midrange Cone................................................. Paper composite material

Midrange Diameter........................................... 4"(101mm)

Woofer Cone.................................................... Composite PPM

Woofer Diameter...............................................8"(203mm)

Frequency Response........................................45----25KHz

Impedance........................................................4ohms

Power Handling.................................................5-200watts

Sensitivity.........................................................87dB

Diameter........................................................... 600x530x200/250mm
