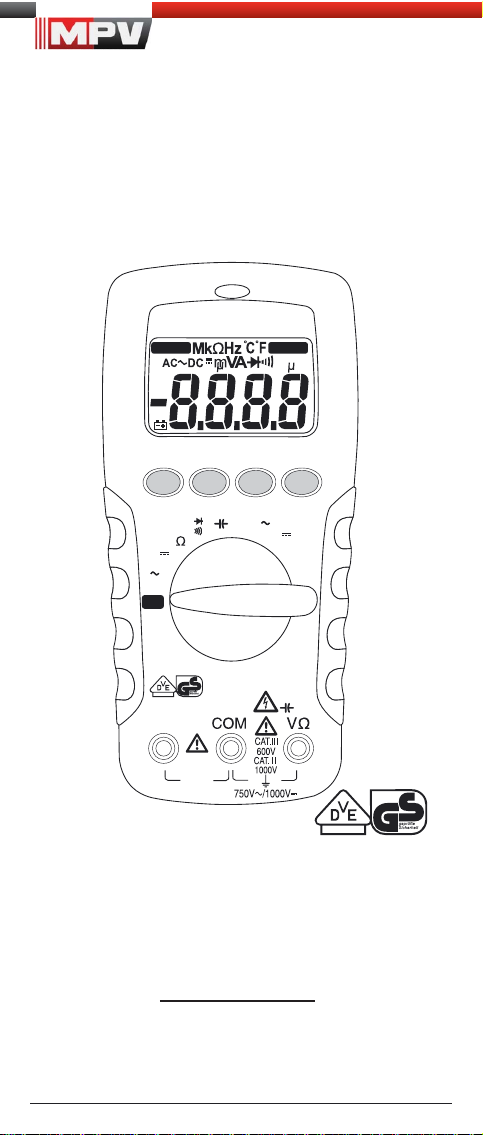

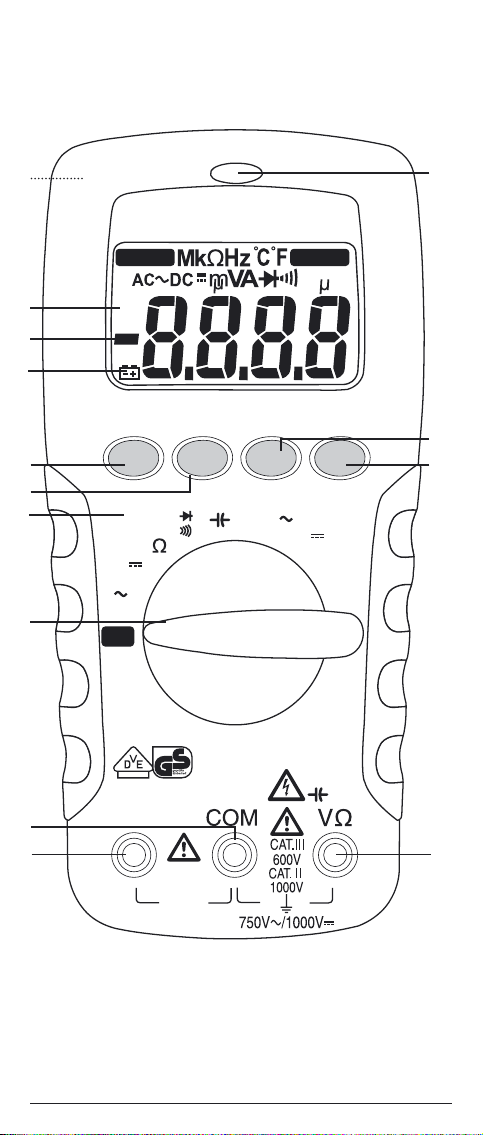

MIN/MAXkey, storage of the highest and lowest measured value
5 VoltSensorkey, for determining AC voltage to earth,
6 RANGEkey, switch-over between automatic/ manual measuring range,
HOLDkey, storage of the displayed measured value,
8Rotaryswitch, for selecting the measuring function,
9Jack (positive1), for V, Ω, , Hz,
JCOM jack, common jack for current/ voltage/ resistance/ frequency/
temperature/ capacity measurements, continuity and diode tests,
K
Jack (positive1), for A range, for currents up to 10 A,
L Suspensionxture
MLED for voltage indicator
1
) This is what the automatic polarity indication for DC current and voltage refers to
5. Generalinformation
5.1 Generalinformationonthemultimeter
5.1.1 The digital display is a 3½-digit LC display with a font size of 16 mm
and a decimal point. The highest numerical value to be displayed is
2000.
5.1.2 The polarity indication works automatically. Only a polarity contrary
to the jack denition is indicated with “-“.
5.1.3 The range exceedance is indicated by “ 0L“ or “- 0L“ and partly by an
acoustic warning.
Attention, no indication and warning in case of overload!
5.1.4 The „MAX/ MIN“ key function automatically determines and stores
the highest and the lowest measured value. Preselect the measuring
range by means of the „RANGE“ key, if necessary. By pressing the key,
the following values are displayed:
„MAX“ shows the highest stored value and „MIN“ the lowest stored
value. The continuous determination of the MAX/ MIN value can be
stopped or started by pressing the „HOLD“ key . By pressing the
„MAX/ MIN“ key for approx. 1 second, you can switch back to normal
mode.
5.1.5 The „RANGE“ key 6is intended for shifting the manual measuring
ranges and masking the „AUTO“ symbol on the display at the same
time. Select the automatic range selection by pressing the key for
approx. 1 second („AUTO“ is shown on the display).
5.1.6 Measured value storage „HOLD“: Press the “HOLD“ key to store
the measuring result. At the same time, the display shows the “HOLD“
symbol. Press the key again to switch back to the measuring mode.
5.1.7 The nominal measuring rate of the 01 is 2
measurements per second for the digital display.
5.1.8 The 01can be switched on or off by means of
the rotary switch 8. Switched off: position „OFF“.
5.1.9 The 01switches off automatically after approx.
10 minutes (APO, Auto-Power-Off). It is switched on again if a key or
the rotary switch is operated. A buzzer tone indicates that the device
is switched off automatically. Automatic switch-off can be deactivated
by pressing the „RANGE“ key and by simultaneously switching on the 01
from the switching position „OFF“.
5.1.10 Temperature coefcient of the measured value: 0.15 x (stated measuring
accuracy)/ °C < 18 °C or > 28 °C, related to the value for the reference
temperature of 23 °C.

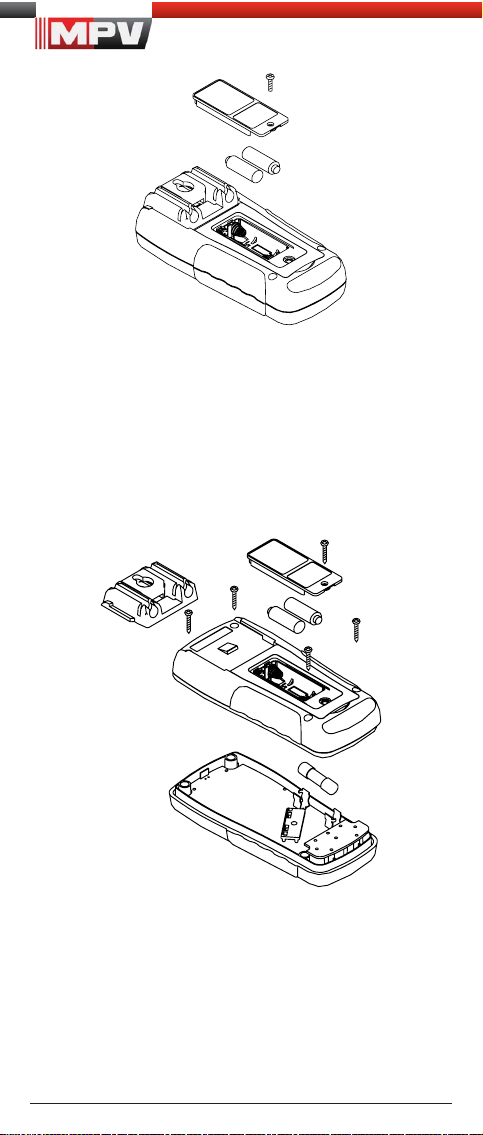

5.1.11 The 01 is supplied by means of two 1.5 V
micro (AAA) batteries (IEC 6 LR 03).
5.1.12
If the battery voltage falls below the specied operating voltage of the 01
, a battery symbol appears on the display .
5.1.13 The battery life is approx. 250 hours (alkaline battery).
5.1.14 Dimensions of the device:
(L x W x H) = 156 x 74 x 44 mm with suspension xture
Weight: 320 g with suspension xture and battery

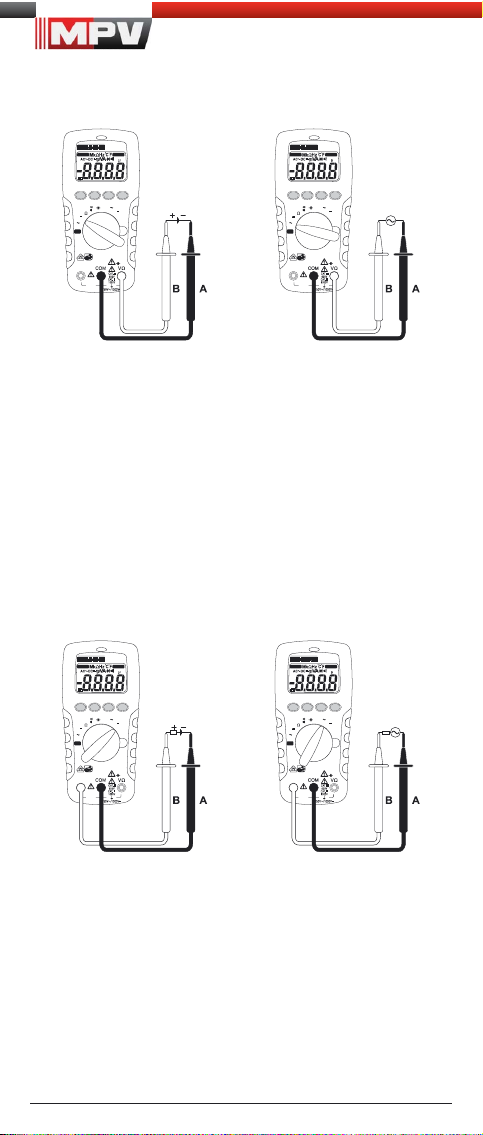

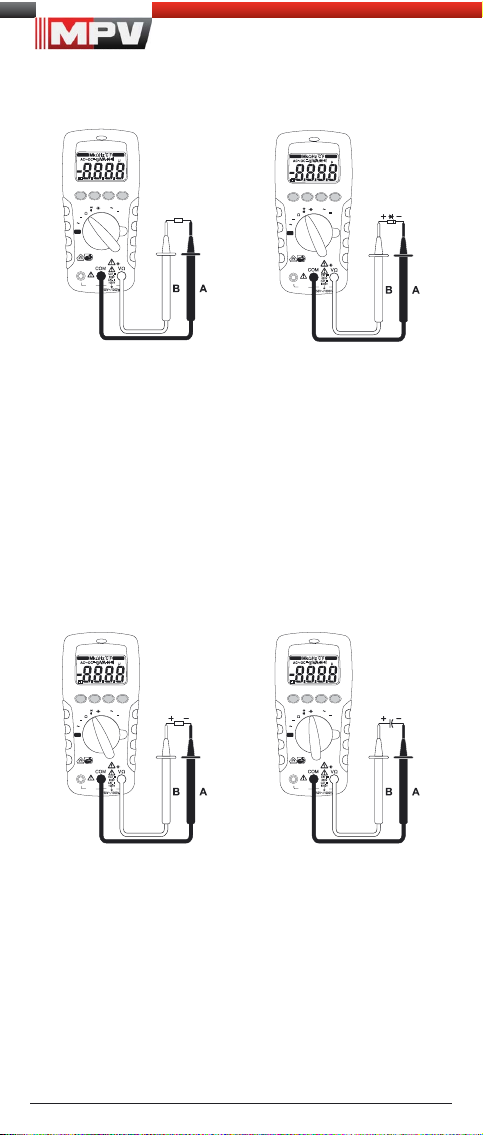

5.1.15 The safety measuring lines are designed in 4 mm plug-in technology.
The enclosed safety measuring lines are explicitly intended for the nominal
voltage and the nominal curent of the 01.

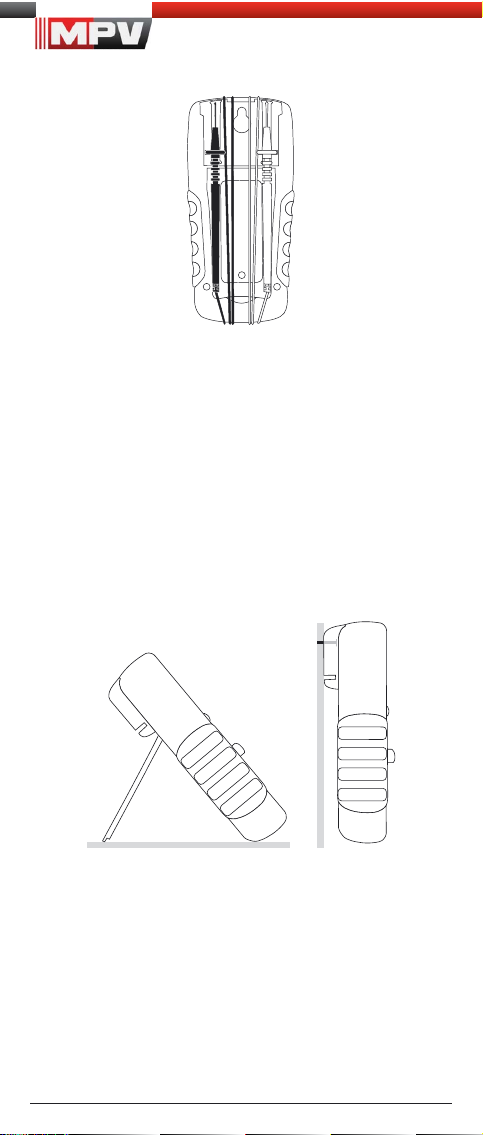

5.1.16 The 01can be set up by means of a foldable
support or can be attached by means of the suspension xture.

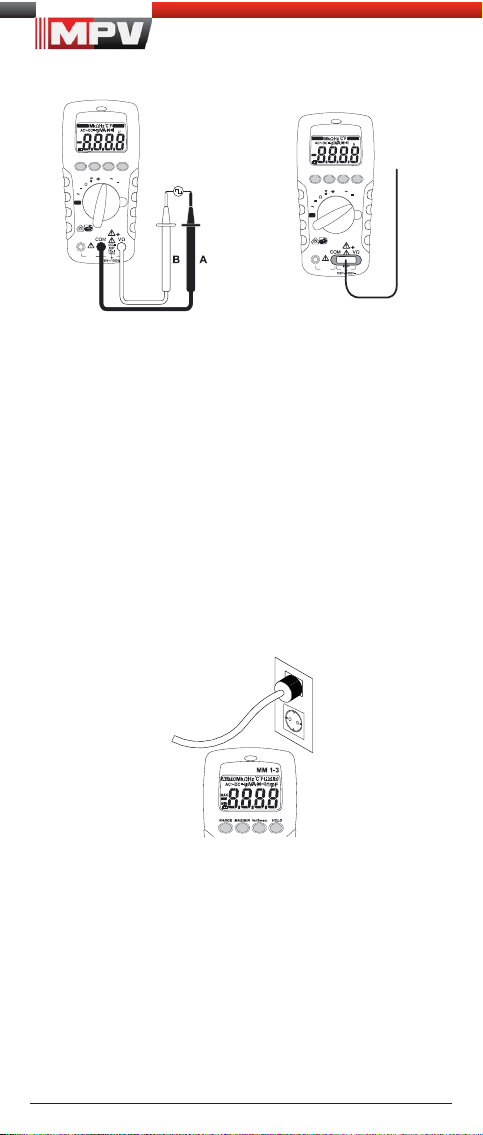

5.1.17 The 01 is equipped with a detector as voltage
indicator at its top side to localize earthed AC voltages.
6. Ambient conditions
- The 01 is intended for measurements under dry
ambient conditions,
- Maximum barometric height for measurements: 2000 m,
