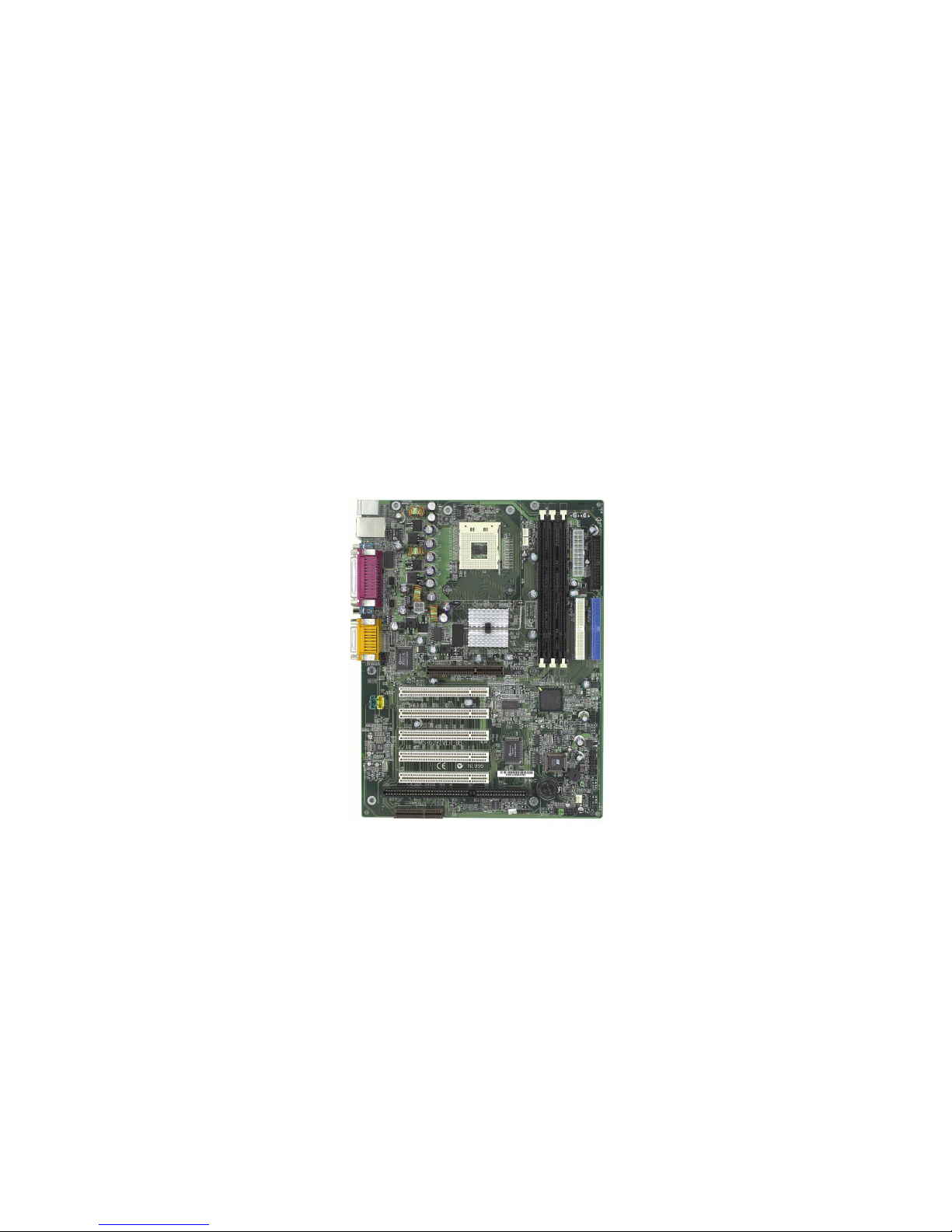

MSI 845 PRO4 Manuale utente
MSI
MICRO-STAR INTERNATIONAL
MS-6391 ATX Mainboard
Version 1.0
G52-MA00362
I
845 PRO4
II
Manual Rev : 1.0
Release Date : Jul. 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a resi-
dential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order
to comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6391
Tested to comply with
FCC Standard
For Home or Office Use
III
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks used in this manual are the property of their respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 98, Windows ME, and Windows NT are registered trademarks of
Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
V1.0 First Release Jul. 2001
IV
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always unplug the Power Cord before inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
The power cord or plug is damaged
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work accord-
ing to User’s Manual.
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F),
IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer.
V
Contents
Chatper 1 Introduction .......................................................................... 1-1
Mainboard Specifications ................................................................ 1-2
Mainboard Layout ............................................................................ 1-4
Quick Components Guide ............................................................... 1-5
Chatper 2 Hardware Setup .................................................................. 2-1
Central Processing Unit: CPU ......................................................... 2-2
CPU Installation Procedures .................................................... 2-2
CPU Core Speed Derivation Procedure ................................... 2-3
Installing the CPU Fan .............................................................. 2-4
Memory Installation ......................................................................... 2-6
Memory Bank Configuration .................................................... 2-6
Module Installation Procedures............................................... 2-7
Power Supply .................................................................................... 2-8
ATX 20-pin Power Connector .................................................. 2-8
ATX 12V Power Connector: JPW1 ............................................ 2-8
Back Panel ....................................................................................... 2-10
Mouse Connector ..................................................................... 2-10
Keyboard Connector ................................................................ 2-11
USB Connectors ....................................................................... 2-11
Serial Port Connectors: COM A & COM B ............................. 2-12
Midi/Joystick/Audio Port Connectors ................................. 2-12
VI
LAN Jack (RJ-45) (optional) .................................................... 2-13
Parallel Port Connector: LPT1 ................................................ 2-14
Connectors ...................................................................................... 2-15
Floppy Disk Drive Connector: FDD1 ..................................... 2-15
Hard Disk Connectors: IDE1 & IDE2 .................................... 2-16
Fan Power Connectors: P_FAN1/C_FAN1/S_FAN1 ......... 2-17
Case Connector: F_P1 & F_P2 (optional) .............................. 2-18
Power Saving Switch Connector: JGS1 ................................. 2-21
Power Saving LED Connector: JGL1 ..................................... 2-22
Wake On Ring/Wake On LAN Connectors .......................... 2-23
CD-In/AUX Line-In/Modem-In Connectors ....................... 2-24
IrDA Infrared Module Connector: IR1 & IR2 (optional) ...... 2-25
USB PC to PC Connector: USB1 & USB2 (optional) ............. 2-26
Front Audio Connector: JAUDIO1 & JAUDIO2 (optional) .. 2-27
Jumpers ............................................................................................ 2-29
Clear CMOS Jumper: JBAT1 .................................................... 2-29
Onboard Audio Jumper: JP1 (optional) ................................. 2-30
Slots .................................................................................................. 2-31
AGP (Accelerated Graphics Port) Slot ................................... 2-31
PCI Slots .................................................................................... 2-31
ISA (Industry Standard Architecture) Slot (optional) .......... 2-32
CNR (Communication & Networking Riser) Slot ................ 2-32
Chapter 3 Award®BIOS Setup ............................................................ 3-1
Entering Setup .................................................................................. 3-2
Control Keys ...................................................................................... 3-2
Getting Help ...................................................................................... 3-3
Main Menu ........................................................................................ 3-4
Standard CMOS Features ................................................................ 3-6
VII
Advanced BIOS Features ................................................................. 3-9
Advanced Chipset Features .......................................................... 3-14
Integrated Peripherales .................................................................. 3-17
Power Management Setup ............................................................. 3-22
PnP/PCI Configurations ............................................................... 3-27
PC Health Status............................................................................. 3-29
Frequency/Voltage Control ........................................................... 3-31
Load Fail-Safe/Optimized Defaults ............................................. 3-33
Set Supervisor/User Password..................................................... 3-34
Save & Exit Setup/Exit without Saving ....................................... 3-36
Appendix A: Glossary ........................................................................... B-1
Introduction
1-1
Introduction 1
The 845 Pro4 (MS-6391) ATX mainboard is a high-performance
computer mainboard based on Intel®82845 & 82801BA chipsets. The
845 Pro4 is designed for Intel®Pentium®4 processor in the 478 pin
package that delivers a high performance and professional desktop
platform solution.
The Intel®82845 Memory Controller Hub (MCH) provides the
processor interface, SDRAM interface, AGP interface and hub interface.
It supports: a single processor with a data transfer rate of 400MHz,
SDRAM at 133MHz operation (PC133), AGTL+ host bus with integrated
termination supporting 32-bit host addressing, 1.5V AGP interface with
4x SBA/data transfer and 2x/4x fast write capability, and 8-bit, 66MHz
4x hub interface to the Intel ICH2.
The 82801BA I/O Controller Hub 2 (ICH2) provides the I/O
subsystem with access to the rest of the system and additionally integrates
many I/O functions. It supports: upstream hub interface for access to the
Intel MCH, 2-channel Ultra ATA/100 bus master IDE controller, USB
controller 1.1 (expanded capabilities for 4 ports), I/O APIC, SMBus
controller, FWH interface, LPC interface, AC’97 2.1 interface, PCI 2.2
interface, integrated system management controller, and integrated LAN
controller.
This chapter includes the following topics:
Mainboard Specifications 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
Chapter 1
1-2
CPU
Support Intel®Pentium®4 processor in FC-PGA2 package
Support 1.3GHz, 1.4GHz and up to 2GHz
Chipset
Intel®845 chipset (593 FC-BGA)
- Support 400MHz Intel NetBurst micro-architecture bus
- Support SDRAM at 133MHz operation (PC133)
- 100MHz FSB
- AGP 2x/4x universal slot
Intel®ICH2 chipset (360BGA)
- Two full IDE channels, support up to ATA100
- AC’ 97 controller integrated
- LPC interface for SIO
- Integrated 10/100 Ethernet
Main Memory
Three 168-pin SDRAM sockets
Support a total of 3GB memory, using 16/64/128/256/512Mb
technology
Slots
One AGP 2x/4x slot
Five PCI 2.2 32-bit Master PCI Bus slots
(support 3.3v/5v PCI bus)
One CNR (Communication Network Riser) slot
One ISA (Industry Standard Architecture) slot (optional)
On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA66/100 operation
modes
Can connect up to four IDE devices
Mainboard Specifications
Introduction
1-3
On-Board Peripherals
On-Board Peripherals include:
- One floppy port supports two FDDs with 360KB, 720KB, 1.2MB,
1.44MB and 2.88MB.
- Two serial ports (COM A + COM B)
- One parallel port supports SPP/EPP/ECP mode
- Four USB ports (Rear * 2/Front * 2)
- One RJ-45 connector (optional)
- One audio/game port
Audio
ICH2 chipset integrated
ADI 1885
- AC’ 97 compliant
- Support two channel audio
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects
the peripheral devices and expansion cards of the board
automatically.
The mainboard provides a Desktop Management Interface (DMI)
function which records your mainboard specifications.
Dimension
ATX Form Factor
Mounting
6 mounting holes
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali MSI Scheda madre
MSI
MSI X99A GAMING PRO CARBON Manuale utente
MSI
MSI FM2-A85XA-G65 series Manuale utente
MSI
MSI 865G Neo2 Manuale utente
MSI
MSI MS-6799 Manuale utente
MSI
MSI Z370-A Manuale utente
MSI
MSI B85M-E45 Manuale utente
MSI
MSI MS-7338 Manuale utente
MSI
MSI MS-6378 Manuale utente
MSI
MSI H61M-P22 G3 Series Manuale utente
MSI
MSI MPG Z690 EDGE WIFI DDR4 Manuale utente
MSI
MSI MS-98N9 Manuale utente
MSI
MSI H55-G33 Series Manuale utente
MSI
MSI MAG B660 TOMAHAWK WIFI DDR4 Manuale utente
MSI
MSI D3050 Manuale utente
MSI
MSI 945GM2 - Fuzzy Motherboard - Mini ITX Manuale utente
MSI
MSI Intel 700 BIOS Series Manuale utente
MSI
MSI MAG B560M BAZOOKA Manuale utente
MSI
MSI MEG X570 UNIFY Manuale utente
MSI
MSI A75A-G45 series Manuale utente
MSI
MSI MPG Z790 CARBON WIFI Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
