MSI 845GEM Series Manuale utente

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LANOTICE D’NSTALLATIONAVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7057

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

G52-M7057X2

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in

the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are

under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.

Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks

of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the

United States and/or other countries.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.

Revision History

Revision Revision History Date

V1.0 First released for PCB 1.x March 2004

V1.1 Add Dutch version April 2004

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User Manual for future reference.　

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not

cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the

power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated into the equipment.

- The equipment has been exposed to moisture.

- The equipment does not work well or you can not get it work according to User Manual.　

- The equipment has dropped and damaged.

- The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage temperature above 600 C (1400F), it may

damage the equipment.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer.

Table of Content

English.....................................................................1

Deutsch....................................................................15

Français...................................................................29

简体中文...................................................................43

繁體中文...................................................................55

Nederlands..............................................................69

Introduction

Thank you for purchasing 845GEM-V/845GVM-V Series (MS-7057) v1.X Micro ATX mainboard. The

845GEM-V/845GVM-V Series is based on Intel ® 845GE/GV & Intel ® ICH4 chipsets and provides 6

USB 2.0 ports for high-speed data transmission. With all these special designs, the

845GEM-V/845GVM-V Series delivers a high performance and professional desktop platform solution.

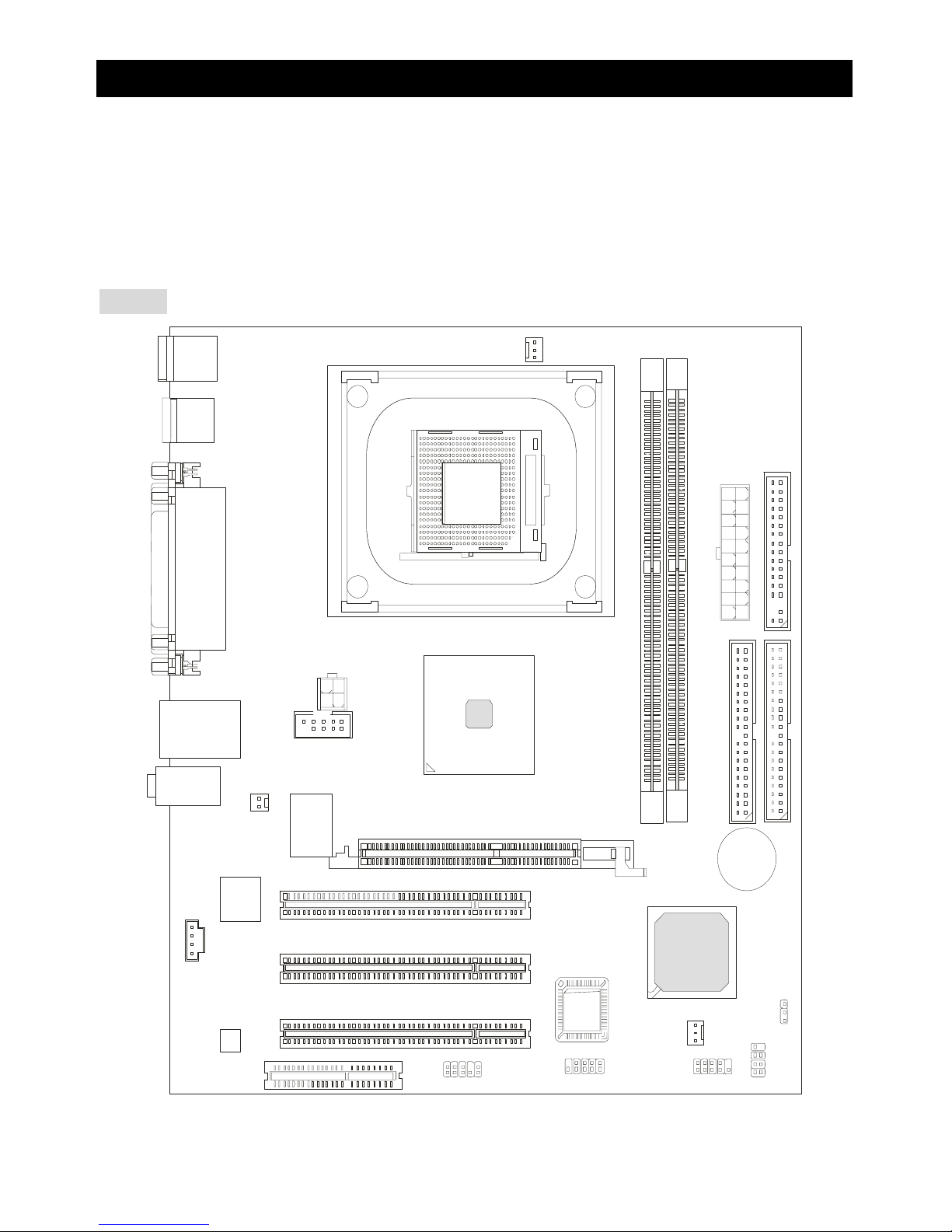

Layout

BATT

ICH4

DDR 1

DDR 2

JAUDIO1

CD _IN1

JUSB1 JFP 1 JF P2

AT X

Power Su pply

CP UFA N1

SYSFAN1

JBAT1

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE 1

IDE 2

Top: Parallel Por t

Bo ttom :

CO MA

VGAport

Top : mouse

Bottom: keyboard

Top: LANJack

Bottom: USB

ports

US B

ports

Co dec

RTL

8101L

JPW1

T: L i n e - In

M:Lin e-Out

B:Mic

FDD 1

SOCKET 478

JCOM2

JCASE1

Winbond

W83 627 HF -AW

Intel

845GV/GE

BIOS

CNR

AGPSlot(for845GEM-V)

Specifications

CPU

zSocket 478 for P4 processors (Northwood/Prescott Celeron) at 400 MHz/533 MHz

zSupports up to 3.06GHz or faster.

(For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

zIntel ® 845GE/GV

- Supports FSB 400MHz /533MHz.

- Integrated 3D/2D graphic core.

- Supports PC2700 (DDR333) technology.

zIntel ® ICH4

- AC97 Controller Integrated.

- 6 ports Hi-Speed USB 2.0 controller, 480Mb/sec.

- Supports both ACPI and legacy APM power management.

- Legacy free support.

Main Memory

zSupports 4 memory banks using 2 184-pin unbuffered DDR 200/266/333 DIMMs.

zSupports up to 2GB memory size without ECC.

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

zOne optional AGP (Accelerated Graphics Port) slot (for 845GEM-V only) that supports AGP 2.0

4X/2X.

zThree PCI 2.2 32-bit Master PCI Bus slots (support 3.3V/5V PCI bus interface).

zOne CNR slot.

On-Board IDE

zDual IDE controllers integrated in Intel ® ICH4.

zSupports Bus Master, Ultra DMA 33/66/100 operation modes.

zCan connect up to four IDE devices.

On-Board Peripherals

zOn-Board Peripherals includes:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88 Mbytes.

- 1 serial port (COMA) and 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 6 USB 2.0/1.1 ports (Rear * 4 / Front * 2)

- 1 Line-In/Line-Out/Mic-In port

- 1 RJ-45 LAN connector

Audio

zAC97 link controller integrated in Intel ® ICH4.

z6 channels S/W audio codec Realtek ALC655 codec

- Compliance withAC97 2.2 Spec

- Meets PC2001 audio performance requirement

LAN

zRealtek 8101L PCI2.2 LAN

- Supports 10Mb/s and 100Mb/s auto-negotiation operations.

- Compliance with PCI 2.2 and PC99 standard.

BIOS

z4MB Award BIOS with PNP BIOS, ACPI, SMBIOS 2.3, Green and Boot Block.

zProvides DMI 2.0, WFM 2.0, WOL, chassis intrusion, and SMBus for system management.

Dimension

zMicro-ATX Form Factor: 24.4 cm (L) x 21.4 cm (W).

Mounting

z6 mounting holes.

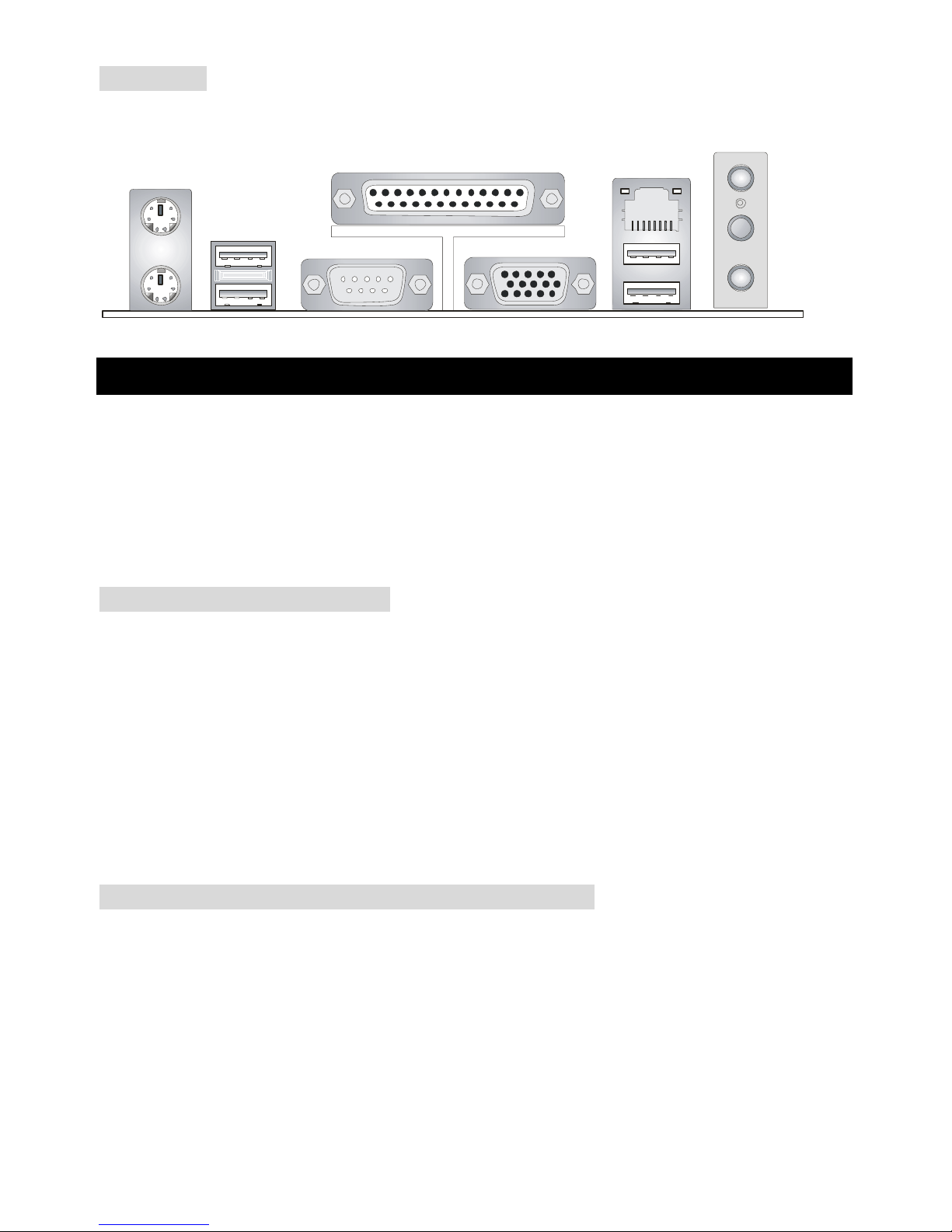

Rear Panel

The back panel provides the following connectors:

Keyboard

USBPorts

Mouse

COMport VGAport

ParallelPort LineIn

LineOut

Mic In

LAN

USB Ports

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to

setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral

devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the

components and follow the installation procedures.

Central Processing Unit: CPU

The mainboard supports Intel Pentium 4 Northwood & Prescott Celeron processor in the 478 pin

package. The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are

installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent

overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and install

them before turning on the computer. (For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Example of CPU Core Speed Derivation Procedure

If CPU Clock = 133MHz

Core/Bus ratio = 23

then CPU core speed = Host Clock x Core/Bus ratio

= 133MHz x 23

=3.06GHz

Memory Speed/CPU FSB Support Matrix

Memory

FSB DDR 200 DDR 266 DDR 333

400 MHz OK OK Down to 266

533 MHz OK OK OK

MSI Reminds You...

Overheating…

Overheating will seriously damage the CPU and system, always make sure the cooling fan can work

properly to protect the CPU from overheating.

Replacing the CPU…

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power

cord from grounded outlet first to ensure the safety of CPU.

CPU Installation Procedures for Socket 478

1. Please turn off the power and unplug the power cord before installing the CPU.

2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree

angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only

fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket and

can not be seen. Please note that any violation of the correct installation procedures may cause

permanent damages to your mainboard.

5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move

while the lever is being closed, always close the lever with your fingers pressing tightly on top of

the CPU to make sure the CPU is properly and completely embedded into the socket.

Installing the CPU Fan

As processor technology pushes to faster speeds and higher performance, thermal management

becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and

heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention mechanism on the motherboard.

2. Position the heatsink onto the retention mechanism.

3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the

holes of the retention mechanism.

4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE

direction.

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the

board.

Memory

The mainboard provides two 184-pin unbuffered DDR200/DDR266/DDR333 SDRAM, and supports the

memory size up to 2GB. To operate properly, at least one DIMM module must be installed. (For the

updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any

order. You can install either single- or double-sided modules to meet your own needs.

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right

orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden

finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Altri manuali per 845GEM Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali MSI Scheda madre

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
