MSI MS-6135 Manuale utente
CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The ATX GX1 Dual-P mainboard is a state-of-the-art dual-processor server
mainboard based on Intel®Pentium®II XeonTM processor. The Intel®
Pentium®II XeonTM processor is designed exclusively for powerful servers
and workstations.
The mainboard uses the highly integrated Intel®82440GX chipset to support
the PCI/ISA and Green standards, and to provide the Host/AGP bridge. The
82371EB chipset integrates all system control functions such as ACPI
(Advanced Configuration and Power Interface). The ACPI provides more
Energy Saving Features for the OSPM(OS Direct Power Management)
function. The Intel®82371EB chipset also improves the IDE transfer rate by
supporting Ultra DMA/33 IDE that transfers data at the rate of 33MB/s.
The mainboard also supports the System Hardware Monitor Controller as an
optional function. This function includes: CPU /power supply/chassis fan
revolution detect, CPU/system voltage monitor, system temperature monitor,
and chassis intrusion detect.
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lDual Slot 2 for Intel®Pentium®II Xeon processor.
lSupport400MHzorfasterwith512KB,1MBor2MBintegratedL2cache.
Chipset
lIntel®82440GXAGPset.
lIntel®82371EBchipset.
OnboardSCSIConnector
lAdaptecAIC-7890/AIC3860
- support high performance 80Mbytes/sec Ultra 2 SCSI peripherals at a
cable length up to 12 meters.
PCI-To-PCIBridge
lDigital21152
- compliesfullywithRevision2.1ofPCILocalBusSpecification.
- support six PCI master.
MainMemory
lSupport eight memory banks using four 168-pin gold-lead DIMM sockets.
lSupportamaximum memorysizeof 2GB.
lSupport unbuffered or registered ECC(1-bit Error Code Correct) SDRAM.
lSupport 3.3v SDRAM DIMM.
Slots
lOne AGP (Accelerated Graphics Port) slot
- data transfer rates at 133MHz (with AC timing)
lSix 32-bit Master PCI Bus slots and one ISA bus slot (wherein 1 PCI/ISA
is shared).
lSupport 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAnIDEcontrollerontheIntel®82371EB ChipsetprovidesIDEHDD/CD-
ROM with PIO, Bus Master and Ultra DMA/33 operation modes.
lCan connect up to four IDE devices.
IntegratedSuperI/OController
lWinbond W83977F-AW I/O controller
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2serialport(COMA+COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA connector for SIR.
Network
lIntel®82558 10/100MB Ethernet
-ACPI
- Magic packet filtering to support wake-up on LAN.
-ARP &FLEXIBLEframefiltering.
- Software drivers are backwards compatible.
-1LanConnector(RJ-45)
USB
lTwo USB ports
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lIDE drive auto configure, Advanced Power Management (APM) 1.2,
ACPI 1.0, DMI 2.0, ECC/Parity support, LS120 support, Auto enable
onboardSCSIterminator.
Dimension
lCustomATXFormFactor : 33cm(L) x30.5cm(W)x 6 layersPCB
CHAPTER 1 INTRODUCTION
1-4
Mounting
l12 mounting holes.
SystemHardwareMonitor
lCPU/Power Supply/Chassis Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
CHAPTER 1 INTRODUCTION
1-5
1.2 Mainboard Layout
DIMM 1
Top: mouse
Bottom:
keyboard
Top:Port1
USB
Top: LPT
Bottom:
COMA
COMB
ISA SLOT 1
PCI SLOT 4
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
SLOT 2
FDC
BATT
+
IDE1
977TF-AW
ATX
Power Supply
BIOS
PIIX4E
JFP1
SW
CPUFA4
82558
PSFAN1
FW82443BX
AGP
Bottom:
Port2
CPUFA1
PCI SLOT 5
UltraSCSI
J1
JBAT1
JSOUND1
JWOL1
3860
System
Hardware
Monitor
JRMS1
HI-LAN
UltraWideSCSI
Adaptec
7890
PCI SLOT 6
DIMM 2
DIMM 3
DIMM 4
RJ-45 LAN
Connector
SLOT 2
JKBMB1
CPUFA3
CPUFA2
JMODEM
IDE2
Ultra2SCSI
ACTLAN
I/O
APIC
Digital
21152
Raid
Controller
ATX
Power Supply
MS-6135 ATX GX1 Dual-P Mainboard
IR1
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®Pentium®II XeonTM processor.The
mainboard uses a CPU Slot called Slot 2 for easy CPU installation and a DIP
switch (SW1) to set the proper speed for the CPU. The CPU should always
have a Heat Sink attached to prevent overheating.
CHAPTER 2 HARDWARE INSTALLATION
2-2

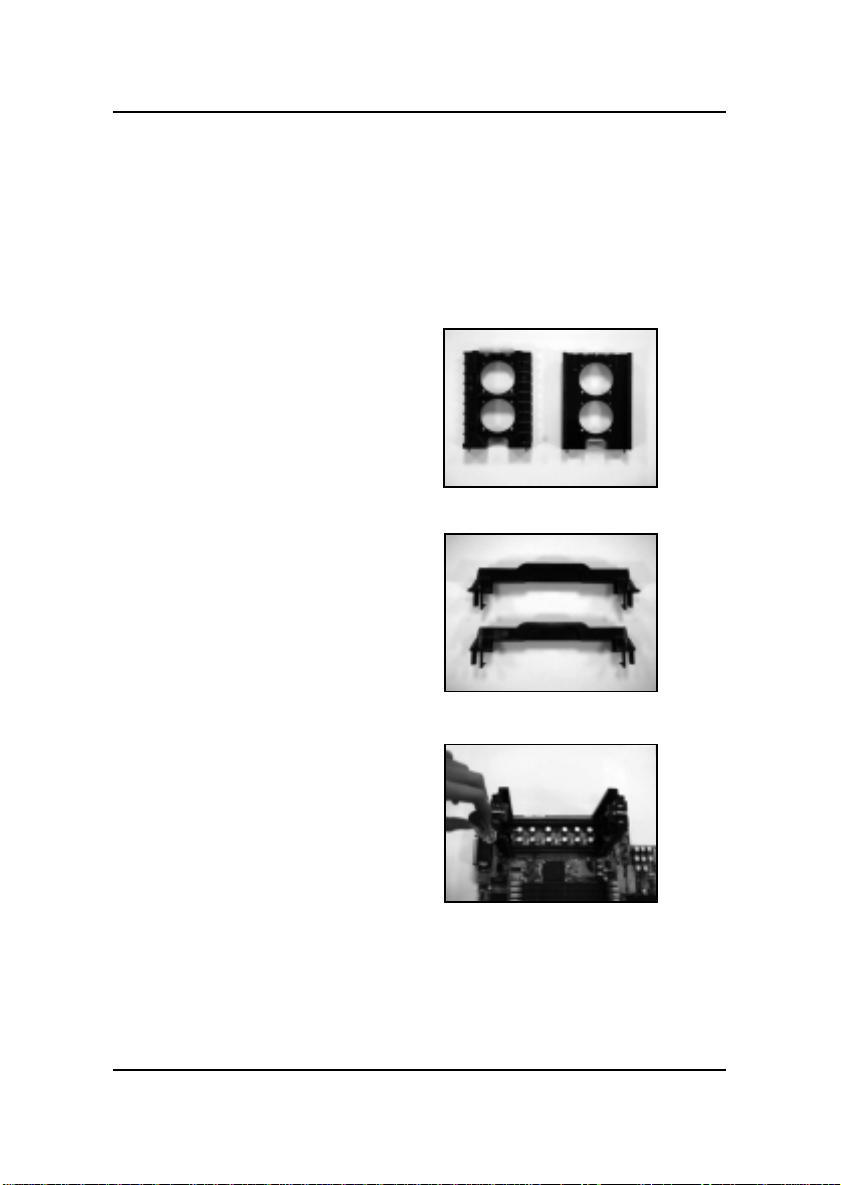

2.1-1 CPU Installation Procedures
Retention Mechanism
Plastic Guide that holds
andsecure theprocessor
into the Slot 2 connector
Retention Cap
Plastic Guide that secure
the processor to the
RetentionMechanism.
1. Securethe mainboard
into the chassis. Then,
connectthe Retention
Mechanism into the
mainboard. Securewith
screws.
Intel®Pentium®II XeonTM processor Installation Proce-
dures
CHAPTER 2 HARDWARE INSTALLATION
2-3

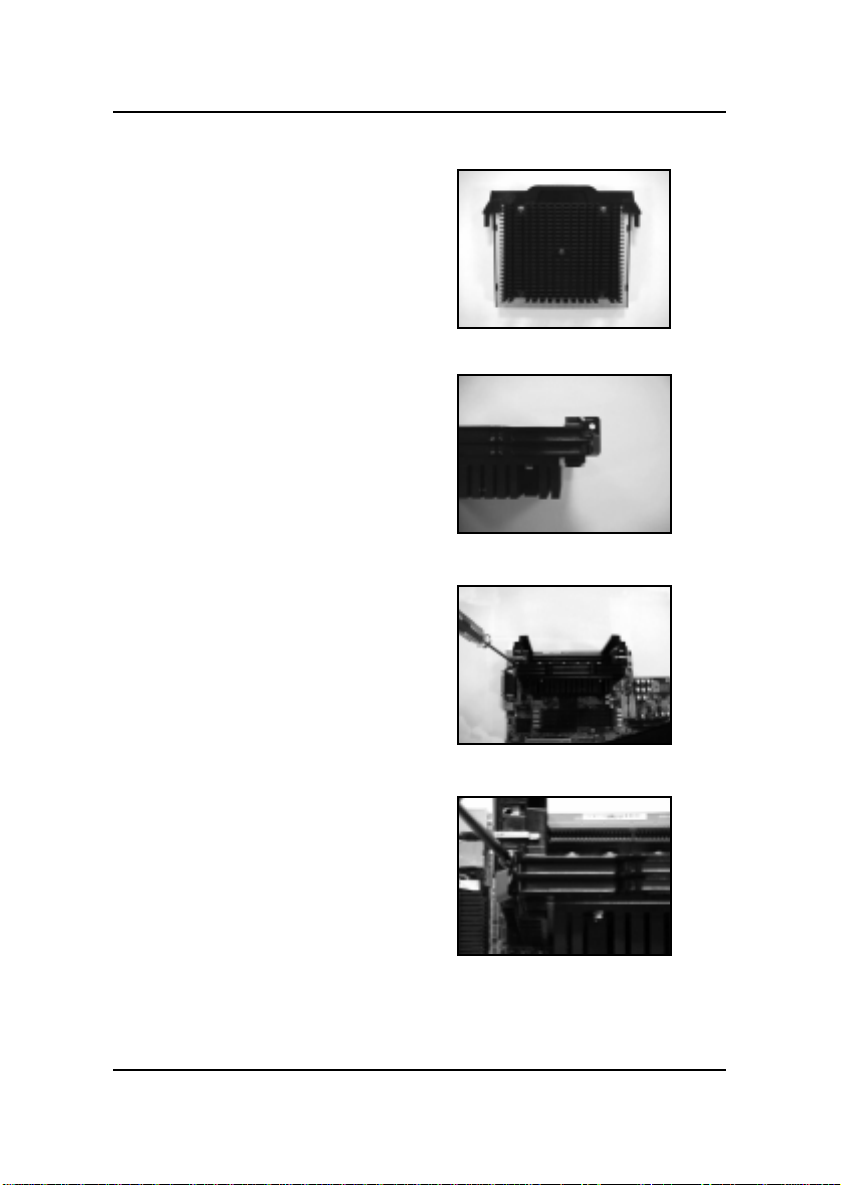

5. Secure with screws.
2. Connectthe Retention
Capintotheprocessor.
Processor will only fit in
onedirection.
3. TheRetention Capgot two
mountingholes, which
should match with the
RetentionMechanism.
4. Inserttheprocessorinto
the Slot 2.
CHAPTER 2 HARDWARE INSTALLATION
2-4

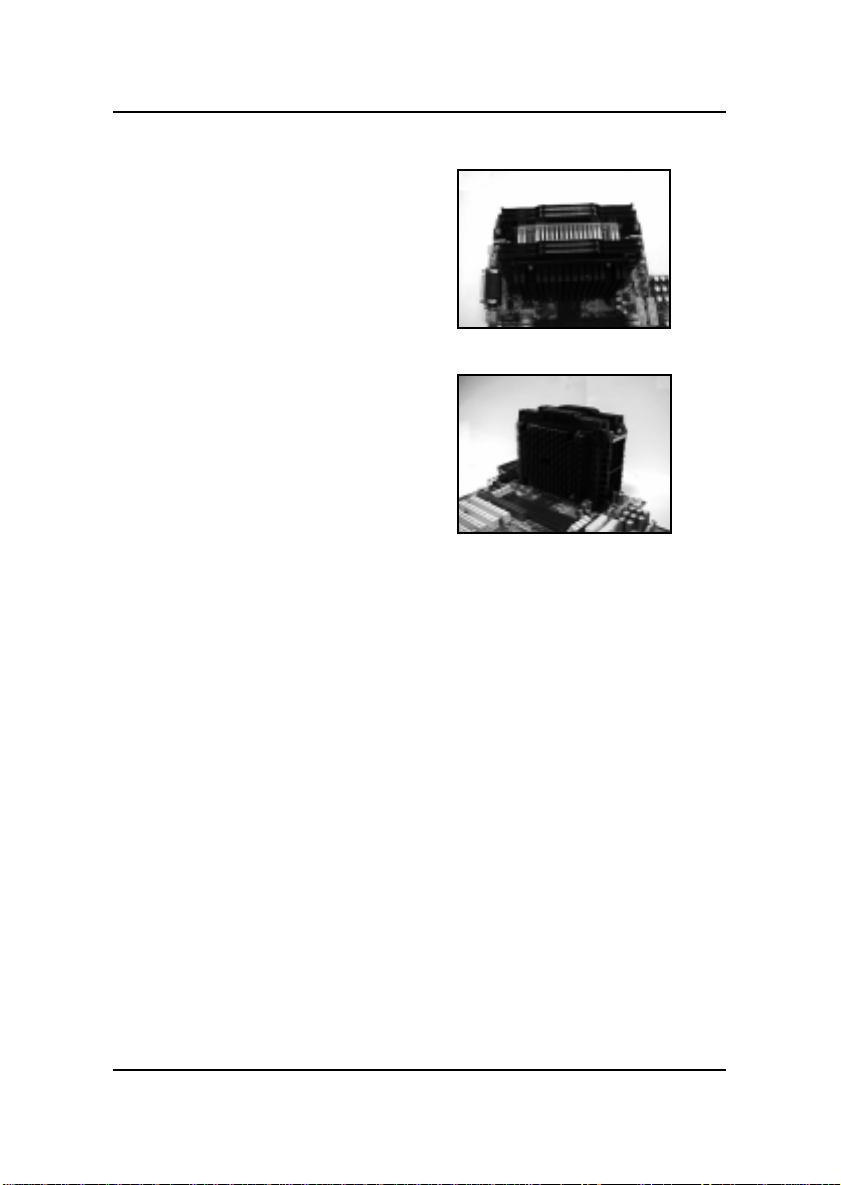

6. Repeat steps 2 to 5 for
thesecond processor.
7. Theinstallationisnow
complete.
Note: To install a single Intel Pentium II XeonTM processor, refer to
Chapter 2 section 2.1-4.
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.1-2 CPU Core Speed Derivation Procedure
The DIP Switch SW1 (1, 2, 3, and 4) is used to set the Core/Bus (Fraction)
ratio of the CPU. The actual core speed of the CPU is the Host Clock
Frequency multiplied by the Core/Bus ratio. For example:
If CPUClock = 100MHz
Core/Bus ratio = 4.5
then CPU core speed = Host Clock x Core/Busratio
= 100MHzx4.5
= 450MHz
1 2 3 4 Core/Bus Ratio
OFF ON ON ON 4
OFF ON OFF ON 4.5
OFF OFF ON ON 5
OFF OFF OFF ON 5.5
ON ON ON OFF 6
SW1 CPU
