MSI MS-6137 Manuale utente
Introduction
1-1
Chapter 1.
Introduction 1
The Micro-ATX WH1 mainboard is a high-performance computer
mainboard based on Intel®810E chipset. The MS-6137 is designed for Intel®
CeleronTM (PPGA) and Pentium®III processors for inexpensive business/per-
sonal desktop markets.
The Intel®810E chipset is the first generation Integrated Graphics chipset
for Intel®CeleronTM and Pentium®III processors. The graphics accelerator
architecture consists of dedicated multi-media engines executing in parallel to
deliver high performance 3D, 2D and motion compensation video capabilities.
An integrated centralized memory arbiter allocates memory bandwidth to mul-
tiple system agents to optimize system memory utilization. A new chipset com-
ponent interconnect, the hub interface, is designed into the Intel®810E chipset
to provide an efficient communication channel between the memory controller
hub and I/O controller hub.
The Intel® 810E chipset contains three core components. The GMCH
integrates a 66/100/133MHz for 810 and 66/100/133 MHz for 810E, P6 family
system bus controller, integrates 2D/3D graphics accelerator, 100MHz SDRAM
controller and high-speed hub interface for communication with the ICH0/ICH.
The ICH0/ICH integrates an Ultra ATA/33 (ICH0) or Ultra ATA/66 (ICH)
controller, USB host controller, LPC interface controller, FWH interface
controller, PCI interface controller, AC`97 digital controller and a hub interface
for communication with the GMCH/GMCHO. The Intel®82802 Firmware Hub
(FWH) component is part of the Intel®810E chipset. The FWH is key to ena-
bling future security and manageability infrastructure for the PC platform.
This chapter includes the following topics:
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
Key Features 1-6
MSI Special Features 1-7
Chapter 1
1-2
CPU
zSupports Socket 370 for Intel®CeleronTM and Pentium®III processors.
zSupports up to 1.1GHz CPU.
Chipset
zIntel®810E (GMCH) chipset. (421 BGA)
- Integrated Graphics Controller.
- Intel DDM Architecture.
- SDRAM Memory Independent of System Bus.
zIntel®ICH chipset. (241 BGA)
- AC’97 Controller Integrated.
- 2 full IDE channels, up to ATA66.
- Low Pin Count interface for SIO.
Front Side Bus (FSB)
z66/100/133MHz clocks are supported.
Main Memory
zSupport two 168-pin DIMM sockets.
zSupport a maximum memory size of 256MB(64-bit) or 512MB(128-bit)
SDRAM.
Slots
zTwo AMR (Audio Modem Riser) slots.
zThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE
zAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66 operation modes.
zCan connect up to four IDE devices.
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 4 USB ports (Rear * 2/ Front * 2).
Mainboard Specification
Introduction
1-3
- 1 IrDA connector for SIR.
- 1 VGA port.
- 1 audio/game port.
Video
zGMCH chip integrated.
z2D/3D Graphics.
zOnboard 4MB Display Cache (optional).
Audio
zAC97 2.0 interface.
zICH chip integrated.
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
zThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
zMicro ATX Form Factor.
Mounting
z6 mounting holes.
System Hardware Monitor
zCPU/Power Supply Fan Revolution Detec.
zCPU Fan Control (the fan will automatically stop when the system enters
suspend mode).
zSystem Voltage Detect.
zCPU Overheat Warning.
zDisplay Actual Current Voltage.
Chapter 1
1-4
Mainboard Layout
MS-6137 v3.X Micro ATX Mainboard
BATT
+
Intel
FW82810E
Intel
FW82801AA
IR
J17
J10
JP5
JP3
ATX
Power Supply
PAUX1
CPUFAN
JP4
J3
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE2
DIMM1
DIMM2
J15
J1
JGS1
J16
USB
ports
Top :
Parallel Port
Bottom:
COM A
VGA Port
Top : mouse
Bottom: keyboard
CD_IN
MODEM_IN
AD 1881A
JWOL1
AUX_IN
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
SOCKET370
COM B
FDD
Winbond
W83627HF-AW
AMR1 AMR2
USB2
Introduction
1-5
zMicrosoft®PC99 Compliant
zMicro ATX Form Factor
zAudio/Video Chip Integrated
zSupport DMI(Desktop Management Interface) through BIOS
zTCAV (Build-in BIOS Anti-Virus)
zTOP Tech. (Thermal Overheat Protection Technology) Optional
zLAN Wake Up Function
zPC Alert™ III system hardware monitor
zSuspend to RAM/Disk
Key Features
Chapter 1
1-6
MSI Special Features
T.O.P Tech™ (optional)
The T.O.P TechTM is an extended sensing device that can 100% accu-
rately detect the CPU’s temperature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.
CPU temperaure on Setup menu
CPU Warning Temperature [Disabled]
Current System Temp.
Current CPU Temperature
Current Top Tech. III Temp.
SYSTEM fan
POWER fan
CPU fan
Vcore
VTT
3.3V
+5V
+12V
-12V
-5V
VBAT(V)
5VSB(V)
Chassis Intrusion Detect [Disabled]
Shutdown Temperature [Disabled]
Item Help
Menu Level >
↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
CMOS Setup Utility - Copyright(C) 1984-2001 Award Software
PC Health Status
Introduction
1-7
PC Alert™ III

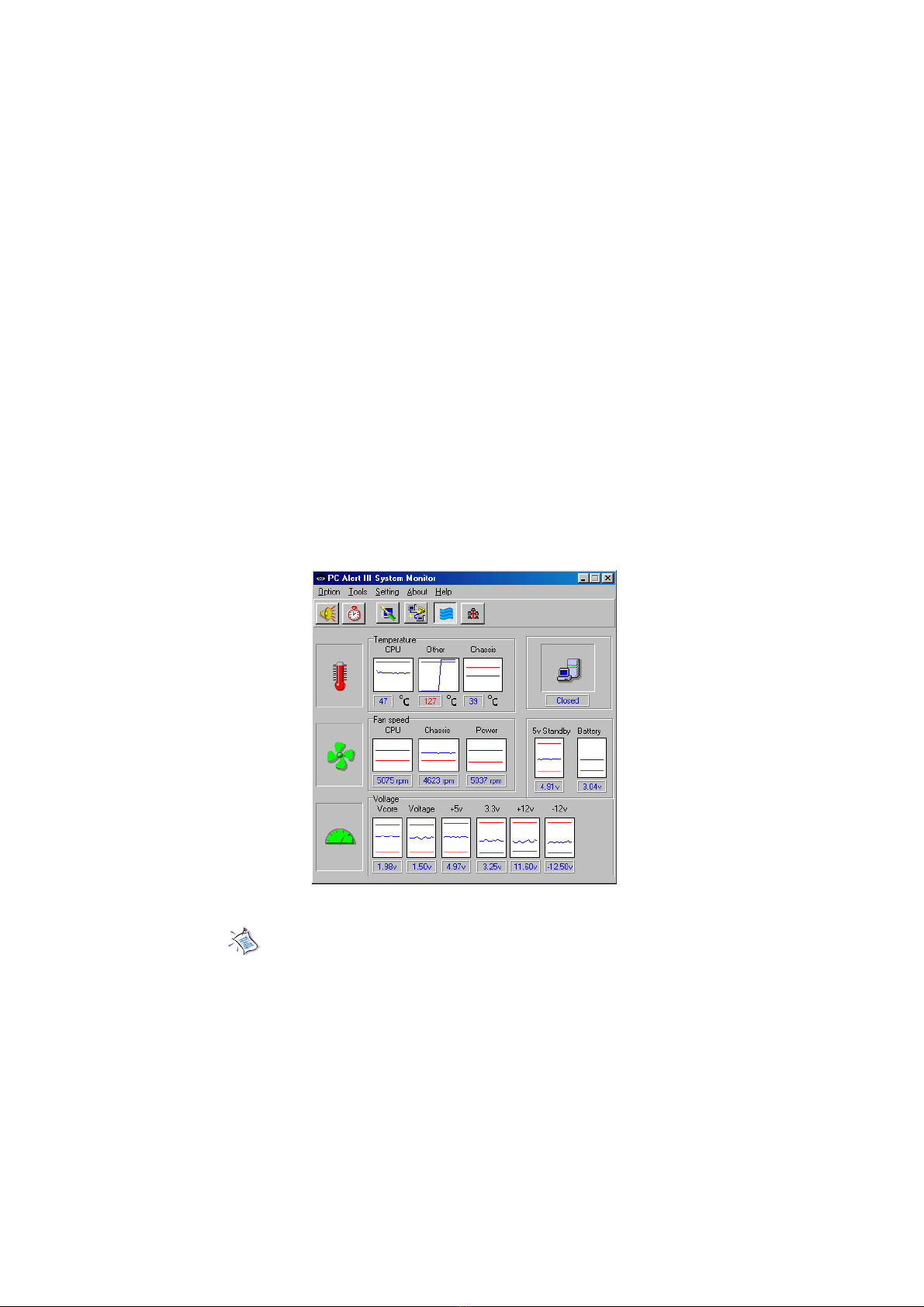

The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown,until user disables the warning.
Note: Items shown on PC Alert III vary depending on your system’s
status.
Chapter 1
1-8
Features:
zNetwork Management
- Monitoring & remote control
zBasic System Utilities
- Scandisk & Defragment to maintain your HDD
z3D Graphics Design
- Enables a more friendly user interface
zSofware Utilities
- SoftCooler Optimized Cooling
Hardware Setup
2-1
Chapter 2.
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
This chapter contains the following topics:
2
Central Processing Unit: CPU 2-2
Memory Installation 2-4
Power Supply 2-6
BackPanel 2-7
Connectors 2-12
Jumpers 2-19
Slots 2-23
Chapter 2
2-2
Central Processing Unit: CPU
The mainboard supports Intel®CeleronTM/Pentium®III processors. The
mainboard uses a CPU socket called PGA370 for easy CPU installation. When
you are installing the CPU, make sure the CPU has a heat sink and a cooling
fanattachedonthe top to preventoverheating. If you do not find the heatsink
and cooling fan, contact your dealer to purchase and install them before turn-
ing on the computer.

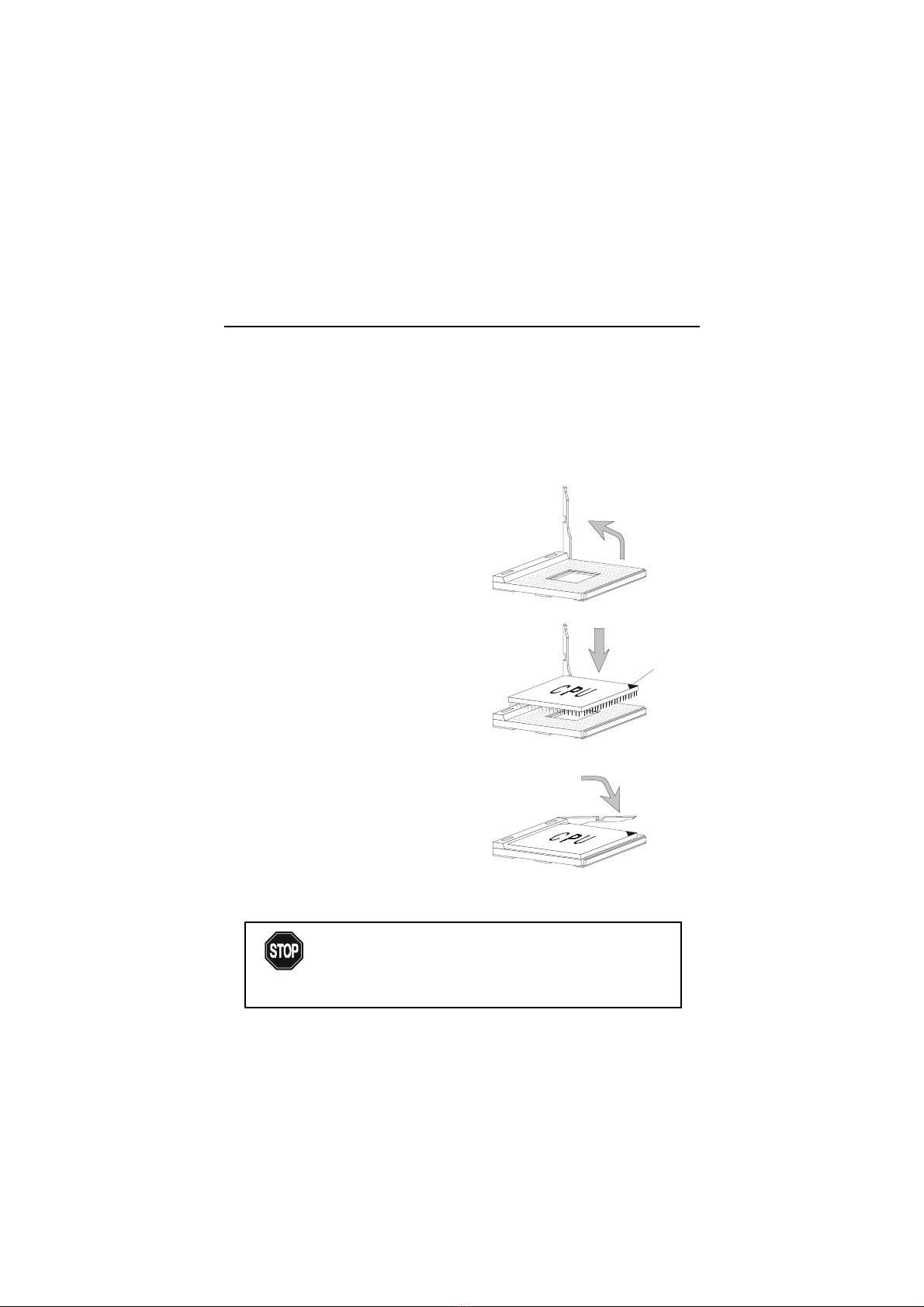

CPU Installation Procedures
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the gold arrow.
The gold arrow should point
towards the end of lever.
The CPU will only fit in the
correct orientation.
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
Open Lever
Gold Arrow
Sliding
Plate
Close
Lever
