CHAPTER 1 INTRODUCTION
1-1
The MICRO ATX WH1 mainboard is a high-performance computer
mainboard based on Intel®810 chipset. The MS-6137 is designed for the
Intel®CeleronTM (PPGA) processor for inexpensive business/personal
desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics chipset for
the Intel®CeleronTM processor. The graphics accelerator architecture
consists of dedicated multi-media engines executing in parallel to deliver
high performance 3D, 2D, and motion compensation video capabilities. An
integrated centralized memory arbiter allocates memory bandwidth to
multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
The Intel®810 chipset contains three core components: the Graphics and
MemoryControllerHub(GMCH/GMCH0),theI/OControllerHub(ICHO/
ICH)and the Firmware Hub (FWH). The GMCHintegrates a 66/100MHz, P6
family system bus controller, integrates 2D/3D graphics accelerator, 100MHz
SDRAM controller and high-speed hub interface for communication with the
ICHO/ICH. TheICHO/ICH integrates an Ultra ATA/33(ICHO) orUltra ATA/
66(ICH)controller, USB host controller, LPC interfacecontroller, FWH
interface controller, PCI interface controller, AC’97 digital controller and a
hubinterface for communication with the GMCH/GMCH0.
The Intel®82802 Firmware Hub (FWH) component is part of the Intel®810
chipset. The FWH is key to enabling future security and manageability
infrastructure for the PC platform.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSupport Socket370 for Intel®CeleronTM processor.
lSupport300MHz,333MHz,366MHz,400MHz, 433MHz,466Mhz, 500Mhz
or higher
Chipset
lIntel®810(GMCH)chipset.(421 BGA)
- Integrated Graphics Controller
- Intel DDM Architecture
- SDRAM memory Independent of System Bus
lIntel®ICHchipset.(241BGA)
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA66
- Low pin count interface for SIO
FrontSideBus(FSB)
l66/100MHz clocks are supported.
MainMemory
lSupport two 168-pin DIMM sockets.
lSupportamaximummemory size of 256MB(64-bit technology) or
512MB(128-bittechnology)SDRAM.
Slots
lOne AMR(Audio Modem Riser) and one PTI(PanelLink TV-Out Interface)
lThree 32-bit Master PCI Bus slots and one 16-bit ISA bus slot(optional).
lSupport 3.3v/5v PCI bus Interface.
On-Board IDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
CHAPTER 1 INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports2 FDD with 360K,720K, 1.2M, 1.44M and
2.88Mbytes.
-2 serial port (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports and 1 USB connector(shared)
- 1 IrDA connector for SIR
-1VGAport
Video
lGMCH chip integrated
l2D/3DGraphics
lOnboard 4MB Display Cache (optional)
Audio
lICH chip integrated
lAC97 2.0 Interface
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMicro ATX Form Factor
Mounting
l6 mounting holes.
CHAPTER 1 INTRODUCTION
1-4
SystemHardwareMonitor
lCPU/Power Supply Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
OtherFeatures
lKeyboard Password Wake-Up (reserved)
lLANWake-Up
lInternal/ExternalModem Wake-Up
CHAPTER 1 INTRODUCTION
1-5

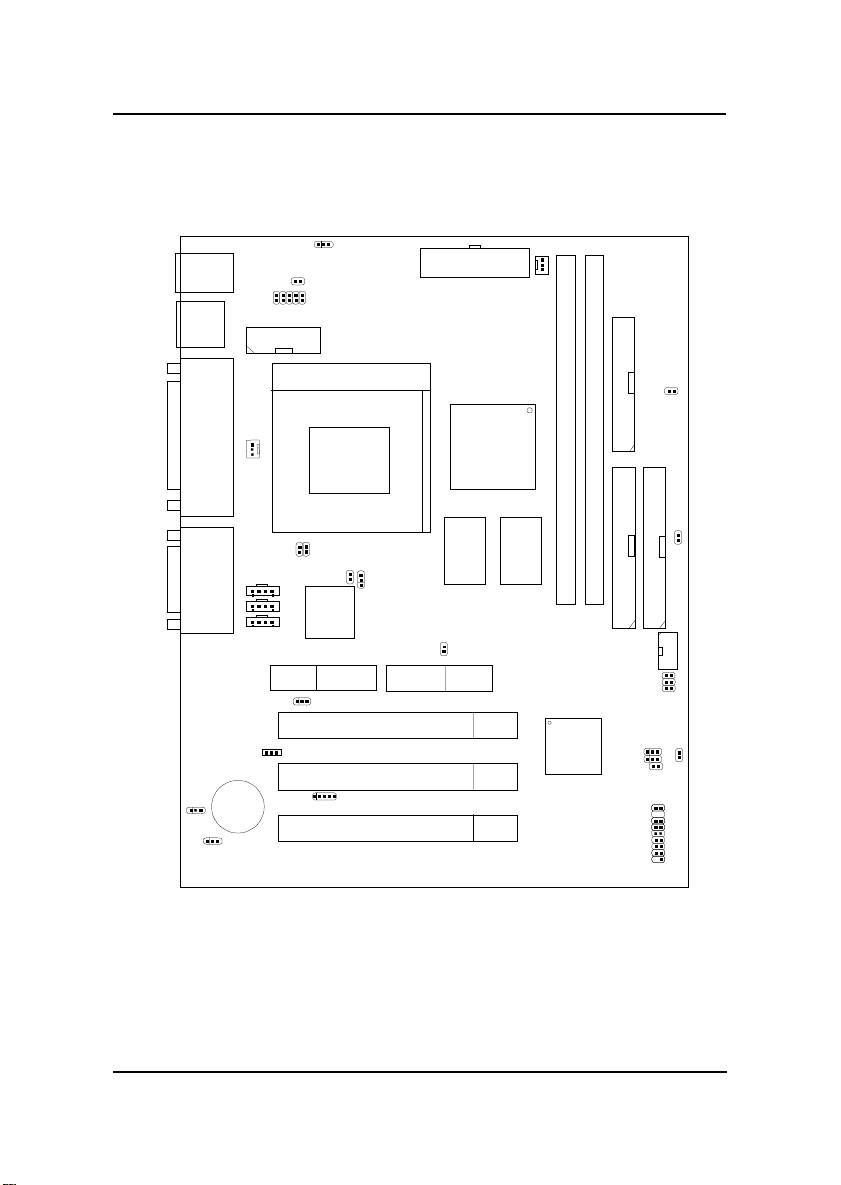

1.2 Mainboard Layout
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ISA SLOT 1
ATX
Power Supply
Intel
810
chipset
(GMCH)
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 1
IDE2
Bottom:
Port2
IDE1
FDD
ICH
JMDM1
JP4
JGL2
JFP1
JGS1
JBAT1
JWOL1
CD_IN
AUX_IN
COM B
BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MS-6137 MICRO ATX WH1 Mainboard
MODEM_IN
CPUFAN
SDRAM
JKBV1
SDRAM
AMR PTI
FWH
JGL1
J15
JP3
J10
IR
J18
J1
JSW1
FrontUSB
Connector
J17
JP5
J3
J2
PSFAN1
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®CeleronTM processor. The mainboard
uses a CPU socket called Socket 370 for easy CPU installation. The CPU
should always have a Heat Sink and a cooling fan attached to prevent
overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.

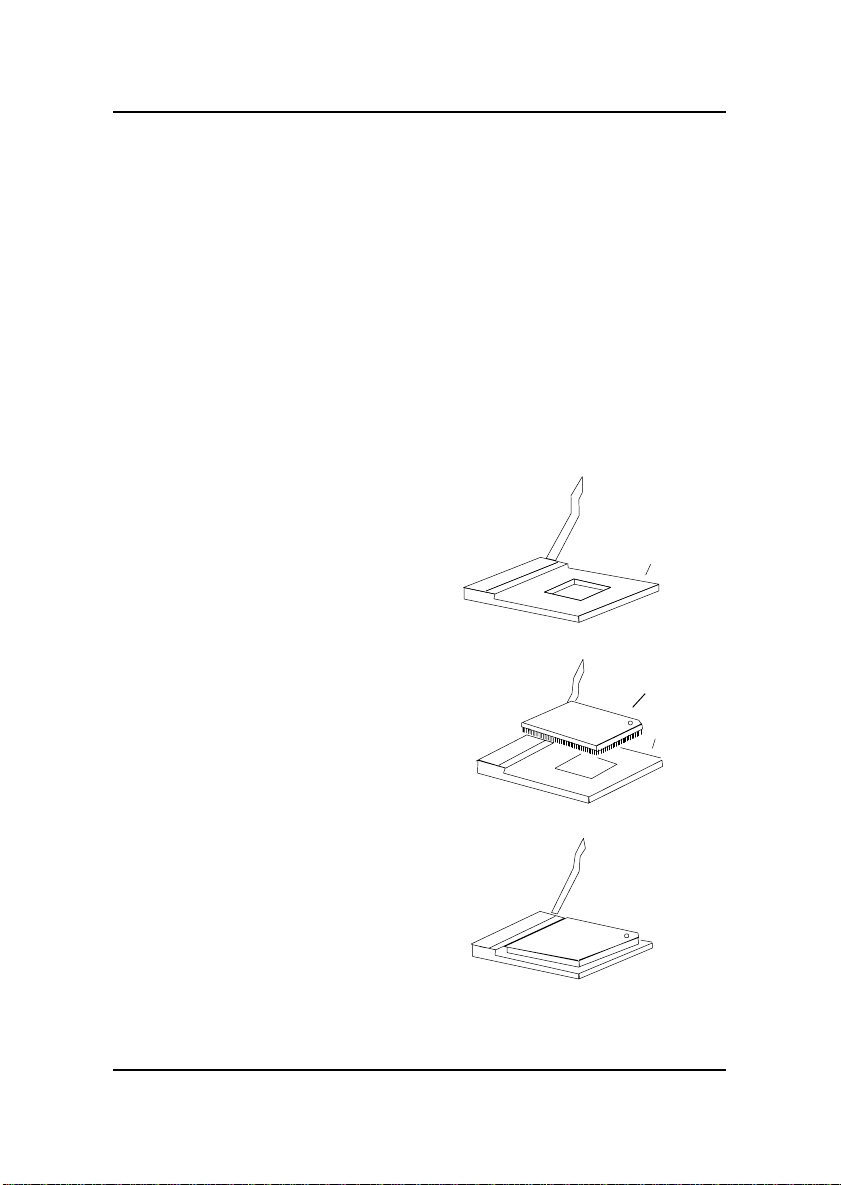

2.1-1 CPU Installation Procedures
Pin1
CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Busratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure
2.1-3 Overclocking Jumper: J2 (optional)
Overclocking is operating a CPU/Processor beyond its specified
frequency. J2 jumper is used for overclocking.
J2
J2 Function
Short
Open
Automatically detect CPU
Bus Frequency
Allows CPU overclocking.
Set 66MHz to 100Mhz
CHAPTER 2 HARDWARE INSTALLATION
2-3

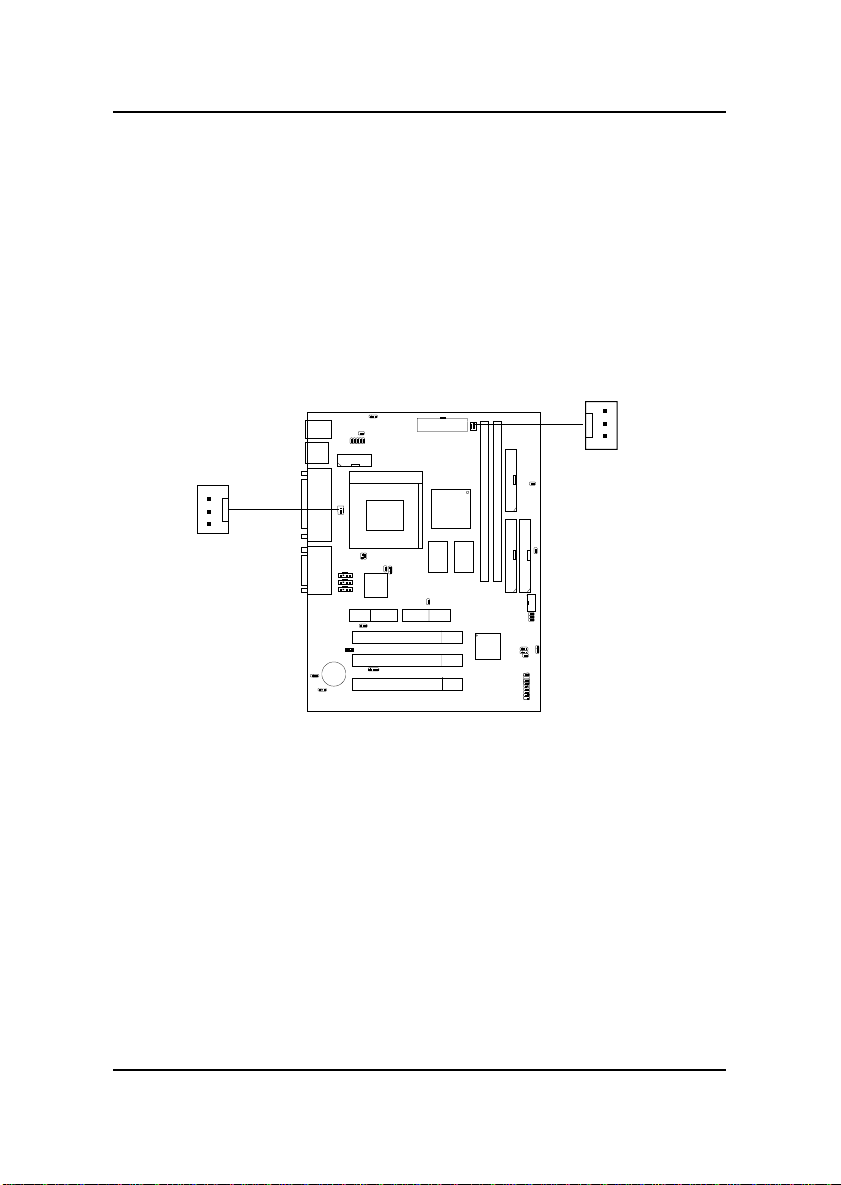

2.1-4 Fan Power Connectors: CPUFAN/PSFAN1
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
PSFAN1
(optional)
+12V
SENSOR
GND
CPUFAN
PSFAN1: Power Supply Fan (optional)
CPUFAN: ProcessorFan
+12V
SENSOR
GND
CHAPTER 2 HARDWARE INSTALLATION
2-4

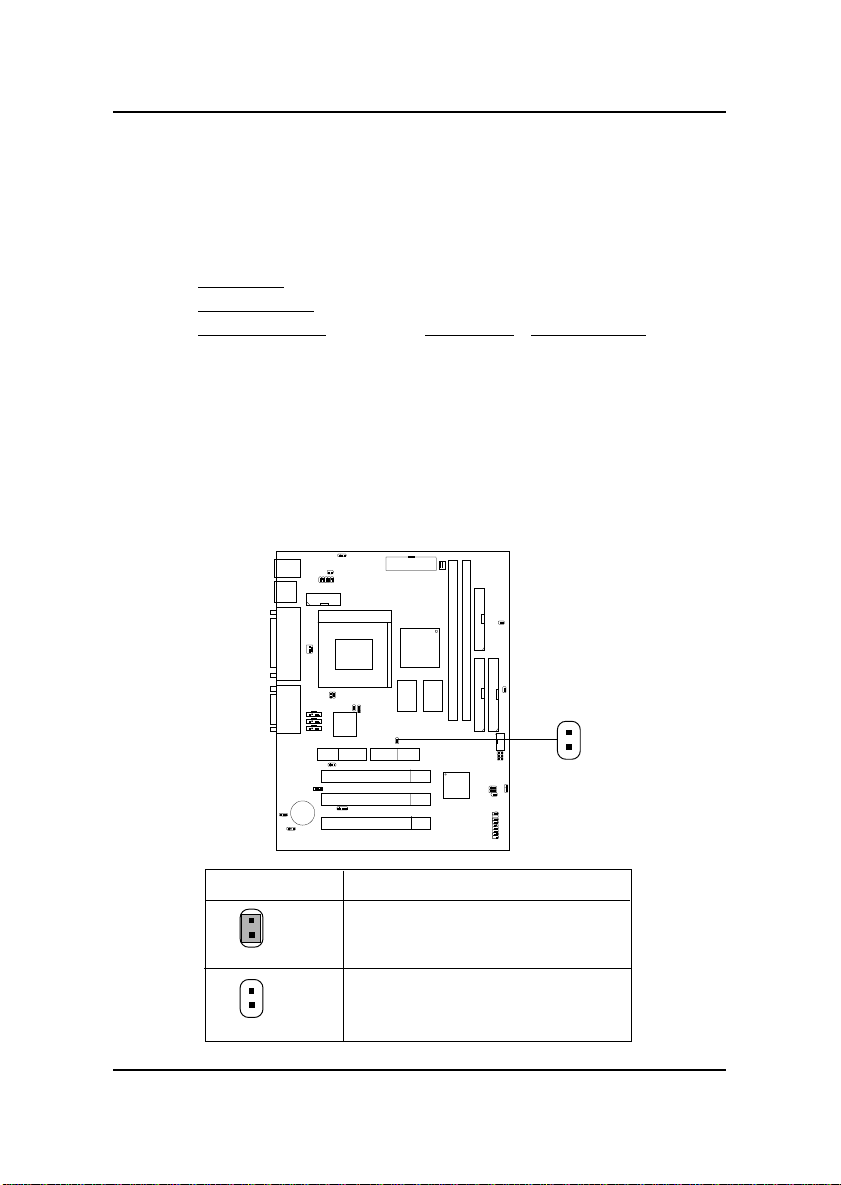

2.2 Clear CMOS Jumper: JBAT1 (optional)
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
13
CHAPTER 2 HARDWARE INSTALLATION
2-5

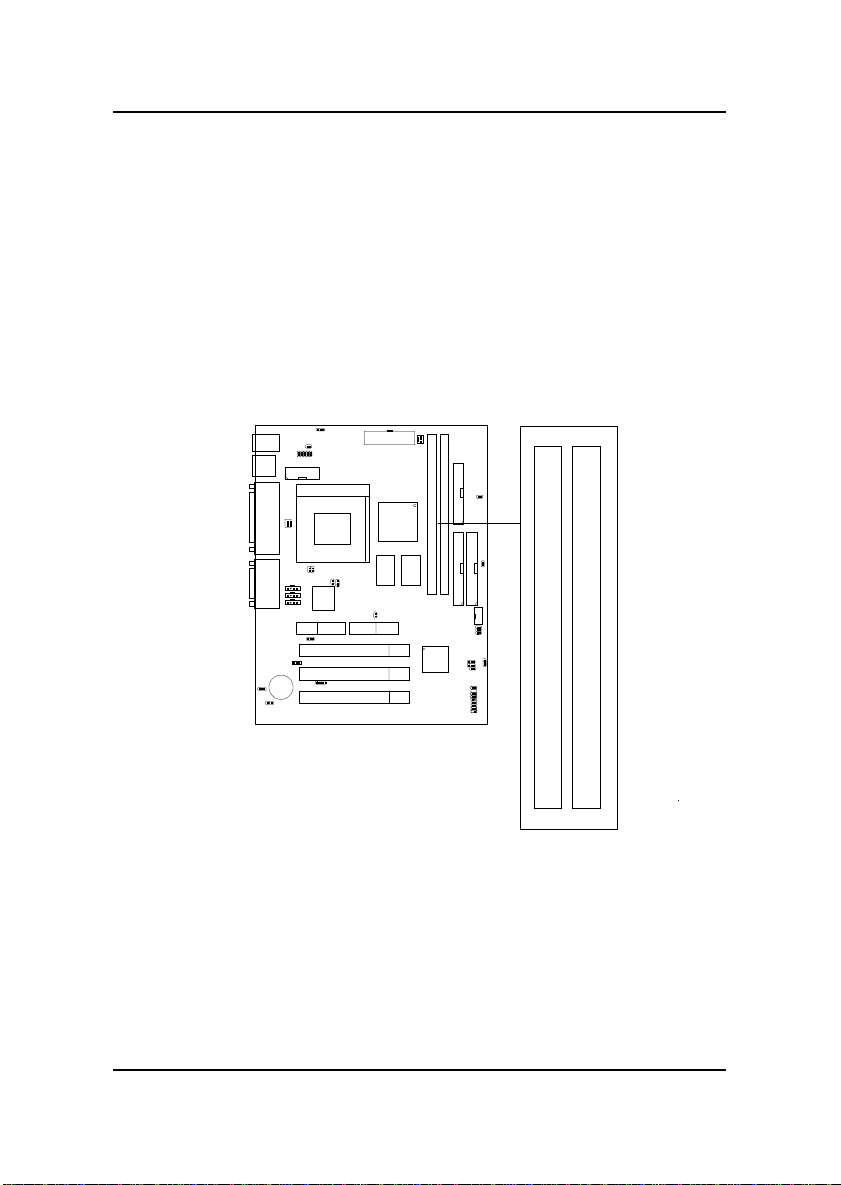

2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboard supports a maximum memory sizeof 256MB(64-bit technol-
ogy) or 512MB(128-bit technology for SDRAM). It provides two 168-pin
unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 128 Mbytes DIMM memory module.
DIMM1(Bank0+Bank1)
DIMM2(Bank2+Bank3)
