CHAPTER 1 INTRODUCTION
1-1
The MS-6182 ATX WH8 mainboard is a high-performance
computer mainboard based on Intel®810 chipset. The MS-6182 is designed
for the Intel®Pentium®II/III or CeleronTM processor for inexpensive
business/personal desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics
chipset for the Intel®Pentium®II/III CeleronTM processor. The graphics
accelerator architecture consists of dedicated multi-media engines executing
in parallel to deliver high performance 3D, 2D, and motion compensation
video capabilities. An integrated centralized memory arbiter allocates
memory bandwidth to multiple system agents to optimize system memory
utilization. A new chipset component interconnect, the hub interface, is
designed into the Intel®810 chipset to provide an efficient communication
channel between the memory controller hub and I/O hub controller.
The Intel®810 chipset contains three core components: the
GraphicsandMemoryControllerHub(GMCH),theI/OControllerHub
(ICHO/ICH)andtheFirmwareHub(FWH). TheGMCHintegratesa 66/
100MHz,P6familysystembuscontroller,2D/3Dgraphicsaccelerator,
100MHz SDRAM controller and high-speed hub interface for communication
withtheICHO/ICH. TheICHO/ICHintegratesanUltraATA/33(ICHO) or
UltraATA/66(ICH) controller,USBhostcontroller, LPC interfacecontroller,
FWHinterfaceconroller, PCI interface controller,AC’97digitalcontrollerand
a hub interface for communication with the GMCH.
The Intel®82802 Firmware Hub (FWH) component is part of the
Intel®810 chipset. The FWH is key to enabling future security and
manageability infrastructure for the PC platform.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSlot 1 for Intel®Pentium®II/Pentium®III/CeleronTM processor.
lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,
450MHz,500MHzandfasterprocessor.
Chipset
lIntel®810(GMCH)chipset. (421BGA)
- Integrated Graphics Controller
- Intel DDM Architecture
- SDRAM memory Independent of System Bus
lIntel®ICH/ICH0chipset.(241 BGA)
-AC’97ControllerIntegrated
- 2 full IDE channels, up to ATA66
- 2 full IDE channels, up to ATA33 (ICH0 only)
- Low pin count interface for SIO
FrontSideBus(FSB)
l66/100MHz clocks are supported.
MainMemory
lSupport three 168-pin DIMM sockets.
lSupporta maximummemorysize of256MB(64-bit)or 512MB(128-bit)
SDRAM.
Slots
lOne AMR(Audio Modem Riser) and one PTI(PanelLink TV-Out Interface)
lSix 32-bit PCI Bus slots and one 16-bit ISA slot (wherein one PCI/ISA slot
is shared).
lSupport 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripheralsinclude:
-1floppyportsupports2FDDwith360K,720K,1.2M,1.44Mand
2.88Mbytes.
-2serialport(COMA+ COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports and 2 USB connectors
- 1 IrDA connector for SIR.
-1VGA port
Video
lGMCH chip integrated
l2D/3DGraphics
lOnboard 4MB Display Cache (optional)
Audio
lICH/ICH0 chip integrated
lCreative®ES1373(optional)
-RunningonPCIBUS.
- Support Direct Sound and Direct Sound 3D
-AC97’ Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
lAdjustable FSB CPU core voltage.
CHAPTER 1 INTRODUCTION
1-4
Dimension
lATXFormFactor:30.5(L)x19.2(W)x4 layersPCB
Mounting
l8 mounting holes.
SystemHardwareMonitor
lCPU/Power Supply/Chassis Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
OtherFeatures
lKeyboard Password Wake-Up (reserved)
lLANWake-Up
lInternal/ExternalModemWake-Up
lSuspend to RAM (STR)
CHAPTER 1 INTRODUCTION
1-5
1.2 Mainboard Layout
MS-6182ATXWH8Mainboard
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel®
810
Chipset
(GMCH)
SLOT 1
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 3
IDE2
Bottom:
Port2
IDE1
FDD
Intel®
ICH0/ICH
JMDM1
Creative
ES1373
JFP1
JGS1
JGL1
JBAT1
JWOL1
Diagnostic LED
MDM_IN
AUX_IN
COM B
CPUFAN
BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
CD_IN
SDRAM SDRAM
J2
J16
SYSFAN
J15
PCI SLOT 4
PCI SLOT 5
PCI SLOT 6
J17
USB2
AMR PTI
IR
JKBV1
DIMM 1
FWH
JP3
ISA SLOT
J10
J3
PSFAN
W83627HF-AW
W83628F
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
Step 1: Install the Retention Mechanism.
Attach the Retention Mechanism to the Mainboard. Push the Plastic
lock to secure the Retention Mechanism into the mainboard.
Secure the processor by
pulling up the Retention
Mechanism Processor
Lock
Insert the processor
like inserting a PCI or
an ISA card
To release the
processor, push the
Retention Mechanism
Processor lock down
Step 2: Install the Processor.
Insert the Processor like inserting a PCI or an ISA card.
Step 3: Lock the Processor.
Lock the processor by pulling up the Retention Mechanism
processor lock shown above.
Note: The Retention Mechanism processor lock can only lock S.E.C.C. 2
and S.E.P.P. processor.
2.1-1 Processor Installation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Busratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure
2.1-3 Overclocking Jumper: J2
Overclocking is operating a CPU/Processor beyond its specified
frequency. J2 jumper is used for overclocking.
J2
J2 Function
Short
Open
Automatically detect CPU
Bus Frequency
Allows CPU overclocking.
Set 66MHz to 100Mhz
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-4 Fan Power Connector: CPUFAN/PSFAN/SYSFAN
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
PSFAN
PSFAN: PowerSupplyFan
CPUFAN:ProcessorFan
SYSFAN: System(Chassis) Fan
+12V
SENSOR
GND
SYSFAN
SENSOR +12V GND
SENSOR
+12V
GND
CHAPTER 2 HARDWARE INSTALLATION
2-4

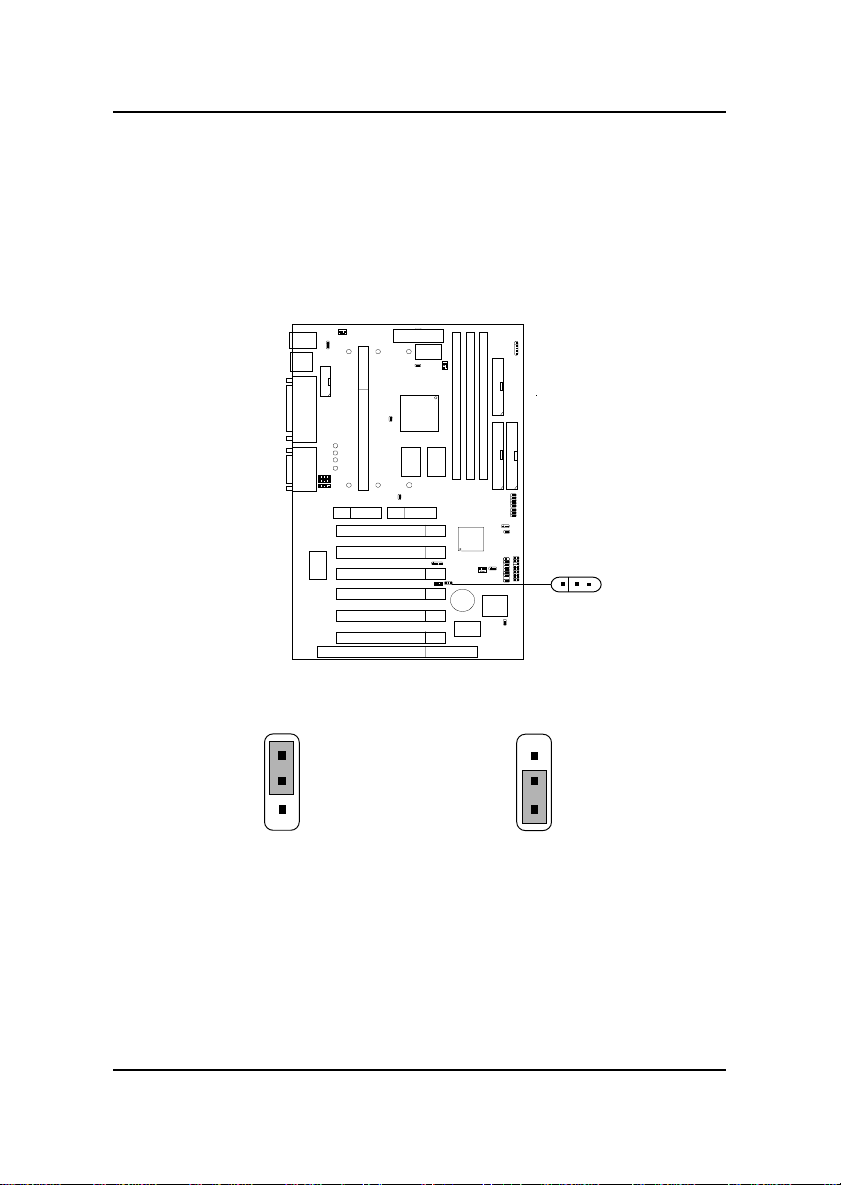

2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
13
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboardsupportsamaximummemorysizeof 256MB(64-bit technol-
ogy) or 512MB(128-bit technology for SDRAM: It provides three 168-pin
unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 128 Mbytes DIMM memory module.
DIMM3(Bank3+ Bank2)
DIMM1(Bank0+Bank1)
DIMM2(Bank2+Bank3)
D X
S S
X D
S: SingleBankDIMM
D: Double Bank DIMM
X: Cannot be installed
DIMM 2 DIMM 3
NOTE: When you install Double Bank DIMM or DIMM 2, DIMM 3 will
not be functional and vice versa. To make use of DIMM 2 and
DIMM 3, insert a Single Bank DIMM to each of them. It is
recommended that you use the same type or model of SDRAM.
If you’re going to use only one(1) Single Bank DIMM, install
the Single Bank DIMM on DIMM 2. Using DIMM 3 to install one
Single Bank DIMM will not be functional.
