MSI MS-6199VA Manuale utente
CHAPTER 1 INTRODUCTION
1-1
The MS-6199VA ATX VIA mainboard is a high-performance personal
computer mainboard based on the Intel®Pentium®II/III processor. The Intel®
Pentium®II/III processor supports MMXTM (Multimedia Extension) technol-
ogy.
The mainboard uses the highly integrated VIA®VT82C693A chipset to
support the PCI/ISA and Green standards, and to provide the Host/AGP
bridge. TheVIA®VT82C596B chipset integrates all system control functions
such as ACPI (Advanced Configuration and Power Interface). The ACPI
provides more Energy Saving Features for the OSPM(OS Direct Power
Management) function. The VIA®VT82C596B chipset also improves the
IDE transfer rate by supporting Ultra DMA 33/66 IDE that transfers data at
the rate of 33/66MB/s.
The mainboard also supports the System Hardware Monitor Controller. Its
functions include: CPU /power supply/chassis fan revolution detect, CPU/
system voltage monitor, system temperature monitor, chassis intrusion
detect and TOP TECH III as an optional function.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSlot 1 for Intel®Pentium®II/III or CeleronTM processor.
lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,
450MHz,500MHz,and faster.
Chipset
lVIA®VT82C693Achipset+VT82C596B
FSB(FrontSideBus)
l66.6MHz, 100MHz, 133MHz and faster clocks are supported.
MainMemory
lSupports six memory banks using three 168-pin unbuffered DIMM.
lSupportsamaximum memory sizeof 1.5G.
lSupportsECC(1-bit Error Code Correct) function.
lSupports 3.3v SDRAM DIMM.
Slots
lOne AGP slot.
- AGP specification compliant
- AGP66/133MHz 3.3v device support
lFive 32-bit Master PCI Bus slots and two 16-bit ISA Bus slots (wherein
one slot is shared).
*See page 2-34 for further details on PCI slots.
lSupports 3.3v/5v PCI bus Interface.
On-BoardIDE
lAnIDE controlleron the VT82C596B Chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
CHAPTER 1 INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial port (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.
- 1 Audio port ( Line_Out, Line_In, and Mic_In Jack) and 1 MIDI/
GamePort
Audio (Optional)
lCreative®ES1373
-Running on PCI BUS.
-64 Voice and AC3 Capable
- Support Direct Sound and Direct Sound 3D
-AC97’Compliant
- Support SPDIFTM output
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
lACPI(Advanced Configuration and Power Interface) feature.
lAnti-virus BIOS function.
lBIOS Lock function.
Dimension
lATXForm Factor : 30.4cm(L)x19.2cm(W)x 4 layersPCB
Mounting
l6 mounting holes.
CHAPTER 1 INTRODUCTION
1-4
SystemHardwareMonitor
lCPU/Power Supply/Chassis Fan Revolution Detect
lCPU Fan Control detects the CPU temperature, then determine the FAN
SPEED,which utilizes PC Alert program (the fan will automatically stop
when the system enters suspend mode)
lSystem Voltage Detect
lAdded 5VSB and Battery Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
lChassis Intrusion
OtherFeatures
lKeyboard Password Wake-Up
lLAN Wake-Up
lInternal/External Modem Wake-Up
CHAPTER 1 INTRODUCTION
1-5

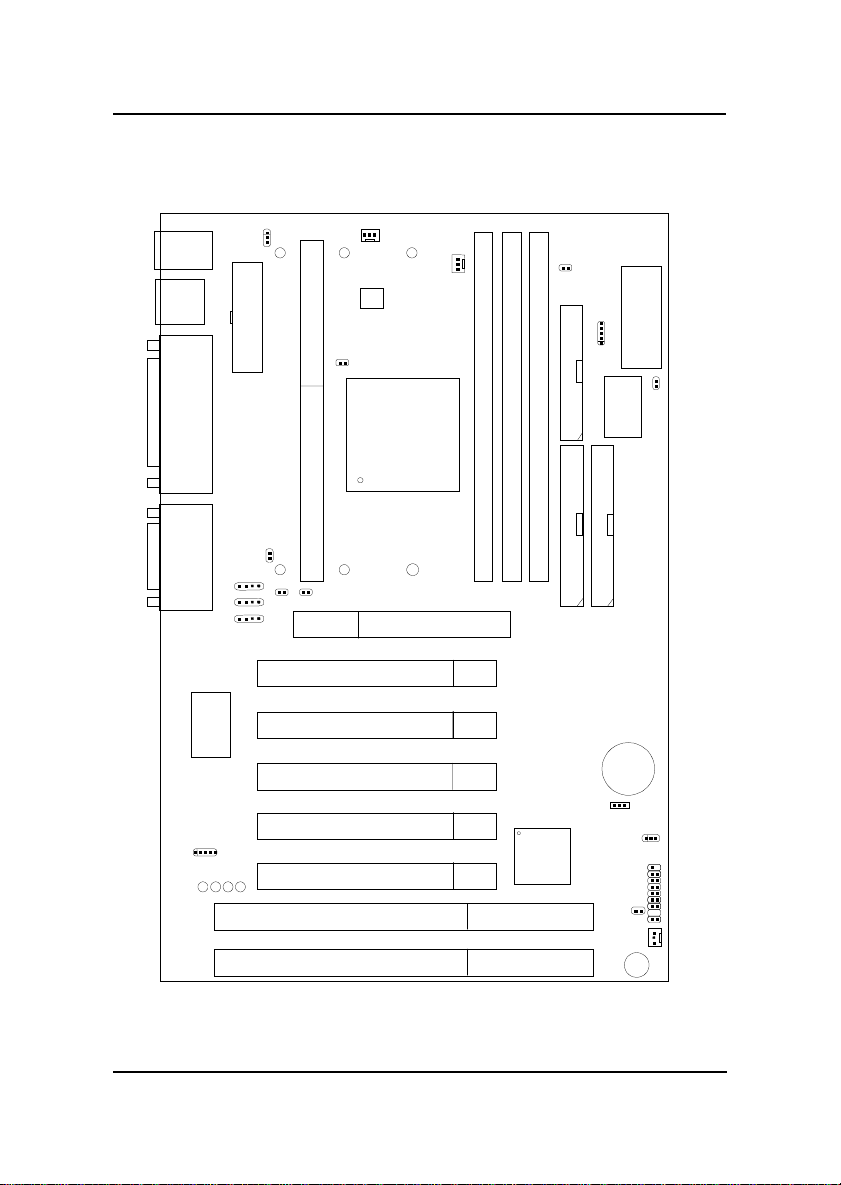

1.2 Mainboard Layout
MS-6199 ATX VIA Mainboard
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ISA SLOT 2
ATX
Power Supply
SLOT 1
DIMM 2
Top: Mouse
Bottom:
Keyboard
Top:Port1
USB
DIMM 1
IDE2
Bottom:
Port2
IDE1
FDD
JMDM1
JFP
JGS1
JBAT1
BIOS
JPHONE:MDM_IN
JAUX: AUX_IN
CPUFAN
JSOR1
JRMS1
PSFAN
IR
BATT
+
Top: LPT
Bottom:
COM1/
COM2
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
JCD: CD_IN SW2
JKBV
System
Hardware
Monitor
(optional)
AGP SLOT
JCASE
DIMM 3
PCI SLOT 4
PCI SLOT 5
ISA SLOT 1
JWOL1
SYSFAN
WINBOND
W83977EF-AW
JT3
Creative
ES1373
(Optional)
SW3
DiagnosticLED
2345
VT82C693A
VT82C596B
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION

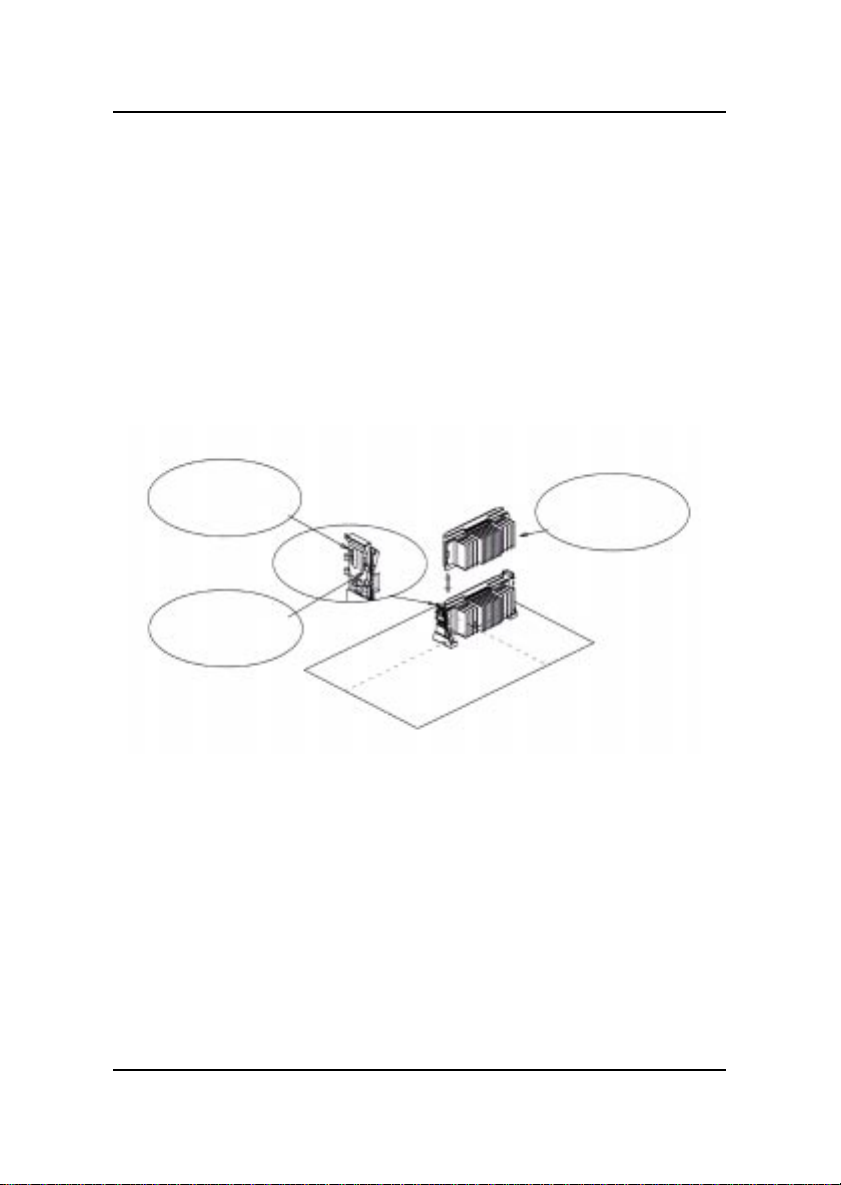

2.1 Central Processing Unit: CPU
Step 1: Install the Retention Mechanism.
Attach the Retention Mechanism to the Mainboard. Push the Plastic
lock to secure the Retention Mechanism into the mainboard.
Secure the processor by
pulling up the Retention
Mechanism Processor
Lock
Insert the processor
like inserting a PCI or
an ISA card
To release the
processor, push the
Retention Mechanism
Processor lock down
Step 2: Install the Processor.
Insert the Processor like inserting a PCI or an ISA card.
Step 3: Lock the Processor.
Lock the processor by pulling up the Retention Mechanism
processor lock shown above.
Note: The Retention Mechanism processor lock can only lock S.E.C.C. 2
and S.E.P.P. processor.
2.1-1 Processor Installation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-2
2.1-2 CPU Core Speed Derivation Procedure
1. This mainboard can auto-detect the Core/Bus (Fraction) ratio of the CPU
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Bus ratio
= 66MHzx3.5
= 233MHz
Note: CPU Vcore and Vi/o can be modified through CMOS.
Vcoreis for CPU.
Vi/oisforNorthbridge (VT82C693A).
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-3 Overclocking Jumper: SW2/SW3
Overclocking is a process of operating a CPU/Processor beyond its
specified frequency. SW2/SW3 is used for overclocking.
SW2
SW3
SW2 SW3 Feature
Automatically detect 66MHz, 100MHz,
133MHz CPU Bus Frequency
Virtually set CPU Bus Frequency
into 100MHz
Virtually set CPU Bus Frequency
into 133MHz
Note If you used this jumper for overclocking, you also need to modify the
CPU Bus ratio thorugh CMOS.
CHAPTER 2 HARDWARE INSTALLATION
2-4
2.1-4 Fan Power Connectors: CPUFAN/PSFAN/SYSFAN
These connectors support system cooling fan with +12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
SENSOR
+12V
GND
PSFAN
SENSOR
+12V
GND
CPUFAN
PSFAN : Power Supply Fan
CPUFAN : Processor Fan
SYSFAN : System(Chassis) Fan
SYSFAN
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control, you can install PC Alert
utility, this will automatically set the CPU FAN Speed by CPU
temperature.
SENSOR
+12V
GND
CHAPTER 2 HARDWARE INSTALLATION
2-5

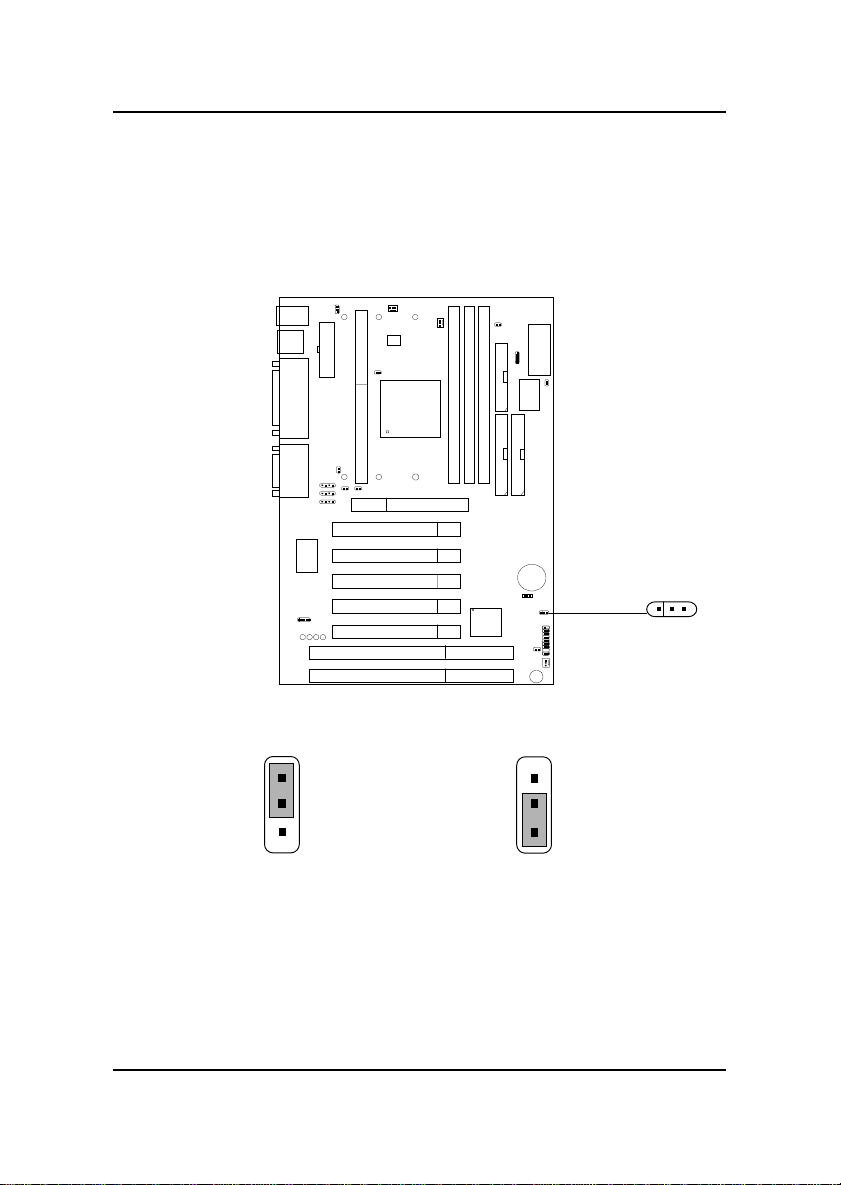

2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
13
