Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with Intel® CeleronTM/Coppermine processor. The

mainboard uses a CPU socket called Socket 370 for easy CPU installation.

The CPU should always have a eat Sink and a cooling fan attached to

prevent overheating.

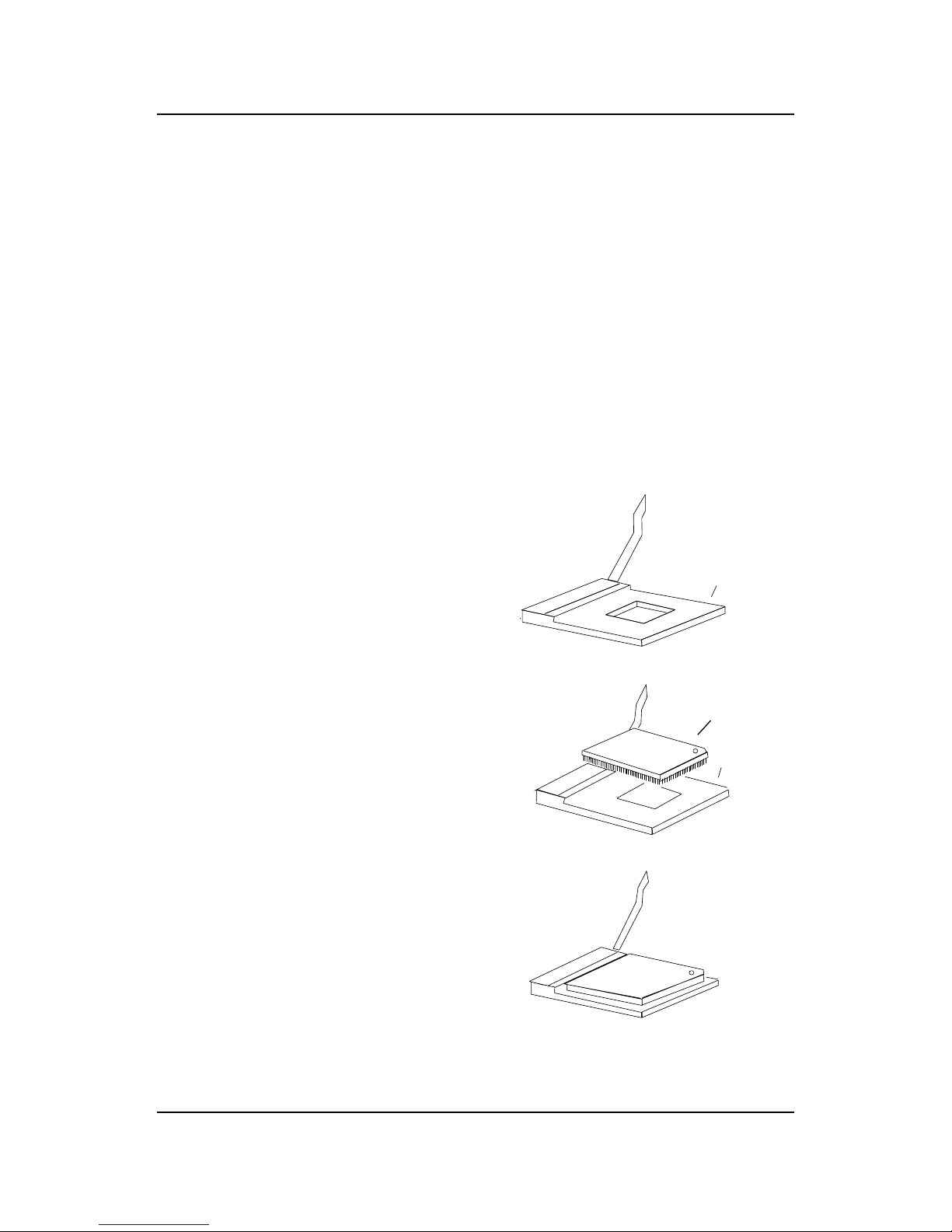

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then, insert the CPU.

It should insert easily.

Open Lever

Pin 1

Sliding

Plate

White dot/

Cut edge

Lever

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

Pin 1

2.1-1 CPU Installation Procedures

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-2

The BIOS can be used to set the CPU ost Bus Frequency Clock.

If CPU Clock = 66M z

Core/Bus ratio = 3.5

then CPU core speed = ost Clock x Core/Bus ratio

= 66M z x 3.5

= 233M z

2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-3

2.1-3 Fan Power Connectors: CPUFAN SYSFAN

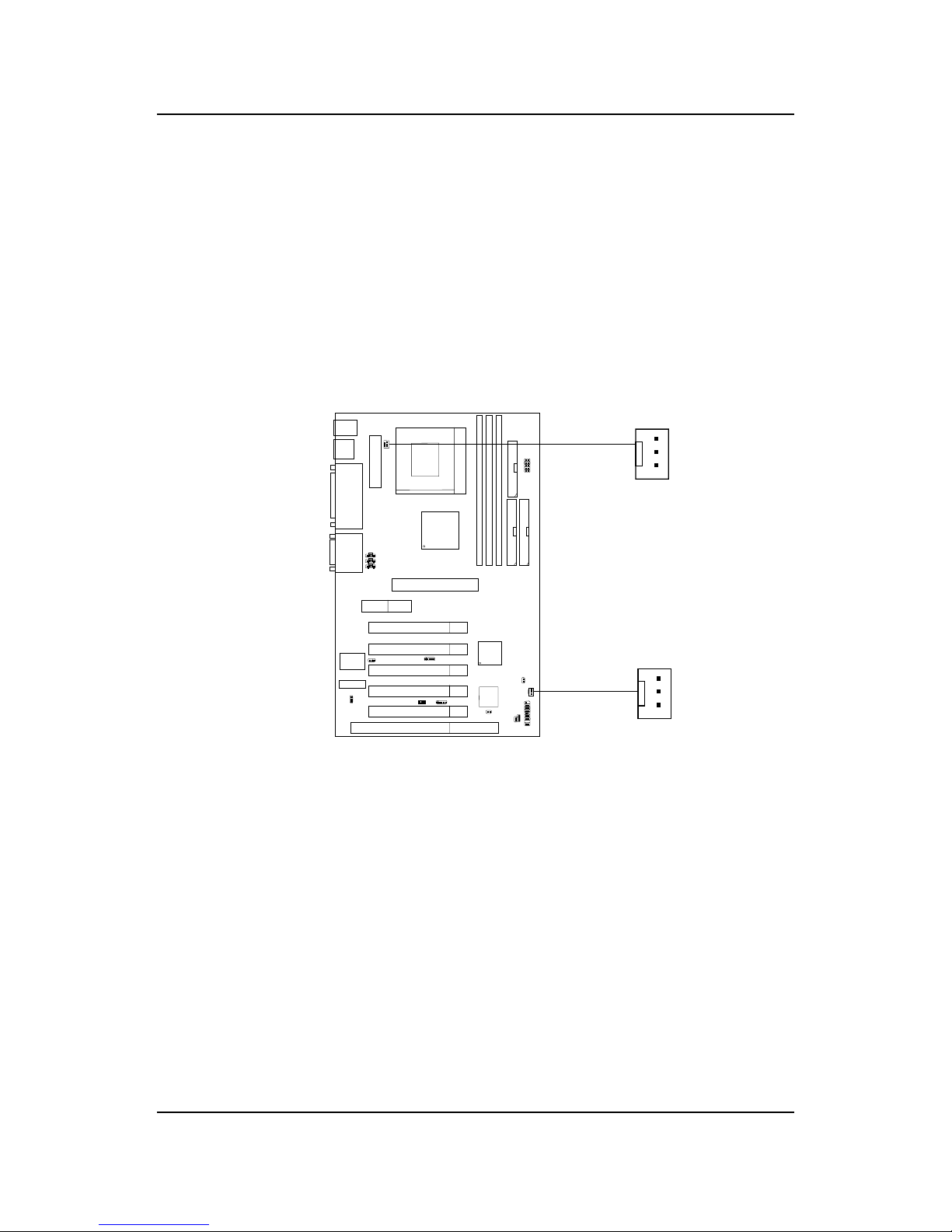

These connectors support system cooling fan with + 12V. It supports three

pin head connector. When connecting the wire to the connector, always

take note that the red wire is the positive and should be connected to the

+12V, the black wire is Ground and should be connected to GND. If your

mainboard has System ardware Monitor chipset on-board, you must use a

specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2

pulses. System ardware Monitor will count and report the fan rotation

speed.

Note: 1. Always consult vendor for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according

to the actual CPU temperature.

CPUFAN

CPUFAN: Processor Fan

SYSFAN: System Fan

+12V

GND

SENSOR

SYSFAN

+12V

GND

SENSOR

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-4

2.2 Clear CMOS Jumper: JBA2.2 Clear CMOS Jumper: JBA

2.2 Clear CMOS Jumper: JBAT1T1

T1T1

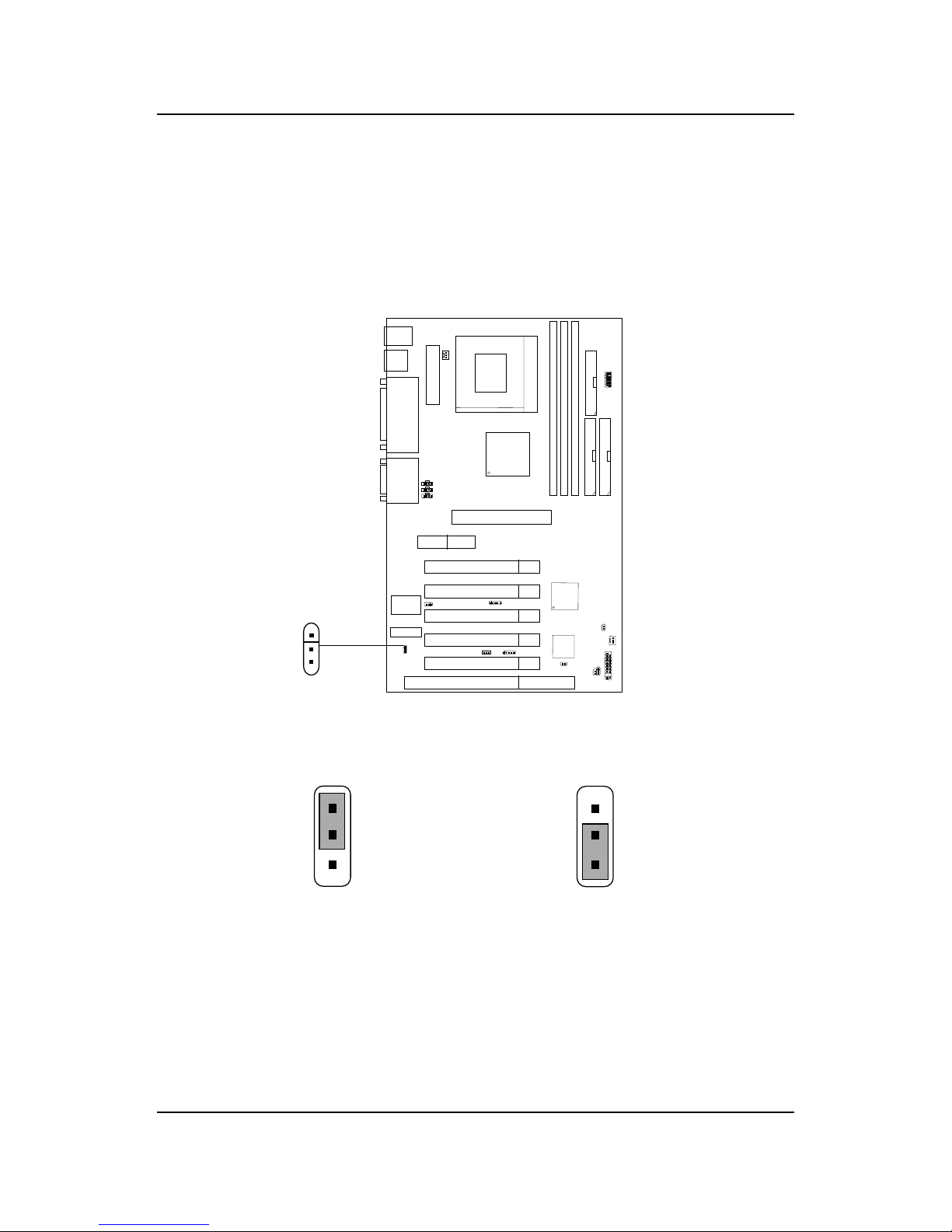

A battery must be used to retain the mainboard configuration in CMOS

RAM. Short 1-2 pins of JBAT1 to store the CMOS data.

Keep Data Clear Data

Note: You can clear CMOS by shorting 2-3 pin, while the system is off.

Then, return to 1-2 pin position. Avoid clearing the CMOS while

the system is on, it will damage the mainboard. Always unplug

the power cord from the wall socket.

JBAT1

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-5

2.3 Memory Installation2.3 Memory Installation

2.3 Memory Installation

2.3-1 Memory Bank Configuration

The mainboard supports a maximum memory size of 1.5GB (256-bit

technology) SDRAM: It provides three 168-pin unbuffered DIMMs

(Double In-Line Memory Module) sockets. It supports 8 MB to 512 Mbytes

DIMM memory module.

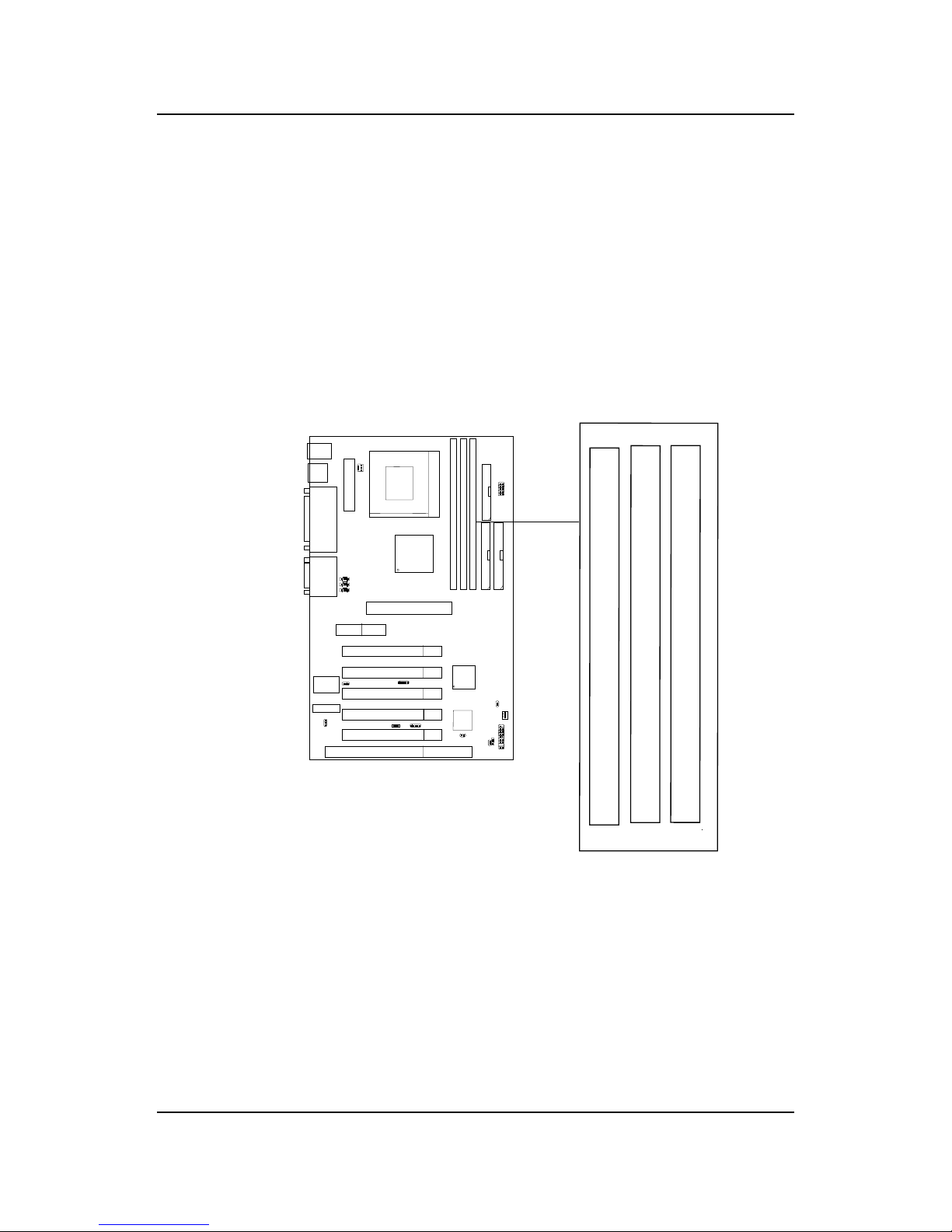

DIMM1(Bank0+ Bank1)

DIMM2(Bank2+ Bank3)

DIMM3(Bank4+ Bank5)

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-6

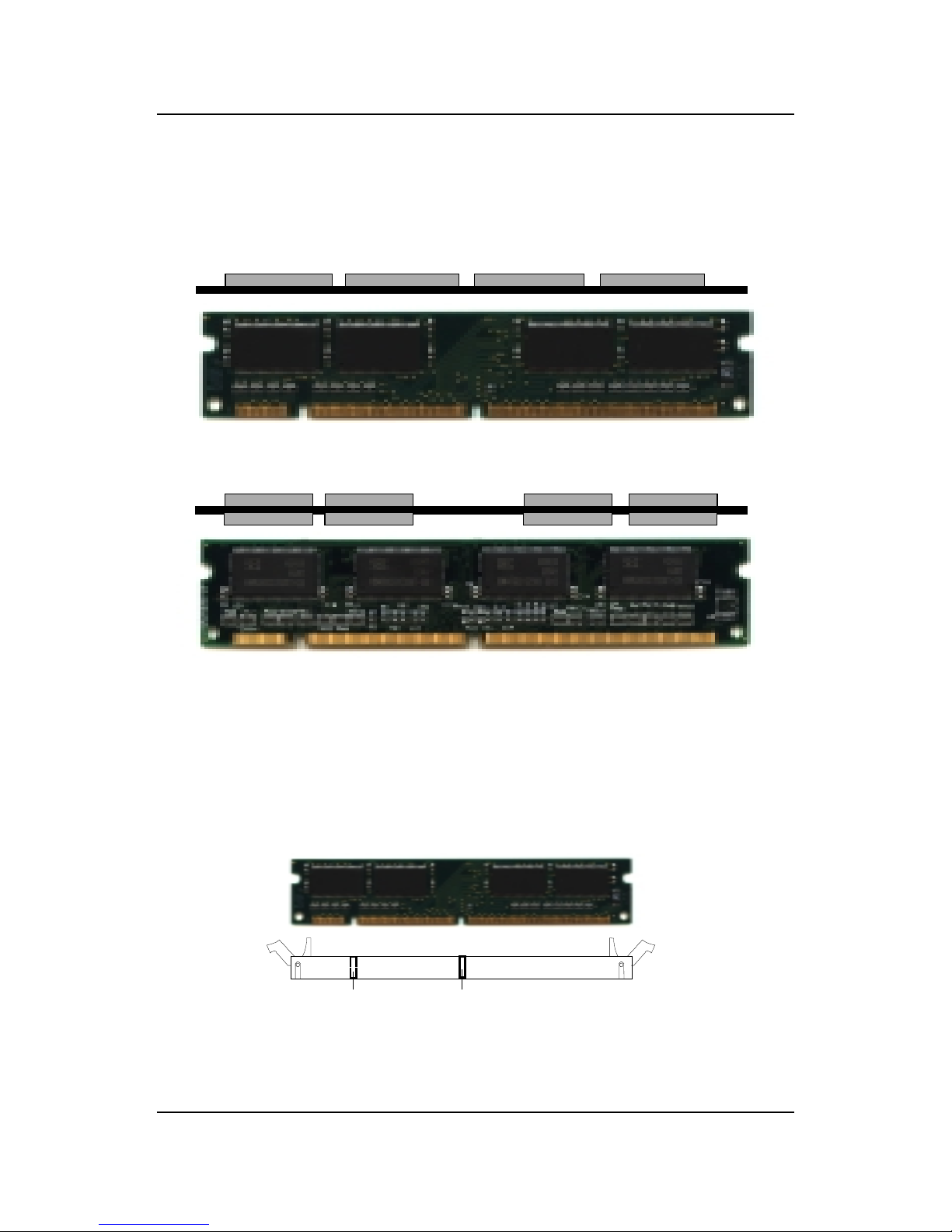

A. ow to install a DIMM Module

1. The DIMM slot has 2 Notch Keys VOLT and DRAM, so the

DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot.

Then push it in.

3. The plastic clip at the side of the DIMM slot will automatically

close.

Single Sided DIMM

Double Sided DIMM

VOLTDRA

2.3-2 Memory Installation Procedures

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-7

1. Supports only SDRAM DIMM.

2. To operate properly, at least one 168-pin DIMM module must be

installed.

3. This mainboard supports Table Free memory, so memory can be installed

on DIMM1 or DIMM 2 in any order.

4. Supports 3.3 volt DIMM.

5. The DRAM addressing and the size supported by the mainboard is

shown below:

2.3-3 Memory Population Rules

Table 2.3-1 SDRAM Memory Addressing

16M 1Mx16 ASYM 11 8 8MBx4 16MBx8

2Mx8 ASYM 11 9 16MBx8 32MBx16

64M 2Mx32 ASYM 11 9 32MBx2 64MBx4

2Mx32 ASYM 12 8 16MBx2 32MBx4

4Mx16 ASYM 11 10 32MB 64MB

4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

64M 2Mx32 ASYM 11 8 16MB 32MB

4Mx16 ASYM 12 8 --- ---

8Mx8 ASYM 12 9 --- ---

DRAM

Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size MB/D MM

Row Column Single

Side(S) Double

Side(D)

no.

pcs.

no.

pcs.

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-8

2.4 Case Connector: JFP1

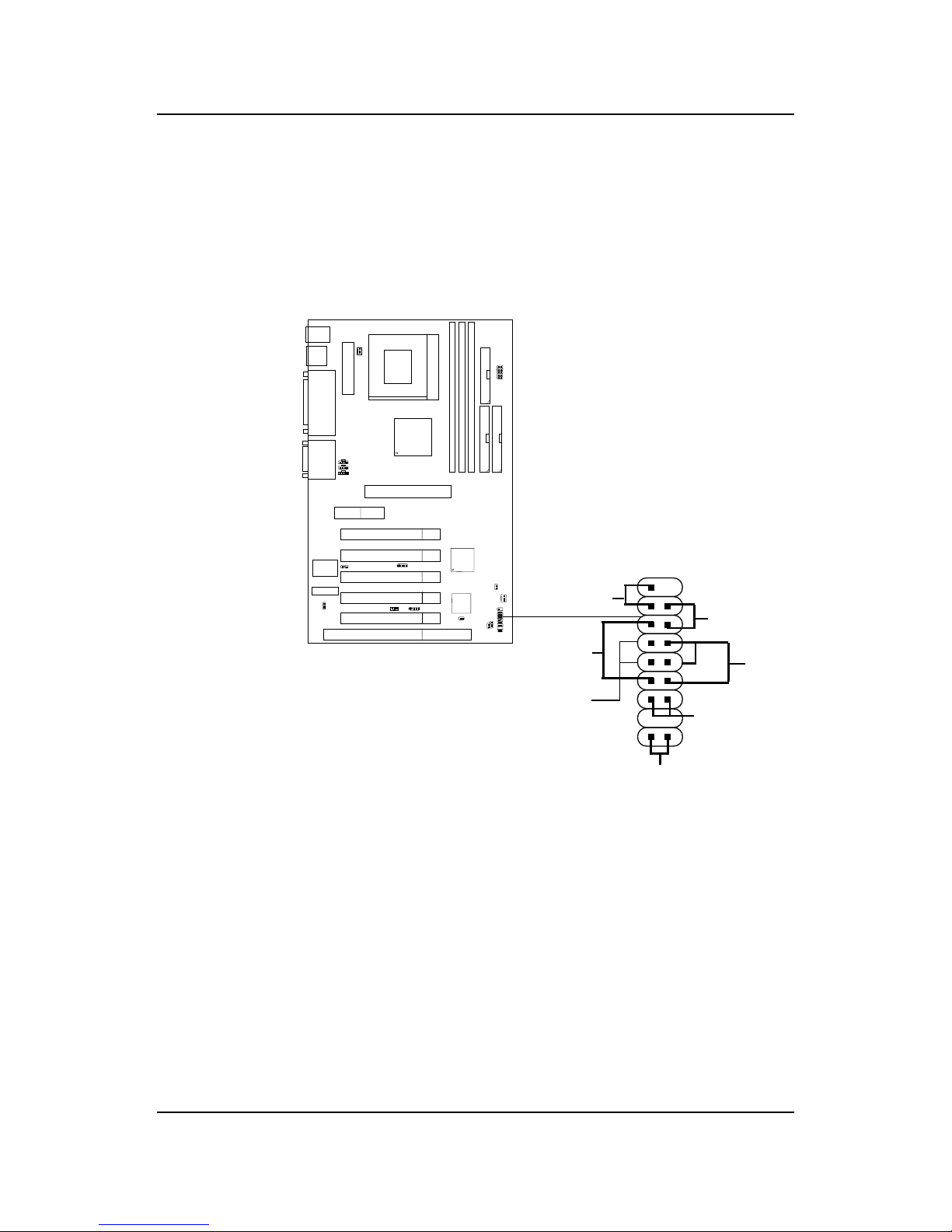

The Keylock (reserved), Power Switch, Reset Switch, Power LED, Speaker,

and DD LED are all connected to the JFP1 connector block.

JFP1

Power

Switch

Power LED

Reset

Switch

HDD

LED

Speaker

Buzzer

(short

pin)

Keylock

Dual

Color

LED

Single

Color

LED

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-9

2.4-1 Power Switch

Connect to a 2-pin push button switch. This switch has the same feature

with JRMS1.

2.4-2 Reset Switch

Reset switch is used to reboot the system rather than turning the power ON/

OFF. Avoid rebooting while the DD LED is lit. You can connect the Reset

switch from the system case to this pin.

2.4-3 Power LED

The Power LED is lit while the system power is on. Connect the Power LED

from the system case to this pin. There are two types of LED that you can

use: 3-pin single color LED or 2-pin dual color LED(ACPI request).

a. 3 pin single color LED connect to pin 4, 5, & 6. This LED will lit

when the system is on.

b. 2 pin dual color LED connect to pin 5 & 6.

GREEN Color: Indicate the system is in full on mode.

ORANGE Color: Indicate the system is in suspend mode.

2.4-4 Speaker

Speaker from the system case is connected to this pin.

If on-board Buzzer is available:

Short pin 14-15: On-board Buzzer Enabled.

Open pin 14-15: On-board Buzzer Disabled.

2.4-5 HDD LED

DD LED shows the activity of a hard disk drive. Avoid turning the power

off while the DD led is lit. You can connect the DD LED from the system

case to this pin.

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-10

2.5 Floppy Disk Connector: FDD1

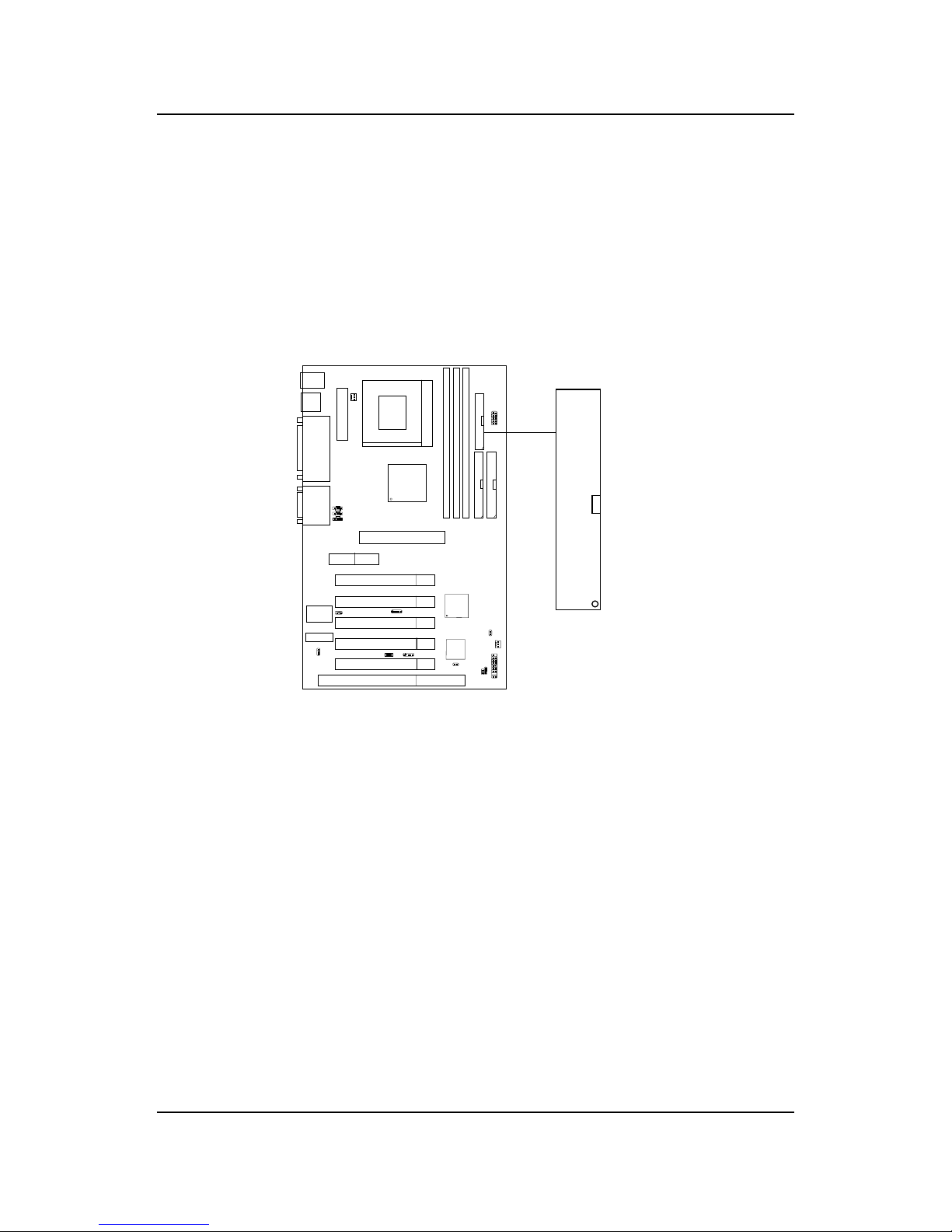

The mainboard also provides a standard floppy disk connector FDD1 that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

FDD1
