MSI MS-6528 LE Manuale utente

Version 1.0

G52-MA00429

MS-6528 LE ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

Manual Rev: 1.0

Release Date: August 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6528 LE

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

August 2001

The material in this document is the intellectual property of MICRO-

STAR INTERNATIONAL. We take every care in the preparation

of this document, but no guarantee is given as to the correctness of its

contents. Our products are under continual improvement and we re-

serve the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 95/98/2000 and Windows NT are registered trademarks of Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V1.0 First release August 2001

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

zThe power cord or plug is damaged

zLiquid has penetrated into the equipment

zThe equipment has been exposed to moisture

zThe equipment has not work well or you can not get it work according

to User’s Manual.

zThe equipment has dropped and damaged

zIf the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600

C(1400F),IT

MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

CONTENTS

Chapter 1. Introduction ............................................................... 1-1

Mainboard Specifications .......................................................... 1-2

Mainboard Layout ..................................................................... 1-4

Quick Components Guide ......................................................... 1-5

Connectors & Jumpers .............................................................. 1-6

Back Panel ............................................................................... 1-8

Chapter 2. AWARD® BIOS Setup ................................................. 2-1

Entering Setup .......................................................................... 2-2

Control Keys ............................................................................. 2-2

Getting Help .............................................................................. 2-3

The Main Menu ......................................................................... 2-4

Standard CMOS Features ......................................................... 2-5

Advanced BIOS Features .......................................................... 2-6

Advanced Chipset Features ...................................................... 2-7

Integrated Peripherals ............................................................... 2-8

Power Management Setup ........................................................ 2-9

PNP/PCI Configurations .......................................................... 2-10

PC Health Status .................................................................... 2-11

Frequency/Voltage Control ...................................................... 2-12

Load High Performance Defaults ............................................. 2-13

Load BIOS Setup Defaults ...................................................... 2-14

Set Supervisor/User Password ................................................ 2-15

Save & Exit Setup ................................................................... 2-17

Exit Without Saving ................................................................. 2-18

Introduction

1-1

Chapter 1.

Introduction 1

Mainboard Specifications 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Connectors & Jumpers 1-6

Back Panel 1-8

The MS-6528 LE ATX mainboard is a high-performance computer

mainboard based on Intel®82845 & 82801BA chipsets. It is optimized to

support Intel®Pentium®4 processor in the 478 pin package that delivers a high

performance and professional desktop platform solution.

The Intel®82845 Memory Controller Hub (MCH) provides the processor

interface, SDRAM interface, AGP interface and hub interface. It supports: a

single processor with a data transfer rate of 400MHz, SDRAM at 133MHz

operation (PC133), AGTL+ host bus with integrated termination supporting

32-bit host addressing, 1.5V AGP interface with 4x data transfer and 4x fast

write capability, and 8-bit, 66MHz 4x hub interface to the Intel ICH2.

The 82801BA I/O Controller Hub 2 (ICH2) provides the I/O subsystem

with access to the rest of the system and additionally integrates many I/O

functions. It supports: upstream hub interface for access to the Intel MCH, 2-

channel Ultra ATA/100 bus master IDE controller, USB controller 1.1 (expanded

capabilities for 4 ports), I/O APIC, SMBus controller, FWH interface, LPC

interface, AC’97 2.1 interface, PCI 2.2 interface, and integrated system manage-

ment controller.

This chapter includes the following topics:

Chapter 1

1-2

Mainboard Specifications

CPU

zSupports Intel®Pentium®4 processor in the 478 pin package.

zSupports 1.3GHz, 1.4GHz, 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz

and up.

Chipset

zIntel®845 chipset (593 FC-BGA)

- Supports a single processor with a data transfer rate of 400MHz.

- Supports SDRAM at 133MHz operation (PC133).

- AGTL+ host bus with integrated termination supporting 32-bit host

addressing.

- 1.5V AGP interface with 4x data transfer and 4x fast write capability.

- 8-bit, 66MHz 4x hub interface to the Intel ICH2.

zIntel®ICH2 chipset (360 EBGA)

- Upstream hub interface for access to the Intel MCH.

- 2-channel Ultra ATA/100 Bus Master IDE controller.

- USB controller 1.1 (expanded capabilities for 4 ports).

- I/O APIC.

- SMBus controller.

- FWH interface.

- LPC interface.

- AC’97 2.1 interface.

- PCI 2.2 interface.

- Integrated system management controller.

Main Memory

zSupports three PC133 SDRAM sockets.

zSupports up to 3GB memory size.

Slots

zOne AGP (Accelerated Graphics Port) 4x slot.

zSix PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

zOne CNR (Communication Network Riser) slot.

Note: The AGP slot does NOT support 3.3V AGP 2x card. Use of

3.3V AGP 2x card may cause damages to the mainboard.

Introduction

1-3

On-Board IDE

zAn IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66/100 operation modes.

zCan connect up to four IDE devices.

On-Board Peripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear * 2/ Front * 2)

- 1 audio/game port

Audio

zC-Media CMI8738 / PCI-6ch supports 2/4/6 ch speaker (optional)

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications.

Dimension

zATX Form Factor 30.5cm x 23cm

Mounting

z6 mounting holes

Chapter 1

1-4

SFAN1

PSFAN1

CFAN1

JGL1

BATT

ICH 2

DIMM1

DIMM2

DIMM3

ATXPowerSupply

FWH

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE2

IDE1

Winbond

W83627HF

USB

ports

Top : mouse

Bottom: keyboard

JCD1

CMI8738

JPW1

JBAT1

JAUX1

JPHN1

To p :

Game port

Bottom:

Line-Out

Line-In

Mic

FDD1

AGP Slot

Intel

845

chipset

JFP1

JWOL1

JGS1

JMDM1

PCI Slot 6

CNR JUSB1

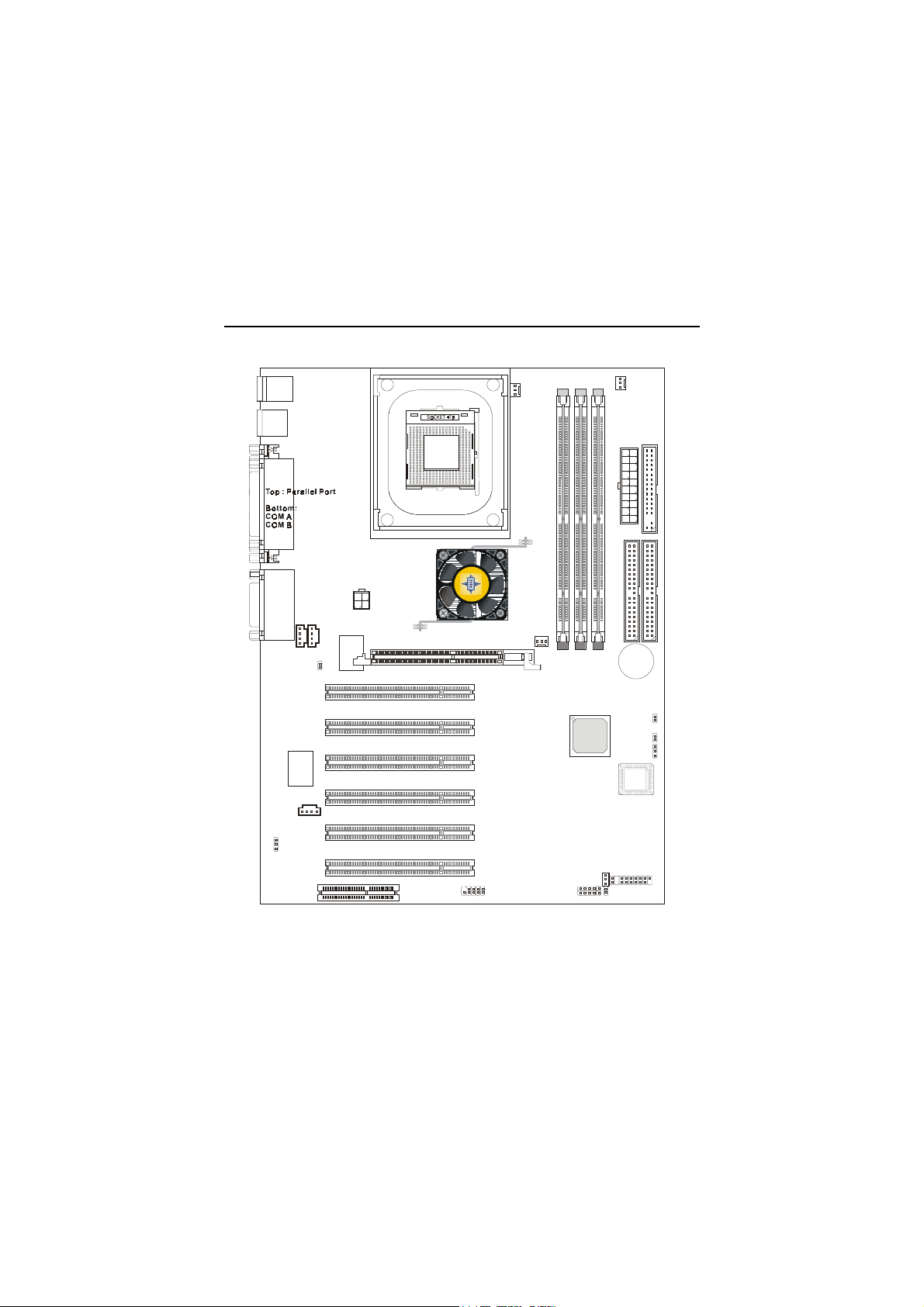

Mainboard Layout

MS-6528 LE ATX Mainboard

Introduction

1-5

Quick Components Guide

Component Function

JWR1 ATX 20-pin power connector

JPW1 ATX 12V power connector

JKBMS1 Mouse connector

JKBMS1 Keyboard connector

USB Connectors Connecting to USB devices

COM A & COM B Serial port connector

LPT1 Parallel port connector

FDD1 Floppy disk drive connector

J9 IrDA infrared module connector

IDE1~ IDE2 Hard disk connectors

JFP1 Case connector

JCD1 CD-in connector

JAUX1 Aux line-in connector

JPHN1 Modem-in connector

JGL1 Power saving LED connector

J2 TOP Tech. III

JGS1 Power saving switch connector

JMDM1 Wake on ring connector

JWOL1 Wake on LAN connector

CPU/PS/SYS FAN Fan power connectors

JUSB1 Connecting to USB devices

J8 (optional) D-Bracket connector

J4 Chassis intrusion switch connector

JBAT1 Clear CMOS jumper

J6 BIOS flash jumper

AGP Slot Connecting to AGP cards

PCI Slots Connecting to expansion cards

CNR Slot Connecting to expansion cards

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MSI Scheda madre

MSI

MSI K8MM3 Series Manuale utente

MSI

MSI MS-6526 Manuale

MSI

MSI MS-7596 (v1.x) Manuale utente

MSI

MSI B350M MORTAR Manuale utente

MSI

MSI Z270M MORTAR Manuale utente

MSI

MSI B75A-G43 series Manuale utente

MSI

MSI 785GTM-E45 - Motherboard - Micro ATX Manuale utente

MSI

MSI A75A-G45 series Manuale utente

MSI

MSI MS-6580 Manuale utente

MSI

MSI B460M PRO-VDH WIFI Manuale utente

MSI

MSI A320M PRO-M2 V2 Manuale utente

MSI

MSI MAG B550M MORTAR WIFI Manuale utente

MSI

MSI B450M-A PRO MAX Manuale utente

MSI

MSI MPG B550 GAMING PLUS Manuale utente

MSI

MSI 848P Neo2-V Series Manuale utente

MSI

MSI X79A-GD45 (8D) series Manuale utente

MSI

MSI 970A-G45 series Manuale utente

MSI

MSI MEG X570 ACE Manuale utente

MSI

MSI MS-7255 Manuale utente

MSI

MSI H55-G33 Series Manuale utente

MSI

MSI K9AGM4 Manuale utente

MSI

MSI IM-945GC Manuale utente

MSI

MSI H270M MORTAR ARCTIC Manuale utente

MSI

MSI B450M MORTAR MAX Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
