MSI MS-6787 Manuale utente

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LANOTICE D’NSTALLATION AVANT DE RACCORDERAU RESEAU.

Micro-Star International

MS-6787

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

G52-M6787X9

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in

the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are

under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.

Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks

of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the

United States and/or other countries.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.

Revision History

Revision Revision History Date

V2.0 First released for PCB 2.x March 2004

V2.1 Add Dutch version April 2004

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User Manual for future reference.　

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not

cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the

power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated into the equipment.

- The equipment has been exposed to moisture.

- The equipment does not work well or you can not get it work according to User Manual.　

- The equipment has dropped and damaged.

- The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage temperature above 600 C (1400F), it may

damage the equipment.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer.

Table of Content

English.....................................................................1

Deutsch....................................................................17

Français...................................................................33

简体中文...................................................................49

繁體中文...................................................................63

日本語.......................................................................77

Nederlands..............................................................93

Introduction

Thank you for choosing the P4MAM-V Series (MS-6787 v2.X) micro ATX mainboard. The P4MAM-V

Series is based on VIA ® VT8751A & VT8235 chipsets for optimal system efficiency. Designed to fit the

advanced Intel ® Pentium ® 4 processors in 478 pin package, the P4MAM-V Series delivers a high

performance and professional desktop platform solution.

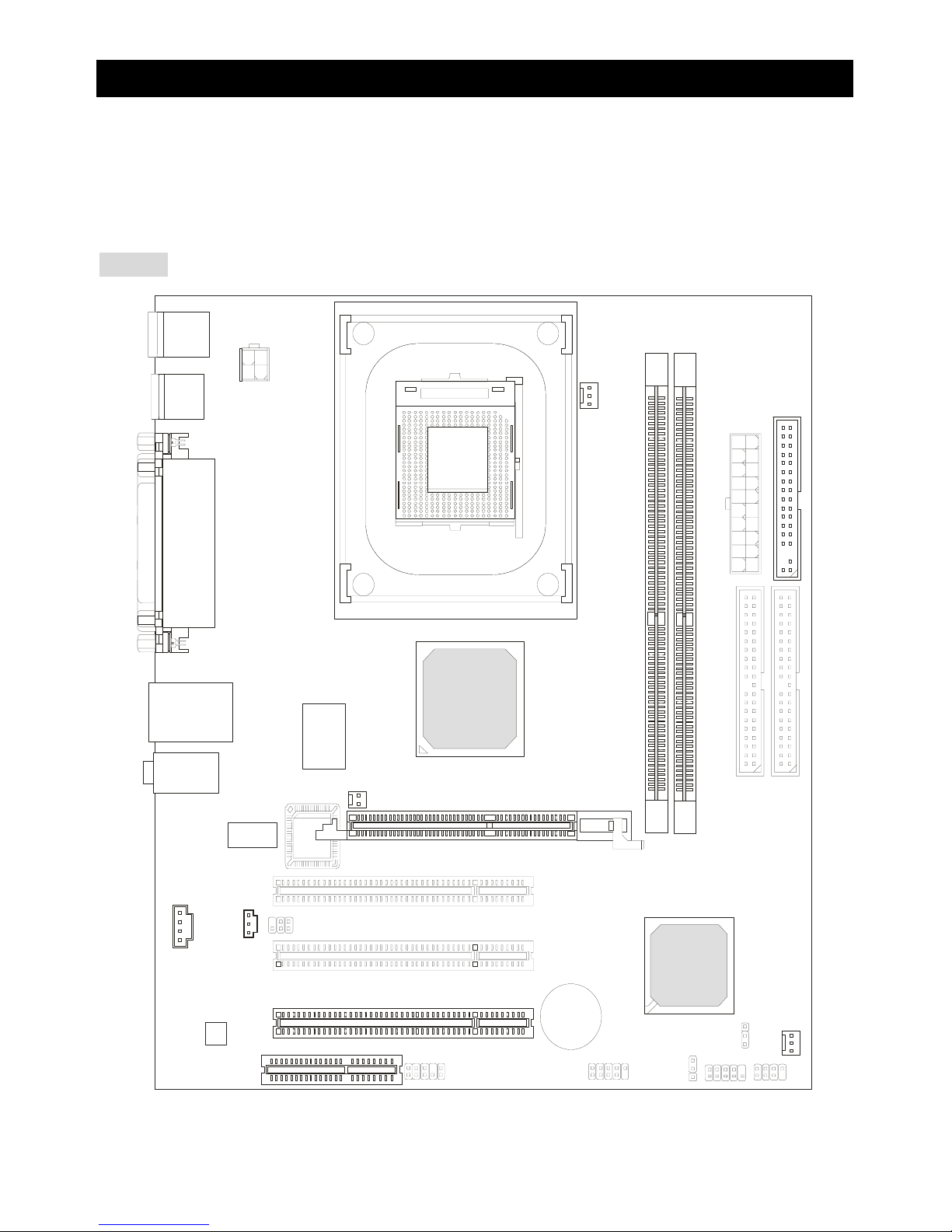

Layout

BATT

VIA

VT8235

DIMM 1

DIMM 2

CD_IN1

JSPDIF1

JFP2JFP1

JIR1

(Optional)

JCI1

(Optional)

JBAT1

JUSB1JAUDIO1

ATX1

SFAN1

CFAN1

PCI Slot 1

PCI Slot 2

PCI Slot 3

IDE 1

IDE2

Top: Parallel Port

Bottom:

COM A

VGAPort

Top: Mouse

Bottom: Keyboard

Top: LAN Jack

Bottom: USB

Ports

USB

Ports

Codec

JPW1

T: L ine- In

B:Mic

Line-Out

FDD1

SOCKET 478

Winbond

W83697HF

VIA

VT6103

VIA

VT8751A

BIOS

AGP Slot

CNR

JP1

Specifications

CPU

zSupports Intel ® Pentium 4/Celeron (Socket 478) processor.

zSupports Intel ® P4 Northwood up to 3.06GHz and P4 Prescott Celeron up to 2.8GHz.

(For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

zVIA ® VT8751A chipset (664 BGA)

- 64bit P4 processors FSB I/F (533MHz).

- 64bit DDR SDRAM memory I/F (200/266MHz).

- 32bit AGP I/F (66MHz) for 4x/2x mode.

- 8bit V-Link I/F (66MHz) with peak bandwidth of 266MB/s.

zVIA ® VT8235 chipset (376 BGA)

- Dual-channel UDMA 133/100/66/33 master mode EIDE controller.

- 6 ports USB controller (v2.0).

- KBD controller with PS2 mouse support.

- SMBus I/F and ACPI/APM compliance power management.

- LPC I/F for super I/O and 2MB flash ROM (BIOS).

- AC-97 link controller to cooperate w/ external AC97 audio & modem codec.

- 10/100Mbps Fast Ethernet controller.

- Supports HSP modem.

Main Memory

zSupports four memory banks using two 184-pin DDR DIMM.

zSupports up to 2GB PC2100/PC1600 DDR SDRAMs.

zSupports 2.5v DDR SDRAM.

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

zOne AGP (Accelerated Graphics Port) 4x slot.

zThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

zOne CNR (Communication Network Riser) slot.

On-Board IDE

zAn IDE controller on the VIA ® VT8235 Chipset provides IDE HDD/CD-ROM with PIO, Bus Master

and Ultra DMA 33/66/100/133 operation modes. Can connect up to four IDE devices.

On-Board Peripherals

zOn-Board Peripherals includes:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COM A)

- 1 parallel port supports SPP/EPP/ECP mode

- 6 USB 2.0 ports (Rear * 4/ Front * 2)

- 1 audio (Line-In/Line-Out/Mic) port

- 1 RJ45 LAN jack

- 1 VGA port

Audio

zAC97 link controller integrated in VT8235.

zVIA ® VT1616 6-channel software audio codec.

- Compliance with AC97 v2.2 spec.

LAN

zVIA ® VT6103 PCI local bus single-chip Fast Ethernet Controller.

- With external 10/100 Base-T Lan transformer.

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2 and PC99 standard.

- Supports ACPI power management.

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and

expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) function which records your

mainboard specifications.

Dimension

zMicro-ATX Form Factor: 243 mm x 214mm.

Mounting

z6 mounting holes.

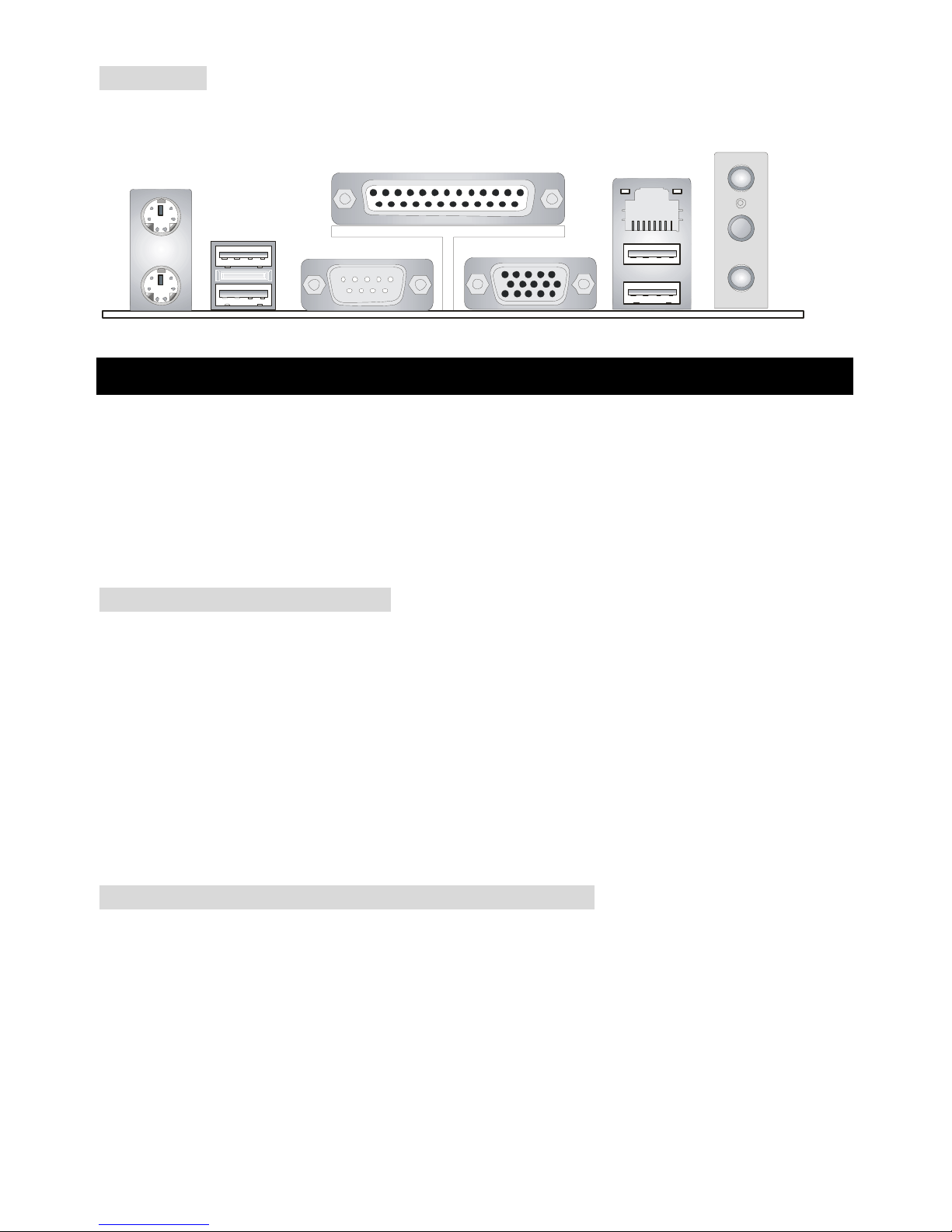

Rear Panel

The back panel provides the following connectors:

Keyboard

USBPorts

Mouse

COMport VGAport

Par allel Port LineIn

LineOut

Mic In

LAN

USBPorts

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to

setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral

devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the

components and follow the installation procedures.

Central Processing Unit: CPU

The mainboard supports Intel Pentium 4 Northwood & Prescott Celeron processor in the 478 pin

package. The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are

installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent

overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and install

them before turning on the computer. (For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Example of CPU Core Speed Derivation Procedure

If CPU Clock = 133MHz

Core/Bus ratio = 23

then CPU core speed = Host Clock x Core/Bus ratio

= 133MHz x 23

=3.06GHz

Memory Speed/CPU FSB Support Matrix

Memory

FSB DDR 200 DDR 266

400 MHz OK OK

533 MHz OK OK

CPU Installation Procedures for Socket 478

1. Please turn off the power and unplug the power cord before installing the CPU.

2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree

angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only

fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket and

can not be seen. Please note that any violation of the correct installation procedures may cause

permanent damages to your mainboard.

5. Press the CPU down firmly into the socket and close the lever.As the CPU is likely to move

while the lever is being closed, always close the lever with your fingers pressing tightly on top of

the CPU to make sure the CPU is properly and completely embedded into the socket.

Installing the CPU Fan

As processor technology pushes to faster speeds and higher performance, thermal management

becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and

heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention mechanism on the motherboard.

2. Position the heatsink onto the retention mechanism.

3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the

holes of the retention mechanism.

4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE

direction.

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the

board.

MSI Reminds You...

Overheating…

Overheating will seriously damage the CPU and system, always make sure the cooling fan can work

properly to protect the CPU from overheating.

Replacing the CPU…

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power

cord from grounded outlet first to ensure the safety of CPU.

Memory

The mainboard provides two 184-pin unbuffered DDR200/DDR266 DDR SDRAM, and supports the

memory size up to 2GB. To operate properly, at least one DIMM module must be installed. (For the

updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any

order. You can install either single- or double-sided modules to meet your own needs.

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right

orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden

finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Altri manuali per MS-6787

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali MSI Scheda madre

MSI

MSI G31P Neo2 Series Manuale utente

MSI

MSI A68HI ACSeries Manuale utente

MSI

MSI MAG B460 TOMAHAWK Manuale utente

MSI

MSI 845E Max2 Series Manuale utente

MSI

MSI K9NGM4 Series Manuale utente

MSI

MSI Z97I GAMING AC Manuale utente

MSI

MSI A68HM-E33 Series Manuale utente

MSI

MSI MPG Z390 GAMING EDGE AC Manuale utente

MSI

MSI B550M PRO-VDH WIFI Manuale utente

MSI

MSI 845GEM Series Manuale utente

MSI

MSI MS-6566E Manuale utente

MSI

MSI MS-7338 Manuale utente

MSI

MSI 865PE/G Neo2-P MS-6728 Manuale utente

MSI

MSI X99A SLI PLUS Manuale utente

MSI

MSI MS 7030 - K8N Neo Platinum Motherboard Manuale utente

MSI

MSI Z68A-G43 series Manuale utente

MSI

MSI Z77A-G41 Series Manuale utente

MSI

MSI 880GMA-E45 series Manuale utente

MSI

MSI MS-6198 Manuale utente

MSI

MSI G965MDH Series Manuale utente

MSI

MSI A88X-G45 GAMING Manuale utente

MSI

MSI P45D3 PLATINUM Series Manuale utente

MSI

MSI MPG Z490 GAMING PLUS Manuale utente

MSI

MSI G31P Neo2 Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
