FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to

part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the user will be required to correct the

interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission

limits.

VOIR LANOTICE D’NSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7071

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired

operation

G52-M7071X1

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every

care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our

products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.

Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered

trademarks of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA

Corporation in the United States and/or other countries.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International

Association.

Revision History

Revision Revision History Date

V1.0 First release December 2004

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating.

Do not cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the

equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power

cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated into the equipment.

- The equipment has been exposed to moisture.

- The equipment does not work well or you can not get it work according to the User’ Manual.

- The equipment has dropped and damaged.

- The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage temperature above 60° C (140°F),

it may damage the equipment.

Table of Contents

English.....................................................................1

Français...................................................................17

Deutsch....................................................................31

简体中文...................................................................49

繁體中文...................................................................63

日本語.......................................................................77

Introduction

Thank you for purchasing the PM8M2-V Series (MS-7071 v1.X)M-ATX mainboard. This

mainboard is based on VIA P4M800 and VT8237Rchipsets for optimal system efficiency.

Designed to fit the advanced Intel Pentium 4 Prescott processor, the PM8M2-VSeries

mainboard delivers a high performance and professional desktop platform solution.

Specifications

CPU

lSupports Intel Pentium 4 Prescott processor (LGA775) in LGA775 package

lSupports up to 3.4GHz, FSB@800/533MHz

(For the latest information about CPU, please visit our Web site at

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

lVIA P4M800 chipset

-64 bit P4 processor FSB I/F (800MHz)

-64 bit DDR SDRAM memory I/F (333/400MHz)

-32 bit AGP I/F (66MHz) for 8x/4x mode

-Supports 8X V-Link

lVIA VT8237Rchipset

-Integrated Hardware Sound Blaster/Direct Sound AC97 audio

-Ultra DMA 66/100/133 master mode PCI EIDE controller

-Supports USB 2.0 up to 8 ports

-ACPI & PC2001 compliant enhanced power management

Main Memory

lSupports four memory banks using two 184-pin DDR DIMMs

lSupports up to 2GB DDR333/400 SDRAMs

lSupports 2.6v DDR SDRAM

(For the updated supporting memory modules, please visit our Web site at

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

lOne AGP (Accelerated Graphics Port) 3.0 8Xslot

lTwo PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

lOne CNR slot (Optional)

Onboard IDE

-An IDE controller integrated in the VIA VT8237Rchipset providing IDE HDD/CD-ROM

with PIO, Bus Master and Ultra DMA 66/100/133 operation modes

-Can connect up to four IDE devices

On-Board Peripherals

lOn-Board Peripherals include:

-1 floppy port supports 2FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

-1serial port(COM A)

-1parallel port supports SPP/EPP/ECP mode

-8 USB 2.0 ports (Rear x4 / Front x4)

-Audio ports in vertical

-1 RJ45 LAN jack

-1 COM B pin header

-2 SATA 150

Audio

lAC97 link controller integrated in VT8237R

lRealtek ALC655 6-Channel software audio codec

-Compliant with AC97 v2.2 spec.

LAN

lRealtek 8201CL

-Integrated Fast Ethernet PHY

-Supports 10MB/s, 100MB/s

-Compliant with PCI 2.2

lSupports ACPI Power Management

BIOS

lThe mainboard BIOS provides Plug & PlayBIOS which detects the peripheral devices and

expansion cards of the board automatically

lThe mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications

Dimension

lMicro-ATX Form Factor: 245mm x 190mm

Mounting

l6 standard mounting holes

BATT

DIMM

JAUDIO1

CD_IN1

JSP1

JBAT2

JFP1

JFP2

JUSB1

FDD1

JUSB2

ATX

PowerSupply

SYS_FAN1

CPU_FAN1

BIOS

PCI Slot 2

PCI Slot 1

IDE 1

IDE 2

COM2

Top : Parallel Port

Bottom:

COMA

VGA port

Top : mouse

Bottom: keyboard

Top: LAN Jack

Bottom: USB

ports

USB ports

JPW1

Line-In

Line-Out

Mic

Winbond

W83627THF

AGP Slot

VIA

P4M800

(645BGA)

Codec

SATA2

SATA1

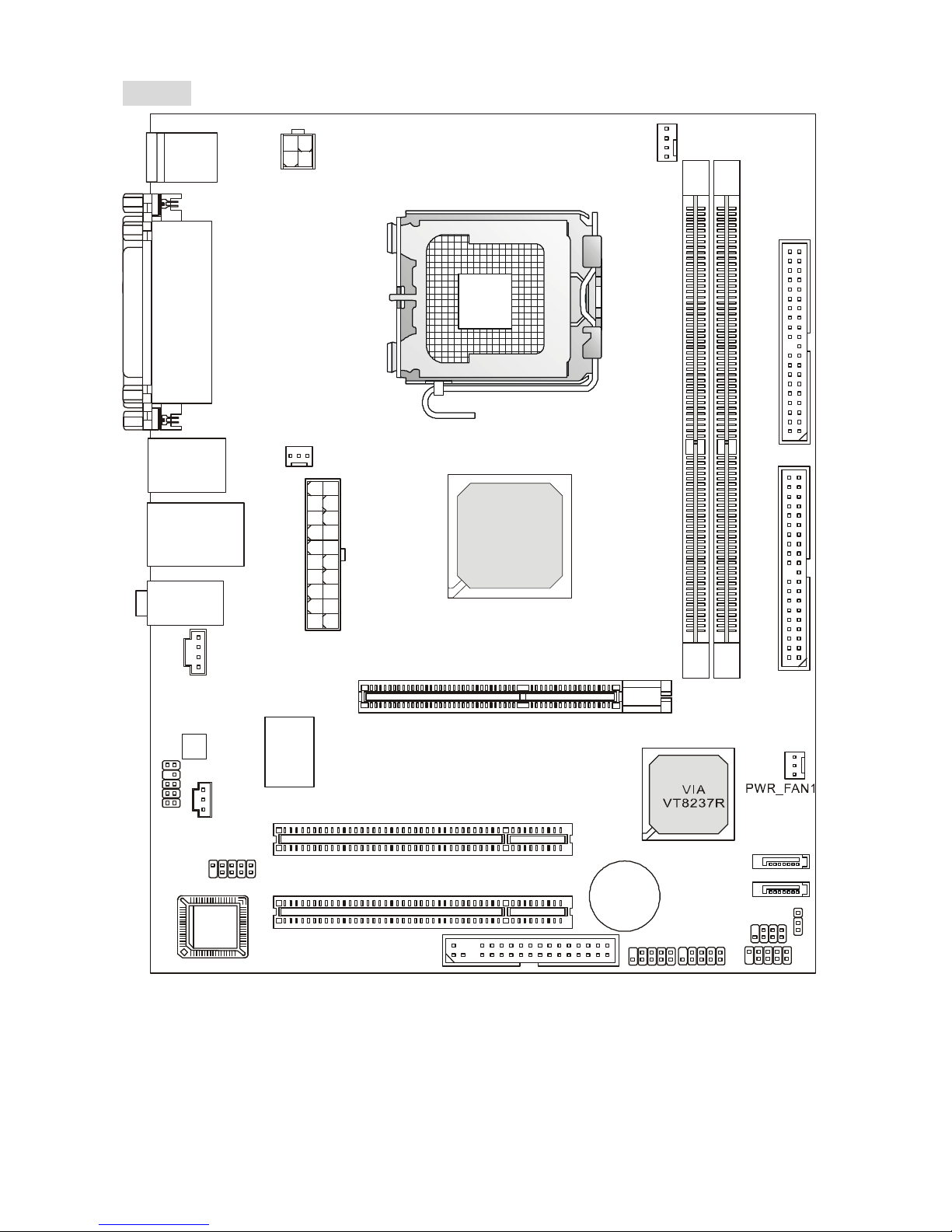

Layout

MS-7071 v1.X Micro-ATX Mainboard

Mouse

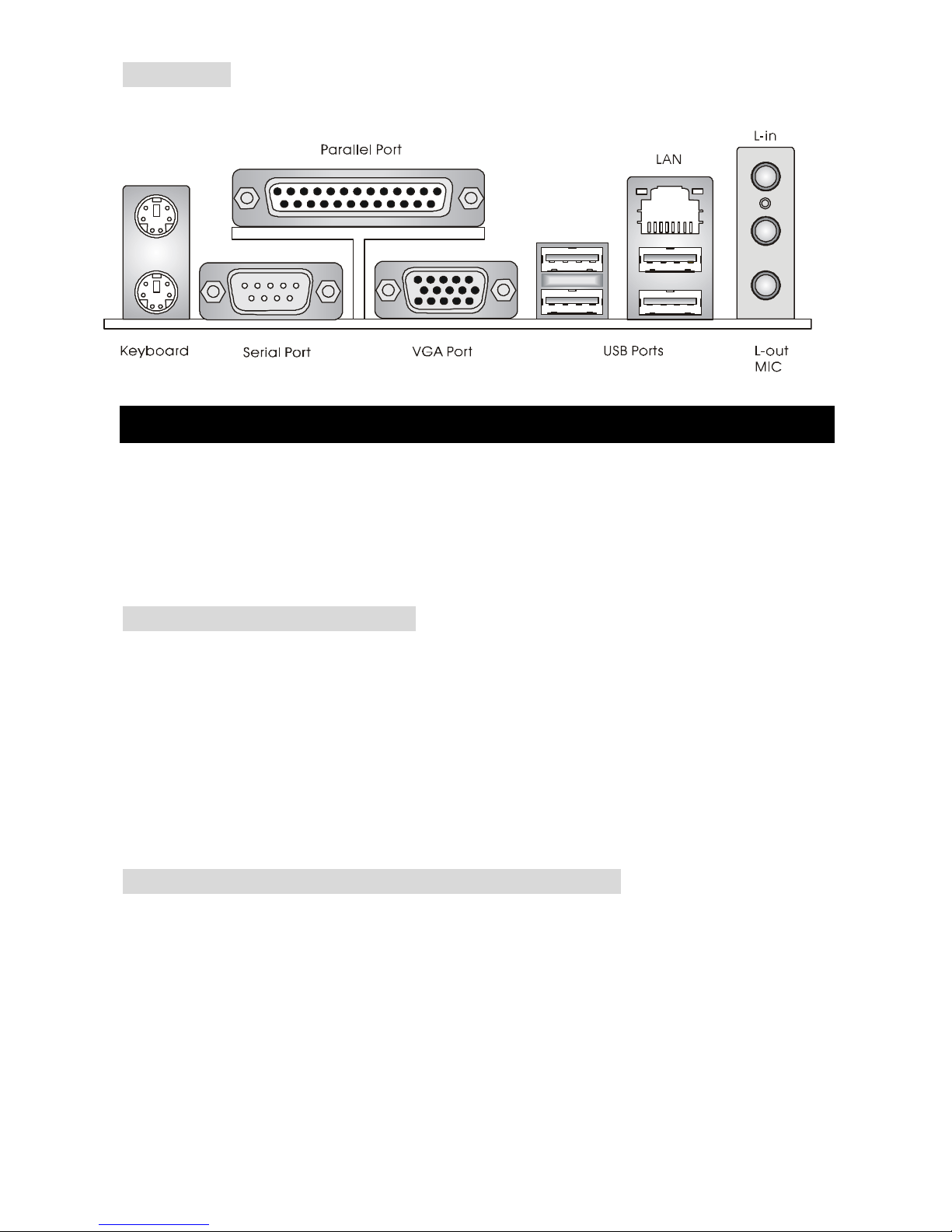

Rear Panel

The back panel provides the following connectors:

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as

how to setup the jumpers on the mainboard. It also provides the instructions on connecting the

peripheral devices, such as the mouse, keyboard, etc. While doing the installation, be careful in

holding the components and follow the installation procedures.

Central Processing Unit: CPU

The mainboard supports Intel Pentium 4 Prescott processor in the LGA775 package. When

you are installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the

top to prevent overheating. If you do not find the heat sink and cooling fan, contact your dealer to

purchase and install them before turning on the computer. (For the latest information about CPU,

please visit our Web site at

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php

Example of CPU Core Speed Derivation Procedure

If CPU Clock =200MHz

Core/Bus ratio =14

then CPU core speed =Host Clock x Core/Bus ratio

=200MHz x 14

=2.8GHz

MSI Reminds You...

Overheating

Overheating will seriously damage the CPU and system, always make sure the cooling fan can

work properly to protect the CPU from overheating.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s

power cord from grounded outlet first to ensure the safety of CPU.

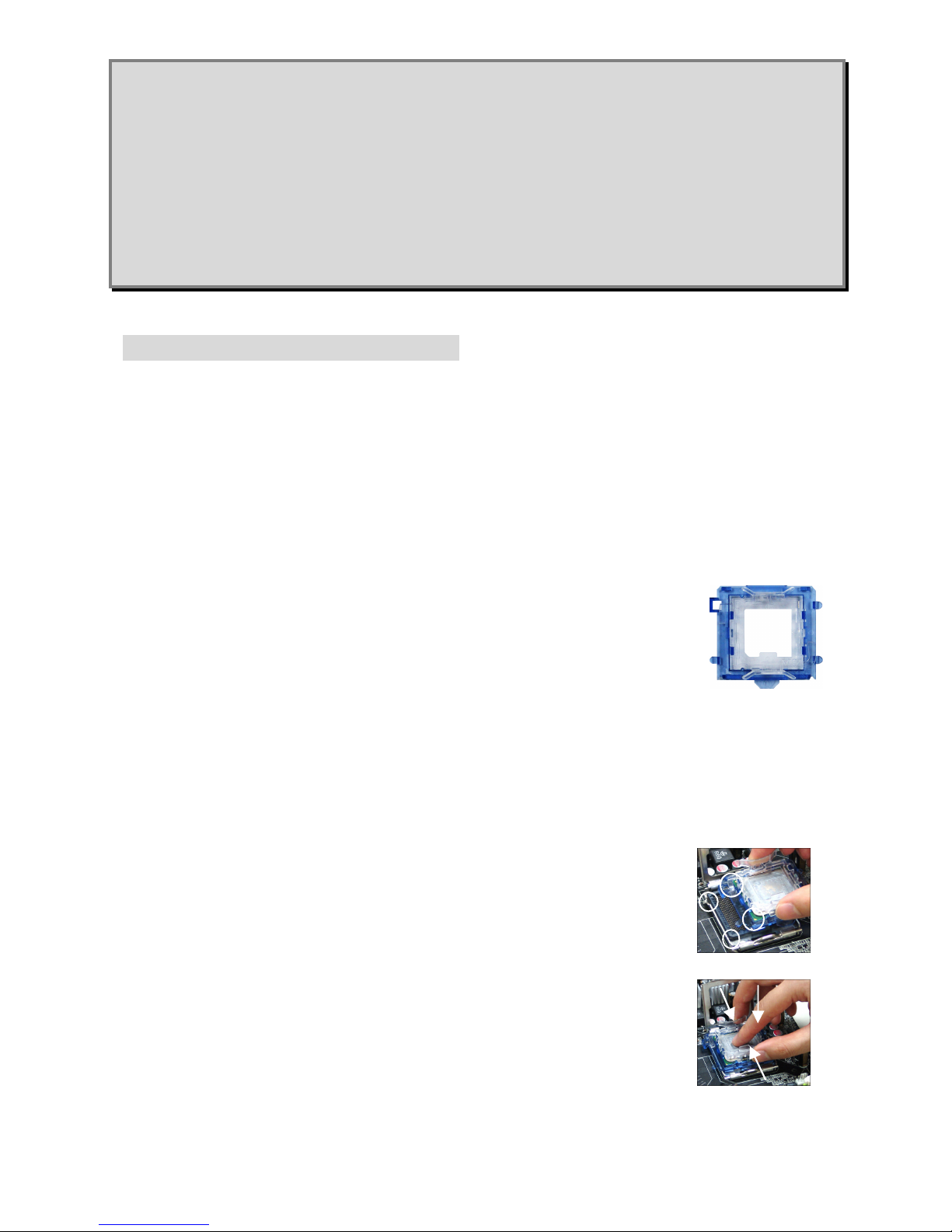

LGA775 CPU & Cooler Installation (The CPU Clip is optional)

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent

overheating. If you do not have the cooler, contact your dealer to purchase and install them

before turning on the computer. Meanwhile, do not forget to apply some silicon heat transfer

compound on CPU before installing the cooler for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the

damage to your CPU & mainboard.

1. The CPU has a land side cover on the bottom to protect the CPU contact from damage.

Rotate it to make the pin 1 indicator (yellow triangle) in the left-bottom

corner. The availability of it depends on the CPU packing.

2. Take out the accompanying CPU Clip (shown in the right) and rotate it

for the same direction as the CPU (Pin 1 indicator is in the left-bottom

corner).

3. Use 2 hands to remove the land side cover (if any). Please note not to touch the pins.

4. Align the two pin 1 indicators (the triangles on the CPU & the CPU Clip), and use the CPU

Clip to clip the CPU up, pressing the clips on both sides to the center, as the arrows

shown.

5. The CPU has a plastic cap on it to protect the contact from damage. Before you have

installed the CPU, always cover it to protect the socket pin.

6. Remove the cap from lever hinge side. The pins of socket reveal.

7. Lift the load lever up and open the load plate.

8. Correctly align the triangle of CPU Clip with the CPU chamfer, and

the square on the CPU Clip to the hook of the socket.

9. Use your thumb and the middle fingers to push the clips to release

the CPU, then press down the CPU with your index finger to allow

the whole module to be installed onto the CPU socket.

10. The CPU is installed well on the CPU socket.

11. Visually inspect if the CPU is seated well into the socket, then

remove the CPU Clip with 2 fingers. Then cover the load plate onto

the package.

12. Press down the load lever lightly onto the load plate, and then secure the lever with the

hook under retention tab.

13. Align the holes on the mainboard with the cooler. Push down the cooler until its four clips

get wedged into the holes of the mainboard.

14. Press the four hooks down to fasten the cooler. Then rotate the locking switch (refer to the

correct direction marked on it) to lock the hooks.

15. Turn over the mainboard to confirm that the clip-ends are correctly

inserted.

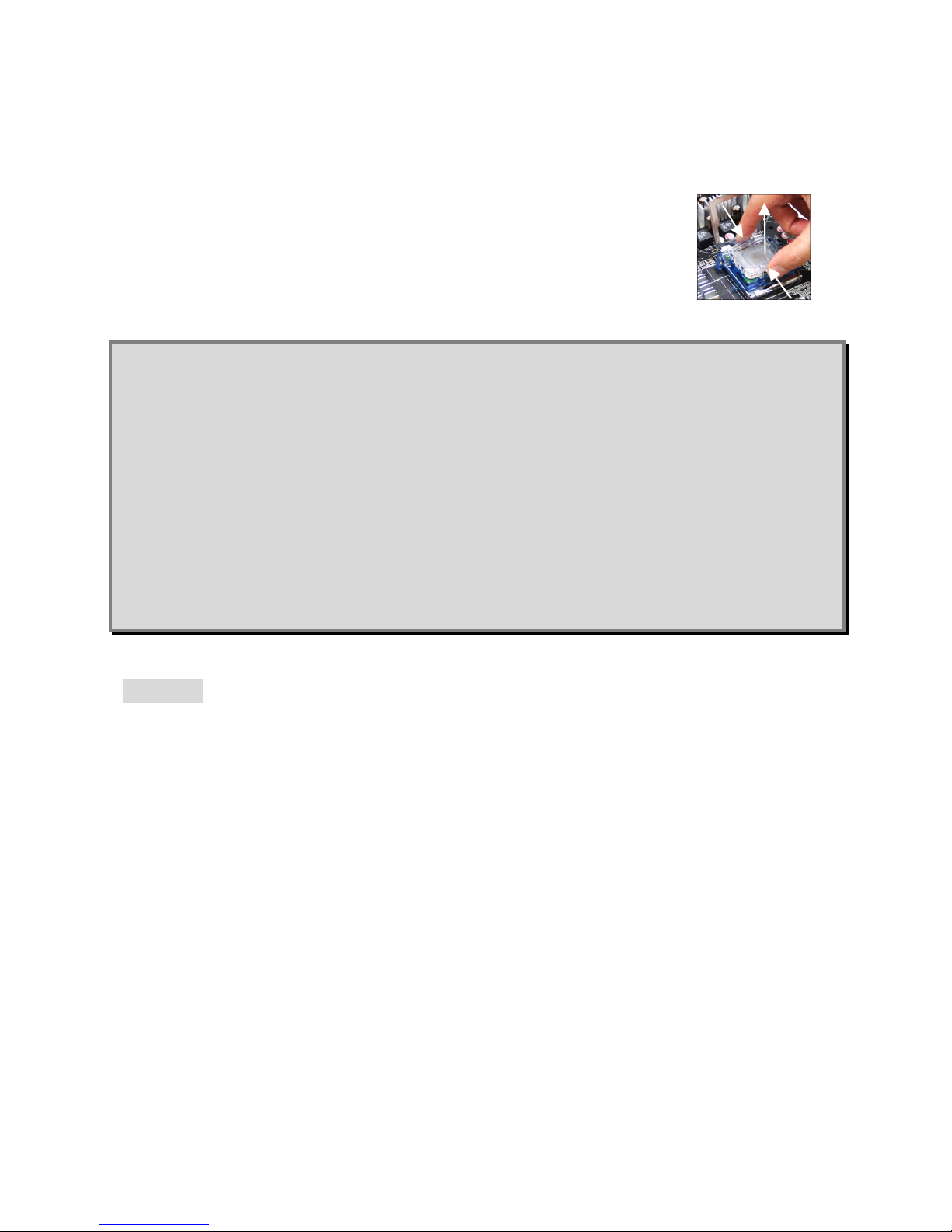

Note: If you want to uninstall the CPU, align the 4 points (see Point 8 for

details) again and push the clip to lift up the CPU.

MSI Reminds You...

1. Confirm if your CPU cooler is firmly installed before turning on your system.

2. Check the information in PC Health Status of H/W Monitor in BIOS for the CPU

temperature.

3. Do not touch the CPU socket pins to avoid damage.

4. Whenever CPU is not installed, always protect your CPU socket pin with the plastic cap

covered to avoid damage.

5. Please note that the mating / unmating durability of the CPU is 20 cycles. Therefore we

suggest you do not frequently plug and unplug the CPU.

Memory

The mainboard provides 2slots for 184-pin DDR SDRAM DIMM (Double In-Line Memory Module)

modules and supports the memory size up to 2GB. Install at least one DIMM module on the

slots. Each DIMM slot supports up to a maximum size of 1GB. You can install either single-or

double-sided modules to meet your own needs.

Please refer to http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php

for compatible DDR modules.

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the

right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the

golden finger on the memory module is deeply inserted in the socket.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali MSI Scheda madre

MSI

MSI K8N SLI-F Manuale utente

MSI

MSI MS-7516 Manuale utente

MSI

MSI Z87-G43 GAMING Manuale utente

MSI

MSI H67MA-E35 B3 series Manuale utente

MSI

MSI A320M PRO-E Manuale utente

MSI

MSI MPG Z790 CARBON WIFI Manuale utente

MSI

MSI PH61A-P35 (B3) Manuale utente

MSI

MSI B350M PRO-VDH Manuale utente

MSI

MSI MAG B660 TOMAHAWK WIFI DDR4 Manuale utente

MSI

MSI Z77 MPower series Manuale utente

MSI

MSI 870S-G46 series Manuale utente

MSI

MSI z170a GAMING M9 ACK Manuale utente

MSI

MSI MS-6340 Manuale utente

MSI

MSI G52-MA00353 Manuale utente

MSI

MSI X299-A PRO Manuale utente

MSI

MSI PRO B660M-A WIFI DDR4 Manuale utente

MSI

MSI PRESTIGE X570 CREATION Manuale utente

MSI

MSI MEG Z690 ACE Manuale utente

MSI

MSI E7505 Master-LS2 Manuale utente

MSI

MSI X99A GAMING 7 Manuale utente

MSI

MSI K9N Neo V3 Series Manuale utente

MSI

MSI MPG B550I GAMING EDGE WIFI Manuale utente

MSI

MSI 865PE Neo2-P Platinum Edition Manuale utente

MSI

MSI 946GZ Neo Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
