MSI MS-S3361 Manuale utente

D3051

MS-S3361

Server Motherboard

User Guide

2Contents

Revision

V1.1, 2023/07

Contents

Regulatory Notices....................................................................................................... 4

Safety Information ......................................................................................................... 6

Specifications................................................................................................................ 7

Overview of Components ............................................................................................. 9

Rear I/O Panel............................................................................................................. 10

UID LED Button..................................................................................................... 10

COM Port............................................................................................................... 10

VGA Port................................................................................................................ 10

USB 3.2 Gen 1 Port (USB 3.2 Gen 1/ USB 2.0)...................................................... 10

GbE RJ45 Port (for mgmt.) ................................................................................... 11

GbE RJ45 Port....................................................................................................... 11

10 GbE RJ45 Port.................................................................................................. 11

CPU Socket ................................................................................................................. 13

Introduction to the AM5 CPU......................................................................... 13

CPU & Heatsink Installation................................................................................. 14

Memory ....................................................................................................................... 15

DIMMA1~2, DIMMB1~2: DDR5 DIMM Slots................................................... 15

Recommended Memory Population.............................................................. 15

Installing Memory Modules.................................................................................. 16

Storage........................................................................................................................ 17

SATA3_1, SATA1~4: SATA 3.0 6Gb/s Ports................................................... 17

M2_1~2: M.2 Slots (M Key, PCIe 4.0, 22110/ 2280) ....................................... 18

Installing M.2 SSD ......................................................................................... 18

Expansion Slots .......................................................................................................... 19

PCIE_1~2: PCIe Expansion Slots .................................................................. 19

Contents

Connectors.................................................................................................................. 20

Power Connectors ................................................................................................ 20

SATAPWR1: SATA Power Connector............................................................ 20

JPWR1: 12V Power Connector ...................................................................... 20

JPWR2: Main Power Connector .................................................................... 21

JSDOMPWR1: SATA DOM Power Connector................................................. 21

Cooling Connectors .............................................................................................. 22

FAN1~8, PUMP1: Fan Power Connectors..................................................... 22

Other Connectors ................................................................................................. 23

JFP1: Front Panel Connector........................................................................ 23

JTPM1: SPI TPM Module Box Header ........................................................... 24

JGPIO1: GPIO Header .................................................................................... 25

JPMBUS1: PMBUS Box Header .................................................................... 25

JCHASSIS: Chassis Intrusion Header ........................................................... 26

JIPMB1: IPMB Box Header........................................................................... 26

JUSB1: USB 3.2 Port Box Header ................................................................. 27

JUSB2: USB 2.0 Type-A Connector ............................................................... 27

FP_I2C_1, RBP_I2C_1~2: I2C Box Headers ................................................. 28

JCOM1: COM Port Box Header...................................................................... 28

Jumpers ...................................................................................................................... 29

Onboard LEDs............................................................................................................. 30

BMC_LED1: BMC Heartbeat LED.................................................................. 30

LED_H1, LED_L1: Port 80 Debug LEDs ........................................................ 30

4Regulatory Notices

Regulatory Notices

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2012/19/EU, products of “electrical and

electronic equipment” cannot be discarded as municipal waste anymore

and manufacturers of covered electronic equipment will be obligated to

take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH

Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at:

https://csr.msi.com/global/index

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in

compliance with the essential safety requirements and other relevant

provisions set out in the European Directive.

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case

the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply

with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

∙This device may not cause harmful interference, and

∙This device must accept any interference received, including interference that may

cause undesired operation.

Regulatory Notices

Battery Information

Please take special precautions if this product comes with a battery.

∙Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer.

∙Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery, which can result in an explosion.

∙Avoid leaving a battery in an extremely high temperature or extremely low air

pressure environment that can result in an explosion or the leakage of flammable

liquid or gas.

∙Do not ingest battery. If the coin/button cell battery is swallowed, it can cause

severe internal burns and can lead to death. Keep new and used batteries away

from children.

European Union:

Batteries, battery packs, and accumulators should not be disposed of as

unsorted household waste. Please use the public collection system to

return, recycle, or treat them in compliance with the local regulations.

BSMI:

廢電池請回收

For better environmental protection, waste batteries should be collected

separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names

mentioned may be trademarks of their respective owners. No warranty as to accuracy

or completeness is expressed or implied. MSI reserves the right to make changes to

this document without prior notice.

Technical Support

If a problem arises with your product and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor. Alternatively,

please visit https://eps.msi.com/support for further guidance.

6Safety Information

Safety Information

∙Always read the safety instructions carefully.

∙Keep this User’s Manual for future reference.

∙Keep this equipment away from humidity.

∙Lay this equipment on a reliable flat surface before setting it up.

∙The openings on the enclosure are for air convection hence protects the equipment

from overheating. Do not cover the openings.

∙Make sure the voltage of the power source and adjust properly before connecting

the equipment to the power inlet.

∙Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

∙Always unplug the power cord before inserting any add-on card or module.

∙All cautions and warnings on the equipment should be noted.

∙Never pour any liquid into the opening that could damage or cause electrical shock.

∙If any of the following situations arises, get the equipment checked by service

personnel:

∙The power cord or plug is damaged.

∙Liquid has penetrated into the equipment.

∙The equipment has been exposed to moisture.

∙The equipment does not work well or you can not get it work according to User’s

Manual.

∙The equipment has dropped and damaged.

∙The equipment has obvious sign of breakage.

∙Do not leave this equipment in an environment unconditioned, storage

temperature above 60°C (140°F), it may damage the equipment.

Specifications

Model MS-S3361

Form factor Micro-ATX

Dimensions 243.84mm (9.6”) x 243.84mm (9.6”)

Processor ∙1 x AMD® Ryzen™ 7000 series Processors, TDP 170W

-Processor socket AM5

Memory ∙4 x DDR5 memory slots, supporting up to 128GB

-Supports UDIMM 5200MT/s (2DPC), ECC/ non-ECC

Networking ∙2 x 1GbE RJ45 ports

-Intel® Ethernet controller I210-AT

-JLANCONN1 (L) support shared NIC*

∙2 x 10GbE RJ45 ports

-Intel® Ethernet controller X710-AT2

-JLAN1 support shared NIC*

* Only one NIC LAN port can be enabled at a time, either JLAN1 or

JLANCONN1 (Lower).

Server

Management

∙Aspeed AST2600 IPMI 2.0 with iKVM support

∙1 x GbE RJ45 port for Mgmt. (Realtek® RTL8211FD-CG-HF)

Storage ∙6 x SATA 3.0 ports (w/ 1 x VCC)

∙2 x M.2 M-Key (PCIe 4.0 x4, 22110/ 2280)

-M2_1*: Choose either M2_1 or PCIE_2 for the desired function.

-M2_2: Supports PCIe 4.0 x4

*The M2_1 and PCIE_2 slots cannot operate simultaneously. You can use

the JSEL_M1 jumper to select which one to enable.

Internal I/O ∙1 x Front panel connector

∙1 x Chassis intrusion header

∙1 x USB 2.0 Type-A connector

∙1 x USB 3.2 port box connector

∙1 x SPI TPM module box header

∙1 x GPIO connector

∙3 x I2C box headers

∙1 x IPMB box header

∙1x PMbus box header

∙1 x COM port box header

8Specifications

Model MS-S3361

Rear I/O ∙4 x USB 3.2 Gen 1 Type-A ports (USB 3.2 Gen 1/ USB 2.0)

∙2 x 1GbE RJ45 ports

∙2 x 10 GbE RJ45 ports

∙1 x GbE RJ45 ports (Mgmt.)

∙1 x COM port

∙1 x VGA port

∙1 x UID LED button

Expansion Slot ∙1 x PCIe 5.0 x 16 slot (Gen 5 x 16 signal from CPU) (PCIE_1)

∙1 x PCIe 4.0 x 8 slot (Gen 4 x 4 signal from CPU) (PCIE_2*)

*The PCIE_2 and M2_1 slots cannot operate simultaneously. You can use

the JSEL_M1 jumper to select which one to enable.

Security 1 x TPM header

Cooling 9 x 4-pin fan headers (1 x for liquid cooling, PUMP1)

Power Supply ∙1 x 24-pin ATX power connector

∙1x 8-pin 12V power connector

∙1 x 4-pin SATA power connector

∙1 x 2-pin SATA DOM power connector

Environmental ∙Operating Temperature: 0°C to 45°C

∙Operating Humidity: 0% to 85% (non-condensing)

Certifications CE, FCC (Class A)

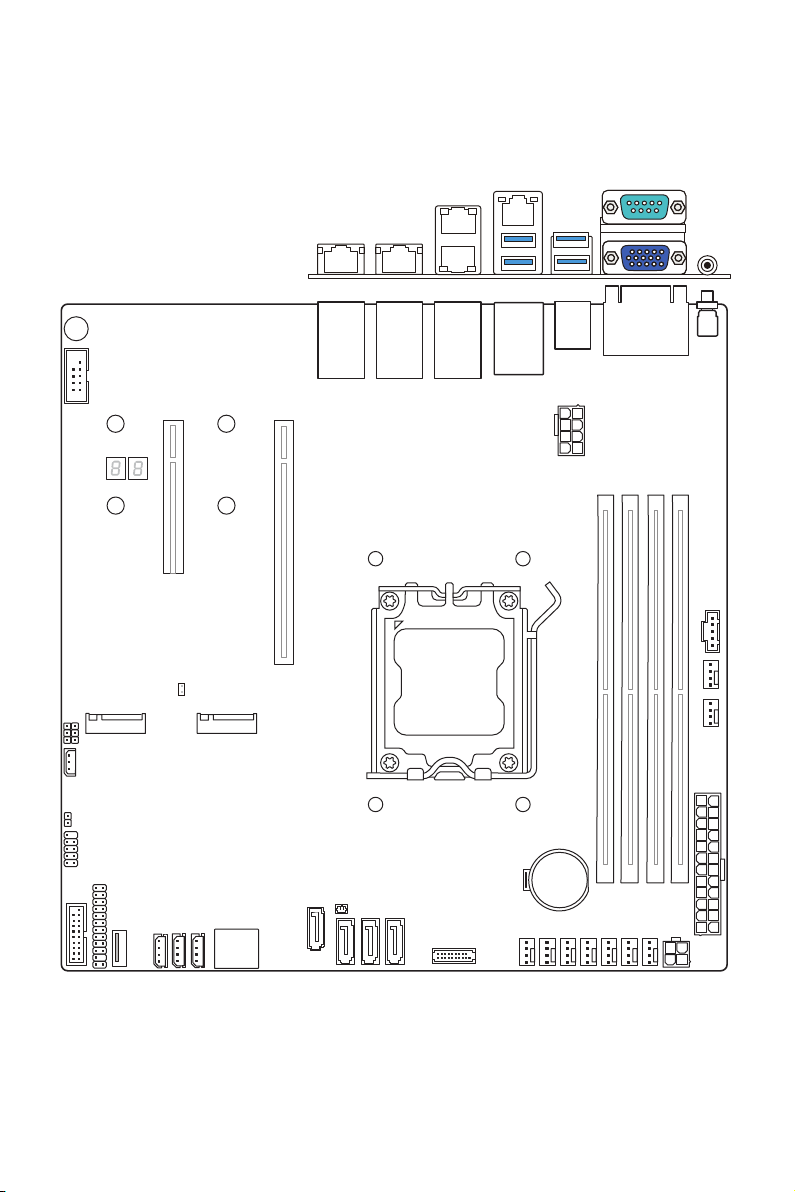

Overview of Components

JCHASSIS JIPMB1

JSEL_M1

JSEL_BMC1

M2_2

PCIE_1

PCIE_2

JCOM1

JLAN1

JLAN2

BZ1

M2_1

BAT1

JGPIO1

JFP1

JUSB1

JUSB2

RBP_I2C_2

RBP_I2C_1

SATA1

SATA3_1

SATA4

JTPM1

FAN1

FAN2

FAN3

FAN4

FAN5

FAN6

FAN7

SATAPWR1

JPWR2

JPWR1

DIMMA1

DIMMA2

DIMMB1

DIMMB2

SATA3

JSDOMPWR1

SATA2

FP_I2C_1

FAN8 PUMP1

JPMBUS1 ID_BTN1

JVGA1 (L)

COM1 (U)

JLANCONN1(U)

JLANCONN1(L)

MLAN_USB1

REAR_USB1

LED_L1

BMC_LED1

LED_H1

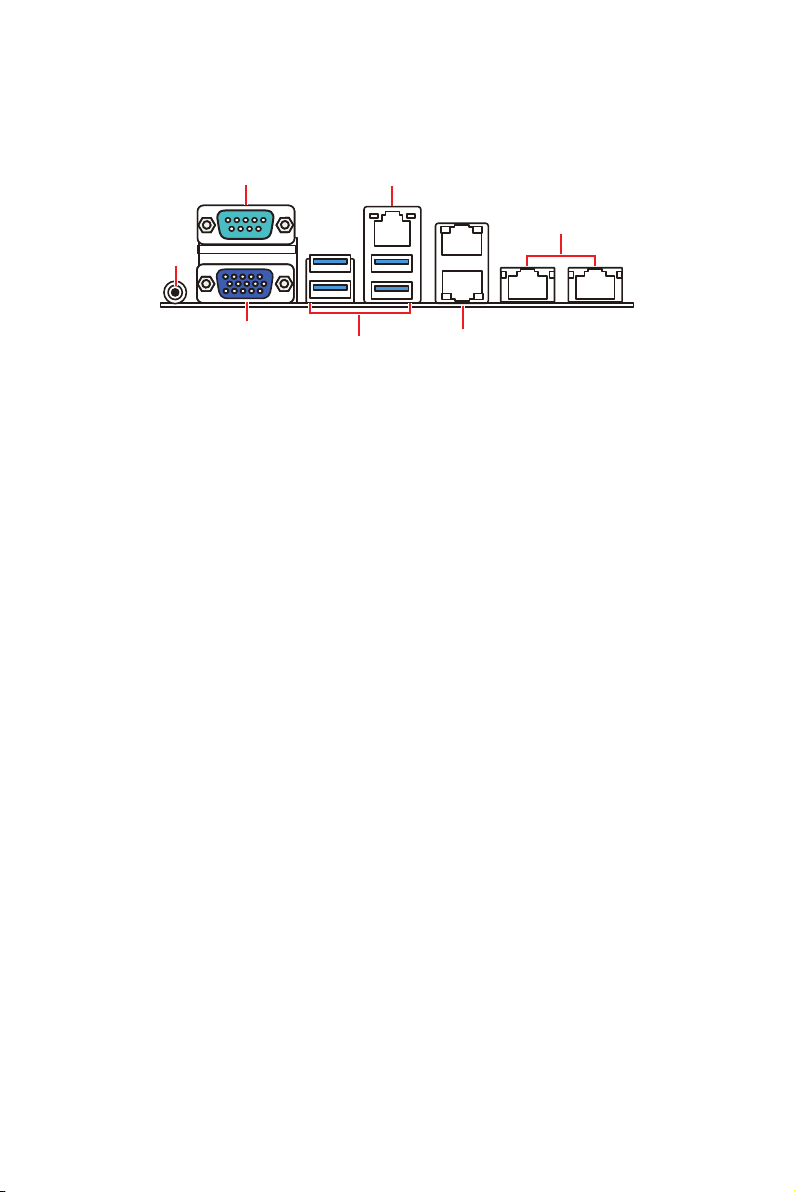

10 Rear I/O Panel

Rear I/O Panel

UID LED Button

GbE RJ45 Port

(for mgmt.)

VGA Port

COM Port

GbE RJ45 Port

10 GbE RJ45 Port

USB 3.2 Gen 1 Port

(USB 3.2 Gen 1/ 2.0)

UID LED Button

The UID (Unit Identification) button help users identify and locate a system, especially

in high-density rack environments.

COM Port

A COM port, also called a serial port or DB9 connector, is a communication interface

for transferring data between a computer and external devices such as barcode

scanners, printers, and credit card machines. It’s commonly used for initial system

configuration and diagnostics on server boards and for connecting legacy devices

that lack modern interfaces. Users can connect a specially configured serial cable to

establish a serial connection.

VGA Port

The DB15-pin female connector is provided for monitors.

USB 3.2 Gen 1 Port (USB 3.2 Gen 1/ USB 2.0)

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboards,

mouse, or other USB-compatible devices. USB 3.2 Gen 1 supports data transfer

rates up to 5 Gbit/s (SuperSpeed), while USB 2.0 supports data transfer rates up to

480Mbit/s (Hi-Speed).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MSI Scheda madre

MSI

MSI A320M PRO-M2 Manuale utente

MSI

MSI MS-7367 Manuale utente

MSI

MSI X79A-GD65 (8D) Series Manuale utente

MSI

MSI 661FM3-V Series Manuale utente

MSI

MSI B350M MORTAR Manuale utente

MSI

MSI B550-A PRO Manuale utente

MSI

MSI MAG Z690 TOMAHAWK Manuale utente

MSI

MSI MEG Z590 UNIFY-X Manuale utente

MSI

MSI Z97 GAMING 5 Manuale utente

MSI

MSI Z370 GAMING PLUS Manuale utente

MSI

MSI K9N4 - Ultra-F Motherboard - ATX Manuale utente

MSI

MSI MS-6315 Manuale utente

MSI

MSI G31M3 Series Istruzioni per l’uso

MSI

MSI 7D96-003R Manuale utente

MSI

MSI IA-945GC Manuale utente

MSI

MSI MS-6178E Manuale utente

MSI

MSI K9A2 Platinum series Manuale utente

MSI

MSI 770-G45 Series Manuale utente

MSI

MSI MEG X570S UNIFY-X MAX Manuale utente

MSI

MSI H310-A PRO Manuale utente

MSI

MSI A75MA-P35 series Manuale utente

MSI

MSI B450 TOMAHAWK MAX Manuale utente

MSI

MSI MD 5000 Manuale utente

MSI

MSI X399 GAMING PRO CARBON AC Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
