TM652WB OWNERS MANUAL

2

Thank you for purchasing a MTX Marine product. MTX recommends that you have

your wakeboard speakers professionally installed. Please visit MTX.com to locate

the nearest authorized MTX dealer.

NOTE: Speaker does not ship assembled, please be careful not to lose any parts.

TOOLS REQUIRED:

• 10mm socket

• 3⁄8" drill bit

• 1⁄4" drill bit

• Cordless drill

• Speaker wire

• 3mm Allen wrench

• 5mm Allen wrench

• Wire cutter

mtx.com/marine 3

WARNING!

Loud Music can cause permanent damage to your hearing. Please listen to your

system at moderate volume levels.

Mitek does not accept any liability for bodily harm, property damage, or any

consequential damages resulting from the design, manufacture, sale or use of

this product.

Rubber inserts are numbered 1, 2, and 3. Insert #1 is the thickest and insert #3 is

the thinnest.

*Use double sided automotive grade tape under the rubber inserts on pipe if

needed.

WARNING STATEMENT:

PIPE DIAMETER INSERT GUIDE:

Pipe Diameter (in) Bracket Insert # Enclosure Insert #

*2.375 (23⁄8)11

2.5 (21⁄2)11

2.625 (25⁄8)12

2.75 (23⁄4)22

*2.875 (27⁄8)23

333

4

INSTALLATION:

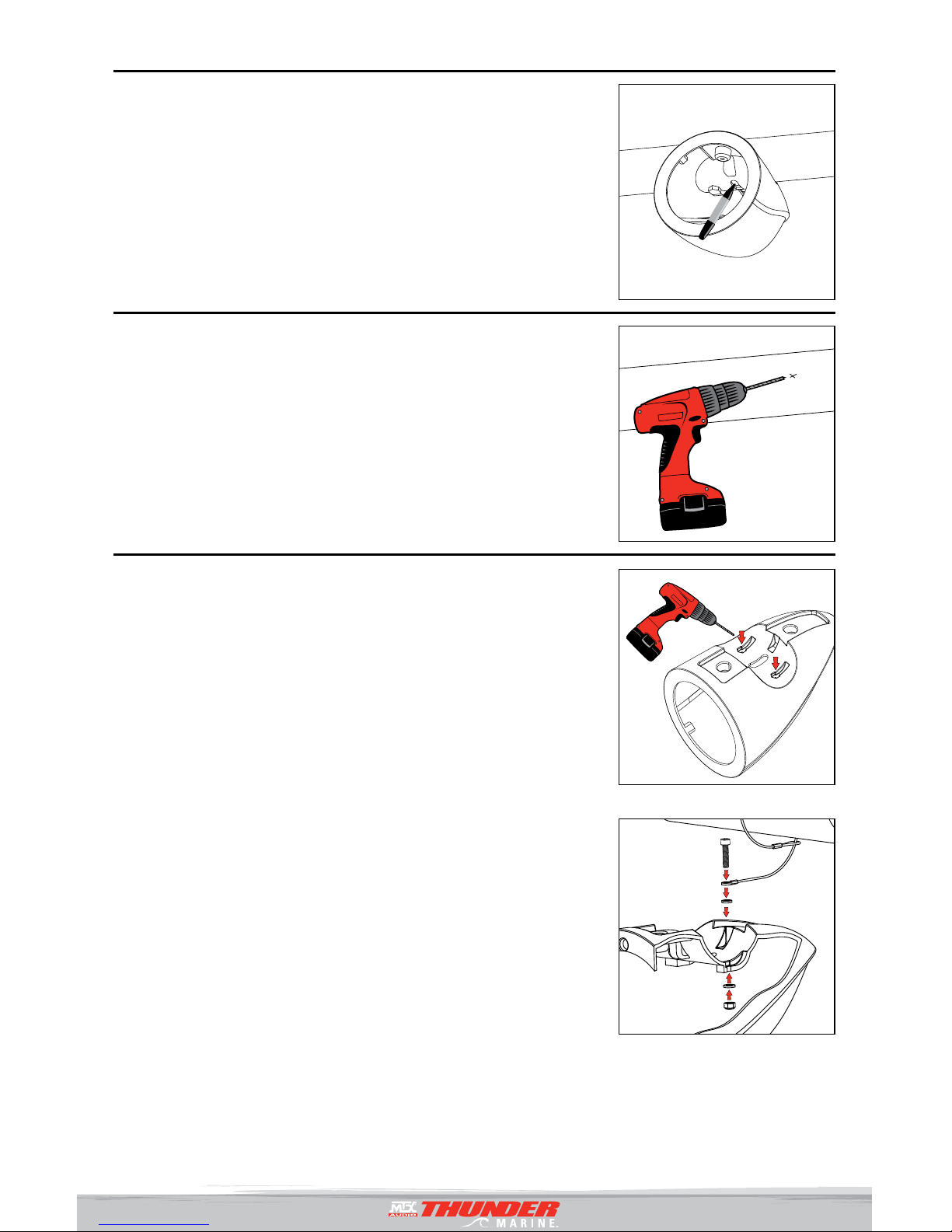

Step 1 – First determine where you would like to

place the speaker and at what angle the speaker

will be mounted. Place enclosure on bar with

desired angle and make a mark in the middle of

the wire hole on the bar. This mark will be where

the speaker wire will come thru the bar into the

enclosure.

Step 2 – Drill a 3⁄8" hole for the speaker wire on the

mark that you made. Deburr the hole to keep from

damaging the speaker wire. Treat the hole with a

paint or sealer to inhibit corrosion.

Step 3 – Connect the safety tether

Drill out safety tether hole using a 1⁄4" drill bit on

enclosure depending on which side you would like

to mount the tether. Loop safety tether around Bar.

Next place tether bolt through tether ring and

rubber washer. Then put bolt through drilled hole

on enclosure and secure with metal washer and

locknut. Let enclosure hang by tether until next step.

mtx.com/marine 5

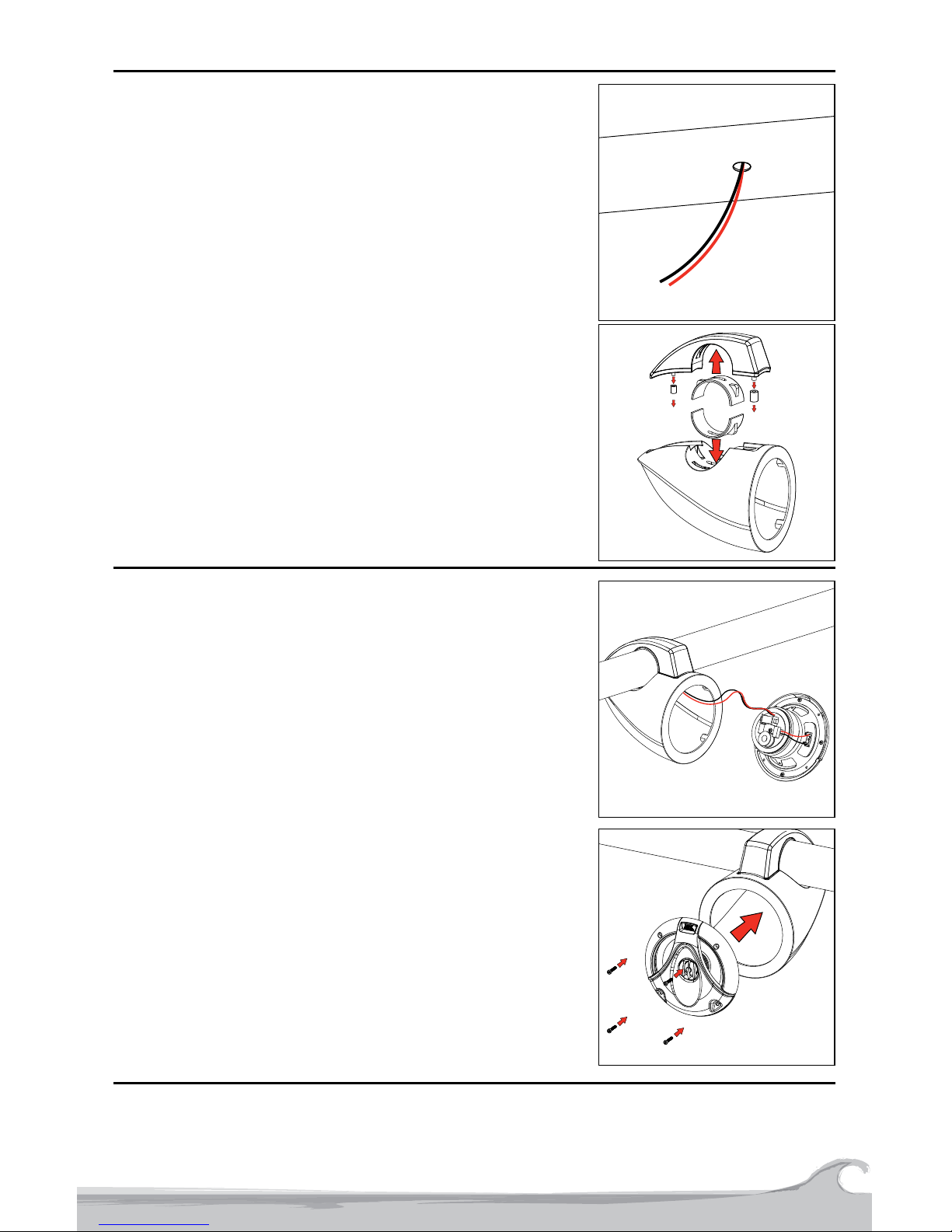

Step 4 – Run speaker wire thru the bar and leave

8" – 12" of speaker wire hanging out of the hole.

Next place rubber inserts into the enclosure and

bracket. Please select the correct insert size

according to the insert selection guide on page 3.

Place round foam gaskets on to bracket standoffs.

Place enclosure in desired location and pull wire

through wire hole. Place top bracket on top of the

bar above the enclosure. Start to thread the bracket

screws into bracket from inside the enclosure.

Tighten front and back screws evenly, make sure to

tighten until bracket holds tight and the enclosure

does not move.

Step 5 – Connect speaker wire to the input on the

speaker, making sure to keep the polarity correct.

Place woofer into the enclosure with the badge

closest to the top. Make sure to tuck the wires

into the enclosure so they do not get caught in the

opening. Screw in the 4 speaker bolts, make sure to

tighten the bolts fully.

NOTE: If bolts are removed after installation,

threadlock must be re-applied.

Step 6 – Connect speaker wire to ampliﬁer, place

boat in water, crank the THUNDER and enjoy.

6

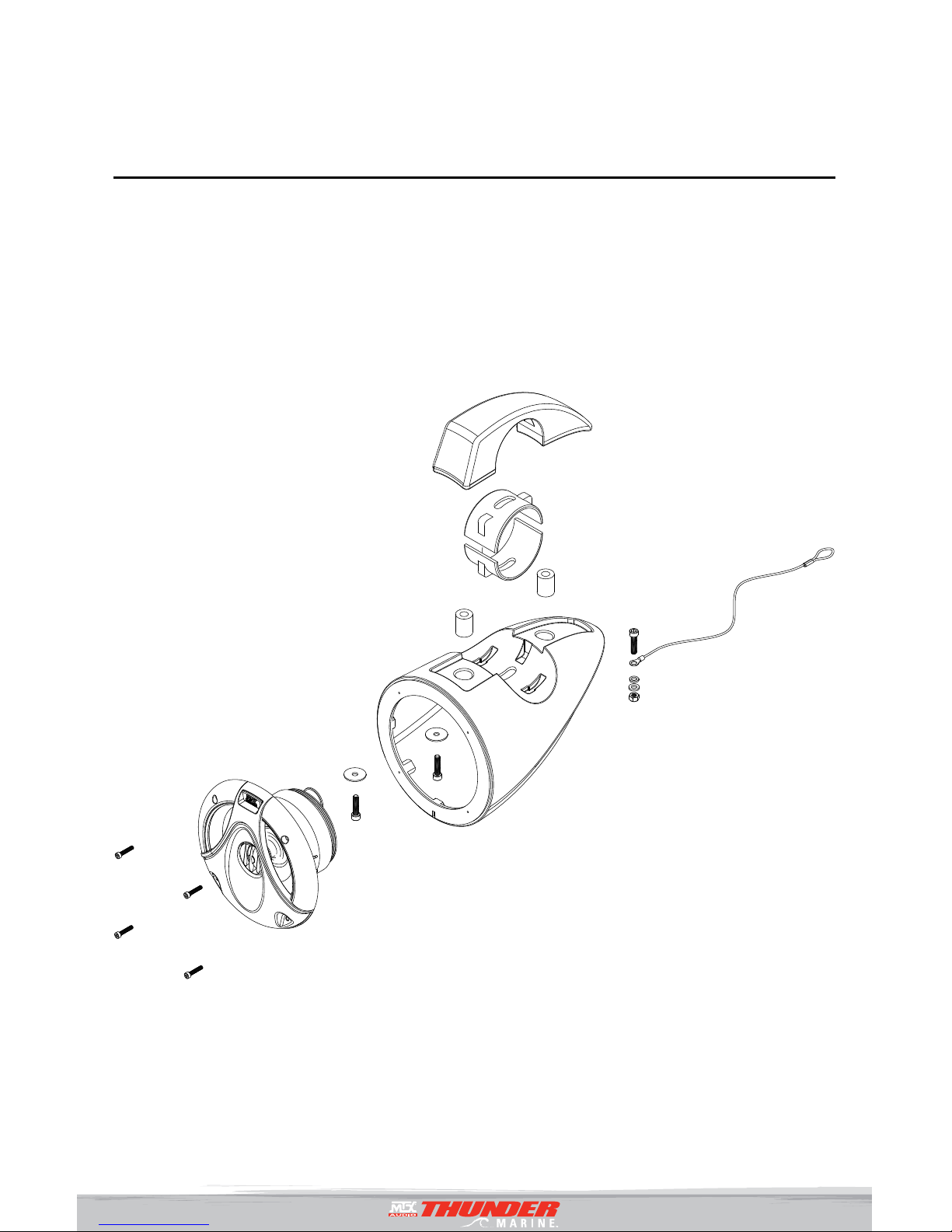

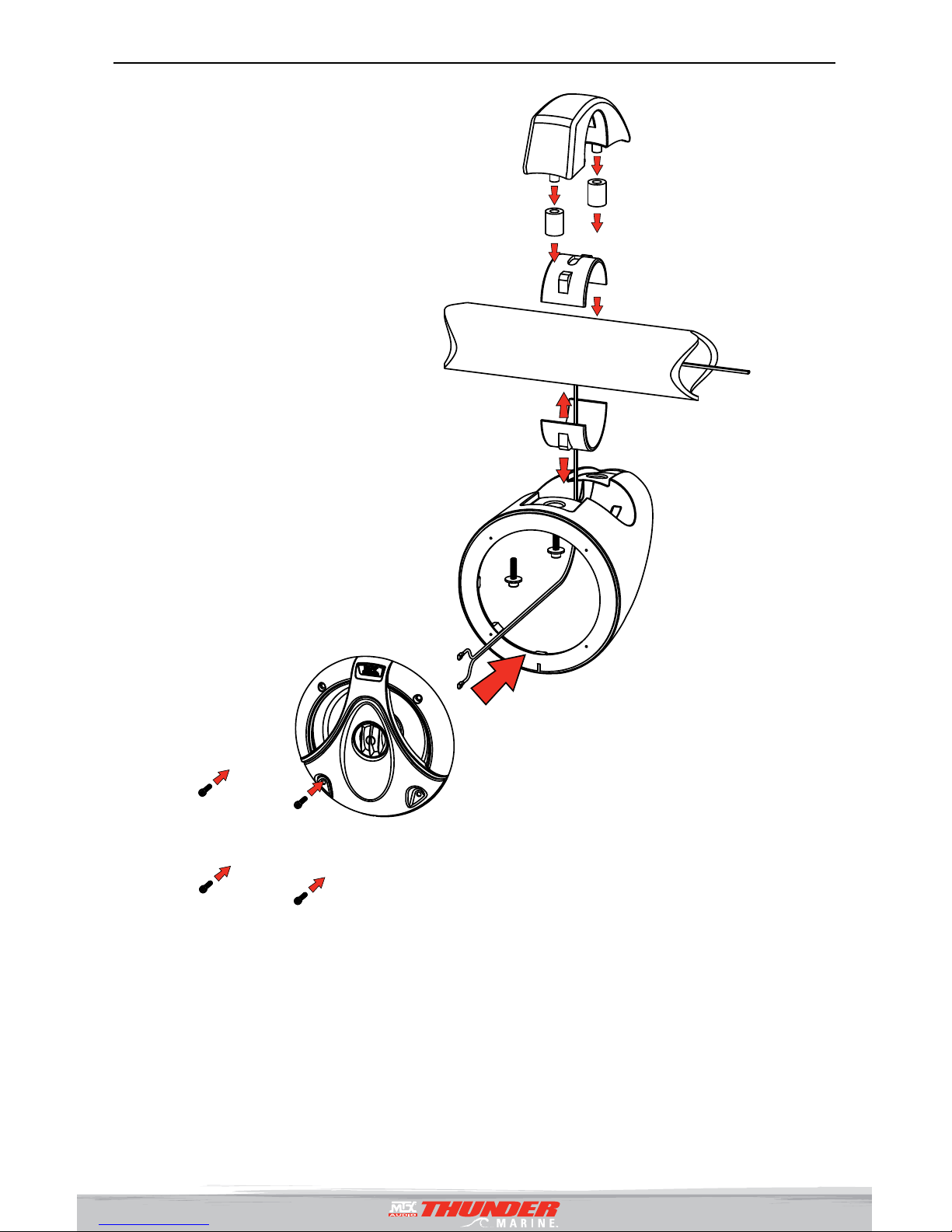

OVERALL ASSEMBLY:

mtx.com/marine 7

NOTES:

MTX WARRANTY STATEMENT:

MTX products purchased in the USA from an authorized MTX dealer are

guaranteed against defects in material and workmanship for the period of 1 year.

The warranty period begins the day the product is purchased by the end user. This

warranty is limited to the original retail purchaser of product. Product found to

be defective during that period will be repaired or replaced by MTX at no charge.

This warranty is void if it is determined that unauthorized parties have attempted

repairs or alterations of any nature. Warranty does not extend to cosmetics or

ﬁnish. Before presuming a defect is present in the product, be certain that all

related equipment and wiring is functioning properly. MTX disclaims any liability

for other incurred damages resulting from product defects. Any expenses in the

removal and reinstallation of products are not covered by this warranty. MTX’s

total liability will not exceed the purchase price of the product. If a defect is

present, your authorized MTX dealer may be able to effect repairs.

Proof of purchase is required when requesting service, so please retain your sales

receipt, and take a moment to register your product online at MTX.com. Also, a

Return Authorization number (RA) is required before shipping product back to MTX,

call 800-556-2888 or 608-328-5560, for speaker RAs.

8

© 2010 Mitek Corporation. All rights reserved. MTX and Thunder Marine are trademarks of Mitek Corporation.

Designed and Engineered in the U.S.A.

Due to continual product development, all speciﬁcations are subject to change without notice.

MTX Audio, 1 Mitek Plaza, Winslow, IL 61089 U.S.A.

MTX003848 RevA 7/10 21A9546 AW0013756
