Cabling Guide
MultiVOIP SIP Gateway
MultiVOIP®FX Models MVP210-FX, MVP410-FX & MVP810-FX
MultiVOIP®SS Models MVP210-SS, MVP410-SS & MVP810-SS
MultiVOIP®Analog Models MVP210, MVP410 & MVP810
82100277L Rev. C
Copyright © 2007 Multi-Tech Systems, Inc.
This publication may not be reproduced, in whole or in part, without prior expressed
written permission from Multi-Tech Systems, Inc. All rights reserved.
Multi-Tech Systems, Inc. makes no representations or warranty with respect to the
contents hereof and specifically disclaims any implied warranty of merchantability or
fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves
the right to revise this publication and to make changes from time to time in the
content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or
organization of such revisions or changes. Check Multi-Tech’s web site for current
versions of our product documentation.
Revision Date Description
A 04/16/07 Initial release.
B 06/25/07 Add MultiVOIP-SS models
C 11/26/07 Support updates. Add analog series
Trademarks
Multi-Tech, the Multi-Tech logo, and MultiVOIP are registered trademarks of Multi-
Tech Systems, Inc. All other brand and product names mentioned in this
publication are trademarks or registered trademarks of their respective companies.
Patents
This Product is covered by one or more of the following U.S. Patent Numbers:
6151333, 5757801, 5682386, 5.301.274; 5.309.562; 5.355.365; 5.355.653;
5.452.289; 5.453.986. Other Patents Pending.
GENERAL
CONTACT TECHNICAL SUPPORT
Country By E-mail By Phone
Europe,
Middle East,
Africa support@multitech.co.uk (+44) 118 959 7774
Multi-Tech
Systems, Inc.
2205 Woodale Drive
Mounds View,
Minnesota
55112, USA
(763) 785-3500
(800) 328-9717
Fax: 763-785-9874
www.multitech.com
U.S.,
Canada,
All Others support@multitech.com
(800) 972-2439;
(763) 717-5863
MultiVOIP Analog/FX/SS
Multi-Tech Systems, Inc. 3
Introduction
This guide shows you how to make the cable connections to set up your
MultiVOIPP
®Analog, FX or SS SIP Gateway unit. See your MultiVOIP User Guide
included on the MultiVOIP CD for more information.
Safety Warnings
Lithium Battery Caution
A lithium battery on the voice/fax channel board provides backup power for the
timekeeping capability. The battery has an estimated life expectancy of ten years.
When the battery starts to weaken, the date and time may be incorrect. If the battery
fails, the board must be sent back to Multi-Tech Systems for battery replacement.
Warning: There is danger of explosion if the battery is incorrectly
replaced.
Ethernet Ports Caution
Caution: The Ethernet ports and command ports are not designed to
be connected to a Public Telecommunication network.
Safety Warnings Telecom
•Use this product only with UL- and CUL-listed computers (US).
•Never install phone wiring during a lightning storm.
•Never install a phone jack in a wet location unless the jack is specifically
designed for wet locations.
•Never touch uninsulated phone wires or terminals unless the phone line has
been disconnected at the network interface.
•Use caution when installing or modifying phone lines.
•Avoid using a phone during an electrical storm; there is a risk of electrical
shock from lightning.
•Do not use a phone in the vicinity of a gas leak.
•To reduce the risk of fire, use only 26 AWG or larger telephone line cord.
•This product must be disconnected from power source and telephone
network interface when servicing.
Safety Recommendations for Rack Mounting
•Ensure proper installation of the MultiVOIP in a closed or multi-unit
enclosure by following the recommended installation as defined by the
enclosure manufacturer. Do not place the MultiVOIP directly on top of other
equipment or place other equipment directly on top of the MultiVOIP.
•If installing the MultiVOIP in a closed or multi-unit enclosure, ensure
adequate airflow within the rack so that the maximum recommended
ambient temperature is not exceeded.
Cabling Guide
4 Multi-Tech Systems, Inc.
Safety Recommendations for Rack Mounting (continued)
•Ensure that the MultiVOIP is properly connected to earth ground via a grounded power
cord. If a power strip is used, ensure that the power strip provides adequate grounding
of the attached apparatus.
•Ensure that the mains supply circuit is capable of handling the load of the MultiVOIP.
Refer to the power label on the equipment for load requirements.
•Maximum ambient temperature for the MultiVOIP is 60 degrees Celsius (140°F) at 20-
90%s non-condensing relative humidity.
•This equipment should only be installed by properly qualified service personnel.
•Only connect like circuits. In other words, connect SELV (Secondary Extra Low
Voltage) circuits to SELV circuits and TN (Telecommunications Network) circuits to TN
circuits.
•To reduce the risk of shock, all access doors should be closed during normal operation
of the equipment.
Package Contents: MVP-410/810 Models
•One 4-port or 8-port MultiVOIP Analog or MultiVOIP SS or MultiVOIP FX unit
•One power cord
•One Command Cable (DB25-to-DB9 connectors)
•Two rack mount brackets and four mounting screws
•One printed Cabling Guide
•One MultiVOIP CD containing software and user documentation.
Package Contents: MVP210 Models
•One 2-port MultiVOIP unit (MVP210 or MVP210-SS or MVP 210-FX)
•One two-part power cord
•One Command Cable (DB9-to-RJ45 connectors)
•One printed Cabling Guide
•One MultiVOIP CD containing software and user documentation.
MultiVOIP Analog/FX/SS

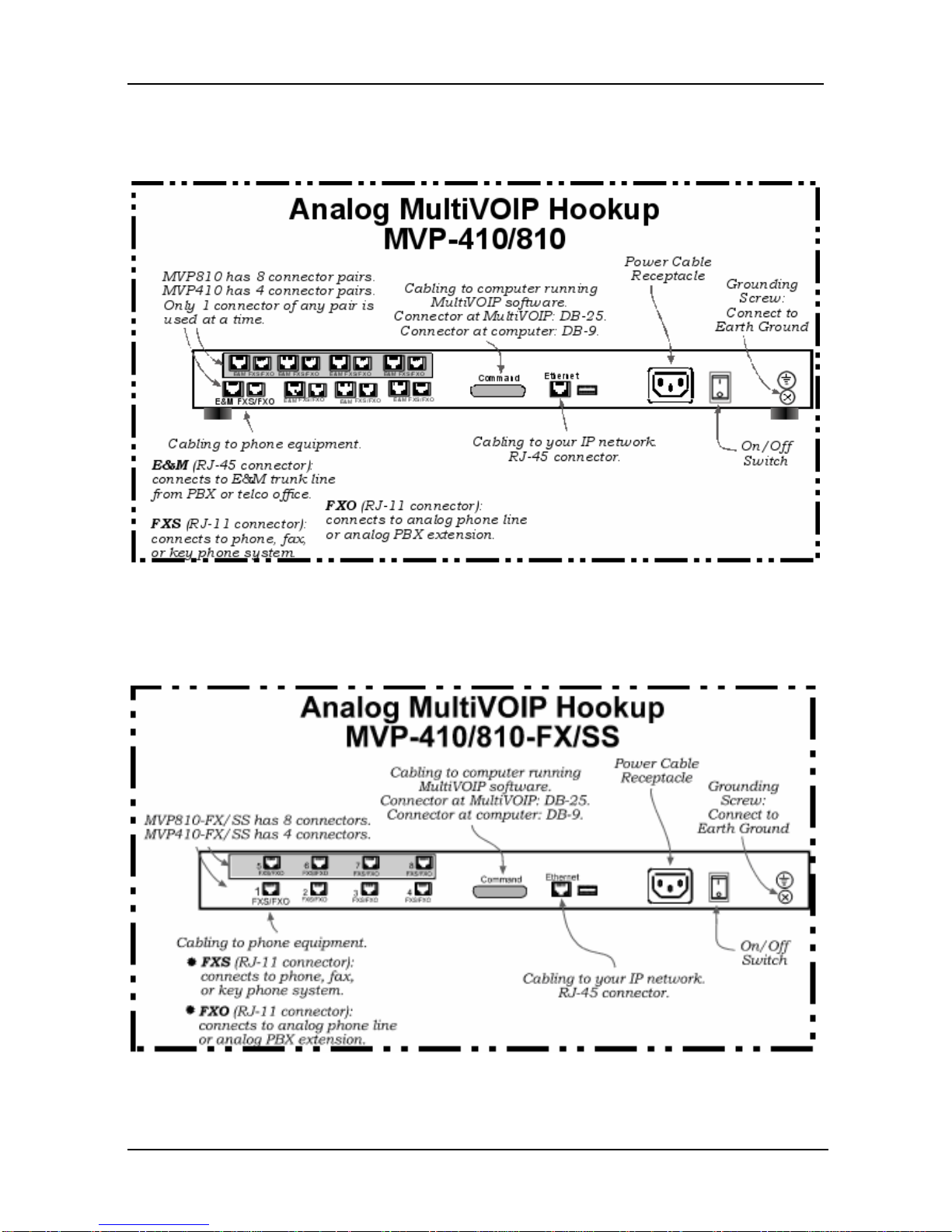

Quick Hookup for MVP-410/810 Analog
Quick Hookup for MVP-410/810 SS/FX
Multi-Tech Systems, Inc. 5
Cabling Guide
Earth Grounding for MVP-410/810 Models
Quick Hookup for MVP210 Analog
6 Multi-Tech Systems, Inc.
MultiVOIP Analog/FX/SS
Quick Hookup for MVP210-FX/SS
Multi-Tech Systems, Inc. 7
Earth Grounding for MVP210 Models
Power-Up
Turn on power to the MultiVOIP by placing the ON/OFF switch on the back
panel to the ON position. Wait for the Boot LED on the MultiVOIP to go off
before proceeding. This will take about one minute.
VOIP Configuration
When the cabling connections above have been made, go to the installation
chapter of the User Guide (on your MultiVOIP CD) for detailed instructions
about configuration.
