MultiMobile Modem Family Quick Start Guide

MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE 1

Getting Started

This Quick Start Guide will help you install and set up your MultiMobile

PC Card modem. A User Guide containing detailed configuration

information, a command reference, a troubleshooting chapter, and an

index can be found on the MT5634ZLX CD. The User Guide, which is in

Adobe Acrobat 4.0 format, can be viewed on your monitor or printed for

easy reference.

The MT5634ZLX is designed for use in the United States and Canada.

The MT5634ZLXI is designed for use world-wide.

The MT5634ZLX/FE is designed for use in the United States, Canada,

and Europe.

The MT5634ZLX/FE can connect to an enterprise LAN as well as the

Internet.

Safety Warnings

·Use this product only with UL- and CUL-listed computers.

·To reduce the risk of fire, use only 26 AWG (.41mm) or larger telephone

wiring.

·Never install telephone wiring during a lightning storm.

·Never install a telephone jack in a wet location unless the jack is

specifically designed for wet locations.

·Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

·Use caution when installing or modifying telephone lines.

·Avoid using a telephone during an electrical storm; there is a risk of

electrical shock from lightning.

·Do not use a telephone in the vicinity of a gas leak.

MultiMobile Modem Family Quick Start Guide

2 MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE

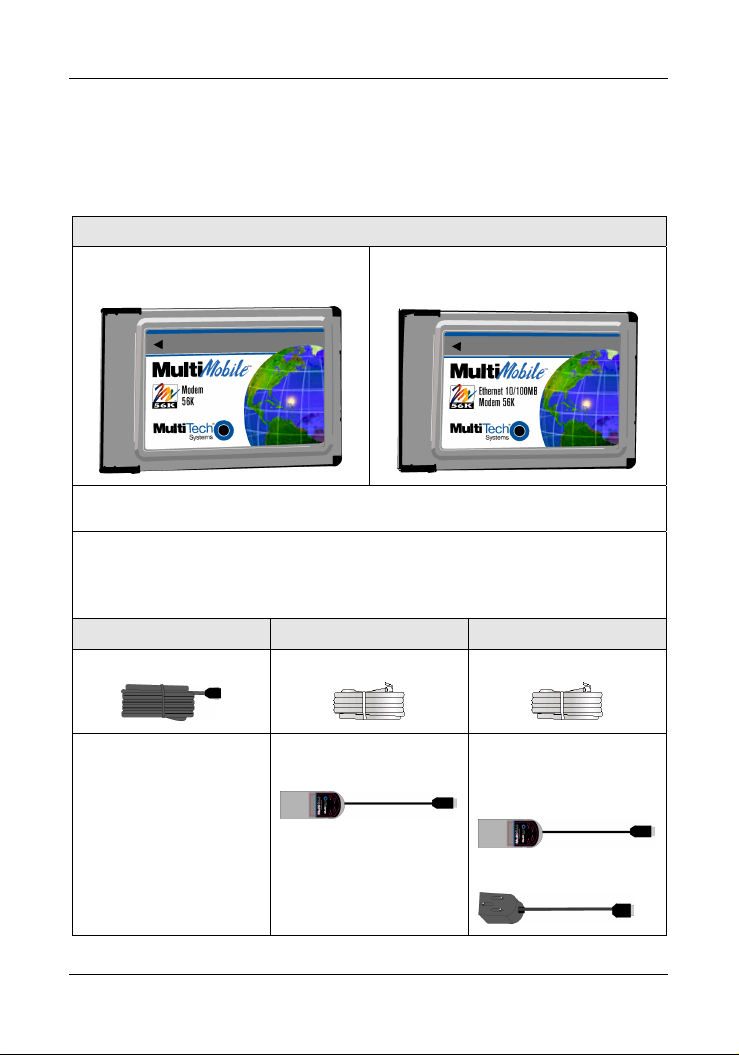

We Supply

Your modem package has several components. Please make sure you

have all parts before trying to operate your modem. The MT5634ZLX,

MT5634ZLXI, and MT5634ZLX/FE packages contain the following:

MT5634ZLX and MT5634ZLXI MT5634ZLX/FE

MT5634ZLX, MT5634ZLXI

MultiMobile PC Card modem

MT5634ZLX/FE

MultiMobile PC Card modem

This Quick Start Guide is included with each modem.

An MultiMobile Modem CD containing modem drivers, the User Guide, a

data communications software program, and Acrobat Reader is inlcuded

with each modem.

MT5634ZLX MT5634ZLXI MT5634ZLX/FE

RJ-11 adapter cable RJ-11 telephone cord RJ-11 telephone cord

One Modem-LAM (Line

Adapter Modules)

Two LAMs (Line

Adapter Modules)

·One Modem-LAM

·One Ethernet-LAM

MultiMobile Modem Family Quick Start Guide

MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE 3

Installing the MT5634ZLX Card

1. Insert the MT5634ZLX Card into the laptop’s PCMCIA slot. Be sure

that the label is facing up.

2. Plug 15-pin adapter end of the telephone cord into the MT5634ZLX

Card.

3. Plug the other end of the RJ-11 into an available telephone wall jack.

This connects you to the PSTN (Public Switched Telephone Network).

MT5634ZLX Connections

MultiMobile Modem Family Quick Start Guide

4 MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE

Installing the MT5634ZLXI Card

1. Insert the MT5634ZLXI Card into the laptop’s PCMCIA slot. Be sure

that the label is facing up.

2. Plug the Modem-LAM (Line Adapter Module) into the modem port of

the PC Card.

3. Plug one end of the RJ-11 telephone line cord into the open end of the

Modem-LAM (this is the LAM’s RJ-11 receptacle side).

4. Plug the other end of the RJ-11 into an available telephone wall jack.

This connects you to the PSTN (Public Switched Telephone Network).

5. With your PC turned on, verify the operation of the LEDs.

OH (Off-Hook) light on means that the MT5634ZLXI is dialing, is

online, or answering a call.

CD (Carrier Detect) light on means that a valid carrier signal from

another modem is detected.

RD (Receive Data) light flashes when data is being received.

TD (Transmit Data) light flashes when data is being transmitted.

MT5634ZLXI Connections

MultiMobile Modem Family Quick Start Guide

MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE 5

Installing the MT5634ZLX/FE Card

1. Insert the MT5634ZLX/FE Card into the computer’s PCMCIA slot. Be

sure that the label is facing up.

2. Plug the Modem-LAM (Line Adapter Module) into the modem port of

the PC Card.

3. Plug one end of the RJ-11 telephone line cord into the open end of the

Modem-LAM (this is the LAM’s RJ-11 receptacle side).

4. Plug the other end of the RJ-11 into an available telephone wall jack.

This connects you to the PSTN (Public Switched Telephone Network).

5. Plug the Ethernet-LAM into the Ethernet port of the PC Card.

6. Plug one end of either a UTP or an STP cable into the Ethernet-LAM.

7. Plug the other end of the UTP/STP cable into the Ethernet LAN.

8. Installation of the driver for the MT5634ZLX/FE: When prompted for

drivers, choose the Advanced path and browse to the Drivers_FE folder

and then to the appropriate subfolder for your Windows version.

MT5634ZLX/FE Connections

MultiMobile Modem Family Quick Start Guide

6 MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE

Installing the Modem Driver

You must install the modem’s driver onto the hard drive of your laptop PC.

If you are using Windows 95/98/Me/2000/XP, the driver is installed with

Windows’ Plug and Play feature. For Windows NT, which does not support

Plug and Play, see the Modem Driver Installation for Windows NT below.

Modem Driver Installation for Windows 95/98/Me/2000/XP

1. Make sure your modem PC card is connected properly, and then turn

on your laptop PC. Windows should detect your new modem and

open the install New Modem wizard.

2. Insert the MT5634ZLX Modem Family CD into your laptop PC’s CD-

ROM drive, and then click OK.

3. Windows installs the modem driver.

4. Installing the ZLX/FE drivers requires you to select the Advanced

option. Then browse the Drivers_FE folder and select the appropriate

subfolder.

5. Click Finish to exit.

Modem Driver Installation for Windows NT

1. Make sure your modem PC card is connected properly, and then turn

on your laptop PC. Windows should detect your new modem and

open the install New Modem wizard.

Note: If Windows cannot find a modem, your modem may not be

connected properly. Check your connections.

2. In the Install New Modem wizard, select Don’t detect my modem; I will

select it from a list, and then click Next.

3. Insert the MT5634ZLX CD into your laptop PC’s CD-ROM drive, and

then click Have Disk.

4. In the Install from Disk dialog box, select the drive that the CD is in,

and then click OK.

5. A list of modems appears. Select your modem and click Next.

6. Select the port that the modem is connected to, and then click Next.

7. Windows installs and configures the modem driver.

8. Click Finish to exit.

MultiMobile Modem Family Quick Start Guide

MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE 7

Loading Data Communication Software

Data communications software is designed to enable your modem to send

and receive data. Multi-Tech has included a communications software

program, Phone Tools, with your modem.

To install Phone Tools:

·Insert the MultiMobile CD into your laptop’s CD-ROM drive

·Click on the Phone Tools icon.

·You will be asked to choose your language.

·The software automatically loads onto your laptop.

Important: How to Eject the PC Card

The PC Card is a hot-swappable card. However, when the

MT5634ZLX/FE is connected to a LAN and transferring data, it is

recommended that you use the following steps to eject the PC Card if you

choose to do so during this process. Removing the PC Card during this

process without following these steps could cause Windows to lock up.

1. On the task bar, click the PCMCIA icon.

2. Select Stop MultiMobile Mt5634ZLX PCMCIA.

3. The Safe to Remove Hardware dialog box displays. Click OK.

4. Eject the PCMCIA adapter.

MultiMobile Modem Family Quick Start Guide

8 MT5634ZLX, MT5634ZLXI, MT5634ZLX/FE

Configure the Modem for Your Country

Note: Country configuration applies to:

·The MT5634ZLXI is designed for use world-wide.

·The MT5634ZLX/FE is designed for use in Europe, Canada, and the

United States.

Different countries have different requirements for how modems must

function. Therefore, before you use your modem, you must configure it to

match the defaults of the country in which you are using it. You can use

one of two configuration methods:

·Using the Global Wizard to Configure Your Modem

·Using AT Commands to Configure Your Modem

Using the Global Wizard to Configure Your Modem

The Global Wizard configuration utility is recommended for computers

running in Windows.

1. Insert the MT5634ZLX CD into the CD-ROM drive. The Autorun

dialog box appears.

2. Click Initial Setup and Country Selection.

3. Choose either:

·Run Global Wizard from CD.This option will not load the wizard

onto your hard drive, or

·Install Global Wizard on the HD. This option installs the wizard

onto your hard drive for future use.

4. The Global Wizard dialog box appears. Click Next.

5. The Global Wizard searches for your modem and identifies it. Click

Next.

6. Select the country in which the modem will be used, and then click

Next.

7. Review your choice of country. If it is correct, click Next to configure

the modem.

8. When Global Wizard announces that the parameters have been set,

click Finish to exit.

Altri manuali per MultiMobile MT5634ZLX

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Multitech Modem

Multitech

Multitech MTCBA-C-IP-N12 Manuale utente

Multitech

Multitech MultiModem MT5600ZDX Manuale utente

Multitech

Multitech SocketModem Cell MTSMC-LVW3 Guida all'applicazione

Multitech

Multitech MultiModem Cell MTCBA-E1-U Manuale utente

Multitech

Multitech MT5656ZDX Series Manuale utente

Multitech

Multitech RJModem MT5656RJ Manuale di istruzioni

Multitech

Multitech MultiModem MT5634ZPX-PCI-U Manuale utente

Multitech

Multitech MultiConnect Cell MTC-G3 Manuale utente

Multitech

Multitech MultiModem MT2834ZDX Series Manuale utente

Multitech

Multitech MultiModem SocketModem MT9234 Series Manuale di installazione

Multitech

Multitech Multimodem MTCBA-G-F1 Manuale utente

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Manuale utente

Multitech

Multitech V.92 Desktop Modems MultiModem ZDX Manuale utente

Multitech

Multitech MultiModem MT3334ZDX Manuale utente

Multitech

Multitech MultiModem ISI ISI5634UPCI Series Manuale utente

Multitech

Multitech MultiModem MTCBA-G-U-F4 Manuale utente

Multitech

Multitech MultiModem MTCBA-G-F4 Manuale utente

Multitech

Multitech MultiMobile MT56128ZLX-NT Manuale utente

Multitech

Multitech MTSMC-G2 Istruzioni per l'installazione

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Manuale utente

Multitech

Multitech Multimobile MT10100ZL-X/E Manuale utente

Multitech

Multitech MMH956K Manuale tecnico

Multitech

Multitech MultiModem Cell MTCBA-E1 Manuale utente

Multitech

Multitech MultiModem ISIHI-2S Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente
