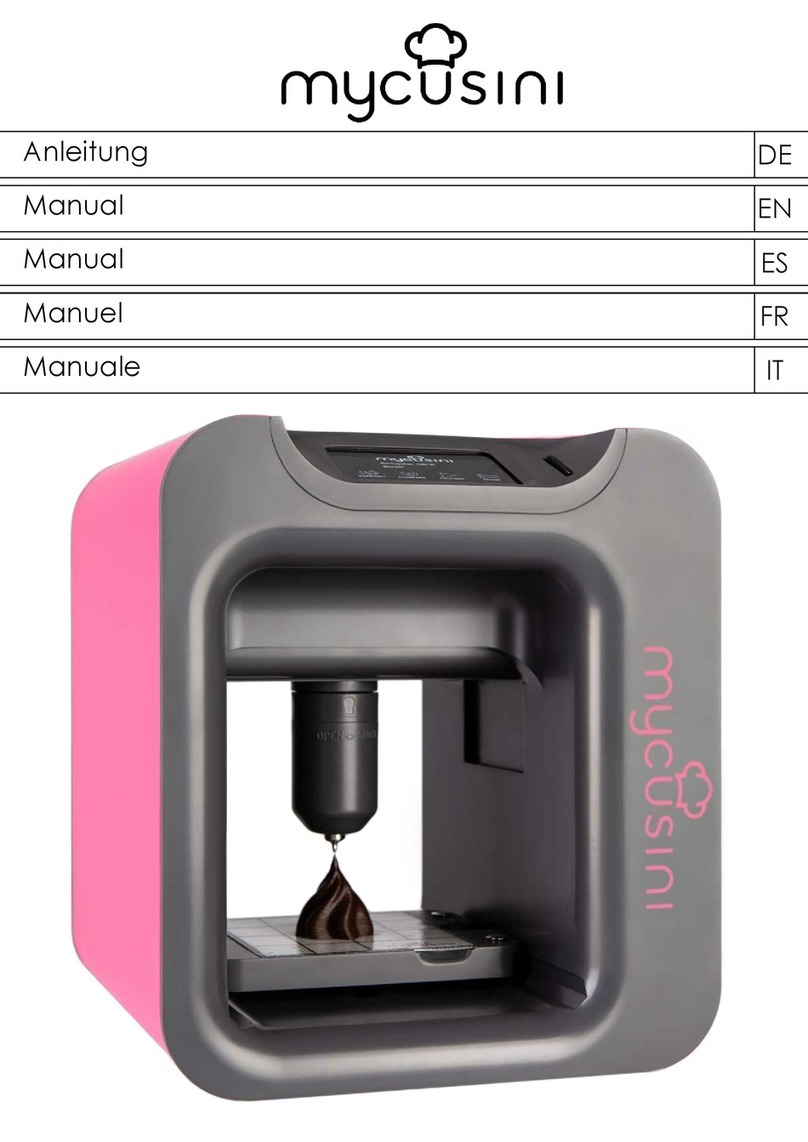

Mycusini 00050 Manuale utente
original operating instructions mycusini
For questions please contact us at s[email protected]
User‘s Manual for
Mycusini
3D Food Printer for
Private Use
original operating instructions mycusini
For questions please contact us at s[email protected]
Content
1 Basic Information ................................................................................................. 4
1.1 General description ....................................................................................... 4
1.2 Technical data Mycusini ................................................................................ 5
1.3 Main components .......................................................................................... 6
1.4 Schematic overview ....................................................................................... 6
2 Qualification of personnel ..................................................................................... 7
3 Safety Procedures / Precautions .......................................................................... 7
3.1 General introduction and definition of the safety instructions ........................ 7
3.2 General safety instruction for the machine .................................................... 8
3.3 Special safety instruction for the machine ..................................................... 8
3.3.1 General directions ................................................................................... 8
3.3.2 Setup, location of operation .................................................................... 9
3.4 Use in accordance with regulations ............................................................. 10
3.5 Liability and guarantee ................................................................................ 11
3.5.1 Liability .................................................................................................. 11
4 Description of the Functions and Operation of the Machine ............................... 12
4.1 Mycusini and accessories ............................................................................ 12
4.2 Overview Main Screen ................................................................................ 12
4.3 The main menu............................................................................................ 13
4.4 Installation ................................................................................................... 13
4.4.1 Installation of the mycusini .................................................................... 13
4.4.2 Preparation of the flexible silicone production mat ................................... 13
4.5 Preparation of the production ...................................................................... 13
4.6 Loading 3D Choco and start printing production ......................................... 14
4.7 Remove 3D objects from the flexible mat .................................................... 15
4.8 The “Next action” menu ............................................................................... 15
4.8.1 „Print another object“ ............................................................................ 15
4.8.2 Remove cartridge .................................................................................. 16
4.8.3 Clean now ............................................................................................. 16
4.8.4 Turn off ................................................................................................. 17
5 Clean .................................................................................................................. 17
5.1 Cleaning of the stainless steel cartridge ...................................................... 17
5.2 Cleaning of the printing plate ....................................................................... 17
original operating instructions mycusini
For questions please contact us at s[email protected]
5.3 Cleaning of the flexible printing mat ............................................................. 17
5.4 Cleaning of the stamp .................................................................................. 18
5.4.1 Fast cleaning of the stamp .................................................................... 18
5.4.2 Extended cleaning of the stamp ............................................................ 19
6 Further options ................................................................................................... 19
6.1 The menu during printing ............................................................................. 19
6.1.1 Abort object ........................................................................................... 19
6.1.2 Abort and dose 3D choco ..................................................................... 19
6.1 The „Maintenance“ menu ............................................................................ 19
Select "Maintenance" in the main menu to access the extended service menu.
There you will find the following options. ............................................................... 19
6.1.1 Insert Stamp .......................................................................................... 19
6.1.2 Info ........................................................................................................ 20
6.1.1 Calibrate................................................................................................ 20
6.1.2 Extended Cleaning ................................................................................ 21
7 Create own Objects ............................................................................................ 22
7.1 mycusini-Club .............................................................................................. 22
7.2 Produce your own Object from the mycusini Club ....................................... 26
7.3 More Applications of the mycusini Club ....................................................... 26
7.3.1 Freehand drawing ................................................................................. 26
7.4 Trace outlines .............................................................................................. 27
7.5 Language Settings mycusini Club ............................................................... 27
7.6 Notifications ................................................................................................. 28
8 Troubleshooting ................................................................................................. 28
9 Returning Old Devices ....................................................................................... 29
10 Servicing and Maintenance............................................................................. 29
10.1 Safety instructions for servicing ................................................................ 29
original operating instructions mycusini
For questions please contact us at s[email protected]
1 Basic Information
1.1 General description
The Mycusini is an easy-to-use 3D-food-printer for use in private kitchen.
It consists of a heatable cartridge holder, which is mounted to a positioning unit and
operated via internal monitor. The x and y axis are controlled by a tooth belt, while
the z axis and the extruder are set into motion by threaded rods. The cartridge holder
is located at the end of the y axis and during the production process is moved
upwards layer by layer by means of the z-motor. The production plate represents the
x axis and serves as a bearing surface for the pads to be printed (flexible production
mat).
The food is filled into food-safe cartridges or are available as food-safe refills. These
cartridges are inserted into the cartridge holder and if necessary heated to a
temperature specifically defined for the food item. There is no direct contact between
the food item located in the cartridge and the device itself.
original operating instructions mycusini
For questions please contact us at s[email protected]
1.2 Technical data Mycusini
Produktion
• Usability mycusini 3D Choco
• Technology Layer-by-layer deposition of
consumables
• Tip Heatable
• Volume of capsule 15 ml (0.5 oz)
• Building Space X: 190 mm (7.5 in)
Y: 195 mm (7.7 in)
Z: 275 mm (10.8 in)
• Precision 0,1 mm (0.004 in)
• Nozzle diameter 0,5 - 1,2 mm (0.02-0.05 in)
• Rate of printing 5 – 50 mm/s (0.2-2 in/s)
• Movement volocity 5 – 200 mm/s (0.2-7,9 in/s)
• usable production area 105 x 80 x 50 mm (4.1 x 3.1 x 2 in)
Physical Dimensions
•
Maximum space needed: X: 250 mm (9.8 in)(Plattform moves right and
left)
Y: 250 mm (9.8 in)
Z: 300 mm (11.8 in)
• Packaging volume 270 x 270 x 430 mm (L x B x H) (10.6 x 10.6 x 16.9 in)
• Weight 3,5 kg
• Shippingweight 4 kg
Temperature
• Ambient temperature 20 - 22 °C (50 – 71.6 F)
• Storage temperature 0 - 32 °C (32 - 89.6 F)
• Process temperature of
heated cartridge 20 - 40 °C (68 - 104 F)
Power Supply
• Power Supply(AC) 100-240 VAC; 50 – 60 Hz
• Power (DC) 12 V; 5 A; 60W
• Protection Short circuit / Overload / Over voltage / Over
temperature
Software / Connectivity
• Interface Display
• Connectivity Micro SD-card, USB-B
original operating instructions mycusini
For questions please contact us at s[email protected]
1.3 Main components
1. Power connection
2. Printing plate
3. Cartridge holder
4. Display
5. SD-Card slot
6. Rotary control knob
7. Reset knop
1.4 Schematic overview
4
.
7
3
1
6
5
2
Z-Axis
X-Axis
Y-Axis
Choco 3D Printer
Sketch with axis label
Maximum space: X 250 mm; Y 250 mm; Z 300 mm
original operating instructions mycusini
For questions please contact us at s[email protected]
2 Qualification of personnel
This machine requires proper training. It is ONLY recommended for use by
individuals with sufficient training and/or those that are monitored by a person who
has been properly trained on the safety and intended use of the machine.
This machine is not meant for use by children.
This machine is to be operated by a single person!
Troubleshooting, service, and maintenance are to be performed only by qualified
individuals who are familiar with the technology and dangers of the machine and
have been authorized by Print2Taste.
Work on electrical components is to be performed only by trained electricians.
The address for service is found in Chapter 9 of this user’s manual.
3 Safety Procedures / Precautions
The following information pertaining to safety- and possible hazards is important not
only for protection of the machine, but also to protect the user. Please read the
following points carefully:
3.1 General introduction and definition of the safety instructions
Important safety- and device-relevant instructions are visualised as symbols in this
handbook. The directions have to be followed at all times in order to prevent
accidents or damage to people or things.
WARNING! Danger from electrical current! This symbol indicates a situation
in which dangerous situations may exist due to electrical currents. If this
safety information is ignored, injury or a life-threatening situation may result.
WARNING! This symbol indicates dangers which may lead to injuries.
Uphold all of the given safety instructions exactly as indicated and pay
special attention in such cases.
WARNING! Hot surface! This symbol indicates that a hot surface is present
on the machine during operation. If this is ignored, the user may get burned
or a fire hazard may result!
WARNING! Danger from moving parts – keep fingers and other body parts
away. This symbol indicates the risk of injuries which may occur if the user
reaches into the machine during operation. Body parts may be smashed,
drawn in, or injured in other ways.
original operating instructions mycusini
For questions please contact us at s[email protected]
3.2 General safety instruction for the machine
This device is built according to the current technical rules and regulations. However,
dangers may arise if the device is used in an inappropriate manner or out of
accordance with regulations.
The information contained in the user’s manual designed to protect the user from
injury. It additionally serves to avoid mistakes, thus assuring that the device runs
safely and disturbance-free
In order to avoid dangers and to ensure optimal performance, neither alterations nor
reconstructions may be performed on the machine unless explicitly approved by the
manufacturer.
The device may only be used in technical and operationally safe conditions in
accordance with the instructions within this user’s manual.
In the case of damage due to a lack of observance of this operation manual, the
guarantee is voided. The manufacturer will not take over responsibility for
subsequent damages.
The manufacturer assumes no liability for damages to persons, objects or property
that occur due to inappropriate handling or a lack of adherence to the safety
instructions. In these cases, the guarantee is voided.
3.3 Special safety instruction for the machine
The information pertaining to work safety corresponds to the regulations of the
European Union at the time the device was manufactured.
3.3.1 General directions
Warning: Never leave the Mycusini unattended in use
Warning: High temperatures may develop in the printing head of the
Mycusini. For this reason, never grasp the printer while in operation. Change
the food cartridge only after the printer has cooled down sufficiently
Warning: The power supply plug must always be in vicinity of the printer and
easily be reachable.
Warning: In the case of emergency, immediately disconnect the power
source and power plug!
Warning: In order to prevent fire or electrocution, never set this device onto
damp or wet surfaces.
Warning: Mycusini includes moving parts that can cause injury. Never grip
inside the Mycusini during operation.
original operating instructions mycusini
For questions please contact us at s[email protected]
For use outside of the European Union, the occupational safety legislation and
regional stipulations have to be followed according to all local, state and federal
regulations.
In addition to the occupational safety notes in this manual, the valid safety- and
accident prevention regulations as well as the valid environmental protection
stipulations for the location at which the machine operates have to be observed and
maintained:
3.3.2 Setup, location of operation
Place the Mycusini on a stable, horizontal, large enough area only. Please note, that
the production plate moves from right to left when operating and thus requires
enough space. In addition, some movement also occurs vertically. When selecting
operating location, please ensure that the device may move in these directions.
Choose the operating location in a way, that children cannot reach the product.
When setting up the device, please ensure that the power adapter is easily
accessible in order to quickly and easily separate the device in the event of error.
Do not place the machine in areas of extreme temperatures, strong vibrations, high
humidity (i.e. rain or steam), dust, or heavy mechanical stresses.
Do not place any liquid-filled vessels (i.e. glasses, vases, etc.) on top of or in the
vicinity of the machine and never pour water over the machine. Fluids may enter the
machine casing and impair the electronic stability of the machine. Additionally, there
is a high risk of fire or life-threatening electrical shocks!
If such an event occurs, disconnect the power supply plug completely (i.e. turn off the
circuit breaker and earth leakage circuit breaker) and then pull the power cord from
the socket. Disconnect all wires from the device. The entire product may not be used
again. Please contact a specialized dealer or the manufacturer.
Do not place any sources of ignition such as stoves, fryers or burning candles next to
or on top of the device.
While setting up the machine, be sure that the power cord is not squeezed or
damaged by sharp corners.
Take note of the additional safety instructions to be found in the chapters of this
manual.
original operating instructions mycusini
For questions please contact us at s[email protected]
3.4 Use in accordance with regulations
Mycusini is an easy-to-use 3D-food-printer for use in a private kitchen.
Only the intended food-proof cartridges may be used. Moreover, the intended food-
proof production plate has to be applied during the production process.
Please note, that only food from Print2Taste may be processed, such as mycusini 3D
Choco.
The machine may only be used under continuous monitoring of the operating
personnel.
The machine is only for indoor use.
The operation temperature for the system lies between 20 – 22°C. The maximum
allowable operating temperature for the printer head is 40 °C.
The operation environment should be dry and dust-free.
The reliability of device operation is only guranteed under operation in accordance
with the regulations listed in this operator’s manual.
All technical work, including assembly and servicing, may only be performed by
qualified individuals and those being authorized by Print2Taste.
The mycusini is only intended for edibles from the designated cartridges. The
mycusini is designed for food printing with the appropriate templates and objects from
the mycusini Club.
Any use deviant from the intended purpose and/or other type of use of the
equipment is forbidden and is considered to be out-of-accordance with regulations
and will negate the product warranty.
Claims against the manufacturer and/or its agent due to damages resulting from use
other than the intended are barred.
The user is held solely accountable for any damages occurring during use of the
device deviating from the intended use.
Please retain all original packaging as well as all shipping and handling material. This
is the only way to assure a successful and safe transport of the mycusini, for instance
in the case of a return under warranty!
Print2Taste takes no liability for devices that are not returned in their original
packaging or have been packaged improperly!
Indice
Altri manuali Mycusini Stampante 3D
