Narada NPFC Series Manuale utente

LiFePO4Battery Module for Telecom

NPFC Series

Operation Manual

Version: 8.3

NARADA POWER SOURCE CO., LTD

Table of Contents

Part 1 – Safety & Warning ............................................................................................................. 1

Part 2 – Product Introduction ........................................................................................................ 2

2.1 – Overview....................................................................................................................... 2

2.2 – Working Principle.......................................................................................................... 2

2.3 – Battery Management System (BMS).............................................................................. 3

2.4 – Applications .................................................................................................................. 3

2.5 – Battery Model Instruction ............................................................................................. 4

2.6 – Electric Performance ..................................................................................................... 4

2.7 – Structure and Mechanical Performance ........................................................................ 5

Part 3 – Technical Characteristics .................................................................................................. 8

3.1 – Discharge Performance ................................................................................................. 8

3.2 – Charge Performance...................................................................................................... 8

3.3 – Constant Current/Power Discharge Datasheet .............................................................. 9

Part 4 – Operation & Maintenance...............................................................................................12

4.1 – Requirements for Operation Environment ...................................................................12

4.2 – Parameter Settings of Power Plant...............................................................................12

4.3 – Layout of Front Panel ...................................................................................................13

4.4 – Installation ...................................................................................................................14

4.4.1 – Unboxing & Inspection ......................................................................................14

4.4.2 – Preparation for Installation ...............................................................................15

4.4.3 – Installation of Battery Modules .........................................................................15

4.5 – Maintenance ................................................................................................................17

Part 5 – Troubleshooting & Solutions ...........................................................................................18

Annex 1 – Instructions for LED Flicker...........................................................................................19

Annex 2 – Instructions for Dialing of ADD.....................................................................................20

Annex 3 – Communication Protocol for RS232 and RS485............................................................21

Annex 4 –LCD Menu Instruction ...................................................................................................24

Part 1 – Safety & Warning 1

LiFePO4Battery Module for Telecom Operation Manual V8.3 2016

Part 1 – Safety & Warning

The NPFC series LiFePO4battery system installation, operation, maintenance should follow

important recommendations in this manual:

The equipment shall be installed by the professional training staff

Battery maintenance should be carried out by the experienced professionals and aware

of the preventive measures on the potential harm of the battery.

Note: Be care of the risk of electric shock for large current in case of battery short

circuit, pay attention to the following points during operation

Remove watches, rings or other metal objects

Use tools with insulated handles

Do not place tools or metal objects on the battery

Do not direct access to the battery system to the mains grid power outlet

Do not put the battery system into fire, do not use or storage the battery near to the

high temperature source

Do not use liquid or other objects placed into the battery system.

Do not open or cut the battery, not to hit, throw or step on the battery

Using special communication between battery module and power plant to charge

battery

Be sure to subject to charge and discharge parameters setting in this manual

The output interface of the system is still voltage when grid power cut, avoid electric

shock or short circuit when operation

Please check if the box is damaged. If damaged, please immediately notify the supplier

If you find leaking liquid or white powder residue on product, prohibit operation.

2 Part 2 – Product Introduction

LiFePO4Battery Module for Telecom Operation Manual V8.3 2016

Part 2 – Product Introduction

2.1 – Overview

NPFC series battery system is 48V system for communications back-up type LiFePO4(lithium

iron phosphate) battery products, the system uses the advanced LiFePO4battery technology with

the benefit of long cycle life, small size, light weight, safety and environmental protection, and

has a strong environmental adaptability, it is idea for harsh outdoor environments.

The system also integrates a smart battery management and monitoring module, support

for remote centralized monitoring and remote battery management and maintenance, to meet

the requirements of unattended. Therefore, the NPFC system can fully meet the backup power

supply requirements of the access network equipment, mobile communications equipment,

transmission equipment, micro base stations and microwave communication equipment.

2.2 – Working Principle

The NPFC battery system mainly includes Fe lithium battery pack, battery protection, cell

balancing unit, monitoring module and charge-discharge management module for optional. Its

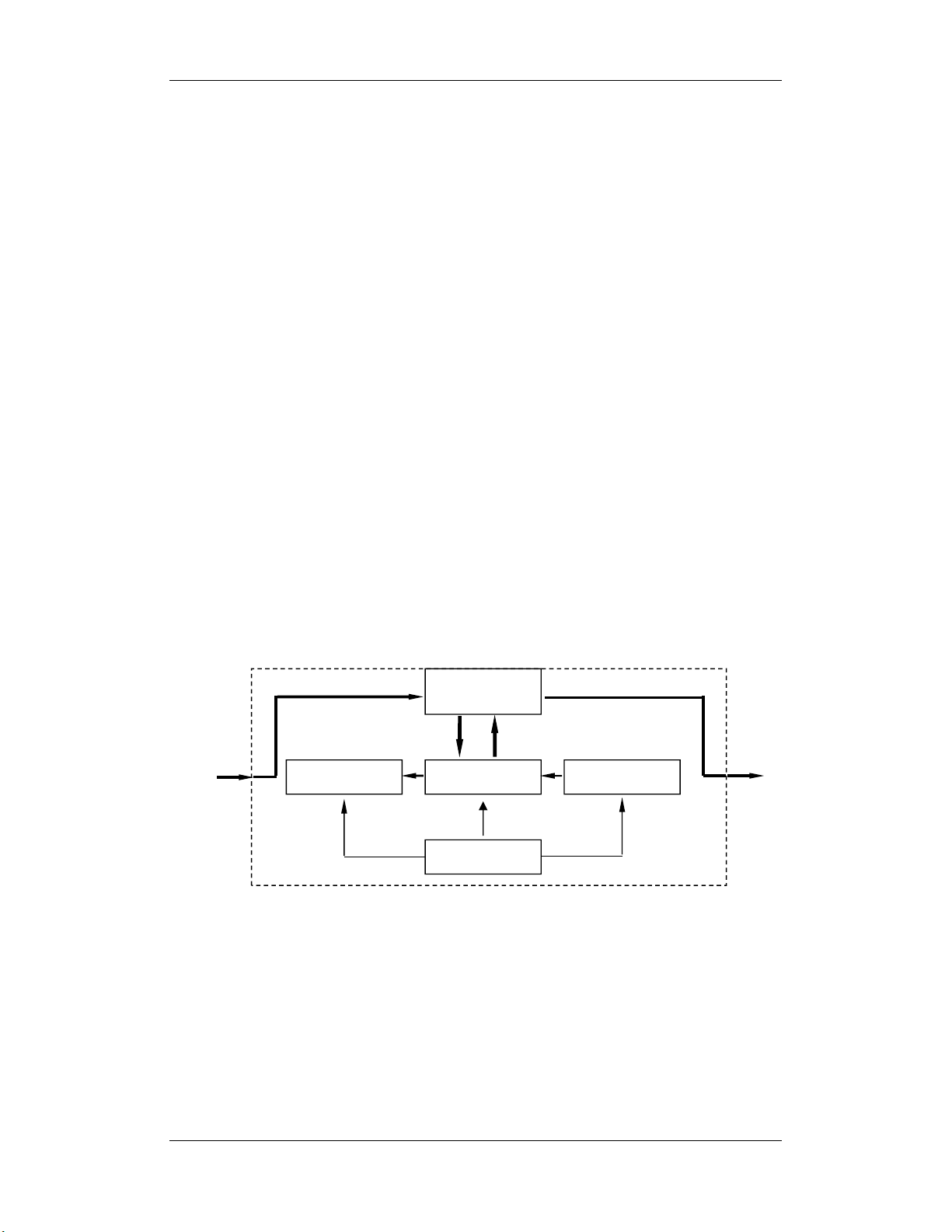

schematic diagram shown in Figure 2.1

Fig. 2.1 – Schematic Diagram

LFP cells Chemical power, energy storage and power supply components.

Battery protection Protect LFP cells against overcharge, over discharge, over current, over temperature, short

circuit

Cell balancing Equalization LFP cells for cells unbalanced

Charge-discharge

management

Discharge circuit management, and charging current limit (optional according to customer

requirements)

Monitoring Support centralized monitoring system (optional according to customer requirements)

Charge-discharge

mana

ement

LFP cells

Cell balancing Cell protection

Monitoring

Input Loa

Part 2 – Product Introduction 3

LiFePO4Battery Module for Telecom Operation Manual V8.3 2016

NPFC battery working principle:

DC power input charge and discharge management unit after filter, DC divided two circuits,

one circuit directly supply the load, another circuit to charge Fe lithium pack. When grid power

on, the system supply the loads and charging inside Fe lithium batteries; When grid power failure,

Fe lithium inside system supply DC power to the load, to ensure uninterrupted power supply as

power system.

2.3 – Battery Management System (BMS)

Smart BMS technology is adopted for battery modules of NPFC series to assure smart

automatic management for batteries. Features of BMS are shown as below:

There is a centralized monitoring unit in BMS. Functions such as remote measurement,

remote communication, remote controlling are available. Battery modules can be

controlled remotely by staffs in control center. NPFC series are in line with the

requirements of the development of modern communications technology.

It is combined by technologies of power source and computer. Parameters and status

of rectifiers and AC/DC distributions can be detected and controlled.

Excellent electromagnetic compatibility. BMS used for battery modules of NPFC series

can comply with the outdoor power plants during operation, no interfere with each

other.

BMS can provide protections against overcharge, over-discharge, over-temperature,

overcurrent, short circuit, etc., to assure reliable safety and operation life.

With patented cell balancing technology, BMS provide high efficiency for cell balancing

and prolong system operate life.

Configuration flexibility, support parallel connection expansion

2.4 – Applications

Network Telecommunication Facilities

OSP

Terminal of FTT X

Access network system

Indoor distribution system

Telecom BTS

Integrated outdoor power cabinet

UPS

4 Part 2 – Product Introduction

LiFePO

Battery Module for Telecom Operation Manual V8.3 2016

Internet data center (IDC)

Solar energy



Common Bonding Network (CBN) and or Isolated Bonding Network (IBN)

2.5 – Battery Model Instruction

Fig. 2.2 – Instruction of Battery Model for NPFC Series

2.6 – Electric Performance

Table 2.1 – Battery Model & Electric Performance of NPFC Series

Battery

Model

①

Rated

Voltage

②

(

Rated

Capacity

③

(Ah)

Voltage

Rage (V)

Charge

Voltage (V)

Charge Current (A) Max.

Discharge

Current (A)

Recomm. Max.

48NPFC10 48 10 40.5 to 54.5 54.0 2 10 10

48NPFC10-2C 48 10 40.5 to 54.5 54.0 2 10 20

48NPFC20 48 20 40.5 to 54.5

54.0 4 20 20

48NPFC20-2C 48 20 40.5 to 54.5 54.0 4 20 40

48NPFC30 48 30 40.5 to 54.5

54.0 6 20 20

48NPFC50 48 50 40.5 to 54.5

54.0 10 50 50

48NPFC70 48 70 40.5 to 54.5

54.0 10 60 60

48NPFC80 48 80 40.5 to 54.5

54.0 15 80 80

NOTES

①

Battery

Model

Battery models listed in the datasheet are standard products. Narada can also

supply customized design in cell, BMS and dimensions for various application

scenarios.

②

Rated Voltage 48V = 3.20Vpc * 15pcs (Rated voltage of each LFP cell is 3.20Vpc)

③

Rated

Capacity Five hour rate capacity (0.2C to 40.5V at 25℃)

Part 2 – Product Introduction 5

LiFePO

Battery Module for Telecom Operation Manual V8.3 2016

2.7 – Structure and Mechanical Performance

Fig. 2.3 – Structural Drawing of NPFC Series Batteries (48NPFC10 as sample)

Fig. 2.4 – Battery Output Terminal

Table 2.2 – Mechanical Performance of NPFC Series

Battery

Model

①

Rated

Voltage

(V)

Rated

Capacity

(Ah)

Dimensions (mm) Weight

(kg)

Battery

Output

Terminal

Width Depth Height

48NPFC10 48 10 442 245 44 1U 7.3 10mm / M4

48NPFC20 48 20 442 245 88 2U 13.4 10mm / M4

48NPFC30 48 30 442 245 133 3U 18.4 10mm / M4

48NPFC50 48 50 442 390 133 3U 32.0 13mm / M6

48NPFC70 48 70 442 400 133 3U 40.5 13mm / M6

48NPFC78 48 80 442 400 225 5U 44.0 13mm / M6

6 Part 2 – Product Introduction

LiFePO4Battery Module for Telecom Operation Manual V8.3 2016

Fig. 2.5 – Appearance & Mechanical Drawing of 48NPFC10

Fig. 2.6 Appearance & Mechanical Drawing of 48NPFC20

Fig. 2.7 Appearance & Mechanical Drawing of 48NPFC30

Fig. 2.8 Appearance & Mechanical Drawing of 48NPFC50

Part 2 – Product Introduction 7

LiFePO4Battery Module for Telecom Operation Manual V8.3 2016

Fig. 2.9 Appearance & Mechanical Drawing of 48NPFC70

Fig. 2.10 Appearance & Mechanical Drawing of 48NPFC80

8 Part 4 – Operation & Maintenance

LiFePO

Battery Module for Telecom Operation Manual V8.3 2016

Part 3 – Technical Characteristics

3.1 – Discharge Performance

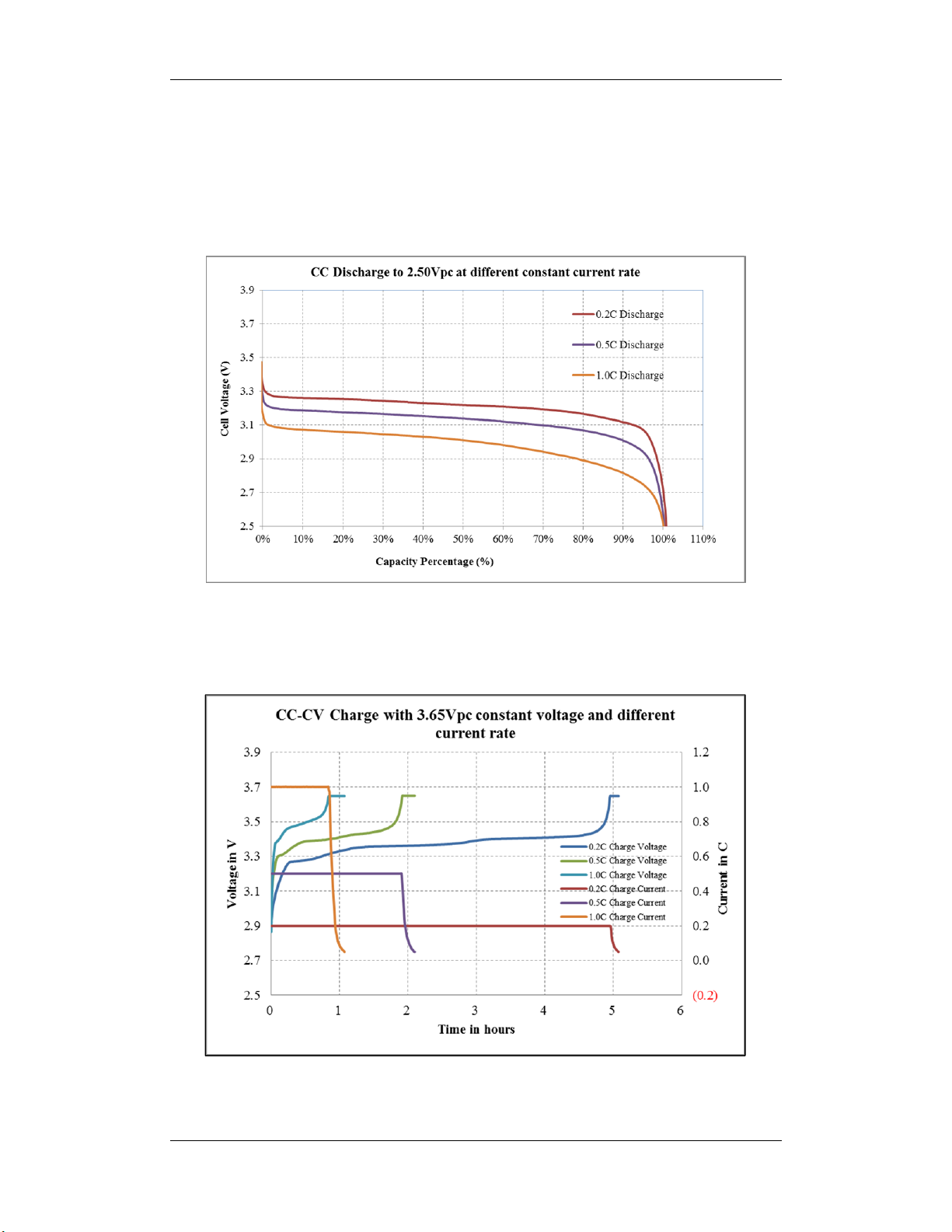

Fig. 3.1 – Constant Current Discharge Curve of NPFC Series

3.2 – Charge Performance

Fig. 3.2 – Charge Characteristic with Various Current Limitation of NPFC Series
