GETTING STARTED GUIDE

PXIe-8246

PXIe, 4-Port, GigE PXI Frame Grabber Module

This document describes how to install and configure the necessary hardware and software

components to begin using the PXIe-8246.

You need the following items to set up and use the PXIe-8246.

• PXIe-8246 GigE interface device

• GigE Vision Camera

• Ethernet cable

• PXIe computer running Microsoft Windows 10 with at least one available slot

• NI-IMAQdx 20.5 or later driver software, included with NI Vision Acquisition Software

(VAS)

• LabVIEW 2020

• Optional software for developing applications:

– NI Vision Builder for Automated Inspection

– NI Vision Development Module (VDM)

Note Before you begin, install and configure your chassis and controller.

Contents

Verifying the System Requirements..........................................................................................2

Unpacking the Kit..................................................................................................................... 2

PXIe-8246 Kit Contents............................................................................................................2

Preparing the Environment....................................................................................................... 2

Installing Application Software and Driver.............................................................................. 3

Installing Vision Builder AI.............................................................................................. 3

Installing the Vision Development Module...................................................................... 3

Installing the PXIe-8246........................................................................................................... 4

Confirming the Device is Recognized.............................................................................. 5

Front Panel................................................................................................................................ 5

Configuring the PXIe-8246 in MAX........................................................................................ 6

Troubleshooting........................................................................................................................ 7

What Should I Do if the PXIe-8246 Does Not Appear in MAX?.................................... 7

Where to Go Next..................................................................................................................... 7

Worldwide Support and Services.............................................................................................. 8

Verifying the System Requirements

To use the PXIe-8246, your system must meet certain requirements. For more information

about minimum system requirements, recommended system, and supported application

development environments (ADEs), refer to the readme, which is installed or available at

ni.com/manuals.

Unpacking the Kit

Notice To prevent electrostatic discharge (ESD) from damaging the device, ground

yourself using a grounding strap or by holding a grounded object, such as your

computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Notice Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

PXIe-8246 Kit Contents

The following items are included in the device kit:

• PXIe-8246

• Documentation:

–PXIe-8246 Getting Started Guide (this document)

–PXIe-8246 Safety, Environmental, and Regulatory Information

Preparing the Environment

Ensure the environment in which you are using the PXIe-8246 meets the following

specifications.

Operating environment

Ambient temperature range 0 °C to 55 °C

Relative humidity range 10% to 90%, noncondensing

2| ni.com | PXIe-8246 Getting Started Guide

Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient

temperature)

Pollution Degree 2

Indoor use only.

Note For complete specifications, refer to the specifications document for your

device at ni.com/manuals.

Installing Application Software and Driver

Before installing the PXIe-8246, you must install the application software and device driver.

National Instruments provides two options for developing machine vision applications.

• NI Vision Builder for Automated Inspection (Vision Builder AI)—Interactive, menu-

driven configuration software for developing, benchmarking, and deploying machine

vision applications. You must also install NI-IMAQdx.

• NI Vision Development Module—Programming library for developing machine vision

and scientific imaging applications. The NI Vision Development Module requires an

application development environment—LabVIEW and NI-IMAQdx.

Installing Vision Builder AI

Install the following software to use Vision Builder AI to develop applications.

1. NI-IMAQdx—Refer to the NI Vision Acquisition Software Release Notes on the NI

Vision Acquisition Software installation media for system requirements and installation

instructions for the NI-IMAQdx driver.

Documentation for the NI-IMAQdx driver software is available by selecting Start »All

Programs »National Instruments »Vision »Documentation »NI-IMAQdx .

2. Vision Builder AI—Refer to the NI Vision Builder for Automated Inspection Readme for

installation instructions.

Documentation for Vision Builder AI is available by selecting Start »All Programs »

National Instruments »Vision Builder AI »Documentation .

Installing the Vision Development Module

Install the following software to use Installing the Vision Development Module to develop

applications.

1. LabVIEW—Refer to the LabVIEW Release Notes for installation instructions and system

requirements for the LabVIEW software. Refer to the LabVIEW Upgrade Notes for

additional information about upgrading to the most recent version of LabVIEW.

Documentation for LabVIEW is available by selecting Start »All Programs »National

Instruments »LabVIEW »LabVIEW Manuals .

2. NI-IMAQdx—Refer to the NI Vision Acquisition Software Release Notes on the NI

Vision Acquisition Software installation media for system requirements and installation

instructions for the NI-IMAQdx driver.

PXIe-8246 Getting Started Guide | © National Instruments Corporation | 3

Documentation for the NI-IMAQdx driver software is available by selecting Start »All

Programs »National Instruments »Vision »Documentation »NI-IMAQdx .

3. NI Vision Development Module—Refer to the NI Vision Development Module Readme

on the NI Vision Development Module installation media for system requirements and

installation instructions.

Documentation for Vision Development Module is available by selecting Start »All

Programs »National Instruments »Vision »Documentation »NI Vision .

Installing the PXIe-8246

Notice To prevent damage to the PXIe-8246 caused by ESD or contamination,

handle the module using the edges or the metal bracket.

1. Ensure the AC power source is connected to the chassis before installing the module.

The AC power cord grounds the chassis and protects it from electrical damage while you

install the module.

2. Power off the chassis.

3. Inspect the slot pins on the chassis backplane for any bends or damage prior to

installation. Do not install a module if the backplane is damaged.

4. Remove the black plastic covers from all the captive screws on the module front panel.

5. Identify a supported slot in the chassis. The following figure shows the symbols that

indicate the slot types.

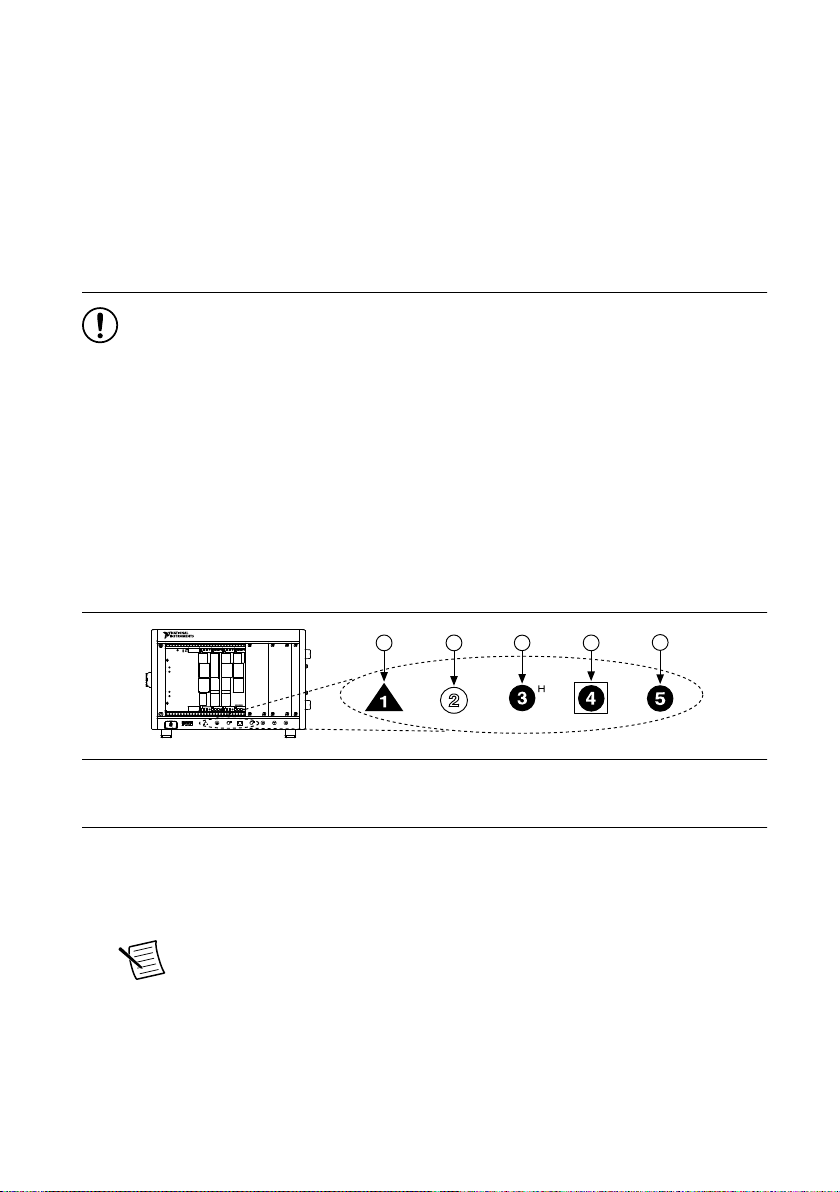

Figure 1. Chassis Compatibility Symbols

NI PXIe-1062Q

12 3 45

1. PXI Express System Controller Slot

2. PXI Peripheral Slot

3. PXI Express Hybrid Peripheral Slot

4. PXI Express System Timing Slot

5. PXI Express Peripheral Slot

6. Touch any metal part of the chassis to discharge static electricity.

7. Place the module edges into the module guides at the top and bottom of the chassis. Slide

the module into the slot until it is fully inserted.

8. Secure the module front panel to the chassis using the front-panel mounting screws.

Note Tightening the top and bottom mounting screws increases mechanical

stability and also electrically connects the front panel to the chassis, which can

improve the signal quality and electromagnetic performance.

9. Cover all empty slots using EMC filler panels or fill using slot blockers to maximize

cooling air flow, depending on your application.

10. Connect an Ethernet cable to a GigE Vision camera, then connect the camera to the

PXIe-8246 front panel.

4| ni.com | PXIe-8246 Getting Started Guide

11. Power on the chassis.

Note The first time you start the development computer after installing the

hardware, allow several seconds for the drivers to load.

Confirming the Device is Recognized

To confirm that the device is properly installed and the hardware is recognized, complete the

following steps:

1. Select Start »All Programs »National Instruments »Measurement & Automation

Explorer to open Measurement & Automation Explorer (MAX).

2. Verify that the camera connected to the PXIe-8246 appears under My System »Devices

and Interfaces »NI-IMAQdx Devices .

Front Panel

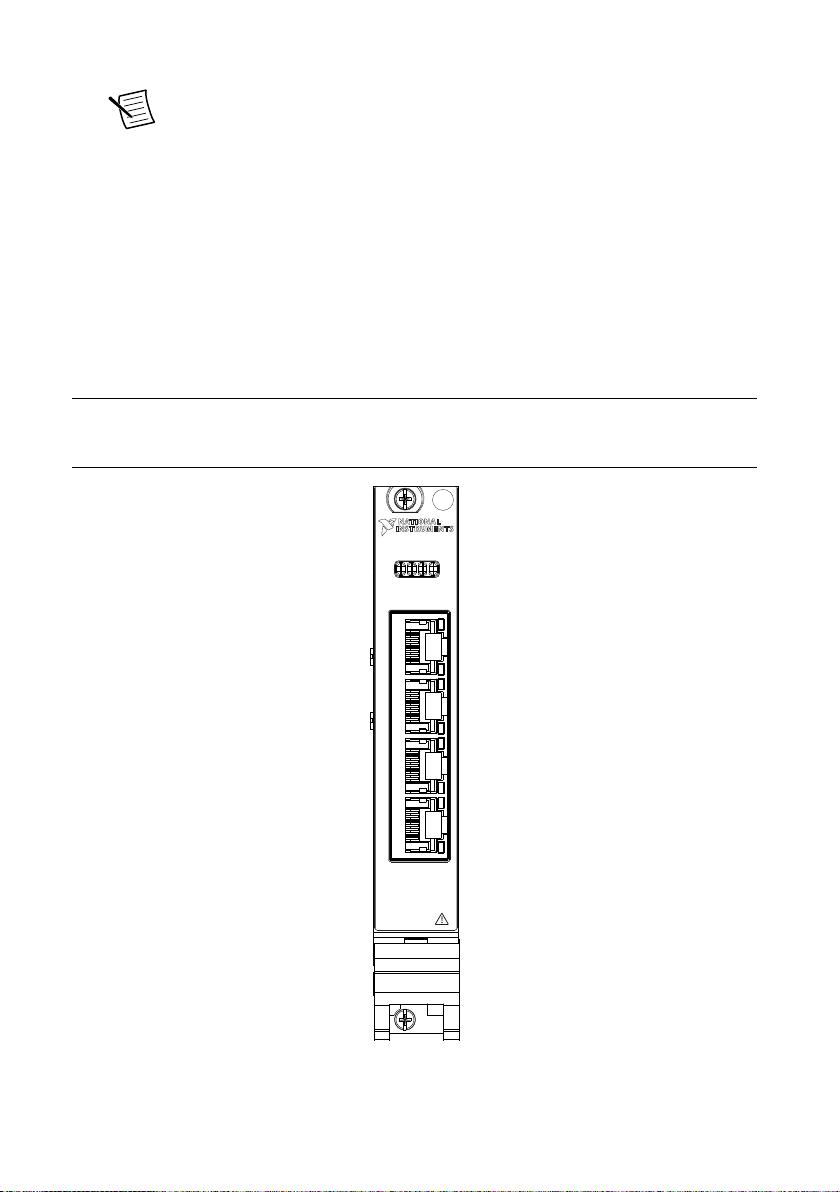

The following figure shows the PXIe-8246 front panel.

Figure 2. PXIe-8246 Front Panel

PXIe-8246

Image Acquisition

0 1 2 3

PoE

PXIe-8246 Getting Started Guide | © National Instruments Corporation | 5

The PXIe-8246 provides four standard Gigabit Ethernet ports (Port 0 to Port 3) to acquire

images from GigE Vision cameras. When the PXIe-8246 is providing PoE, the LED that

corresponds to the port will be lit.

Table 1. PoE LED Status Definitions

LED Status Definition

Red PoE protection is triggered1

Green PoE is operational

Unlit PoE is off

Table 2. Ethernet LED Status Definitions

LED Status Definition

Activity/Link Unlit No link has been established

Solid A link has been negotiated

Blinking Activity on the link

Speed Unlit No link, or 10 Mbps link

Green 100 Mbps link

Amber 1,000 Mbps link

Configuring the PXIe-8246 in MAX

Use Measurement & Automation Explorer (MAX) to configure your NI hardware. MAX

informs other programs about which NI hardware products are in the system and how they are

configured. MAX is automatically installed with NI Vision Acquisition Software (VAS).

1. Launch MAX.

2. In the configuration tree, expand Devices and Interfaces to see the list of installed NI

hardware.

Installed modules appear under the name of their associated chassis.

3. Expand your Chassis tree item.

MAX lists all modules installed in the chassis. Your default names may vary.

Note If you do not see your module listed, press <F5> to refresh the list of

installed modules. If the module is still not listed, power off the system, ensure

the module is correctly installed, and restart.

1PoE has exceeded the absolute maximum power. To reset the LED, power cycle the system after

the camera/load is removed.

6| ni.com | PXIe-8246 Getting Started Guide

4. Record the identifier MAX assigns to the hardware. Use this identifier when

programming the PXIe-8246.

Troubleshooting

If an issue persists after you complete a troubleshooting procedure, contact NI technical

support or visit ni.com/support.

What Should I Do if the PXIe-8246 Does Not Appear in

MAX?

1. In the MAX configuration tree, expand Devices and Interfaces.

2. Expand the Chassis tree to see the list of installed hardware, and press <F5> to refresh

the list.

3. If the module is still not listed, power off the system, ensure that all hardware is correctly

installed, and restart the system.

4. Navigate to the Device Manager. Right-click the Start button, and select Device Manager

5. Verify the PXIe-8246 appears in the Device Manager.

a) Under an NI entry, confirm that a PXIe-8246 entry appears.

Note If you are using a PC with a device for PXI remote control system,

under System Devices, also confirm that no error conditions appear for the

PCI-to-PCI Bridge.

b) If error conditions appear, reinstall the NI Vision Acquisition Software (VAS) driver.

Where to Go Next

Refer to the following figure for information about other product tasks and associated

resources for those tasks.

PXIe-8246 Getting Started Guide | © National Instruments Corporation | 7

SUPPORT

Services

ni.com/services

NI Community

ni.com/community

Software Support

ni.com/info>swsupport

Support

ni.com/support

SOFTWAREHARDWARE

Learn LabVIEW Basics

ni.com/gettingstarted

NI PXIe-8246 Specifications

ni.com/manuals

NI PXIe-8246 User Manual

ni.com/manuals

Worldwide Support and Services

The NI website is your complete resource for technical support. At ni.com/support, you have

access to everything from troubleshooting and application development self-help resources to

email and phone assistance from NI Application Engineers.

Visit ni.com/services for information about the services NI offers.

Visit ni.com/register to register your NI product. Product registration facilitates technical

support and ensures that you receive important information updates from NI.

NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas,

78759-3504, USA. For up-to-date contact information for your location, visit ni.com/contact.

8| ni.com | PXIe-8246 Getting Started Guide

Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for

information on NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their

respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your

software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. You can find

information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer

to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how

to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS

TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S.

Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable

limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

378324A-01 August 12, 2020

Altri manuali per PXIe-8246

Indice

Altri manuali National Instruments Unità di controllo

National Instruments

National Instruments NI 9770 Manuale utente

National Instruments

National Instruments SCXI-1520 Manuale

National Instruments

National Instruments NI 9221 Manuale utente

National Instruments

National Instruments NI 9262 Manuale utente

National Instruments

National Instruments SET-1415 Manuale elenco delle parti

National Instruments

National Instruments NI 9751 Manuale utente

National Instruments

National Instruments SCXI -1122 Manuale

National Instruments

National Instruments PXIe-8267 Manuale utente

National Instruments

National Instruments cRIO-9068 Manuale utente

National Instruments

National Instruments NI 9425 Manuale utente

National Instruments

National Instruments NI 9870 Manuale utente

National Instruments

National Instruments NI PCIe-1430 Manuale utente

National Instruments

National Instruments 5761R Manuale utente

National Instruments

National Instruments PXIe-8240 Manuale utente

National Instruments

National Instruments NI PXIe-7975R Manuale utente

National Instruments

National Instruments NI 9381 Manuale utente

National Instruments

National Instruments Module SCXI-1125 Manuale utente

National Instruments

National Instruments FieldPoint FP-1300 Manuale utente

National Instruments

National Instruments NI FlexRIO PXI-7952R Manuale utente

National Instruments

National Instruments NI 9351 Manuale utente

National Instruments

National Instruments PXImc Series Manuale utente

National Instruments

National Instruments NI 9853 Manuale utente

National Instruments

National Instruments NI-9208 Manuale

National Instruments

National Instruments NI 9423 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
