GETTING STARTED GUIDE
IC-3120
Industrial Controller
The IC-3120 is a high-performance, fanless embedded system designed for rugged industrial
applications. This document explains how to install and configure the IC-3120.
Contents
Safety Information.................................................................................................................... 1
Electromagnetic Compatibility Guidelines...............................................................................2
Configuring the Hardware........................................................................................................ 2
Connecting the System Power Supply.............................................................................. 4
Connecting the Isolated Outputs Power Supply and PoE Power Supply......................... 5
Configuring the IC-3120 for NI Linux Real-Time....................................................................7
Connecting to the Development Computer.......................................................................7
Using Vision Builder AI with the IC-3120....................................................................... 7
Installing the NI Industrial Controller Device Drivers..................................................... 7
Setting a System Password............................................................................................... 9
Configuring the IC-3120 for Windows..................................................................................... 9
Connecting the IC-3120 to a Network.............................................................................. 9
Installing the NI Industrial Controller Device Drivers..................................................... 9
Troubleshooting...................................................................................................................... 10
Where to Go Next................................................................................................................... 13
Worldwide Support and Services............................................................................................ 13
Safety Information
Caution The following paragraphs contain important safety information you must
follow when installing and operating the device.
Do not operate the device in a manner not specified in the documentation. Misuse of the
device may result in a hazard and may compromise the safety protection built into the device.
If the device is damaged, turn it off and do not use it until service-trained personnel can check
its safety. If necessary, return the device to National Instruments for repair.
Keep away from live circuits. Do not remove equipment covers or shields unless you are
trained to do so. If signal wires are connected to the device, hazardous voltages can exist even
when the equipment is turned off. To avoid a shock hazard, do not perform procedures
involving cover or shield removal unless you are qualified to do so. Disconnect all field power
prior to removing covers or shields.
Because of the danger of introducing additional hazards, do not install unauthorized parts or
modify the device. Use the device only with the chassis, modules, accessories, and cables
specified in the installation instructions. All covers and filler panels must be installed while
operating the device.
This is a Pollution Degree 2 device. Do not operate the device in an explosive atmosphere or
where flammable gases or fumes may be present. Operate the device only at or below the
pollution degree stated in the specifications. Pollution consists of any foreign matter—solid,
liquid, or gas—that may reduce dielectric strength or surface resistivity. The following is a
description of pollution degrees.
• Pollution Degree 1—No pollution or only dry, nonconductive pollution occurs. The
pollution has no effect.
• Pollution Degree 2—Normally only nonconductive pollution occurs. Occasionally,
nonconductive pollution becomes conductive because of condensation.
• Pollution Degree 3—Conductive pollution or dry, nonconductive pollution occurs.
Nonconductive pollution becomes conductive because of condensation.
Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush.
Remove other contaminants with a stiff, nonmetallic brush. The unit must be completely dry
and free from contaminants before returning it to service.
You must insulate signal connections for the maximum voltage for which the device is rated.
Do not exceed the maximum ratings for the device. Remove power from signal lines before
connection to or disconnection from the device.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits provide reasonable protection against harmful interference when the product is
operated in the intended operational electromagnetic environment.
This product is intended for use in industrial locations. However, harmful interference may
occur in some installations, when the product is connected to a peripheral device or test object,
or if the product is used in residential or commercial areas. To minimize interference with
radio and television reception and prevent unacceptable performance degradation, install and
use this product in strict accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National
Instruments could void your authority to operate it under your local regulatory rules.
Configuring the Hardware
Remove the IC-3120 from the package and inspect the system for damage. Notify National
Instruments if the system appears damaged in any way. Do not use a damaged system.
2| ni.com | IC-3120 Getting Started Guide
Ensure that the AC input to the external power supply is disconnected before plugging in or
unplugging any connector. Ground the unit to minimize the possibility of static electricity
damage.
Refer to the following figures while configuring the hardware.
Figure 1. IC-3120 Power Connectors and Reset Button
SYSTEM
PoE
48 V
ISO
CISO CPoE
VPoE
VISO
5-24 V
12-24 V
C V
2
3
1
4
1. Reset Button
2. System Power Connector
3. Isolated Outputs and PoE Power Connector
4. Chassis Grounding Screw
IC-3120 Getting Started Guide | © National Instruments | 3

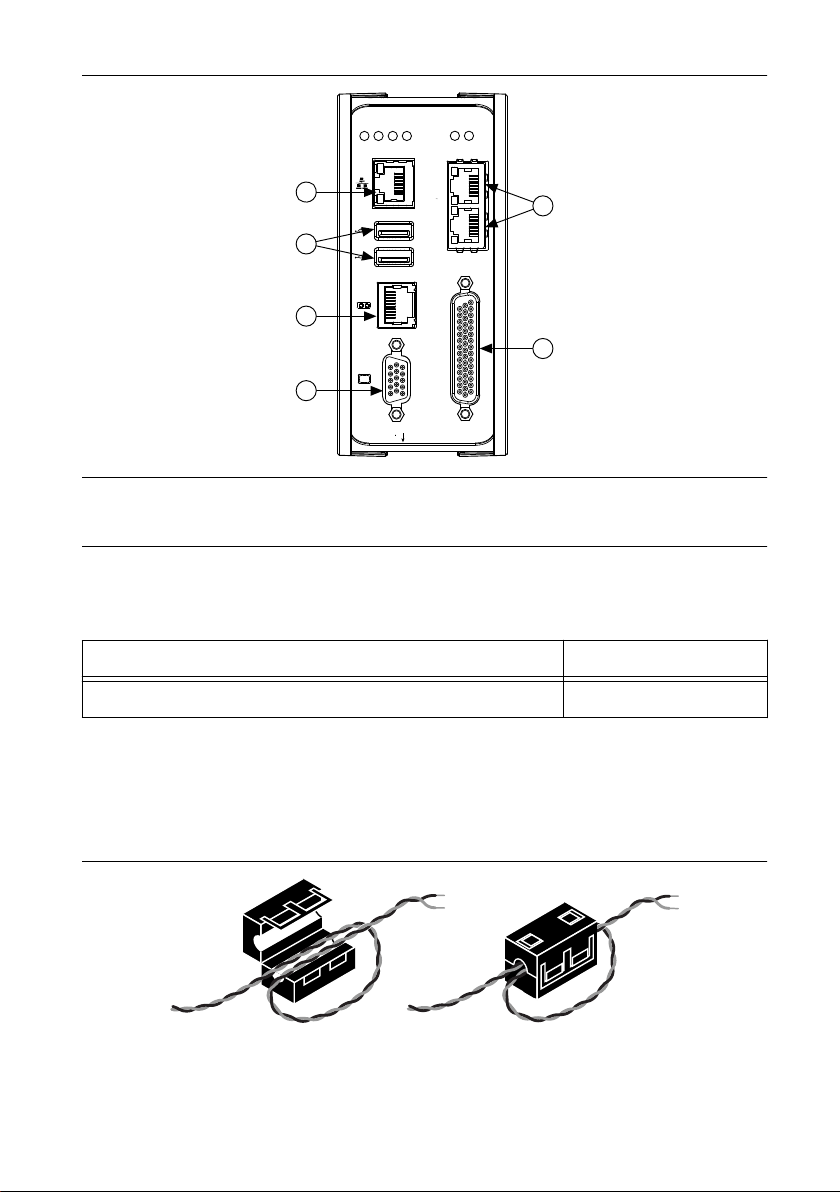

Figure 2. IC-3120 Front Panel Connectors
RESET
DIGITAL I/O
10/100/
1000
ACT/
LINK
USER1
USER2
PWR/
FAULT
STATUS
PoE0
PoE PORT 0 PoE PORT 1
PoE1
5
3
6
1
2
4
IC-3120
Industrial Controller
1. VGA Connector
2. RJ50 Serial Port
3. USB 2.0 Ports
4. RJ45 Network Port
5. Gigabit Ethernet PoE Ports
6. 44-pin Digital I/O Connector
Connecting the System Power Supply
NI recommends the following power supply for the IC-3120.
Power Supply Part Number
NI PS-15 Industrial Power Supply 781093-01
Complete the following steps to supply power to the IC-3120.
1. Verify the power source is turned off.
2. Install one ferrite across the negative and positive leads of the power source,
approximately 50 to 75 mm (2 to 3 in.) from the end of the power input wires.
Figure 3. Installing a Ferrite on the Power Leads
3. If the power connector plug is connected to the chassis, disconnect it from the device.
4| ni.com | IC-3120 Getting Started Guide

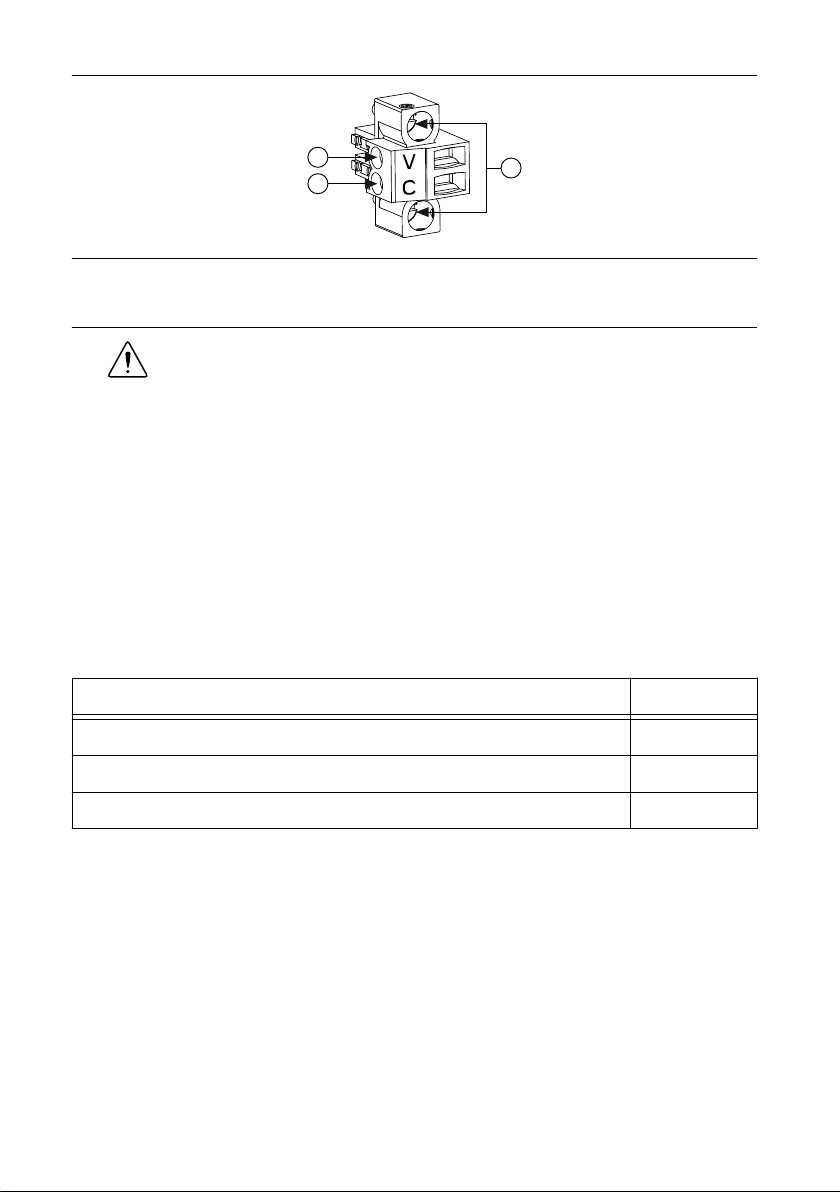

Figure 4. 2-Position Power Screw Terminal Connector
1
2
3
1. V (Positive) Terminal Screw
2. C (Negative) Terminal Screw
3. Connector Screws
Caution Do not tighten or loosen the terminal screws on the power connector
while the power is on.
4. Connect the positive lead of the power source to the V terminal of the power connector
plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.
5. Connect the negative lead of the power source to the C terminal of the power connector
plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.
6. Install the power connector plug into the SYSTEM power receptacle on the IC-3120
chassis and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.
7. Turn on the external power source.
Connecting the Isolated Outputs Power Supply and
PoE Power Supply
NI recommends the following power supplies for the IC-3120.
Power Supply Part Number
NI PS-15 Industrial Power Supply, to power the isolated outputs 781093-01
48 V, DIN Rail, Industrial Power Supply for Power over Ethernet 783307-01
48 V, Desktop Power Supply for Power over Ethernet 783308-01
Complete the following steps to supply power to the PoE ports and the isolated outputs.
1. Verify the power source is turned off.
2. Install one ferrite across the negative and positive leads of the power sources,
approximately 50 to 75 mm (2 to 3 in.) from the end of the power input wires. If you are
using an isolated output power supply and a PoE power supply, wrap the wires for both
power supplies through the same ferrite.
IC-3120 Getting Started Guide | © National Instruments | 5
Figure 5. Installing a Ferrite on the Power Leads
3. If the power connector plug is connected to the chassis, disconnect it from the device.
Figure 6. 4-Position Power Screw Terminal Connector
2
1
5
ISO POE
4
3
1. VPOE (Positive) Terminal Screw
2. CPOE (Negative) Terminal Screw
3. VISO (Positive) Terminal Screw
4. CISO (Negative) Terminal Screw
5. Connector Screws
Caution Do not tighten or loosen the terminal screws on the power connector
while the power is on.
4. Connect the positive lead of the isolated outputs power source to the V2 terminal of the
power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to
2.2 lb · in.) of torque.
5. Connect the negative lead of the isolated outputs power source to the C2 terminal of the
power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to
2.2 lb · in.) of torque.
6. Connect the positive lead of the PoE power source to the V1 terminal of the power
connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of
torque.
7. Connect the negative lead of the PoE power source to the C1 terminal of the power
connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of
torque.
8. Install the power connector plug into the ISO/PoE power receptacle on the IC-3120
chassis and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.
9. Turn on the external power source.
6| ni.com | IC-3120 Getting Started Guide
Configuring the IC-3120 for NI Linux Real-Time
The real-time version of the IC-3120 ships preloaded with NI Linux Real-Time. Complete this
section if you are using the real-time version of the IC-3120.
Connecting to the Development Computer
The IC-3120 can connect to the development computer directly or through a network.
Connecting Directly to the Development Computer
Complete the following steps to connect the device directly to the development computer.
1. Verify the development computer is powered on.
2. Connect one end of an Ethernet cable to the network port on the device.
3. Connect the free end of the cable to an Ethernet port on the development computer.
4. Verify the ACTIVITY/LINK LED on the port is on or blinking.
The device uses a link-local IP address when connected directly to the development computer.
Connecting to the Development Computer Over a Network
To connect over a network, the device must be on the same subnet as the development
computer. Complete the following steps to connect the device to the development computer
over a network.
1. Verify the development computer is powered on and connected to the network.
2. Connect one end of an Ethernet cable to the network port on the device.
3. Connect the free end of the cable to an Ethernet switch or other network device on the
same network as the development computer.
4. Verify the ACTIVITY/LINK LED on the port is on or blinking.
The device negotiates an IP address when connected to a network with a DHCP server or
comparable network device.
Using Vision Builder AI with the IC-3120
Complete the following steps to use Vision Builder AI with the IC-3120:
1. Install Vision Builder AI on the development computer.
2. Refer to the How to Configure NI Vision Builder AI Remote Targets section in the Vision
Builder for Automated Inspection: Configuration Help.
When using Vision Builder AI, it is not necessary to install the NI Industrial Controller Device
Drivers or use NI MAX to set a system password on the target.
Installing the NI Industrial Controller Device Drivers
Before using the IC-3120, install the drivers onto the device. Complete the following steps to
install and configure NI Industrial Controller Device Drivers:
1. Install NI Industrial Controller Device Drivers onto the Windows development machine
connected to the IC-3120.
IC-3120 Getting Started Guide | © National Instruments | 7
2. Run NI MAX.
3. Expand the Remote Systems list in the configuration tree.
4. Select the IC-3120 in the list. By default, MAX lists devices by the model number
followed by the serial number, such as IC-3120-XXXXXXXX.
5. Configure the network settings for the IC-3120. Refer to the Remote Systems Help in
MAX. Select Help»Help Topics»Remote Systems for instructions about configuring
network settings.
6. Install a recommended software set. If you would like to install custom software instead
of a recommended software set, proceed to the next step.
a) Expand the IC-3120 under Remote Systems.
b) Click the Software item below the IC-3120 in the configuration tree.
c) Click Add/Remove Software on the MAX toolbar to launch the LabVIEW Real-
Time Software Wizard.
d) Enter admin as the username and leave the password field blank.
e) Select NI Industrial Controller under the version of LabVIEW Real-Time you are
using.
f) Click Next.
g) Select any additional add-ons you would like to install to the IC-3120.
h) Click Next. Review the list of software to install.
i) Click Next to begin downloading the software to the IC-3120. When MAX finishes
downloading the software, the IC-3120 restarts.
j) Click Finish.
7. Install custom software. You do not need to install custom software if you installed a
recommended software set.
a) Expand the IC-3120 under Remote Systems.
b) Click the Software item below the IC-3120 in the configuration tree.
c) Click Add/Remove Software on the NI MAX toolbar to launch the LabVIEW Real-
Time Software Wizard.
d) Enter admin as the username and leave the password field blank.
e) If you are given a choice of recommended software sets, choose Custom software
installation and click Next to proceed with a custom installation.
f) Select the NI Industrial Controller Device Drivers, and any additional software you
would like to install on the IC-3120.
g) Click Next. Review the list of software to install.
h) Click Next to begin downloading the software to the IC-3120. When NI MAX
finishes downloading the software, the IC-3120 restarts.
i) Click Finish.
8. Connect hardware to the IC-3120. The NI Industrial Controller Device Drivers enable the
IC-3120 to detect any hardware connected.
9. Select the target in the configuration tree and click the Refresh button. Refresh the target
whenever you connect new hardware.
10. Expand Devices and Interfaces under the IC-3120 in the configuration tree. Select the
hardware connected to the IC-3120 from the list. You can view or modify the device
settings as allowed by the hardware.
8| ni.com | IC-3120 Getting Started Guide
Setting a System Password
Complete the following steps to set a system password.
Note The default username for the IC-3120 is admin. There is no default
password for the IC-3120, so you must leave the password field blank when logging
in until you set a system password.
1. In MAX, right-click the IC-3120 and select Web Configuration.
The NI Web-Based Configuration and Monitoring utility opens in the default browser and
is where you set the password. If you have not installed Microsoft Silverlight,
NI Web-based Configuration and Monitoring prompts you to do so.
2. Enter a unique name for your system in the Hostname field.
3. Click the Security Configuration icon.
4. Click Login.
5. In the Login dialog box, enter the username admin and leave the password field blank.
6. Click OK.
7. Click Change Password.
8. Enter and re-enter a new password.
9. Click OK.
10. Click Save.
11. Click OK to confirm you are changing the password.
Caution NI cannot recover lost system passwords. If you forget the password,
you must contact NI and reformat the controller.
Configuring the IC-3120 for Windows
The Windows version of the IC-3120 ships preloaded with Windows Embedded Standard 7
64-bit. Complete this section if you are using the Windows version of the IC-3120.
Connecting the IC-3120 to a Network
Complete the following steps to connect the device to a network.
1. Connect one end of an Ethernet cable to the network port on the device.
2. Connect the free end of the cable to an Ethernet hub or other network device.
3. Verify the ACTIVITY/LINK LED on the port is on or blinking.
By default, the operating system automatically attempts to connect to the network using
DHCP. If it is unable to initiate a DHCP connection, it connects to the network with a link-
local IP address (169.254.x.x).
Installing the NI Industrial Controller Device Drivers
Before using the IC-3120, install other National Instruments software, such as application
development environments, and then install the drivers onto the device.
IC-3120 Getting Started Guide | © National Instruments | 9
If you have an external USB DVD drive, you can use the external DVD drive to install the NI
Industrial Controller Device Drivers from the DVD shipped with the device. Otherwise,
complete the following steps to download and install the NI Industrial Controller Device
Drivers
1. Connect a USB keyboard and a USB mouse to the USB ports on the IC-3120.
2. Connect a monitor to the VGA on the IC-3120.
3. Using the web browser on the IC-3120, navigate to ni.com/drivers.
4. In the Drivers search field, search for NI Industrial Controller Device Drivers.
5. Download the latest version of NI Industrial Controller Device Drivers.
6. Run the NI Industrial Controller Device Drivers installer.
Troubleshooting
The following sections provide instructions for troubleshooting the IC-3120.
(RT Only) The IC-3120 Does Not Appear in MAX
• The IC-3120 may not be powered. Verify that there is system power to the device and that
both the IC-3120 and the development computer are properly connected to the network.
The PWR/FAULT LED should be lit green and the ACTIVITY/LINK LED on the
primary network port should flash green when refreshing the list of devices in MAX.
• Ensure you are connecting to the IC-3120 from a Windows development machine with NI
Industrial Controller Device Drivers installed.
• The IC-3120 may have been configured on another network and then moved to the
current network. Reconfigure the IC-3120 for the current network.
Note Connect a monitor and keyboard to the IC-3120 and press <Enter> to
view the current configuration settings of the device.
• Another device on the network is using the IP address assigned to the IC-3120. This can
happen when you assign the same static IP to two devices, you assign a static IP that is in
the range of the IP address available for DHCP use on your network, or the DHCP
assigns the same IP address to another device. Either remove or reconfigure the other
device, or reconfigure the IC-3120 to use a different IP address by putting it into the IP
RESET state and restarting into the normal state. Refer to the IC-3120 User Manual on
ni.com/manuals for instructions on how to perform an IP RESET.
• The cable you are using may be inappropriate for the speed of your network, causing
network communication dropout. While 1,000 Mbps communication over short cable
lengths can be achieved with the CAT5 cable commonly used for 10 and 100 Mbps,
CAT5e and CAT6 cables are more reliable and recommended for 1,000 Mbps links. The
IC-3120 has the ability to perform auto-crossover, allowing the use of straight or
crossover Ethernet cables, independent of the connection configuration.
• The IC-3120 is configured to acquire an IP address from a DHCP server, but no DHCP
server is available. By default, the target will automatically attempt to connect to the
10 | ni.com | IC-3120 Getting Started Guide
Altri manuali per IC-3120
1
Indice
Altri manuali National Instruments Controllori
National Instruments
National Instruments PXI-8109 Manuale utente
National Instruments
National Instruments PXI/CompactPCI Embedded Computer NI PXI-8108 Manuale utente
National Instruments
National Instruments NI SMD-7613 Manuale utente
National Instruments
National Instruments CompactRIO cRIO-9066 Manuale utente
National Instruments
National Instruments NI PXIe-8840 Manuale utente
National Instruments
National Instruments 9862 Manuale utente
National Instruments
National Instruments PXI-665 Series Manuale utente
National Instruments
National Instruments NI PXIe-8840 Manuale utente
National Instruments
National Instruments 7344 Series Manuale utente
National Instruments
National Instruments cRIO-904 Series Manuale utente
National Instruments
National Instruments Quanser QNET 2.0 Guida all'installazione
National Instruments
National Instruments PXIe-8820 Manuale utente
National Instruments
National Instruments NI cRIO-9025 Manuale utente
National Instruments
National Instruments cDAQ-9132 Manuale utente
National Instruments
National Instruments cRIO-9033 Manuale utente
National Instruments
National Instruments cRIO-FRC II Manuale utente
National Instruments
National Instruments NI cRIO-905x Series Manuale utente
National Instruments
National Instruments CompactRIO cRIO-9002 Manuale utente
National Instruments
National Instruments PXI-8820 Manuale utente
National Instruments
National Instruments cRIO-9063 Manuale utente
