GETTING STARTED GUIDE

IC-3121

Industrial Controller

The IC-3121 is a high-performance, fanless embedded system designed for rugged industrial

applications. This document explains how to install and configure the IC-3121.

Contents

Safety Information.................................................................................................................... 1

Electromagnetic Compatibility Guidelines...............................................................................2

Configuring the Hardware........................................................................................................ 2

Connecting the System Power Supply.............................................................................. 4

Connecting the Isolated Outputs Power Supply............................................................... 5

Configuring the IC-3121 for NI Linux Real-Time....................................................................6

Connecting to the Development Computer.......................................................................6

Using Vision Builder AI with the IC-3121....................................................................... 7

Installing the NI Industrial Controller Device Drivers..................................................... 7

Setting a System Password............................................................................................... 8

Configuring the IC-3121 for Windows..................................................................................... 9

Connecting the IC-3121 to a Network.............................................................................. 9

Installing the NI Industrial Controller Device Drivers..................................................... 9

Troubleshooting........................................................................................................................ 9

Where to Go Next................................................................................................................... 13

Worldwide Support and Services............................................................................................ 13

Safety Information

Caution The following paragraphs contain important safety information you must

follow when installing and operating the device.

Do not operate the device in a manner not specified in the documentation. Misuse of the

device may result in a hazard and may compromise the safety protection built into the device.

If the device is damaged, turn it off and do not use it until service-trained personnel can check

its safety. If necessary, return the device to National Instruments for repair.

Keep away from live circuits. Do not remove equipment covers or shields unless you are

trained to do so. If signal wires are connected to the device, hazardous voltages can exist even

when the equipment is turned off. To avoid a shock hazard, do not perform procedures

involving cover or shield removal unless you are qualified to do so. Disconnect all field power

prior to removing covers or shields.

Because of the danger of introducing additional hazards, do not install unauthorized parts or

modify the device. Use the device only with the chassis, modules, accessories, and cables

specified in the installation instructions. All covers and filler panels must be installed while

operating the device.

This is a Pollution Degree 2 device. Do not operate the device in an explosive atmosphere or

where flammable gases or fumes may be present. Operate the device only at or below the

pollution degree stated in the specifications. Pollution consists of any foreign matter—solid,

liquid, or gas—that may reduce dielectric strength or surface resistivity. The following is a

description of pollution degrees.

• Pollution Degree 1—No pollution or only dry, nonconductive pollution occurs. The

pollution has no effect.

• Pollution Degree 2—Normally only nonconductive pollution occurs. Occasionally,

nonconductive pollution becomes conductive because of condensation.

• Pollution Degree 3—Conductive pollution or dry, nonconductive pollution occurs.

Nonconductive pollution becomes conductive because of condensation.

Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush.

Remove other contaminants with a stiff, nonmetallic brush. The unit must be completely dry

and free from contaminants before returning it to service.

You must insulate signal connections for the maximum voltage for which the device is rated.

Do not exceed the maximum ratings for the device. Remove power from signal lines before

connection to or disconnection from the device.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Configuring the Hardware

Remove the IC-3121 from the package and inspect the system for damage. Notify National

Instruments if the system appears damaged in any way. Do not use a damaged system.

2| ni.com | IC-3121 Getting Started Guide

Ensure that the AC input to the external power supply is disconnected before plugging in or

unplugging any connector. Ground the unit to minimize the possibility of static electricity

damage.

Refer to the following figures while configuring the hardware.

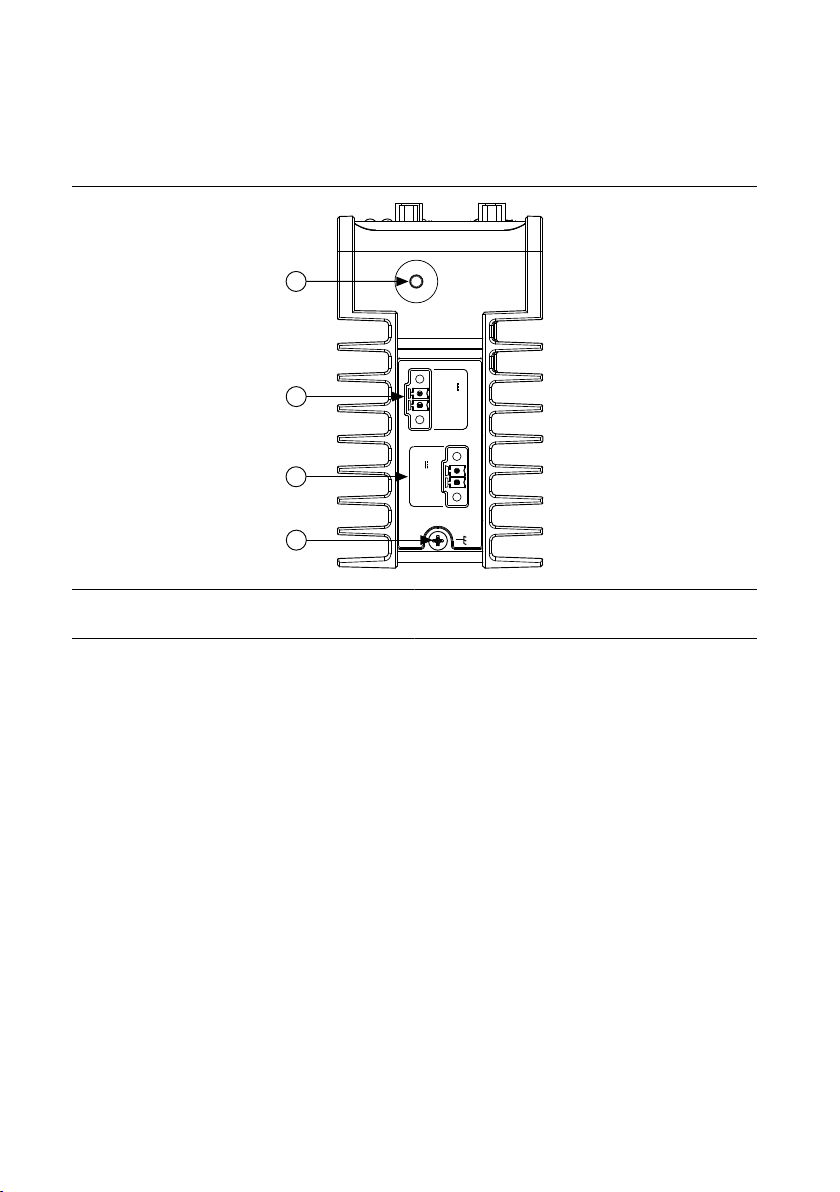

Figure 1. IC-3121 Power Connectors and Reset Button

SYSTEM

12-24 V

C V

ISO

5-24 V

CISO VISO

1. Reset Button

2. System Power Connector

3. Isolated Outputs Power Connector

4. Chassis Grounding Screw

IC-3121 Getting Started Guide | © National Instruments | 3

Figure 2. IC-3121 Front Panel Connectors

IC-3121

Industrial Controller

RESET

DIGITAL I/O

10/100/

1000

ACT/

LINK

USER1

USER2

PWR/

FAULT

STATUS

1. VGA Connector

2. RJ50 Serial Port

3. USB 2.0 Ports

4. RJ45 Network Port

5. USB 3.0 Ports

6. 44-pin Digital I/O Connector

Connecting the System Power Supply

NI recommends the following power supply for the IC-3121.

Power Supply Part Number

NI PS-15 Industrial Power Supply 781093-01

Complete the following steps to supply power to the IC-3121.

1. Verify the power source is turned off.

2. If the power connector plug is connected to the chassis, disconnect it from the device.

4| ni.com | IC-3121 Getting Started Guide

Figure 3. 2-Position Power Screw Terminal Connector

1. V (Positive) Terminal Screw

2. C (Negative) Terminal Screw

3. Connector Screws

Caution Do not tighten or loosen the terminal screws on the power connector

while the power is on.

3. Connect the positive lead of the power source to the V terminal of the power connector

plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.

4. Connect the negative lead of the power source to the C terminal of the power connector

plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.

5. Install the power connector plug into the SYSTEM power receptacle on the IC-3121

chassis and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.

6. Turn on the external power source.

Connecting the Isolated Outputs Power Supply

NI recommends the following power supply for the IC-3121.

Power Supply Part Number

NI PS-15 Industrial Power Supply 781093-01

Complete the following steps to supply power to the isolated outputs.

1. Verify the power source is turned off.

2. If the power connector plug is connected to the chassis, disconnect it from the device.

IC-3121 Getting Started Guide | © National Instruments | 5

Figure 4. 2-Position Power Screw Terminal Connector

1. V (Positive) Terminal Screw

2. C (Negative) Terminal Screw

3. Connector Screws

Caution Do not tighten or loosen the terminal screws on the power connector

while the power is on.

3. Connect the positive lead of the isolated outputs power source to the V terminal of the

power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb ·

in.) of torque.

4. Connect the negative lead of the isolated outputs power source to the C terminal of the

power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb ·

in.) of torque.

5. Install the power connector plug into the ISO power receptacle on the IC-3121 chassis

and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.

6. Turn on the external power source.

Configuring the IC-3121 for NI Linux Real-Time

The real-time version of the IC-3121 ships preloaded with NI Linux Real-Time. Complete this

section if you are using the real-time version of the IC-3121.

Connecting to the Development Computer

The IC-3121 can connect to the development computer directly or through a network.

Connecting Directly to the Development Computer

Complete the following steps to connect the device directly to the development computer.

1. Verify the development computer is powered on.

2. Connect one end of an Ethernet cable to the network port on the device.

3. Connect the free end of the cable to an Ethernet port on the development computer.

4. Verify the ACTIVITY/LINK LED on the port is on or blinking.

The device uses a link-local IP address when connected directly to the development computer.

6| ni.com | IC-3121 Getting Started Guide

Connecting to the Development Computer Over a Network

To connect over a network, the device must be on the same subnet as the development

computer. Complete the following steps to connect the device to the development computer

over a network.

1. Verify the development computer is powered on and connected to the network.

2. Connect one end of an Ethernet cable to the network port on the device.

3. Connect the free end of the cable to an Ethernet switch or other network device on the

same network as the development computer.

4. Verify the ACTIVITY/LINK LED on the port is on or blinking.

The device negotiates an IP address when connected to a network with a DHCP server or

comparable network device.

Using Vision Builder AI with the IC-3121

Complete the following steps to use Vision Builder AI with the IC-3121:

1. Install Vision Builder AI on the development computer.

2. Refer to the How to Configure NI Vision Builder AI Remote Targets section in the Vision

Builder for Automated Inspection: Configuration Help.

When using Vision Builder AI, it is not necessary to install the NI Industrial Controller Device

Drivers or use NI MAX to set a system password on the target.

Installing the NI Industrial Controller Device Drivers

Before using the IC-3121, install the drivers onto the device. Complete the following steps to

install and configure NI Industrial Controller Device Drivers:

1. Install NI Industrial Controller Device Drivers onto the Windows development machine

connected to the IC-3121.

2. Run NI MAX.

3. Expand the Remote Systems list in the configuration tree.

4. Select the IC-3121 in the list. By default, MAX lists devices by the model number

followed by the serial number, such as IC-3121-XXXXXXXX.

5. Configure the network settings for the IC-3121. Refer to the Remote Systems Help in

MAX. Select Help»Help Topics»Remote Systems for instructions about configuring

network settings.

6. Install a recommended software set. If you would like to install custom software instead

of a recommended software set, proceed to the next step.

a) Expand the IC-3121 under Remote Systems.

b) Click the Software item below the IC-3121 in the configuration tree.

c) Click Add/Remove Software on the MAX toolbar to launch the LabVIEW Real-

Time Software Wizard.

d) Enter admin as the username and leave the password field blank.

e) Select NI Industrial Controller under the version of LabVIEW Real-Time you are

using.

IC-3121 Getting Started Guide | © National Instruments | 7

f) Click Next.

g) Select any additional add-ons you would like to install to the IC-3121.

h) Click Next. Review the list of software to install.

i) Click Next to begin downloading the software to the IC-3121. When MAX finishes

downloading the software, the IC-3121 restarts.

j) Click Finish.

7. Install custom software. You do not need to install custom software if you installed a

recommended software set.

a) Expand the IC-3121 under Remote Systems.

b) Click the Software item below the IC-3121 in the configuration tree.

c) Click Add/Remove Software on the NI MAX toolbar to launch the LabVIEW Real-

Time Software Wizard.

d) Enter admin as the username and leave the password field blank.

e) If you are given a choice of recommended software sets, choose Custom software

installation and click Next to proceed with a custom installation.

f) Select the NI Industrial Controller Device Drivers, and any additional software you

would like to install on the IC-3121.

g) Click Next. Review the list of software to install.

h) Click Next to begin downloading the software to the IC-3121. When NI MAX

finishes downloading the software, the IC-3121 restarts.

i) Click Finish.

8. Connect hardware to the IC-3121. The NI Industrial Controller Device Drivers enable the

IC-3121 to detect any hardware connected.

9. Select the target in the configuration tree and click the Refresh button. Refresh the target

whenever you connect new hardware.

10. Expand Devices and Interfaces under the IC-3121 in the configuration tree. Select the

hardware connected to the IC-3121 from the list. You can view or modify the device

settings as allowed by the hardware.

Setting a System Password

Complete the following steps to set a system password.

Note The default username for the IC-3121 is admin. There is no default

password for the IC-3121, so you must leave the password field blank when logging

in until you set a system password.

1. In MAX, right-click the IC-3121 and select Web Configuration.

The NI Web-Based Configuration and Monitoring utility opens in the default browser and

is where you set the password. If you have not installed Microsoft Silverlight,

NI Web-based Configuration and Monitoring prompts you to do so.

2. Enter a unique name for your system in the Hostname field.

3. Click the Security Configuration icon.

4. Click Login.

5. In the Login dialog box, enter the username admin and leave the password field blank.

8| ni.com | IC-3121 Getting Started Guide

6. Click OK.

7. Click Change Password.

8. Enter and re-enter a new password.

9. Click OK.

10. Click Save.

11. Click OK to confirm you are changing the password.

Caution NI cannot recover lost system passwords. If you forget the password,

you must contact NI and reformat the controller.

Configuring the IC-3121 for Windows

The Windows version of the IC-3121 ships preloaded with Windows Embedded Standard 7

64-bit. Complete this section if you are using the Windows version of the IC-3121.

Connecting the IC-3121 to a Network

Complete the following steps to connect the device to a network.

1. Connect one end of an Ethernet cable to the network port on the device.

2. Connect the free end of the cable to an Ethernet hub or other network device.

3. Verify the ACTIVITY/LINK LED on the port is on or blinking.

By default, the operating system automatically attempts to connect to the network using

DHCP. If it is unable to initiate a DHCP connection, it connects to the network with a link-

local IP address (169.254.x.x).

Installing the NI Industrial Controller Device Drivers

Before using the IC-3121, install other National Instruments software, such as application

development environments, and then install the drivers onto the device.

If you have an external USB DVD drive, you can use the external DVD drive to install the NI

Industrial Controller Device Drivers from the DVD shipped with the device. Otherwise,

complete the following steps to download and install the NI Industrial Controller Device

Drivers

1. Connect a USB keyboard and a USB mouse to the USB ports on the IC-3121.

2. Connect a monitor to the VGA on the IC-3121.

3. Using the web browser on the IC-3121, navigate to ni.com/drivers.

4. In the Drivers search field, search for NI Industrial Controller Device Drivers.

5. Download the latest version of NI Industrial Controller Device Drivers.

6. Run the NI Industrial Controller Device Drivers installer.

Troubleshooting

The following sections provide instructions for troubleshooting the IC-3121.

IC-3121 Getting Started Guide | © National Instruments | 9

(RT Only) The IC-3121 Does Not Appear in MAX

• The IC-3121 may not be powered. Verify that there is system power to the device and that

both the IC-3121 and the development computer are properly connected to the network.

The PWR/FAULT LED should be lit green and the ACTIVITY/LINK LED on the

primary network port should flash green when refreshing the list of devices in MAX.

• Ensure you are connecting to the IC-3121 from a Windows development machine with NI

Industrial Controller Device Drivers installed.

• The IC-3121 may have been configured on another network and then moved to the

current network. Reconfigure the IC-3121 for the current network.

Note Connect a monitor and keyboard to the IC-3121 and press <Enter> to

view the current configuration settings of the device.

• Another device on the network is using the IP address assigned to the IC-3121. This can

happen when you assign the same static IP to two devices, you assign a static IP that is in

the range of the IP address available for DHCP use on your network, or the DHCP

assigns the same IP address to another device. Either remove or reconfigure the other

device, or reconfigure the IC-3121 to use a different IP address by putting it into the IP

RESET state and restarting into the normal state. Refer to the IC-3121 User Manual on

ni.com/manuals for instructions on how to perform an IP RESET.

• The cable you are using may be inappropriate for the speed of your network, causing

network communication dropout. While 1,000 Mbps communication over short cable

lengths can be achieved with the CAT5 cable commonly used for 10 and 100 Mbps,

CAT5e and CAT6 cables are more reliable and recommended for 1,000 Mbps links. The

IC-3121 has the ability to perform auto-crossover, allowing the use of straight or

crossover Ethernet cables, independent of the connection configuration.

• The IC-3121 is configured to acquire an IP address from a DHCP server, but no DHCP

server is available. By default, the target will automatically attempt to connect to the

network using DHCP. If the target is unable to initiate a DHCP connection, the target

connects to the network with a link-local IP address (169.254.x.x).

• You may be experiencing firewall issues. If you are having difficulty detecting the system

and setting up the IC-3121 on your network, you must configure the firewall to open the

TCP/UDP ports used by the IC-3121 and the host machine. Refer to the following table

for more information about TCP/UDP ports.

Table 1. TCP/UDP Ports Used by the IC-3121

Port Type Details

3580 TCP/UDP Reserved as nati-svrloc (NATI-ServiceLocator). Used by MAX to locate

remote targets.

7749 TCP Used for remote image display (not reserved).

7750 TCP Used for NI-IMAQdx remote configuration (not reserved).

3363 TCP/UDP Reserved as nati-vi-server (NATI VI Server). Used by Vision Builder AI

to configure a remote target.

10 | ni.com | IC-3121 Getting Started Guide

Altri manuali per IC-3121

Indice

Altri manuali National Instruments Controllori

National Instruments

National Instruments sbRIO-9629 Manuale utente

National Instruments

National Instruments PXI-8119 Manuale utente

National Instruments

National Instruments NI cRIO-9065 Manuale utente

National Instruments

National Instruments DAQ-STC Series Manuale del prodotto

National Instruments

National Instruments cRIO-9064 Manuale utente

National Instruments

National Instruments NI cDAQ-9134 Manuale del proprietario

National Instruments

National Instruments CompactRIO cRIO-9066 Manuale utente

National Instruments

National Instruments cRIO-9037 Manuale utente

National Instruments

National Instruments PCI-8212 Manuale utente

National Instruments

National Instruments 73 Series Manuale utente

National Instruments

National Instruments cRIO-9039 Manuale utente

National Instruments

National Instruments 7344 Series Manuale utente

National Instruments

National Instruments NI-7931 Manuale utente

National Instruments

National Instruments SB-GPIB Manuale utente

National Instruments

National Instruments NI cRIO-905x Series Manuale utente

National Instruments

National Instruments NI cDAQTM-9138 Manuale utente

National Instruments

National Instruments NI 8350 Manuale utente

National Instruments

National Instruments VXI Series Manuale utente

National Instruments

National Instruments NI cRIO-9036 Manuale utente

National Instruments

National Instruments NI PXIe-8840 Manuale utente

National Instruments

National Instruments CompactRIO cRIO-9066 Manuale utente

National Instruments

National Instruments CompactRIO NI cRIO-9012 Manuale utente

National Instruments

National Instruments sbRIO-9608 Manuale utente

National Instruments

National Instruments PXI-7340 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
