Assembly Manual

NB 3000

EXERCISE BIKE

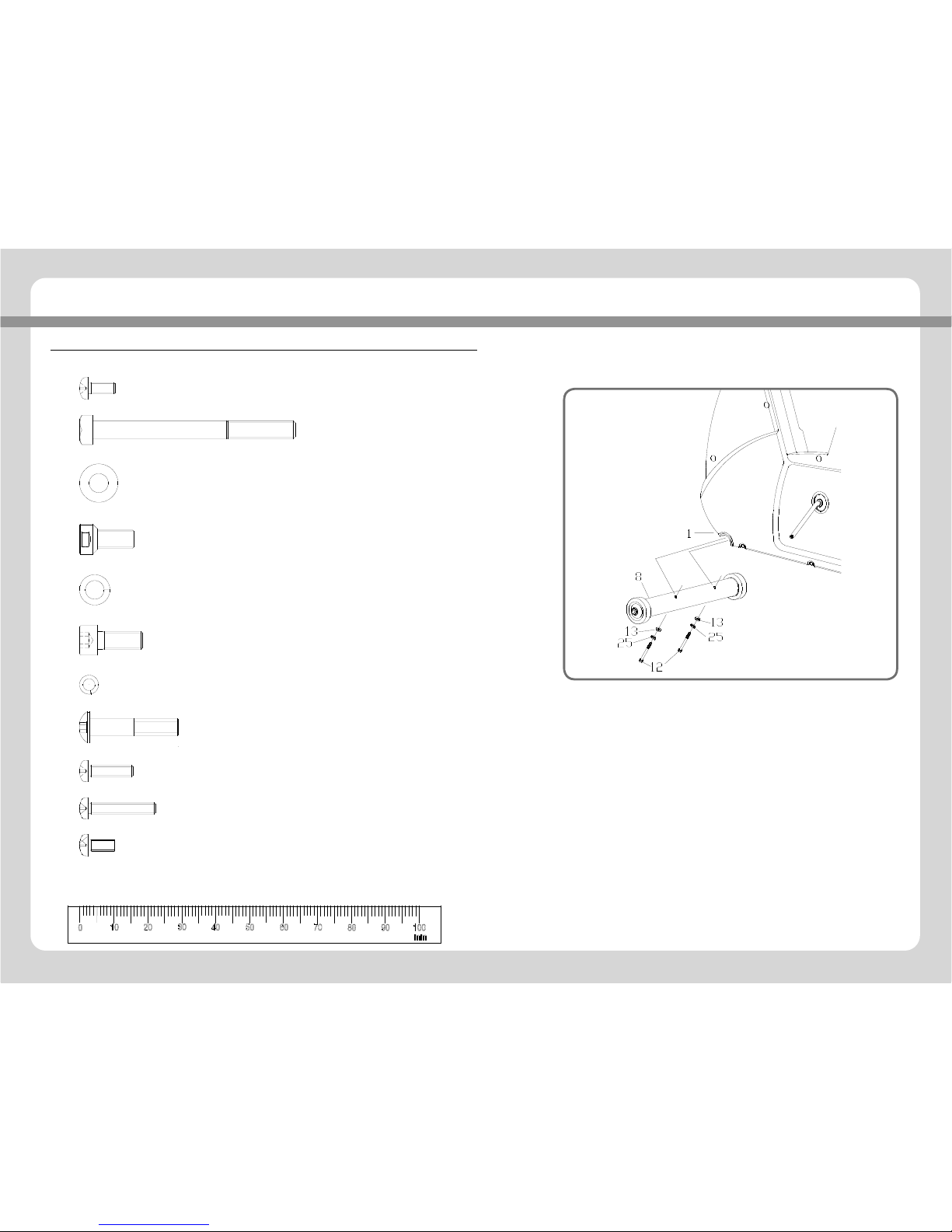

TOOLS AND HARDWARE

STEP 1: Attaching the Front Stabilizer

Attach the front stabilizer (#8) to the frame (#1), using two washers (#13), two spring

washers (#25) and two hex bolts (#12).

ASSEMBLY INSTRUCTIONS

NO. Description Quantity

11 Phillips Head Screw M5 (12mm) 2

12 Hex Bolt M8 (90mm) 4

13 Flat Washer 6

19 Allen Bolt M8 (16mm) 2

25 Spring Washer 6

27 Allen Bolt M8 (20mm) 2

37 Spring washer 4

86 Button Head Screw M8 (45mm) 2

7-5 Phillips Head Screw M5 (25mm) 2

7-4 Phillips Head Screw M5 (35mm) 2

7-6 Phillips Head Screw M5 (10mm) 4

NB 3000 EXERCISE BIKE ASSEMBLY INSTRUCTIONS

STEP 2: Attaching the Rear Stabilizer

Attach the rear stabilizer (#9) to the frame (#1), using two washers (#13), two

spring washers (#25) and two hex bolts (#12).

STEP 3: Assembling Handlebar & Console Mast

Attach the handlebar (#6) to the console mast (#2), using two washers (#13), two

spring washers (#25) and two button head screws (#86). Insert the handlebar boot

(#64) into the shrouds (#17, #18). Connect the upper computer wire (#21) with the

lower computer wire(#68). Secure the console mast using two Allen bolts (#19) and

two shroud caps (#20). Be careful not to damage computer wire during assembly.

NB 3000 EXERCISE BIKE ASSEMBLY INSTRUCTIONS

STEP 4: Attaching Computer Console

Plug the upper computer wire (#21) and the hand grip wire (#70) into the com-

puter console (#7-1). Fasten the computer console (#7-1) to the console mast (#2)

using four washers (#37) and four Phillips head screws (#7-6). Attach the computer

lower cover (#7-3) to the computer console (#7-1) using two 35mm Phillips head

screws (#7-4), and two 25mm Phillips head screws (#7-5).

STEP 5: Attaching Water Bottle Cage

Install the bottle bracket (#65) into the shroud using two Allen bolts (#27). Then

assemble the water bottle cage (#61) into the bracket using two Phillips head screws

(#11).

NB 3000 EXERCISE BIKE ASSEMBLY INSTRUCTIONS

STEP 6: Installing Seat

Secure the seat (#5) onto the seat post (#3) by tightening the hex nut below the

seat frame. Then loosen the pull knob (#14) and install the seat post into the frame

(#1). You will want to adjust seat (#5) to desired angle after you test for comfort.

STEP 7: Installing Pedals & Straps

Attach the pedals (#10-1[L] and #10-1[R]) to crank (#4) using supplied wrench. The

left pedal is left-handed thread, and must be tightened counter-clockwise. The

right pedal is right-handed thread, and must be tightened clockwise. After pedals

are installed, attach pedal straps to pedals at desired length.

NB 3000 EXERCISE BIKE

Final Check

Assembly of your Nautilus bike is now complete. Check again to insure that all parts

are properly installed and that all nuts and bolts are completely secured. Get on the

bike and check to see that the computer console and resistance system are working

properly.

Please be sure to read through your Nautilus owner’s manual completely before

using your bike. It will describe in detail how to operate the product safely and cor-

rectly.

Should you experience any problems or have any additional questions about your

Nautilus bike, please contact your Authorized Nautilus Fitness Retailer from where

your equipment was purchased.

The Nautilus Group

1886 Prairie Way

Louisville, Colorado 80027

1.888.471.0014

www.nautilus.com

Rev.C
