Nautilus NR 2000 Manuale utente
Assembly Manual
NR 2000
EXERCISE BIKE
PN 50008 Rev C (06/26/2007)
TOOLS AND HARDWARE
PARTS LIST
ITEM NO. DESCRIPTION QTY.
1 MAIN FRAME 1
2 REAR STABILIZER 1
3 M8x1.25x65 SOCKET HEAD CAP SCREW 2
4 M8 SPRING WASHER 22
5 M8 WASHER 24
6 FRONT STABILIZER 1
7 HANDLE BAR MAST 1
8 HEART RATE SPRING WIRE 1
9 UPPER SPEED SENSOR WIRE 1
10 ADAPTOR 1
11 SPEED SENSOR ASSEMBLY 1
12 M8x1.25x15L SOCKET HEAD CAP SCREW 5
13 BOOT SHROUD 1
14 M5x0.8x12L FLAT HEAD SCREW 9
15 M5x0.8x10L SCREW 3
16 SEAT BACK ASSEMBLY 1
17 SEAT SUPPORT-HANDLE ASSEMBLY 1
18 M8x1.25x55L SOCKET HEAD CAP SCREW 4
19 SEAT 1
20 SEAT BACK 1
21 SEAT BACK COVER 1
22 M8x1.25x20 SOCKET HEAD CAP SCREW 10
23 HANDLE BAR ASSEMBLY 1
24 M8x1.25x40 SCREW 2
25 COMPUTER 1
26 COMPUTER LOWER CASE 1
27 M4x0.7x10L PAN HEAD SCREW 4
28 M4x0.7x12L PAN HEAD SCREW 4
29 WATER BOTTLE CAGE 1
30 SEAT CARRIAGE FRAME 1
31 M6x1.0x6L SCREW 3
32 UPPER HEART RATE SPRING WIRE 1
33L PEDAL LEFT 1
33R PEDAL RIGHT 1
ASSEMBLY INSTRUCTIONS
STEP 1: Attaching the Rear Stabilizer
Attach the rear stabilizer (2) to the base frame rear bracket, using 2 - 20mm socket
head cap screws (22), 2 - spring washers (4) and 2 - washers (5).
NR 2000 RECUMBENT BIKE
STEP 2 : Attaching the Front Stabilizer
Attach the front stabilizer (6) to the base frame front bracket, using 2 - 65mm
socket head cap screws (3), 2 - spring washers (4) and 2 - washers (5).
ASSEMBLY INSTRUCTIONS
STEP 3: Installing Boot Shroud and
Handlebar Mast
Slide the boot shroud (13) up the handlebar mast (7). This part will be secured in
place last.
Plug the upper speed sensor wire (9) into the lower speed sensor wire (11). Plug the
upper heart rate wire (32) into the lower heart rate wire (8).
Attach the handlebar mast (7) to the main frame (1) with 6 – 15mm socket head
cap screws (12), 6 – spring washers (4) and 6 – washers (5). Be careful not to dam-
age or pinch wires while assembling.
Lower the boot shroud (13) and secure with 6 – 12mm flat head screws (14).
NR 2000 RECUMBENT BIKE
STEP 4: Installing Seat Frame Assembly
Place seat handle assembly (17) on top of seat carriage frame (30). Feed the grip
heart rate wire assembly (8) through hole is the seat handle assembly (17). Plug
the grip heart rate wire assembly (8) into the grip heart rate connector (17A). Now
attach the seat back support assembly (16) through the seat handle assembly (17)
and into the seat carriage frame (30) using 4 - 55mm socket head cap screws (18),
4-spring washers (4) and 4 –washers (5).
CAUTION: Use care to avoid damaging wire harness when installing seat assembly.
4
18
5
8
16
17
17A
30
ASSEMBLY INSTRUCTIONS
STEP 5: Installing the Seat Bottom and
Seat Back
Attach the seat bottom (19) to the seat handle assembly (17) with 4 - 20mm socket
head cap screws (22), 4 – spring washers (4) and 4 - washer (5).
Attach the seat back (20) to the seat back support assembly (16)
with 4 – 20mm socket head cap screws (22), 4 – spring washers (4) and 4 –
washers (5)
Attach the seat back cover (21) to the seat back support assembly (16) with 3
– 12mm flat head screws (14).
20
19
17
5
4
22
4
21
14 16
22
5
NR 2000 RECUMBENT BIKE
STEP 6: Installing Handlebar Assembly
Attach the handlebar assembly (23) to the handlebar mast (7) with 2 – 40mm
socket head cap screws (24), and 2 – washers (5).
ASSEMBLY INSTRUCTIONS

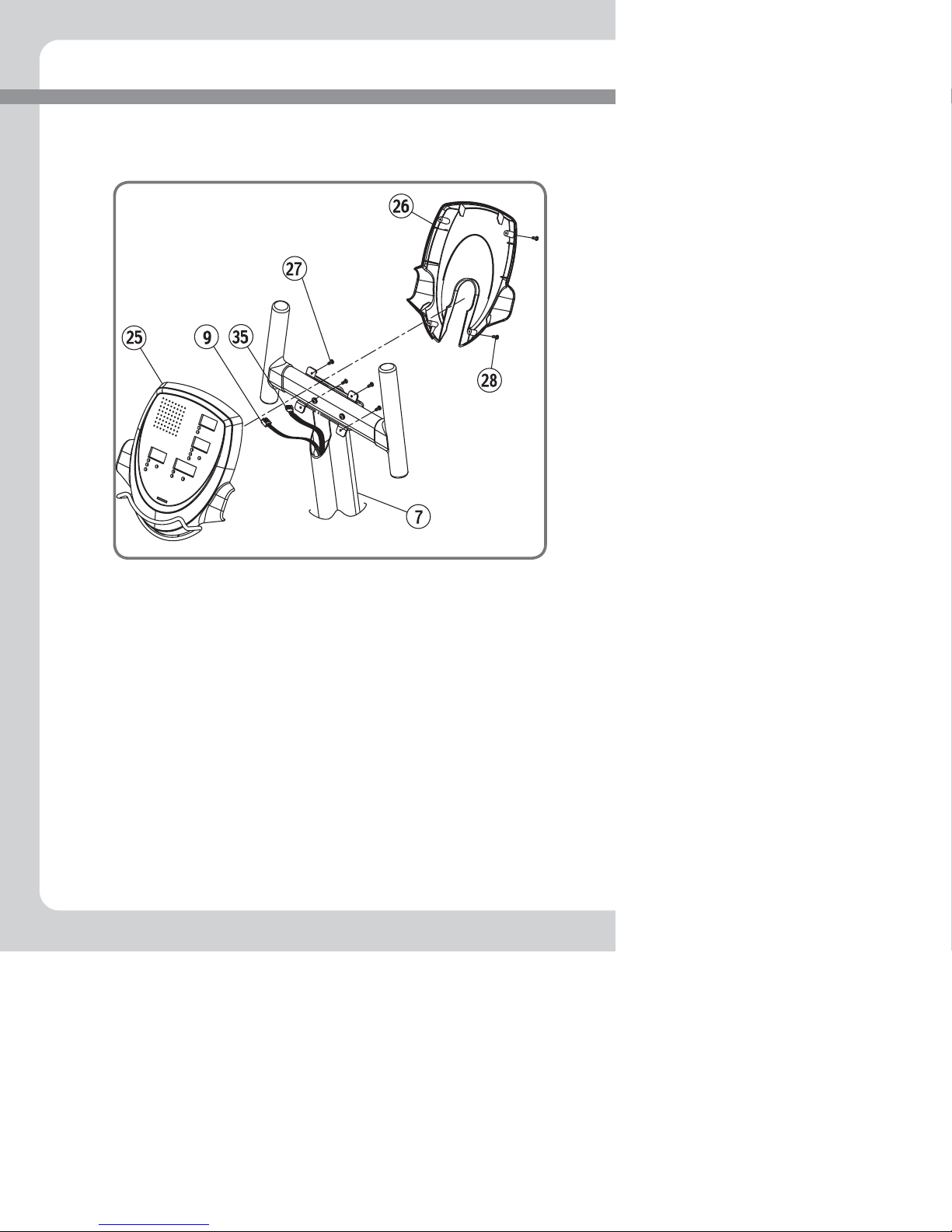

STEP 7: Attaching the Computer Console
Plug the upper speed sensor wire (9), and the upper heart rate wire (35) into the
back of computer (25). Attach the computer (25) to the handlebar mast (7) using
4 – 10mm pan head screws (27). Then attach the computer lower case (26) to the
computer (25) using 4 - 12mm pan head screws (28).
