NetComm V200 Manuale utente

2 V200 VoIP Telephone Adaptor/Router

YML796 Rev1

Contents

VoIP Telephone Adaptor/Router settings ................................................................. 3

Chapter 1 Introduction ......................................................................................... 4

1.1 Product Overview ...................................................................................... 4

1.2 Features ................................................................................................... 5

1.3 Application ............................................................................................... 7

1.4 System Minimum Requirements ................................................................... 8

1.5 Your Broadband Connection Bandwidth Consideration ..................................... 8

1.6 Package Contents ...................................................................................... 9

1.7 Front Panel LED Indicators ........................................................................ 10

1.8 Back Panel and Wiring .............................................................................. 11

1.9 Power-up, Boot and Reset ......................................................................... 11

Chapter 2 Quick Start ........................................................................................ 12

2.1 Before you begin ..................................................................................... 12

2.2 Typical Network Connections for V200 ........................................................ 13

2.3 Installation ............................................................................................. 15

2.3.1 Cable Connections ................................................................................... 15

2.3.2 Power on your V200 and PC ...................................................................... 15

2.3.3 Connecting to V200 ................................................................................. 15

2.3.4 Conﬁgure the V200 via Web browser.......................................................... 18

Appendix A: Cable Information ............................................................................ 23

Appendix B: Glossary ......................................................................................... 25

Appendix C: Registration and Warranty Information ............................................... 30

V200 VoIP Telephone Adaptor/Router 3

YML796 Rev1

VoIP Telephone Adaptor/Router settings

WEB account:

User Name: admin

Password: admin

LAN port IP: 192.168.30.1

4 V200 VoIP Telephone Adaptor/Router

YML796 Rev1

Chapter 1 Introduction

This chapter gives a brief introduction to the V200 VoIP Telephone Adaptor/Router, including a

product overview, description of the product features and its application.

1.1 Product Overview

The V200 has been designed for residential and small business users to deliver predictable

real-time voice quality over the Internet. It connects directly to any broadband modem and

service (Cable or DSL) which supports VoIP.

Two standard analogue telephones (desktop or cordless) can be connected to the Phone

(FXS) ports on the back of the V200, allowing the user to route calls over the Internet to

anywhere in the world using VoIP, signiﬁcantly reducing or eliminating long distance call

charges.

To enhance your VoIP experience and simplify network integration, the V200 is equipped

with a 3-port Switch and Quality of Service (QoS) Router. The V200’s QoS feature ensures

you maintain high-quality VoIP calls during periods of heavy Internet use by dynamically

calculating and prioritising the required upstream bandwidth.

The V200 can be conﬁgured as a DHCP server for LAN and Network Address Translation

(NAT) can be used to translate private addresses to public address. In this way, computers in

the LAN do not require public IP addresses in order to access the Internet.

V200 VoIP Telephone Adaptor/Router 5

YML796 Rev1

1.2 Features

VoIP Protocol Support

• Session Initiation Protocol (SIP)

• Session Description Protocol (SDP)

• Transport Protocol for Real-Time Applications (RTP)

VoIP Audio Codec

• G.729a

• G.711 alaw

• G.711 ulaw

DTMF Relay

• In-band

• Out-band (RFC 2833)

Voice Features

• Echo Cancellation (G.168)

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Silence Suppression

• Jitter Buffer

• Adjustable RTP packetization interval

Telephone Function Support

• Caller ID (On/Off hook Caller ID ETSI based)

• DTMF tone generation

• Dial tone, Busy tone, Ring back tone generation

QoS

• Internal bandwidth control

• Allocating enough bandwidth for VoIP calls

VoIP Call types

• SIP proxy

• Phone Book for Peer-to-Peer IP Call

Built-in Router

• DHCP client/server

• NAT

• Port Forwarding

• DMZ

• Virtual Server

6 V200 VoIP Telephone Adaptor/Router

YML796 Rev1

VoIP call functions *

• Call Transfer

• Call Waiting

• Call Hold/Resume

• Call Forward

• Call Switch

• CFU (Call Forward Unconditional)

• CFB (Call Forward Busy)

WAN Protocol Support

• DHCP client

• Static IP

• PPP over Ethernet client

Internet Support

• IP, TCP, UDP, ICMP, ARP protocols

• HTTP

• DNS

VPN Support

• IPSec and PPTP pass-through

Security

• PAP/CHAP for PPPoE authentication

• MD5 for SIP registration authentication

Device Ports

• 1 WAN port RJ-45 IEEE 802.3 10/100 Base-T, Auto-crossing for easy connection

• 3 LAN port RJ-45 IEEE 802.3 10/100 Base-T for LAN switch

• 2 FXS RJ-11 for connection to analog telephone

*Note: The availability of some listed call features is dependent on the service

supported by your VoIP service provider. Please consult them for further

information.

V200 VoIP Telephone Adaptor/Router 7

YML796 Rev1

1.3 Application

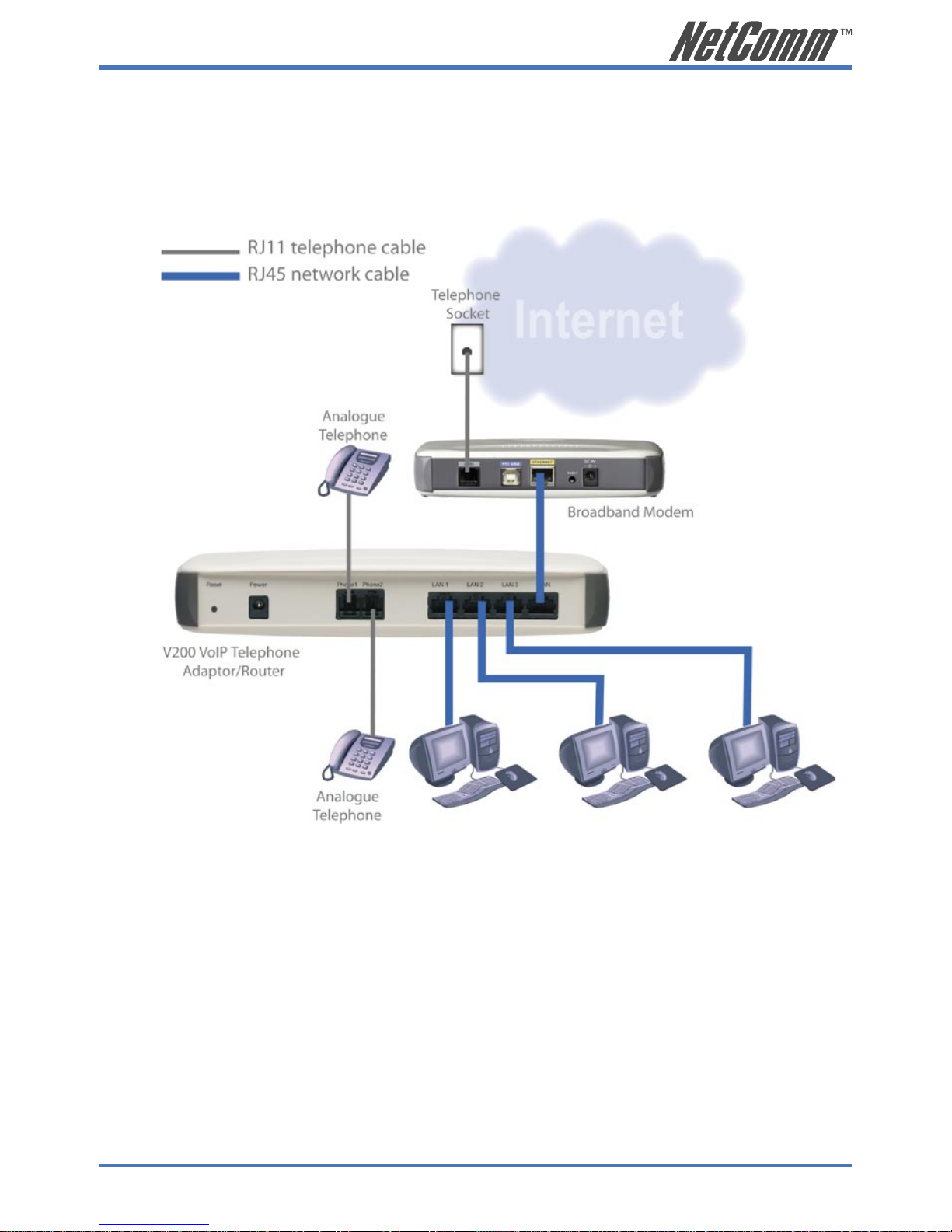

Please refer to the following diagram for a typical application of the V200. Figure 1

illustrates a simpliﬁed connection for the V200. In addition to providing basic VoIP calls,

the V200 provides you with normal VoIP and router/switch capabilities, so it can work as a

router and a VoIP ATA (analog telephone adapter) at the same time.

Figure 1

8 V200 VoIP Telephone Adaptor/Router

YML796 Rev1

1.4 System Minimum Requirements

• A valid SIP VoIP account from a VoIP Service Provider

• A Broadband service

• A Broadband Modem/Router (bridge-mode capable*)

• An Analog telephone with RJ11 line cord (Desktop, Cordless or Dect.)

• A PC with Web browsing application (for V200 conﬁguration only)

*Note: In some cases, you may need to conﬁgure your broadband router in

bridge-mode. The V200 will perform routing on your network.

1.5 Your Broadband Connection Bandwidth Consideration

In order to achieve good voice quality when using the V200 VoIP feature, we recommend

that you use the V200 on a broadband connection with an upstream speed of at least

128kpbs. This should allow you to have two simultaneous VoIP calls (with G.729 codec)

using the V200 with good voice quality**. The more bandwidth you have, the better the

quality.

**Note: If your broadband router/modem handles the Internet trafﬁc for your LAN

network, then the V200 voice quality might be affected when you are

in heavy Internet usage. If your router has QoS feature, please enable

and conﬁgure it to give V200 trafﬁc high priority. V200 also has its QoS

feature, please see section 5.2 in the User Guide on the V200 CD ROM

for instructions on how to use it.

V200 VoIP Telephone Adaptor/Router 9

YML796 Rev1

1.6 Package Contents

Your V200 package contains the following items:

• 12VDC 1.5 Amps power supply

• RJ-11 ADSL Line connection cable

• RJ45 10/100 Ethernet cable

• Installation CD (containing the User Guide and

Adobe Acrobat Reader)

• Package Contents List and

Quick Start Guide

If any of the above items are damaged or missing, please contact your dealer immediately.

• V200 VoIP Telephone Adaptor

10 V200 VoIP Telephone Adaptor/Router

YML796 Rev1

1.7 Front Panel LED Indicators

LED Indicator Status Function

WAN On The WAN link is established

Off Ethernet link for the WAN port is not established

Flash Data transmitting or receiving over WAN

LAN 1 ~ LAN3 On Ethernet link for LAN port is established

Off Ethernet link for a LAN port is not established

Flash Data transmitting or receiving over LAN

Phone1~2 On Phone is off-hook and being used

Off Phone is not being used

Flash VoIP call is coming

POWER On Power is supplied

Off Power is not supplied
