NETGEAR PTVU1000 Manuale utente

Universal Push2TV HD Adapter

PTVU1000 Installation Guide

No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language in any form or by

any means without the written permission of NETGEAR, Inc.

DO NOT stack equipment, or place equipment in tight spaces or in drawers.

Be sure your equipment is surrounded by at least 2 inches of air space.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest

product updates, or get support online, visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries):

See http://support.netgear.com/app/answers/detail/a_id/984.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks

and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the

United States and/or other countries. Other brand and product names are

registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or

reliability, NETGEAR reserves the right to make changes to the products

described in this document without notice. NETGEAR does not assume any

liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

What’s in the Package

Getting Started

1. Connect the TV Adapter to the HD base.

For table top positioning:

a. Slide the shutter to show the top USB port.

b. Attach the TV Adapter to the HD base.

2. Connect the HD base to your TV using the included HDMI cable.

3. Connect the power cable, as shown below.

4. Make sure your TV is on and set to display the correct video input.

5. Connect to your TV using an HDMI cable.

The Push2TV unit boots up for about 10 seconds, and the Ready to

Connect screen is displayed on your TV.

Software Installation

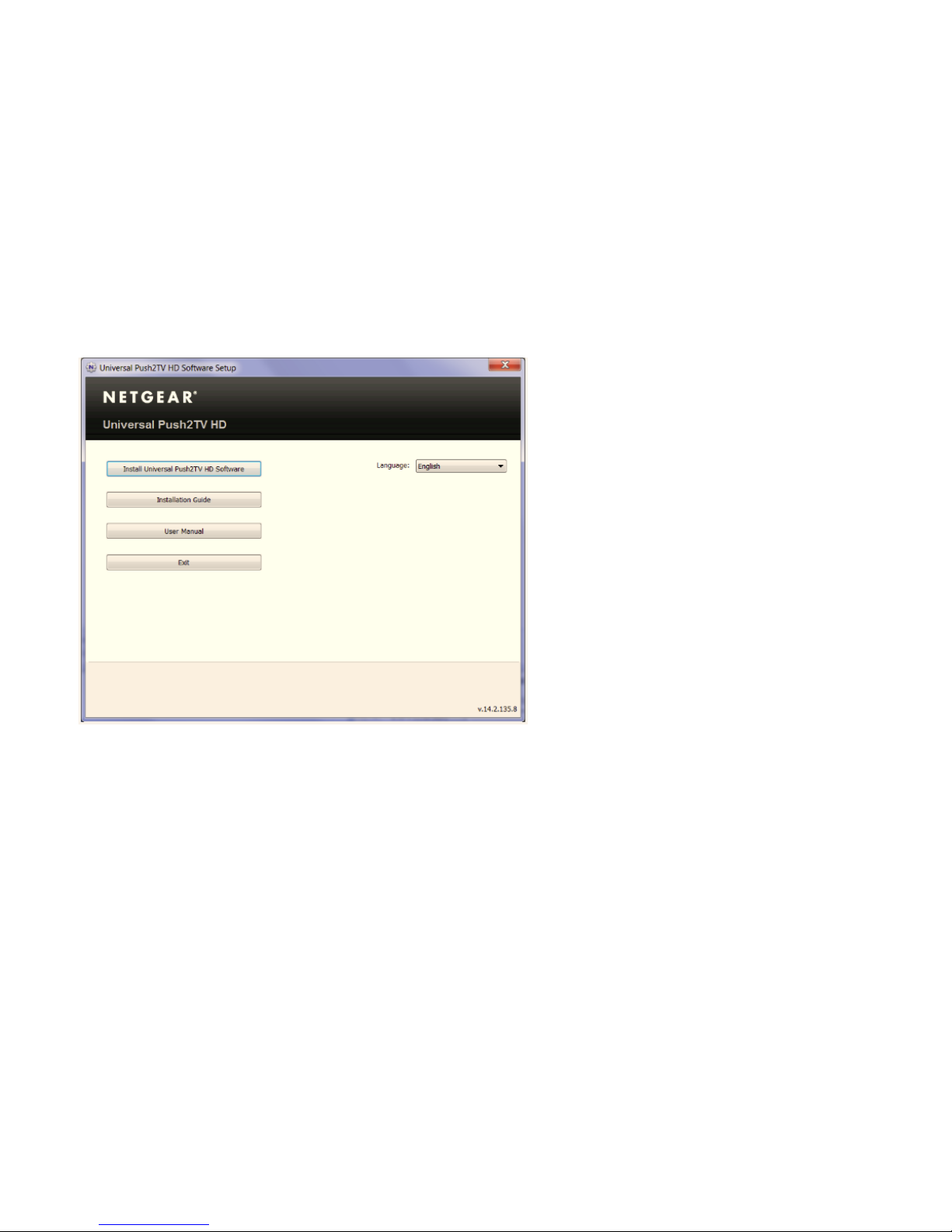

1. On your PC, log in as Administrator, and insert the CD. The Universal

Push2TV Software Setup installation window displays.

NOTE: Before installing

the software, be sure to

unplug the PC adapter

from your PC.

2. Select the installation language from the drop-down menu, and click the

Install Universal Push2TV HD Software button to start the installation.

The overall installation time may take up to 15 minutes, depending on the

speed of your PC.

During the installation process, the following utilities are installed:

• Universal Push2TV HD Manager

• USB PnP Sound Driver

• DisplayLink Driver

Starting the Connection

1. Connect the PC Adapter to a USB port on your PC. Be sure to keep the

PC Adapter in an upright position only.

2. After you plug in the PC adapter, the connection is started automatically.

The laptop screen then displays on your TV, and the Universal Push2TV

icon turns green .

Two additional items then appear in your Microsoft Windows task tray:

• DisplayLink Device to adjust your video display.

• USB PnP Sound Device to set your audio settings.

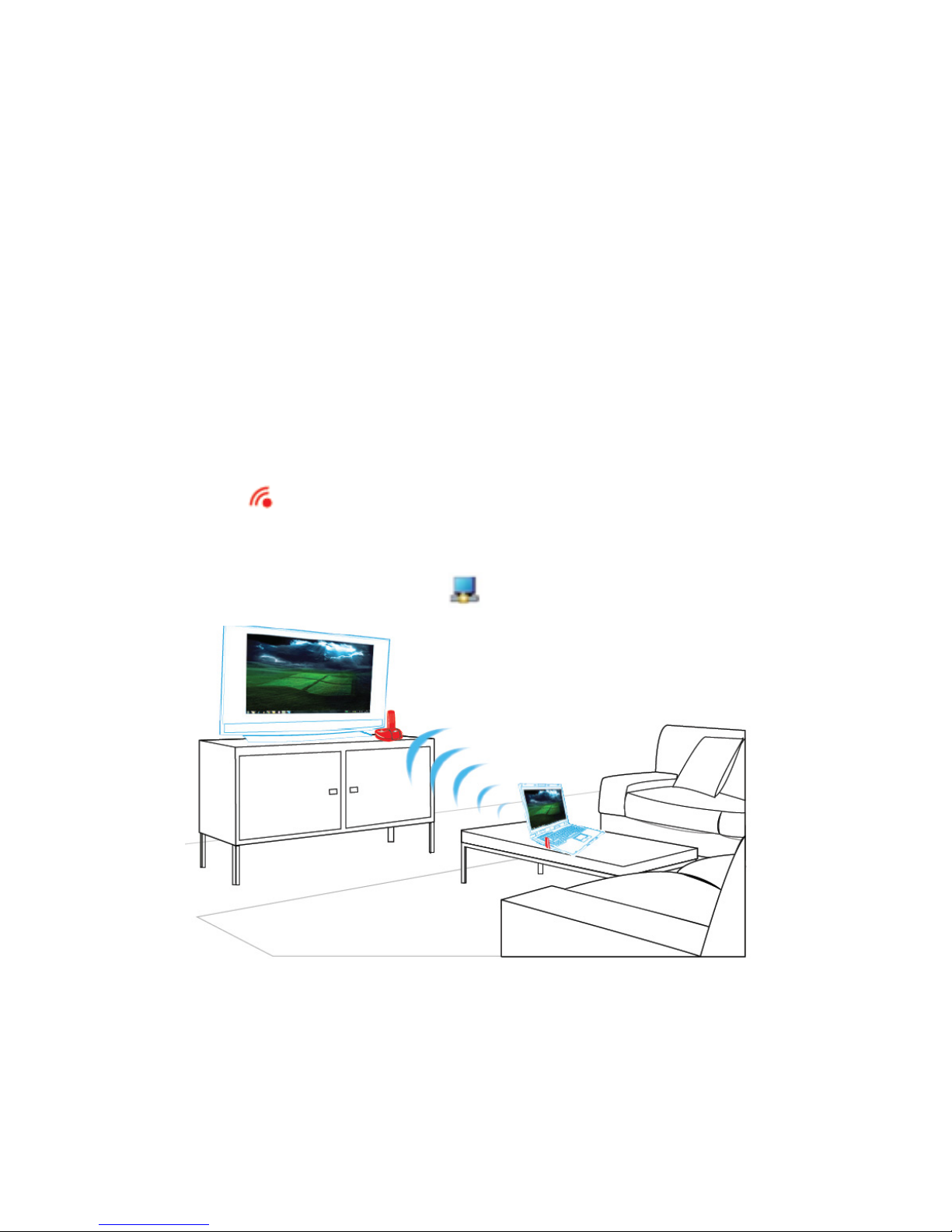

Positioning

For best performance, keep the PC Adapter and the TV Adapter at a

maximum distance of 20 feet (approximately 6 meters) from each other,

and with no obstacles between them.

You are all set and ready to go!

NOTE:

• For more information, see the User Manual, accessible through

the icon in the Task tray.

• In Mirror Mode, the screen resolution is chosen automatically for

both the laptop and the HDTV. A better resolution can be found

under the Display icon in the Task tray.

FAQs

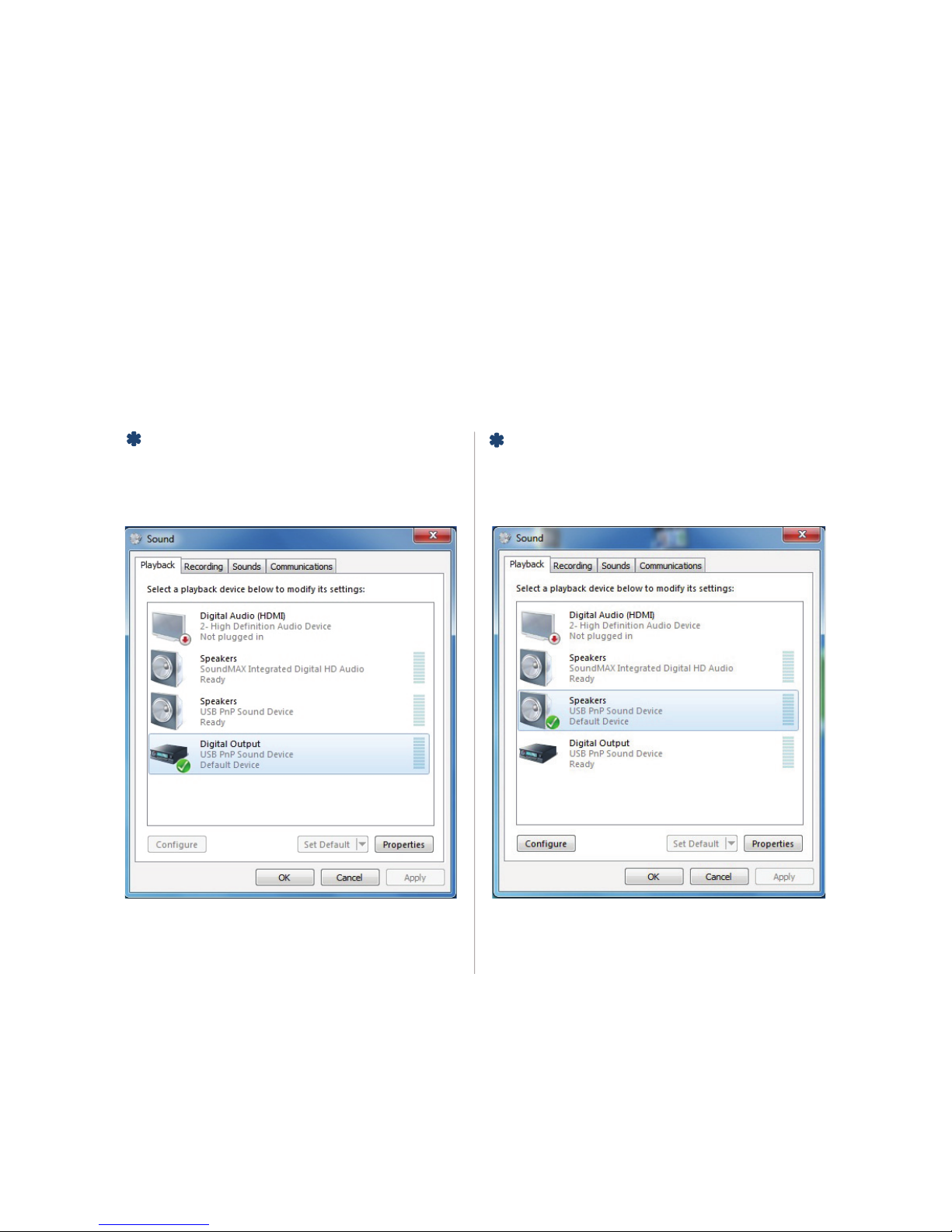

1. What if there is no sound?

Go to Control Panel > Sound, and you can adjust the sound in one of

the following ways:

using S/PDIF or HDMI

(Digital output)

Click Digital Output USB PnP Sound

Device and click Set Default.

If using 3.5 mm jack

(Analog output)

Click Speakers USB PnP Sound Device

and click Set Default.

2. What settings should I choose if I’m a Vista or Windows 7 user?

NETGEAR recommends that you use the AERO Desktop Theme for

better video performance.

• Right-click the desktop and select Personalize.

• For Vista, select Window Color and Appearance. Select Open

classic appearance properties for more color options. Select

Windows Aero from the Color Scheme list.

• For Windows, select Aero Themes.

3. How do I optimize Internet video?

Disable hardware acceleration on your Flash Player.

• Right-click the video you are watching, and choose Settings.

• De-select Enable – hardware acceleration.
