NETGEAR ProSafe GS504 Manuale utente

NETGEAR's GS504 Gigabit Fiber Switch provides backbone connectivi-

ty for power workgroups, data centers, and server farms. It delivers the

power of Gigabit Ethernet to speed up network performance, with backbone

support through four full-duplex Gigabit fiber ports, while preserving ease of

use and simple, Plug and Play installation for your small business.

ROBUST

4 Gigabit duplex SC connectors for 62.5/125 or 50/125 multimode fiber provide

high-performance backbone connectivity between workgroups, data centers, and server

farms. Non-blocking, the GS504 delivers up to 5.9 million packets per second as it

supports 8,000 users or devices on the network.

COMPETENT

Multimode fiber optics technology provides high security and a network reach

of up to 260 meters.

ACCESSIBLE

Multiple 100 Mbps users can simultaneously access the backbone and servers

without network congestion.

EASYGOING

Self-configuring and easy to install, it's compliant with all major network

software and protocols.

1000 Mbps

for high-performance backbone connectivity

GS504

Gigabit Fiber Switch

Help is there when you need it!

NETGEAR provides free, 24x7

telephone and e mail technical

support in English, with selected

local language support during

office hours.

www.NETGEAR.com

1000 Mbps

NETGEAR Inc.

4500 Great America Parkway

Santa Clara, CA 95054

USA

Phone: 1-888-NETGEAR

E-mail: [email protected]

www.NETGEAR.com

In-Country Phone Support

(24x7 phone support in English, local language support during ofﬁce hours.) NETGEAR™ is a trademark of

NETGEAR, Inc.Windows® is

a registered trademark of

Microsoft Corporation. Other

brand and product names are

trademarks or registered

trademarks of their respective

holders. Information is subject

to change without notice.

www.NETGEAR.com

TECHNICAL SPECIFICATIONS

Network Ports

Four Gigabit duplex SC connectors for

62.5/125 or 50/125 multimode fiber

Status LEDs

Unit: power

Per network port: link, activity, full

duplex/collision

Dimensions

W 330 mm (13”)

D 207 mm (8.2”)

H 43 mm (1.7”)

Weight

2.4 kg (5.3 lb)

AC power

25 W 100-240 volt AC

Localized power cord for North America,

Japan, UK, Europe,Australia

Standards Compliance

IEEE 802.3z 1000BASE-SX

Gigabit Ethernet

Performance (64 byte packets)

Filter rate: 1,480,000 packet per sec

Forward rate: 1,480,000 packet per sec

Latency: 30 usec max

MAC addresses: 8,000

Environmental Specifications

Operating temperature: 0 to 40°C

Operating humidity: 90% maximum relative

humidity, noncondensing

Electromagnetic Compliance

CE mark, commercial

FCC Part 15 Class A

VCCI Class A

EN 55022 (CISPR 22), Class A, EN 50082-1

C-Tick

TUV EN 60950

Safety Agency Approvals

UL listed (UL 1950)/cUL

IEC950/EN60950

Warranty

Switch: 5 years

Power supply: 1 year

PACKAGE CONTENTS

GS504 Switch

Power cord

Rack-mount kit

User guide

Warranty card

Support card

•

ISO-9001

REGISTERED

QUALITY

FS518

MODEL

FastEthernet Switch

16PORT

10/100Mbps

Tx Rx FS509

MODEL

FastEthernet Switch

9PORT

10/100Mbps

Ethernet

GS504SX

MODEL

GigabitFiber Switch

4PORT

10/100Mbps

Ethernet

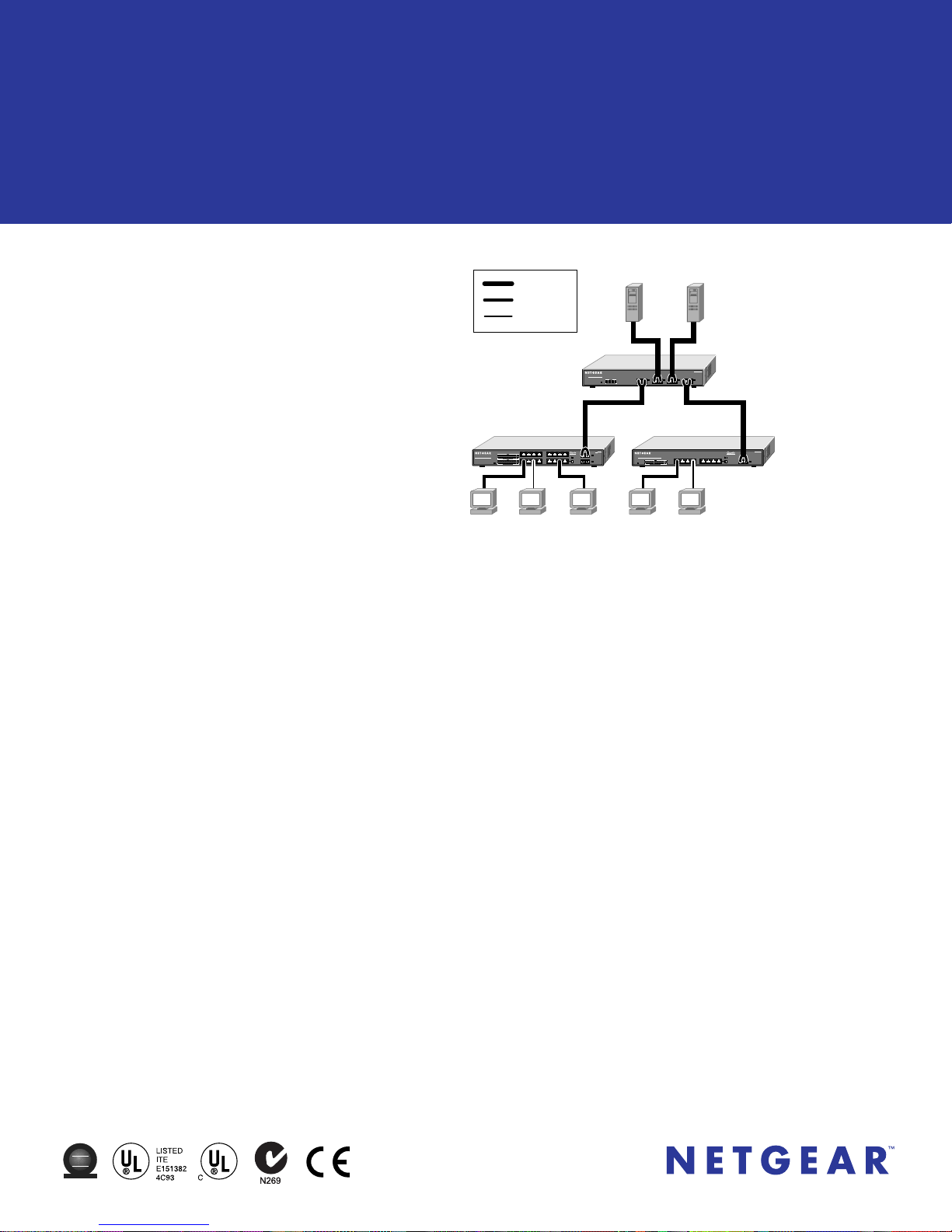

GS504 Switch

FS509 SwitchFS518 Switch

PCs PCs

Server Server with GA620

Gigabit Network Car

Key

1000 Mbps

100 Mbps

10 Mbps

Korea 00308-11-0319

Netherlands 0800-023-0981

New Zealand 00800-1233-4566

Norway 800-12041

Singapore 001-800-1233-4566

Sweden 0200-298-298

Switzerland 00800-0638-4327

(00800-0-NETGEAR)

United Kingdom 020-7216-0014

United States 1-888-NETGEAR

All Other Countries +1 801-236-8499

Australia 1800-787-638

Austria 00800-06384327

(00800-0-NETGEAR)

Denmark 808-82179

Canada 1-888-NETGEAR

Finland 0800-111-036

France 0800-77-17-53

Germany 00800-06384327

(00800-0-NETGEAR)

Hong Kong 001-800-1233-4566

Japan 0120-66-5402
