NETGEAR ProSafe Premium WNDAP660 Manuale utente

)NSTALLATION'UIDE

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95135

version 1.0

English 1

Deutsch 7

Français 13

Русский 19

Contents

ProSafe 3x3 Dual Radio, Dual Band Wireless-N Access Point

WNDAP660

)NSTALLATION'UIDE

ProSafe 3x3 Dual Radio, Dual Band Wireless-N Access Point

WNDAP660

Package Contents

Unpack the box and verify the contents:

• ProSafe 3x3 Dual Radio, Dual Band Wireless-N Access Point WNDAP660

• Straight through Category 5 Ethernet cable

• Power adapter and cord (12V, 1.5A)

• Ceiling mount kit

• Installation Guide

• Resource CD, which includes link to the Reference Manual

Set Up the Access Point

Follow these instructions to set up your wireless access point. Before proceeding

with the WNDAP660 installation, familiarize yourself with the contents of the

Resource CD. See the Reference Manual for instructions on advanced

configuration options.

Tip: Before mounting the access point in a high location, first set up

and test the unit to verify wireless network connectivity.

1. Connect the wireless access point to your computer.

a. Prepare a PC with an Ethernet adapter. If this PC is already part of your

network, record its TCP/IP configuration settings. Configure the PC with a

static IP address of 192.168.0.210 and 255.255.255.0 as the subnet mask.

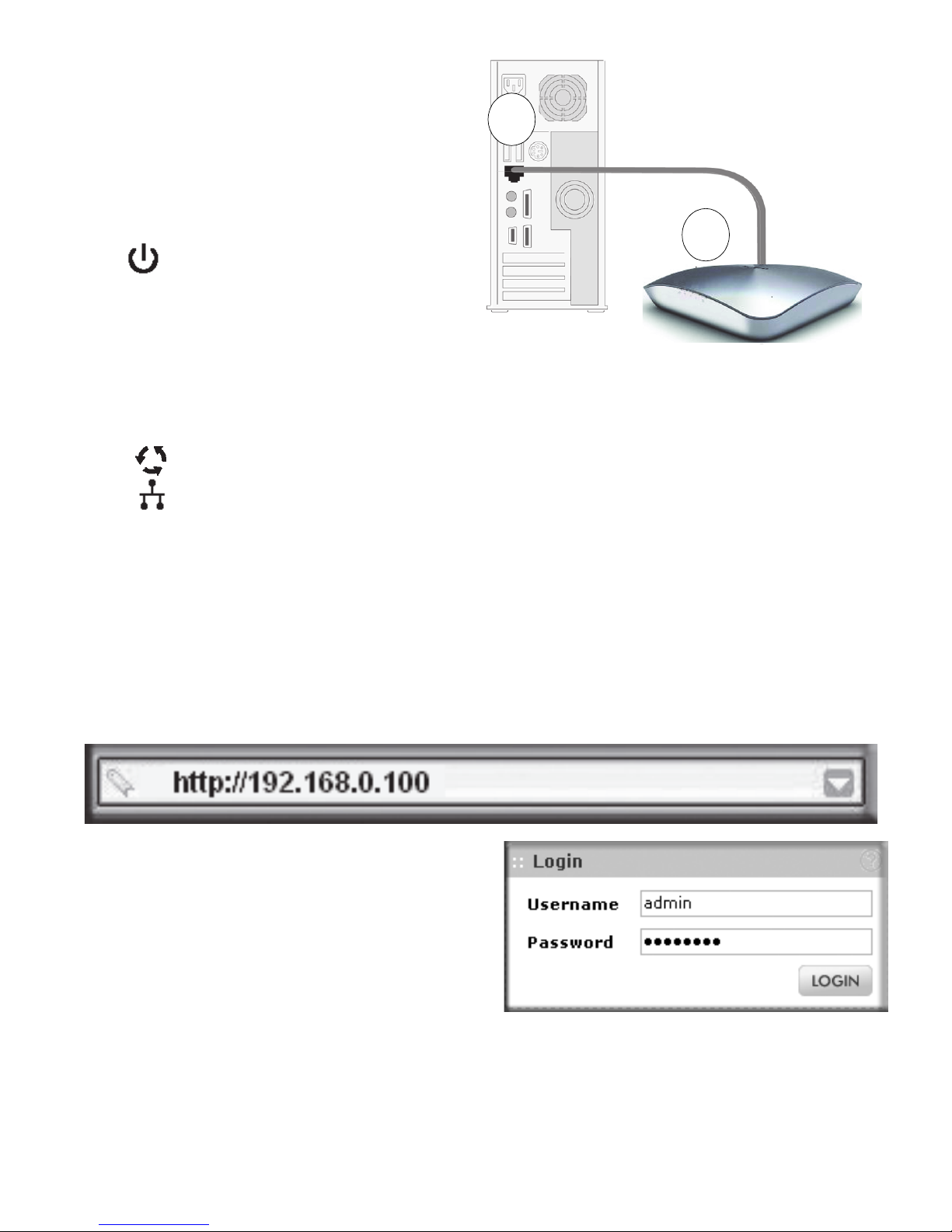

b. Connect an Ethernet cable from the access point to the PC (point A in the

illustration).

English

c. Securely insert the other end of

the cable into an access point

Ethernet port (point B in the

illustration).

d. Connect the power adapter to

the access point. Verify the

following:

The Power LED blinks when

the access point is first turned

on. After a few seconds it should

stay on (steady green). If after

30 seconds the Power LED is off

or is still blinking, check the connections and check to see if the power

outlet is controlled by a wall switch that is turned off.

The ACTIVE LED blinks when there is network traffic.

The LAN1 and LAN2 LEDs indicate LAN speed for each LAN port;

green for 1000 Mbps, amber for 100Mbps, and no light for 10Mbps.

2.4 GHz (WLAN). This LED indicates 2.4 GHz traffic.

5 GHz (WLAN). This LED indicates 5 GHz traffic.

2. Configure LAN and wireless access

a. From your PC, configure the access point Ethernet port for LAN access.

Connect to the access point by opening your browser and entering

http://192.168.0.100 in the address field.

b. A login window displays. When

prompted, enter admin for the

user name and password for the

password, both in lower case

letters.

The access point user interface

displays.

c. Select Configuration > System > Basic > General from the menu. Fill in

the Access Point Name field and select your Country/Region of

operation from the drop-down list.

d. Select Configuration > IP > IP Settings from the menu and configure

the IP settings for your network.

NETGEAR Cable

WNDAP660

Ethernet

port

English

e. If you use DHCP, reserve an IP address (based on the access point’s

MAC address) on the DHCP server. You can then use that address to log

in to the access point.

f. Select Configuration > Wireless > Basic > Wireless Settings and

select the Turn Radio On setting.

g. Select Configuration > Security > Profile Settings and configure

security profiles for your network.

See the online help or the Reference Manual for full instructions.

3. Test wireless connectivity.

Using a PC with a wireless adapter, verify that you can establish a wireless

connection to the access point.

Now that you have finished the setup, you are ready to deploy the access

point in your network. If needed, you can reconfigure the PC you used in step

1 back to its original TCP/IP settings.

Deploy the Access Point

1. Disconnect the access point and position it where you will deploy it. The best

location is elevated such as wall or ceiling mounted, at the center of your

wireless coverage area, and within line of sight of all mobile devices. Make

sure the dome side of the AP points toward users.

Note: DO NOT place the AP in a false ceiling space facing up.

2. Connect an Ethernet cable from your access point to a LAN port on your

router, switch, or hub.

3. Connect the power adapter to the wireless access point and plug the power

adapter into a power outlet. The Power and LAN LEDs should go on.

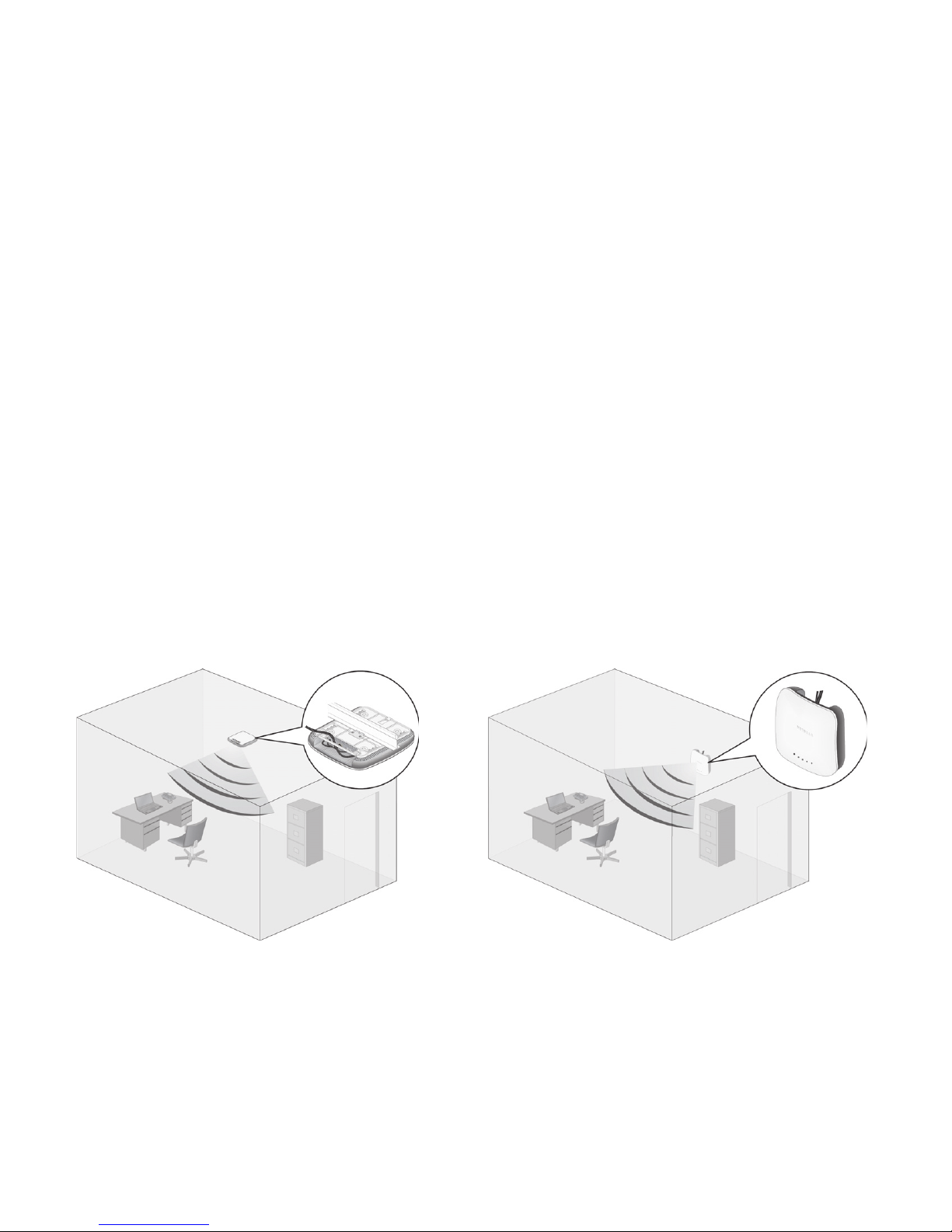

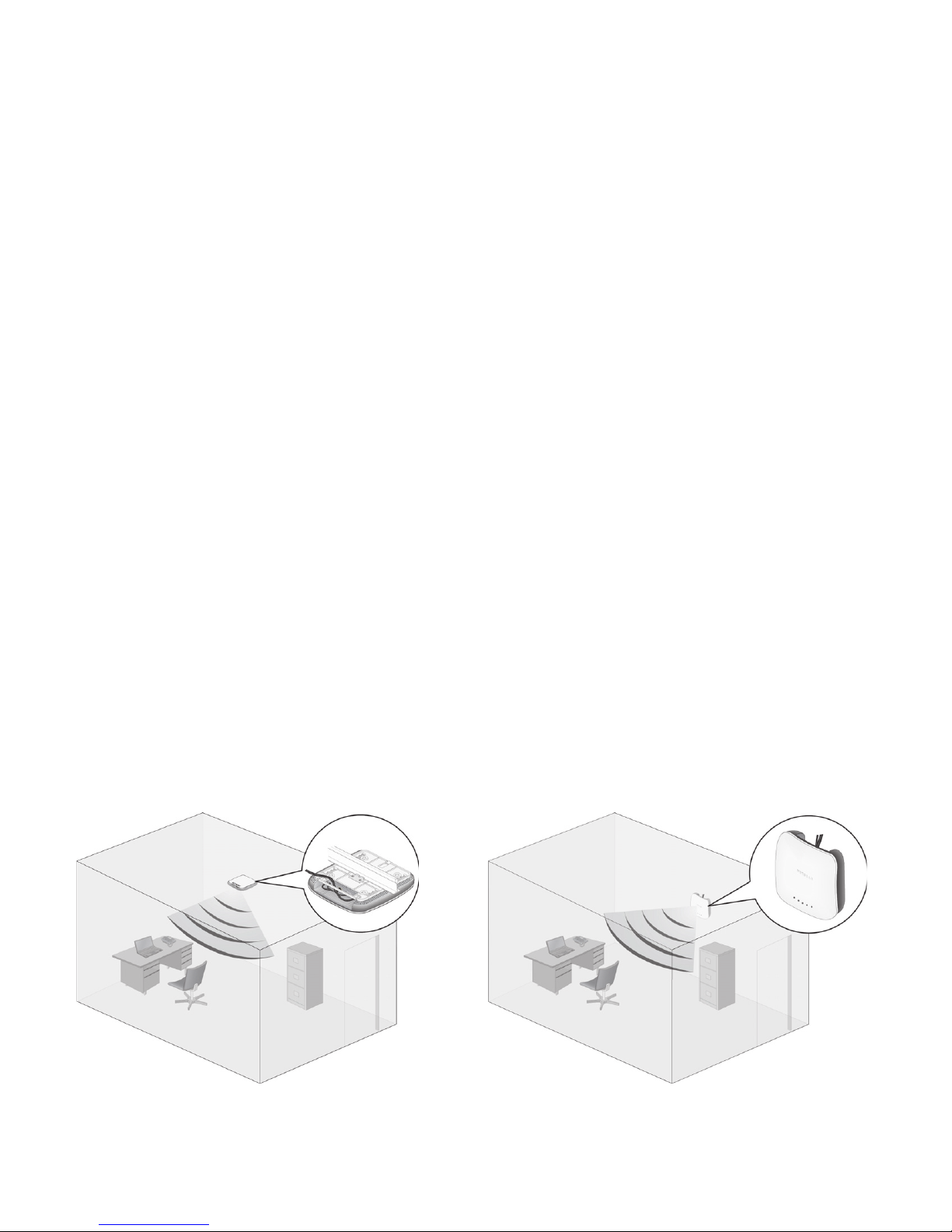

Ceiling Mount Wall Mount

English

Tip: The access point supports Power over Ethernet (PoE). If you

have a switch that provides PoE, you do not need to use the power

adapter to power the access point. This can be especially convenient

when the access point is installed in a high location far from a power

outlet.

Verify Wireless Connectivity

Using a computer with an 802.11b/g/n wireless adapter, verify connectivity by

using a browser to connect to the Internet, or check for file and printer access on

your network.

Note: If you cannot connect, see Troubleshooting Tips in this guide or the

Reference Manual.

If You Use an External Antenna

To use an external 2.4 GHz antenna:

1. Mount the accessory antenna(s).

2. Attach the antenna(s) to the connector(s) on the access point rear panel.

3. Log into the access point and configure it to use the external antenna. The

access point cannot use the internal and external 2.4GHz antennas at the

same time.

Troubleshooting Tips

No LEDs are lit on the access point.

The wireless access point has no power.

• Make sure the power cord is connected to the wireless access point and

plugged in to a working power outlet or power strip.

• Make sure you are using the correct NETGEAR power adapter supplied with

your wireless access point.

• If using PoE, ensure that the PoE switch is providing power to the access

point.

The LINK/ACT LED is not on.

There is a hardware connection problem.

• Make sure the cable connectors are securely plugged in to the access point

and to the network device (hub, switch, or router).

English

• Make sure the connected device is turned on. If the Ethernet link is a 10 Mbps

link, then the 10/100/1000 light is off, but the Link/Act light blinks if traffic is

present.

The WLAN LEDs are off.

The wireless connection is not working.

• If a Wireless LAN activity LED stays off, disconnect the power adapter from its

power source and then plug it in again.

• Log in to the access point and verify that the radio is turned on.

• Contact NETGEAR if the Wireless LAN LED remains off.

I cannot configure the access point from a browser.

Check these items:

• The access point is correctly installed, it is powered on, and LAN connections

are OK. Check that the LAN LED is on to verify that the Ethernet connection is

OK.

• If you are using the Net BIOS name of the access point to connect, ensure that

your PC and the access point are on the same network segment or that there

is a WINS server on your network.

• If your PC uses a fixed (static) IP address, ensure that it is using an IP address

in the range of the access point. The access point default IP address is

192.168.0.100 and the default subnet mask is 255.255.255.0. The access

point default setting is for a static IP address. If the network where you are

connecting it is using DHCP, configure it accordingly. See the Reference

Manual for details.

I cannot access the Internet or the LAN with a wireless capable

computer.

There is a configuration problem. Check these items:

• You might not have restarted the computer with the wireless adapter to have

TCP/IP changes take effect. Restart the computer.

• The computer with the wireless adapter might not have the correct TCP/IP

settings to communicate with the network. Restart the computer and check

that TCP/IP is set up correctly for that network. The usual setting for Windows

on the Network Properties is set to “Obtain an IP address automatically.”

• The wireless access point’s default values might not work with your network.

Check the wireless access point default configuration against the

configuration of other devices in your network.

• For full instructions on changing the default values of the wireless access

point, see the Reference Manual.

English

Statement of Conditions

In the interest of improving internal design, operational function, and/operability,

NETGEAR reserves the right to make changes to the product described in this

document without notice. NETGEAR does not assume any liability that may occur

due to the use or application of the product(s) or circuit layout(s) described herein.

Technical Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of your product

and use it to register your product at http://www.netgear.com/register. Registration

is required before you can use our telephone support service. Registration via our

web site is strongly recommended.

Go to http://kbserver.netgear.com for product updates and Web support. For

Warranty and Regional Customer Support information, see the Resource CD that

came with your product.

For complete DoC please visit the NETGEAR EU Declarations of Conformity

website at: http://kb.netgear.com/app/answers/detail/a_id/11621/

ProSafe 3x3 Dual Radio, Dual Band Wireless-N Access-Point

WNDAP660

Lieferumfang

Folgendes muss im Karton enthalten sein:

• ProSafe 3x3 Dual Radio, Dual Band Wireless-N Access-Point WNDAP660

• Netzwerkkabel (Cat 5)

• Netzteil und -kabel (12 V, 1,5 A)

• Deckenmontageset

• Installationsanleitung

• Ressourcen-CD mit Link zum Referenzhandbuch

Einrichten des Access Points

Befolgen Sie die nachstehende Anleitung, um Ihren Wireless Access Point

einzurichten. Machen Sie sich mit dem Inhalt der Ressourcen-CD vertraut, bevor Sie

mit der Installation des WNDAP660 fortfahren. Anweisungen zu den erweiterten

Konfigurationsoptionen finden Sie im Referenzhandbuch.

Tipp: Bevor Sie den Access Point an einer schwer zugänglichen Stelle

aufstellen, sollten Sie ihn einrichten und die Verbindung zum drahtlosen

Netzwerk prüfen.

1. Verbinden Sie den Wireless Access Point mit dem Computer.

a. Richten Sie für einen Computer eine Netzwerkkarte ein. Wenn der Computer

schon ins Netzwerk integriert ist, notieren Sie die TCP/IP-

Konfigurationseinstellungen. Richten Sie den Computer mit der statischen

IP-Adresse 192.168.0.210 und der Subnetzmaske 255.255.255.0 ein.

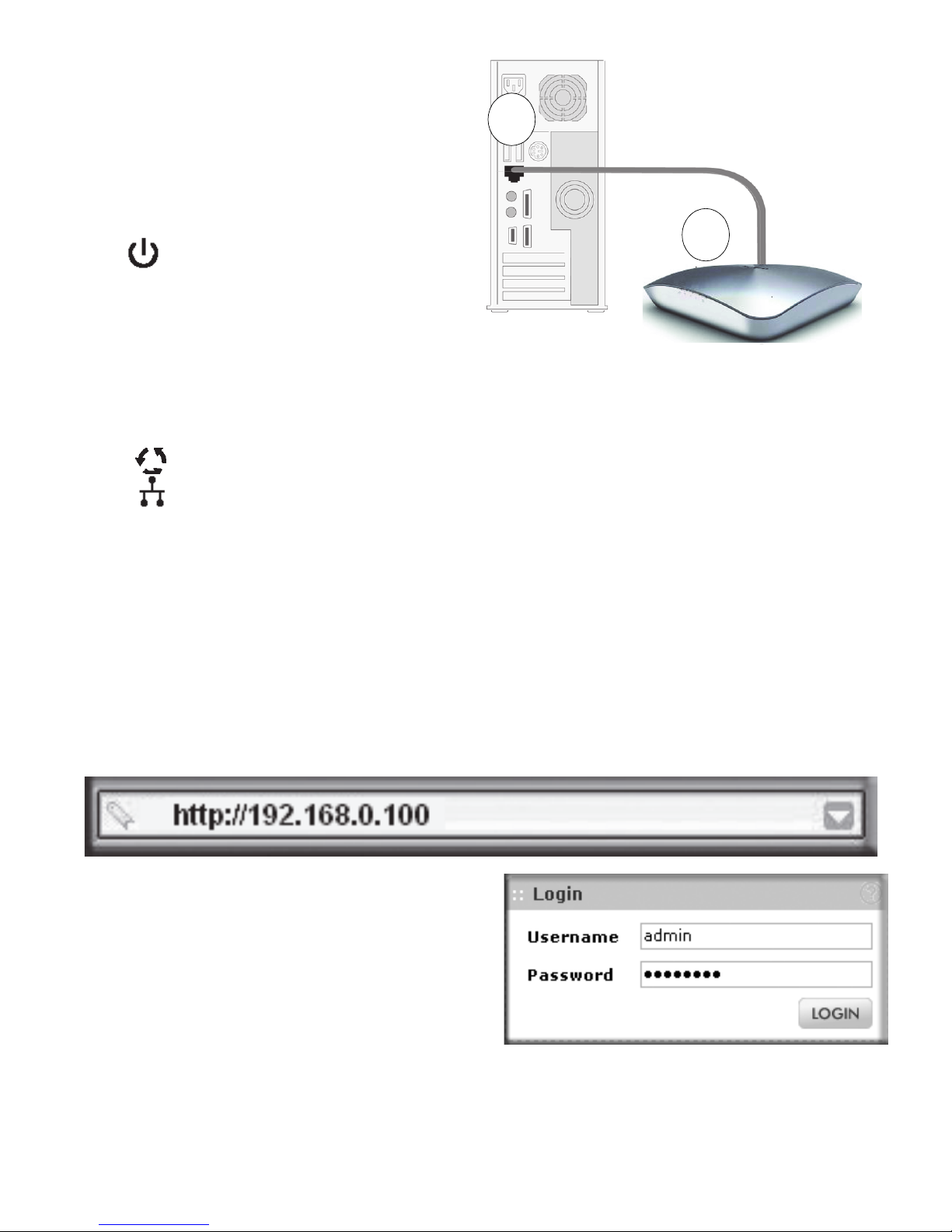

b. Stecken Sie ein Ende des mitgelieferten Netzwerkkabels für den Access

Point in den Computer (Ain der Abbildung).

Deutsch

c. Stecken Sie das andere

Kabelende in einen

Netzwerkanschluss des Access

Points (Bin der Abbildung).

d. Schließen Sie das Netzteil an den

Access Point an. Überprüfen Sie

Folgendes:

Die Power-LED blinkt beim

Einschalten des Access Points.

Nach ein paar Sekunden sollte sie

konstant grün leuchten. Falls

diese LED nach 30 Sekunden

nicht leuchtet oder immer noch

blinkt, überprüfen Sie die Anschlüsse und außerdem die Stellung eines

eventuell vorhandenen Steckdosenschalters.

Die AKTIV-LED blinkt bei Netzwerkverkehr.

Die LAN1- und LAN2-LEDs zeigen die LAN-Geschwindigkeit für jeden

LAN-Port an: Bei 1000 MBit/s leuchtet sie grün, bei 100 MBit/s gelb, und bei

10 MBit/s leuchtet sie nicht.

2,4 GHz (WLAN). Diese LED zeigt einen Datenverkehr von 2,4 GHz an.

5 GHz (WLAN). Diese LED zeigt einen Datenverkehr von 5 GHz an.

2. Konfigurieren Sie das LAN und den drahtlosen Zugang.

a. Konfigurieren Sie von Ihrem Computer aus den Netzwerkanschluss des

Access Points für LAN-Zugriff. Stellen Sie eine Verbindung zum Access Point

her. Starten Sie einen Webbrowser und geben Sie http://192.168.0.100 in die

Adresszeile ein.

b. Ein Anmeldefenster wird angezeigt.

Geben Sie als Benutzernamen

admin und als Passwort password

ein. Beide Wörter müssen klein

geschrieben werden.

Die Benutzeroberfläche des Access

Points wird angezeigt.

c. Wählen Sie im Menü Configuration (Konfiguration) > System > Basic

(Grundeinstellungen) > General (Allgemein) aus. Füllen Sie das Feld Access

Point Name aus, und wählen Sie Ihr(e) Land/Region aus der Dropdown-

Liste aus.

NETGEAR-Kabel

WNDAP660

Netzwerk

Anschluss

Deutsch

d. Wählen Sie im Menü die Optionen Configuration (Konfiguration) > IP > IP

Settings (IP-Einstellungen) aus, und konfigurieren Sie die IP-Einstellungen

für Ihr Netzwerk.

e. Wenn Sie DHCP verwenden, müssen Sie eine IP-Adresse auf dem DHCP-

Server reservieren (basierend auf der MAC-Adresse des Wireless Access

Points). Mit dieser Adresse können Sie sich beim Access Point anmelden.

f. Wählen Sie Configuration (Konfiguration ) > Wireless (WLAN) > Basic

(Grundeinstellungen ) > Wireless Settings (WLAN-Einstellungen) und

anschließend die Einstellung Turn Radio On (Funkverbindung aktivieren)

aus.

g. Wählen Sie die Optionen Configuration (Konfiguration) > Security

(Sicherheit) > Profile Settings (Profileinstellungen), und konfigurieren Sie

die Sicherheitsprofile für Ihr Netzwerk.

Ausführliche Anweisungen dazu finden Sie in der Online-Hilfe und im

Referenzhandbuch.

3. Überprüfen Sie die drahtlose Verbindung.

Stellen Sie mit einem Computer, der über einen Wireless-Adapter verfügt, eine

WLAN-Verbindung zum Access Point her.

Die Konfiguration ist nun abgeschlossen, und der Access Point kann ins Netzwerk

integriert werden. Falls erforderlich, können Sie die ursprünglichen TCP/IP-

Einstellungen des in Schritt 1 verwendeten PCs wiederherstellen.

Integrieren des Access Points

1. Trennen Sie den Access Point vom Computer, und stellen Sie ihn am

gewünschten Standort auf. Am besten eignet sich ein erhöhter Standort (z. B. an

der Wand oder der Decke), der zentral mit Sichtverbindung zu allen drahtlosen

Geräten im Funkbereich liegt. Stellen Sie sicher, dass die abgerundete Seite des

AP in Ihre Richtung zeigt.

Hinweis: Bringen Sie den AP NICHT in der falschen Position (Wölbung oben) an

der Decke an.

Deckenmontage Wandmontage

Altri manuali per ProSafe Premium WNDAP660

Indice

Lingue:

Altri manuali NETGEAR Punto di accesso wireless

NETGEAR

NETGEAR WND930 Manuale utente

NETGEAR

NETGEAR WG602v3 - Wireless Access Point Manuale utente

NETGEAR

NETGEAR EX7000 Manuale utente

NETGEAR

NETGEAR WG302v1 - ProSafe 802.11g Wireless Access... Istruzioni per l'installazione

NETGEAR

NETGEAR WG103 ProSafe Manuale utente

NETGEAR

NETGEAR WAX628 Manuale utente

NETGEAR

NETGEAR WG602v4 - Wireless Access Point Manuale

NETGEAR

NETGEAR WNAP210 Manuale utente

NETGEAR

NETGEAR WAG102 - ProSafe Dual Band Wireless Access... Manuale utente

NETGEAR

NETGEAR WG602v3 - Wireless Access Point Manuale utente

NETGEAR

NETGEAR WG302v1 - ProSafe 802.11g Wireless Access... Guida rapida

NETGEAR

NETGEAR WAX214 Manuale utente

NETGEAR

NETGEAR WG602 - 54 Mbps Wireless Access Point Manuale utente

NETGEAR

NETGEAR WAC510 Manuale utente

NETGEAR

NETGEAR WAC120 Manuale utente

NETGEAR

NETGEAR WAX204 Manuale utente

NETGEAR

NETGEAR WG302v1 - ProSafe 802.11g Wireless Access... Manuale utente

NETGEAR

NETGEAR WAC505 Manuale utente

NETGEAR

NETGEAR WAG302v1 - ProSafe Dual Band Wireless Access... Manuale utente

NETGEAR

NETGEAR WAX206 Manuale utente

NETGEAR

NETGEAR WNHDE111 Manuale

NETGEAR

NETGEAR WG602v4 - Wireless Access Point Manuale utente

NETGEAR

NETGEAR ME102 - Wireless Access Point Manuale utente

NETGEAR

NETGEAR WAB102 - 802.11a+b Dual Band Wireless Access... Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
