Netvox R718PA1 Manuale utente

Model：R718PA1

Wireless CO Sensor

Model: R718PA1

Wireless CO Sensor

R718PA1

User Manual

This document contains proprietary technical information which is the property of NETVOX

Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in

whole or in part, without written permission of NETVOX Technology. The specifications are subject

to change without prior notice.

Table of Content

1. Introduction....................................................................................................................................... 2

2. Appearance........................................................................................................................................ 3

3. Main Feature..................................................................................................................................... 3

4. Set Up Instruction............................................................................................................................. 4

5. Data Report....................................................................................................................................... 5

6. Installation ........................................................................................................................................ 7

7. Important Maintenance Instruction................................................................................................... 7

1. Introduction

R718PA1 is a Class A device based on the LoRaWANTM protocol of Netvox and is compatible with

the LoRaWAN protocol.

R718PA1 can be connected to a corresponding carbon monoxide sensor (RS485) to report the

concentration of carbon monoxide collected by the device to the corresponding gateway. The device

is compatible with the LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power

consumption. Compared with other communication methods, LoRa spread spectrum modulation

method greatly increases to expand the communication distance. Widely used in long-distance,

low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low

power consumption, transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure

interoperability between devices and gateways from different manufacturers.

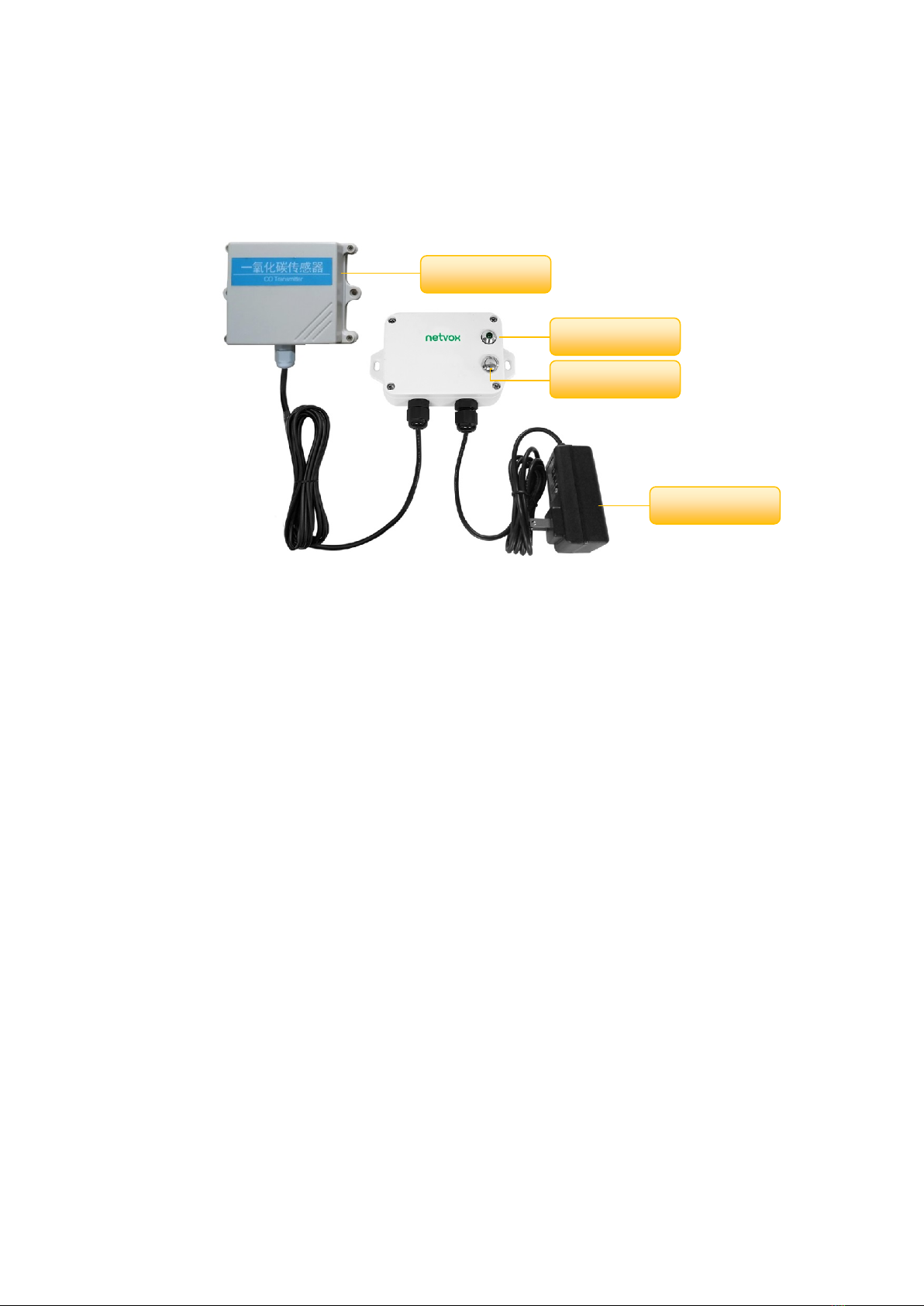

2. Appearance

3. Main Feature

Adopt SX1276 wireless communication module

12V DC power supply

CO detection

The base is attached with a magnet that can be attached to a ferrous object

Main body protection level IP65 / IP67 (optional)

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum

Configuring parameters and reading data via third-party software platforms, and set alarms via

SMS text and email (optional)

Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Indicator

Function Key

CO Senser

Adaptor

4.Set Up Instruction

Network Joining

Function Key

On/Off

Power on DC12V adapter

Turn on DC12V power supply, the green indicator flashing once means turn on

successfully.

Turn off

(Restore to factory setting)

Press and hold the function key for 5 seconds till the green indicator

flashes 20 times.

Power off Remove DC12V adapter.

Note:

1. The first 5 seconds after power on, the device will be in engineering

test mode.

2. On/off interval is suggested to be about 10 seconds to avoid the

interference of capacitor inductance and other energy storage

components.

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(Not restore to the factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to join the network Suggest to check the device verification information on the gateway

or consult your platform server provider.

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: the green indicator flashes once and sends

a report

The device is not in the network: the green indicator remains off

5. Data Report

The device will send a version package report immediately after power-on. Then, it will send a report

data with the concentration of carbon monoxide after it is powered on for 20s.

The device sends data according to the default configuration before any other configuring.

Default setting:

MaxTime: Max Interval = 3min = 180s

MinTime: The MinTime configuration is not available.

*But the software has restriction, MinTime must be configured a number greater than 0.

Note:

1. The cycle of the device sending the data report is according to the default.

2. R718PA1 reports the concentration of carbon monoxide.

Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver

http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.

Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

(1) Configure the report MaxTime = 1min (The MinTime configuration is useless, but it needs to be

set greater than 0 because of the software limitation.)

Downlink: 0157000A003C0000000000

Device Return:

8157000000000000000000 (configuration is success)

8157010000000000000000 (configuration is failure)

(2) Read device configuration parameters

Downlink: 0257000000000000000000

Device Return:

8257000A003C0000000000 (device current configuration parameter)

Description Device Cmd

ID Device

Type NetvoxPayLoadData

ConfigReport

Req

R718PA1

0x01

0x57

MinTime

(2bytes Unit: s) MaxTime

(2bytes Unit: s) Reserved

(5Bytes,Fixed 0x00)

ConfigReport

Rsp 0x81 Status

(0x00_success) Reserved

(8Bytes, Fixed 0x00)

ReadConfig

ReportReq

0x02

Reserved

(9Bytes, Fixed 0x00)

ReadConfig

ReportRsp 0x82 MinTime

(2bytes Unit: s) MaxTime

(2bytes Unit: s) Reserved

(5Bytes,Fixed 0x00)

6.Installation

2. The device periodically reports the data

according to Max Time. The default Max

Time is 3min.

Note: Max Time can be modified by the

downlink command, but it is not

recommended to set this time too short.

1. R718PA1 has a built-in magnet (as the figure

below). It can be attached to the surface of an iron

object conveniently and quickly when it is installed.

In order to make the device installation more secure,

use screws (purchased) to fix the device to the wall

or other surface (such as the installation diagram).

The device is screwed by two screws in the middle

(purchased by users).

Note: Do not install the device in a metal shielded box

or in an environment with other electrical equipment

around it to avoid affecting the wireless transmission

of the device.

3. The device can be used in scenarios such

as:

Boiler room

Parking lot

Gas water heater

Mine environment monitoring

7.Important Maintenance Instruction

Kindly pay attention to the following in order to achieve the best maintenance of the product:

• Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can

corrode electronic circuits. In case the device is wet, please dry it completely.

• Do not use or store in dusty or dirty areas. This way can damage its detachable parts and electronic

components.

• Do not store in excessive heat place. High temperatures can shorten the life of electronic devices,

destroy batteries, and deform or melt some plastic parts.

• Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature,

moisture will form inside which will destroy the board.

• Do not throw, knock or shake the device. Treating equipment roughly can destroy internal circuit

boards and delicate structures.

• Do not wash with strong chemicals, detergents or strong detergents.

• Do not paint the device. Smudges can make debris block detachable parts up and affect normal

operation.

• Do not throw the battery into the fire to prevent the battery from exploding.

Damaged batteries may also explode.

All the above suggestions apply equally to your device, batteries and accessories.

If any device is not operating properly.

Please take it to the nearest authorized service facility for repairing.
