Neware CE-6000n Manuale utente

１

User Manual

CE-6000n power battery test equipment

Attention

PLEASE:

Read the User Manual before operating

Preserve the User Manual.

Read carefully for safety matters.

Manufacturer: Neware Technology Limited

Address: 15/F, Tower 3, Excellence City, No, 128 Zhongkang Rd,

Shenzhen, China, 518049

Tel: 0755-83108866

Website: http://www.newarebattery.com

User Manual

２

Neware Technology Limited

http://www.newarebattery.com

Catalog

Welcome...........................................................................................................................................................３

Chapter 1. Inspection............................................................................................................................... ６

Chapter 2. Installation..............................................................................................................................７

2.1 Appearance..............................................................................................................................７

2.2 Installation of Cabinet.............................................................................................................８

2.3 Electric connection............................................................................................................. １０

2.4 Installation Tools.................................................................................................................１５

Operation......................................................................................................................................................１６

Chapter 3. Safety Notice......................................................................................................................１６

3.2 Safety Requirements for operate technician.......................................................................１７

3.3 Marking Requirements....................................................................................................... １７

3.4 Safety Warning Requirements............................................................................................ １７

After the installation, be sure you lock the cabinet door and keep the keys safely.................... １８

3.5 Fire Entrance Requirements............................................................................................... １８

3.6 Battery safety requirements................................................................................................１８

3.7 Installation requirements.................................................................................................... １８

Grounding requirements.............................................................................................................. １８

3.9 Power-off Operation Requirements....................................................................................１９

3.10 Scrap Requirements.......................................................................................................... １９

3.11 Other Protection Requirements.........................................................................................１９

Chapter 4. Equipment Introduction..................................................................................................... １９

4.1 System composition............................................................................................................２０

4.2 System topology................................................................................................................. ２１

4.3 Specification....................................................................................................................... ２２

Chapter 5. Touch Screen Description.................................................................................................. ２６

5.1 Home page.......................................................................................................................... ２６

5.2 Overview.............................................................................................................................２７

5.3 Setting................................................................................................................................. ２８

5.4 Switch machine...................................................................................................................２９

5.5 Operating data.....................................................................................................................３０

5.6 Fault record......................................................................................................................... ３１

5.7 Automatic calibration..........................................................................................................３２

6.1 Power on............................................................................................................................. ３４

6.2 Power off.............................................................................................................................３４

Chapter 7. Maintenance....................................................................................................................... ３５

7.3 Clean maintenance..............................................................................................................３６

7.4 Torque requirements........................................................................................................... ３６

Chapter 8. Repairing............................................................................................................................ ３６

8.1 Recovering of fault operation.............................................................................................３６

8.2 Common faults....................................................................................................................３７

User Manual

３

Neware Technology Limited

http://www.newarebattery.com

Welcome

Thank you for choosing Neware. We offer quality production and reliable after-sales service

to you.

To ensure the safe operation and the functionality of the equipment, please read this user

Manual carefully before operation.

This manual will introduce the fundamental theory, standard, construction, norms of operation,

maintenance, trouble-shooting for potential faults, and electrical diagram. Any "test

regulation" standards that were mentioned in this menu were for reference only. If you have

any objections, please consult the relevant standard-document or research materials.

This manual is intended to instruct the user to properly operate the equipment. Please read

carefully.

Liabilities

Neware is not responsible for the damage that results from negligence or fault operations that

are not caused by Neware. Please follow this "user manual" to avoid potential negligence or

fault.

Attention

Keep the manual.

Ask for a replacement if any errors in this manual are found.

Constitute:

This manual is consisted from 4 parts for potential needs.

Name

Content

Welcome

The description of this manual and the general description of the

equipment.

Installation

Related installation operations include solutions for installation, setup, and

moving.

Operation

Introduction to the equipment's fundamental operation methods, and related

troubleshooting for problems that you might encounter.

Reference

Relevant references to this equipment.

User Manual

４

Neware Technology Limited

http://www.newarebattery.com

Statement of Safety Symbols:

The symbols below will be indicated in this manual.

Danger

A faulty operation can result in serious harm. Do not operate the equipment

under this condition.

Warning

A faulty operation can result in a minor injury. Additionally, equipment or

test samples will be damaged.

Attention

Utility or damage prevention indicator.

Keywords:

Steps: operation command

Reference: information for reference

Description of test equipment’s relevant information:

The naming of this equipment is based on the series, the quantity of the channels, the level of

voltage/current, the type of charge/discharge port, and the optional negative voltage.

Please check the nameplate on the equipment to confirm the model type.

This manual will include all the models of CE-6000 series equipment. You will be

only responsible for reading about the specific model that you purchase.

Model

CE-60XXn

120V

50A

-B

Sign

①

②

③

④

Means

①

Power battery test equipment, XX stands for quantity

of channels (e.g. CE-6002n stands for two

channels, CE-6012n stands for 12 channels).

②

Output voltage

③

Output current for a single channel

④

-B: separated charge and discharge ports

-F: negative voltage available

(Hint: Standard equipment came without ④)

User Manual

５

Neware Technology Limited

http://www.newarebattery.com

Installation

CE-6000n power battery test equipment

Attention

This chapter states the installation method of the equipment.

Read this chapter if you need to move the equipment.

Users must read this chapter no matter whoever is responsible for

installation.

User Manual

６

Neware Technology Limited

http://www.newarebattery.com

Chapter 1. Inspection

Check the items according to the "Packing List" and confirm that all the required items were

sent.

If you have any special orders, please check the "Packing List" to confirm.

Contact the supplier (Neware) if there is any loss or damage.

Notice: A "Packing List" will be shipped with the equipment.

User Manual

７

Neware Technology Limited

http://www.newarebattery.com

Chapter 2. Installation

This chapter introduces the appearance of the equipment and the required conditions for

installation.

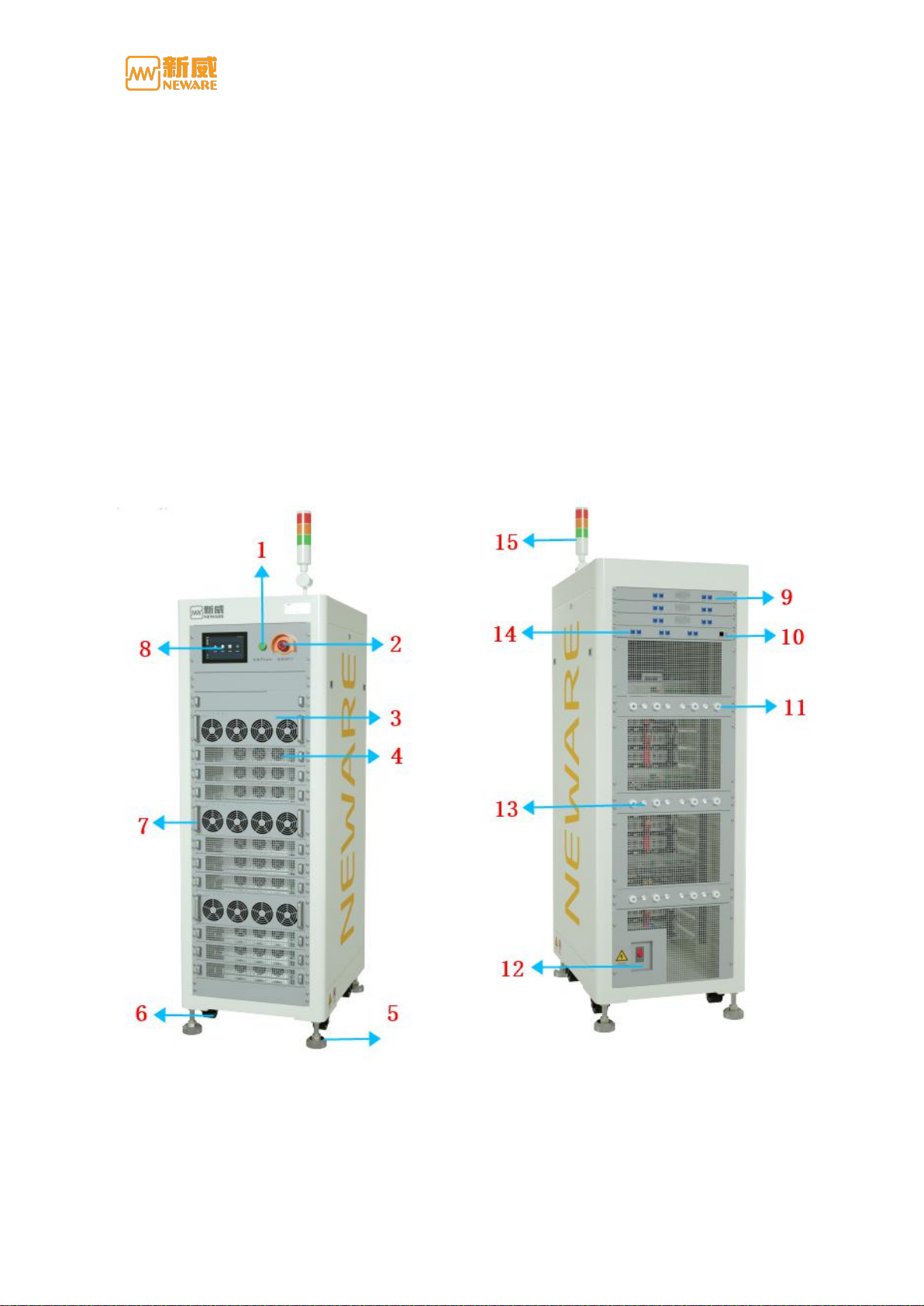

2.1 Appearance

Front

Back

Appearance Figure(For reference only)

User Manual

８

Neware Technology Limited

http://www.newarebattery.com

NO.

Name

Functions／Usage

Indicator

Operation indicator

Stop button

Emergency protection

AC/DC Module

AD input to DC output

DC/AC Module

DC input to AC output

Footing

For equipment positioning

Caster

For short distance moving

Handle

For installation

Screen

Man-computer interaction interface

Net port

BMS communication port

Net port

Network communication port

Output channel cable

Channel cable for batteries connection

Breaker

On/Off switch of power supply

Battery voltage

sampling port

Sampling the voltage of the connected battery

Net port

For Auxiliary connection

Warning light

Reflect ON working conditions

2.2 Installation of Cabinet

Site configuration

This part indicates the spatial requirements for the equipment to ensure safe operation.

■Site requirement for installation

The equipment is required to be setup on the floor with flame-proof material, and the

flooring is constructed with the U-bar. The floor is required to be flat and firm enough

to support the weight of the equipment.

Adequate ventilation and no direct sunlight.

Temperature:-10°C~40°C, no rapid temperature change.

Humidity: 5%-95%RH

Altitude: <2000

No high-density dust, no flammable or corrosive components around the equipment.

■Storage/Operating space

User Manual

９

Neware Technology Limited

http://www.newarebattery.com

This equipment is designed for in-door usage.

Safety-level-IP20. Equipment is required to be set up on a flat concrete floor or on a setting

plate that can support the weight of the equipment. It is suggested to setup an air purification

treatment to reduce the effect of the dust.

The air intake is supposed to keep a distance from any closed objects to ensure sufficient

ventilation. It is recommended to set up a ventilation device that can control the temperature

in the workplace to ensure the long-term reliability of the equipment,

Sufficient space (> 600mm) between testers and walls to ensure ventilation and escape space.

Sufficient space (> 500mm) above the equipment for ventilation, maintenance, and operation.

■Wire trough requirement

The network cable and power cable should be placed separately to reduce EMI from the

power circuit to the network communicator.

■Moving

This equipment is available for transport by forklift or tray carriage. Check the weight of the

equipment and the correct support point for safety purposes.

The forklift is the best transporter for this equipment. The gravity centre of the cabinet is

required to be set between the fork arms, and it is suggested to do a test lift. Make sure all the

operations are slow and stable. Please place it on the firm and stable floor, and follow the

safety operation process.

Warning

Use a forklift with the proper size and elevating capacity to move the equipment. Jack

the equipment from the bottom. The cabinet must be secured from slipping when

jacking up.

User Manual

１０

Neware Technology Limited

http://www.newarebattery.com

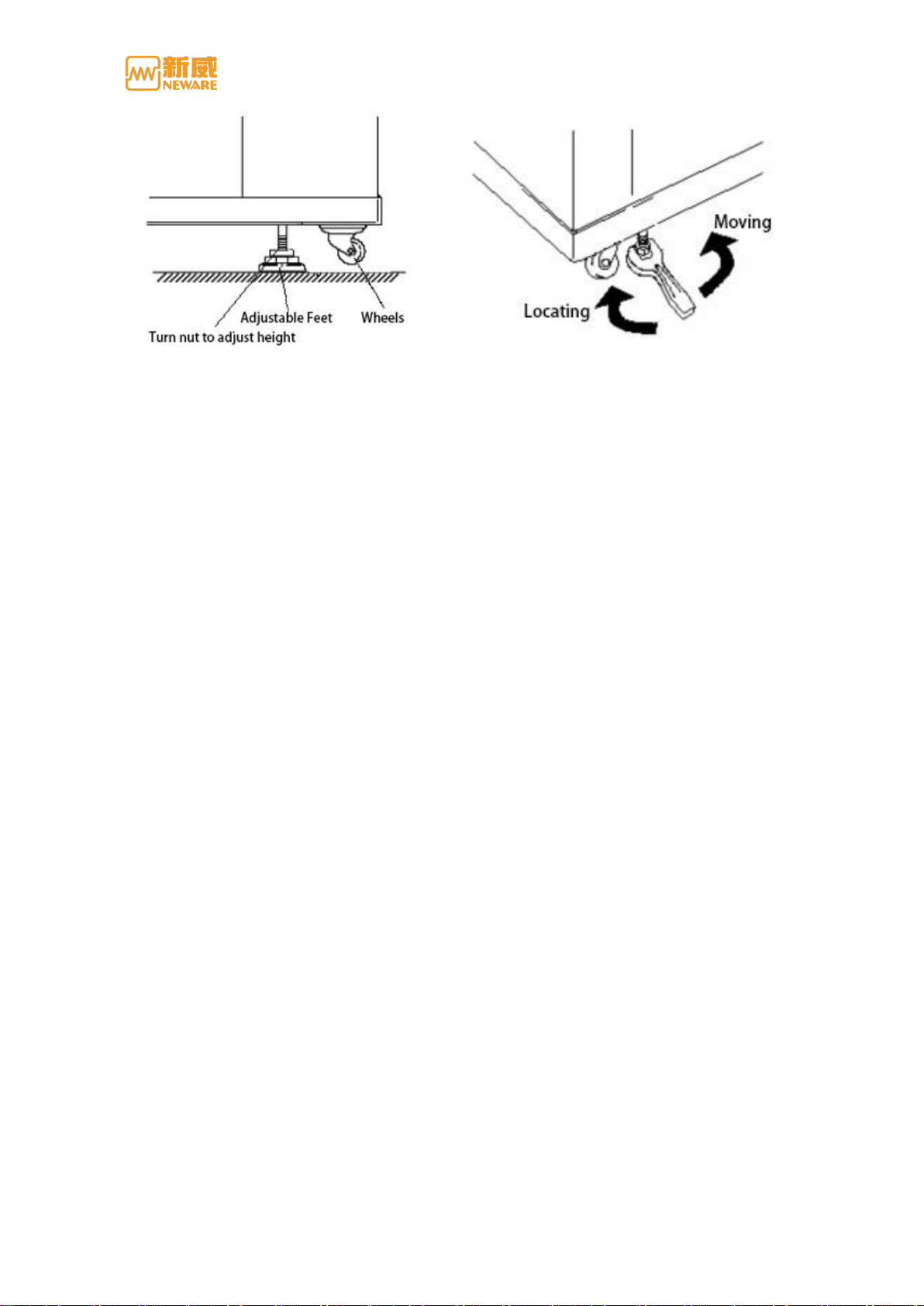

Adjustable feet (optional) are located on each corner at the bottom of the equipment. The

height of the adjustable feet is adjusted by tightening or loosening the nut with a wrench.

Adjusting the nut in a clockwise direction will lift the wheels off the floor and the equipment

will stand firmly on the floor. Adjusting the nut in a counter-clockwise direction will let the

wheels connect to the floor, making the equipment moveable.

2.3 Electric connection

Wires for required connections:

Ground wire

DC side cable

AC side cable

Communication cable

Requirement for Cable

All the cables required a sufficient current-carrying capability. The current-carrying

capability will be affected by the environmental conditions, insulating materials,

method of laying, materials of wire, and cross sectional area.

All the cables must based on the maximum AC current and reserve some retained

current.

All the cables on the same side must have the same parameters and form.

The cable must be flame-proofed.

Indice

Altri manuali Neware Apparecchiature di prova

Neware

Neware BTS9 Manuale utente

Neware

Neware BTS 4000 Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
