Newcon Optik AN 8x30M22 Manuale utente
Operation Manual
AN 8x30M22
Daytime Binoculars
NSN # 6650-20-007-7029
105 Sparks Ave., Toronto, ON M2H 2S5, Canada
Table of Contents
1.BRIEF DESCRIPTION............................................1
2.SPECIFICATIONS ..................................................2
2.1Shared specifications ..............................................2
2.2AN 8x30M22 detailed specifications......................3
3.DESIGN AND APPEARANCE...............................4
3.1Optical design .........................................................4
3.2Reticle .....................................................................5
4.BODY ASSEMBLY ................................................6
5.DELIVERY SET......................................................7
6.OPERATION INSTRUCTIONS..............................8
6.1Interpupillary distance adjustment..........................8
6.2Focusing the binoculars ..........................................8
6.3Measuring horizontal angle using the reticle ..........9
6.4Measuring vertical angle using the reticle ............10
6.5Using the reticle to calculate distance...................12
6.6Measuring distance directly using the reticle........12
6.7Calculating target's size using angle readings.......14
7.STORAGE AND MAINTENANCE......................15
8.WARRANTY.........................................................16
9.CUSTOMER SUPPORT........................................18
10.QUALITY CERTIFICATE....................................19
1
1. BRIEF DESCRIPTION
The AN daytime binoculars AN 8x30M22,
The binoculars are designed and manufactured to military
specifications and provide excellent brightness, image
clarity and true image color. The built-in range finding
reticle, M22 standard, enables measurements of horizontal
and vertical angles, as well as calculation of height, width
of the target and distance to the target.
These binoculars are waterproof, shockproof and nitrogen
filled. They are also rubber armoured and have a tripod
socket.
The binoculars feature foldable rubber eye cups and long
eye relief to provide for comfort viewing with glasses or
mask. Though many binoculars feature fold down eye
cups, only the ones featuring a long eye relief offer a truly
full view while wearing glasses.
These binoculars meet the standards and requirements of
GJB1240, GJB150 and MIL-STD810.
The user can be confident whether the instrument is used
in the military, security, traffic control, marine, aviation,
or any other application requiring reliable and powerful
optical equipment.
2
2. SPECIFICATIONS
2.1 Shared specifications
Prisms BAK4
Coating FMC
Brightness index 50.4
Interpupillary adjustment distance 56-74 mm
M22 Reticle Yes
Operating temperature range –40°C … +70°C
All binoculars are waterproof and shockproof (will
withstand a drop test from 1.8m).
3
2.2 AN 8x30M22 detailed specifications
AN 8x30M22
Magnification 8x
Objective
lens diameter 30 mm
Focus 3 m – inf.
Field of view 8°
Apparent field of view 60°
FOV
@1000 m 132 m
FOV
@1000 yd 396 ft
Exit pupil 3.8 mm
Eye relief 17 mm
Weight 0.545kg
Dimensions, LxHxW, mm 110x156x55
4
3. DESIGN AND APPEARANCE
3.1 Optical design

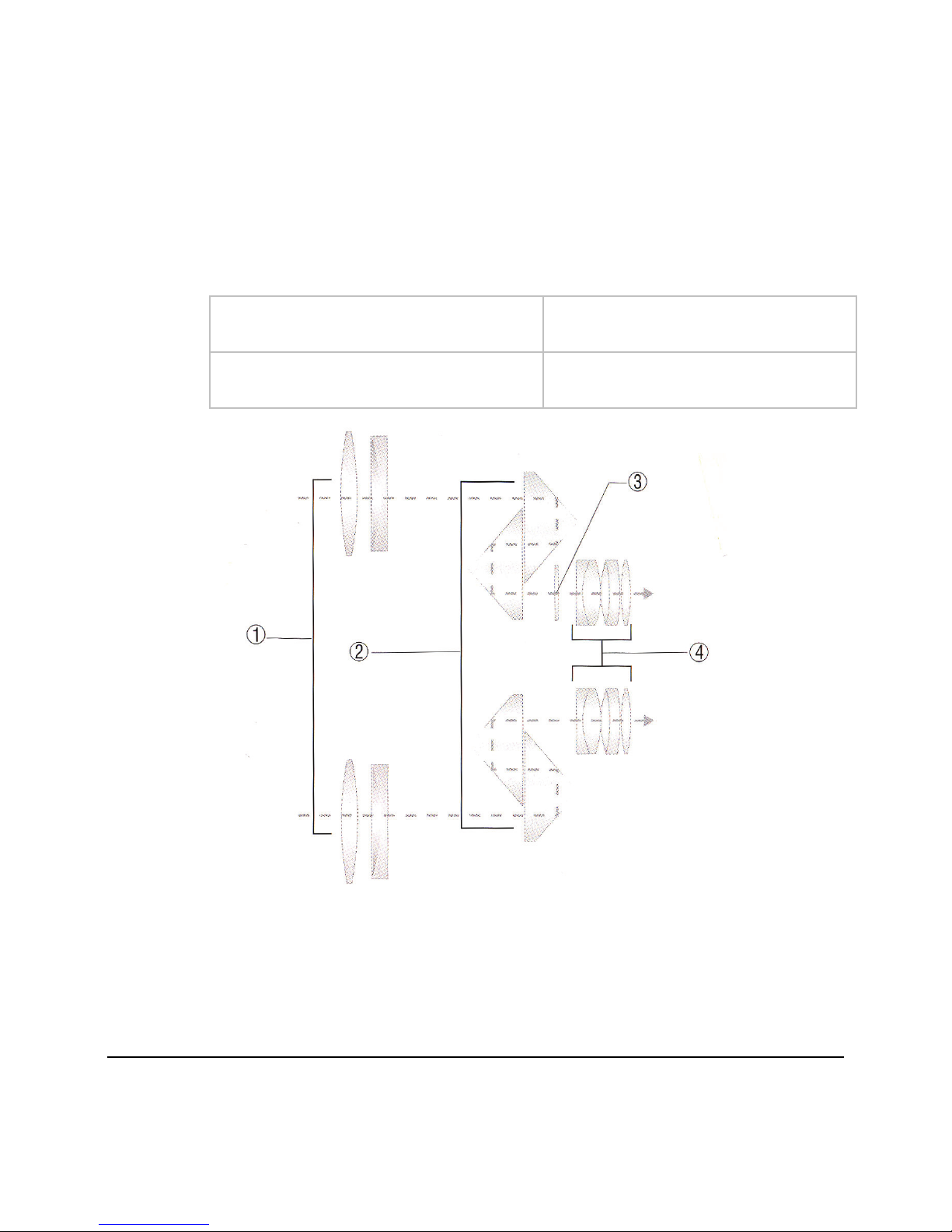

Optical design of the binoculars is presented on Fig. 1.
1 – objective lens 2 – erective prisms
3 – reticle lens 4 – eyepiece
The light from the object or target you are looking at
enters the binoculars through the objective lens system (1,
Fig. 1
5
Fig. 1). Due to the objective lens, the image at this point
is turned upside down. However, as the image passes
through the prism system, (known as the erective prisms)
(2, Fig. 1) it becomes right side up (erect) and changed
from right to left, to left to right. After the prisms the
image rays pass through the reticle lens (3, Fig. 1) and
then through the eyepiece (4, Fig. 1).

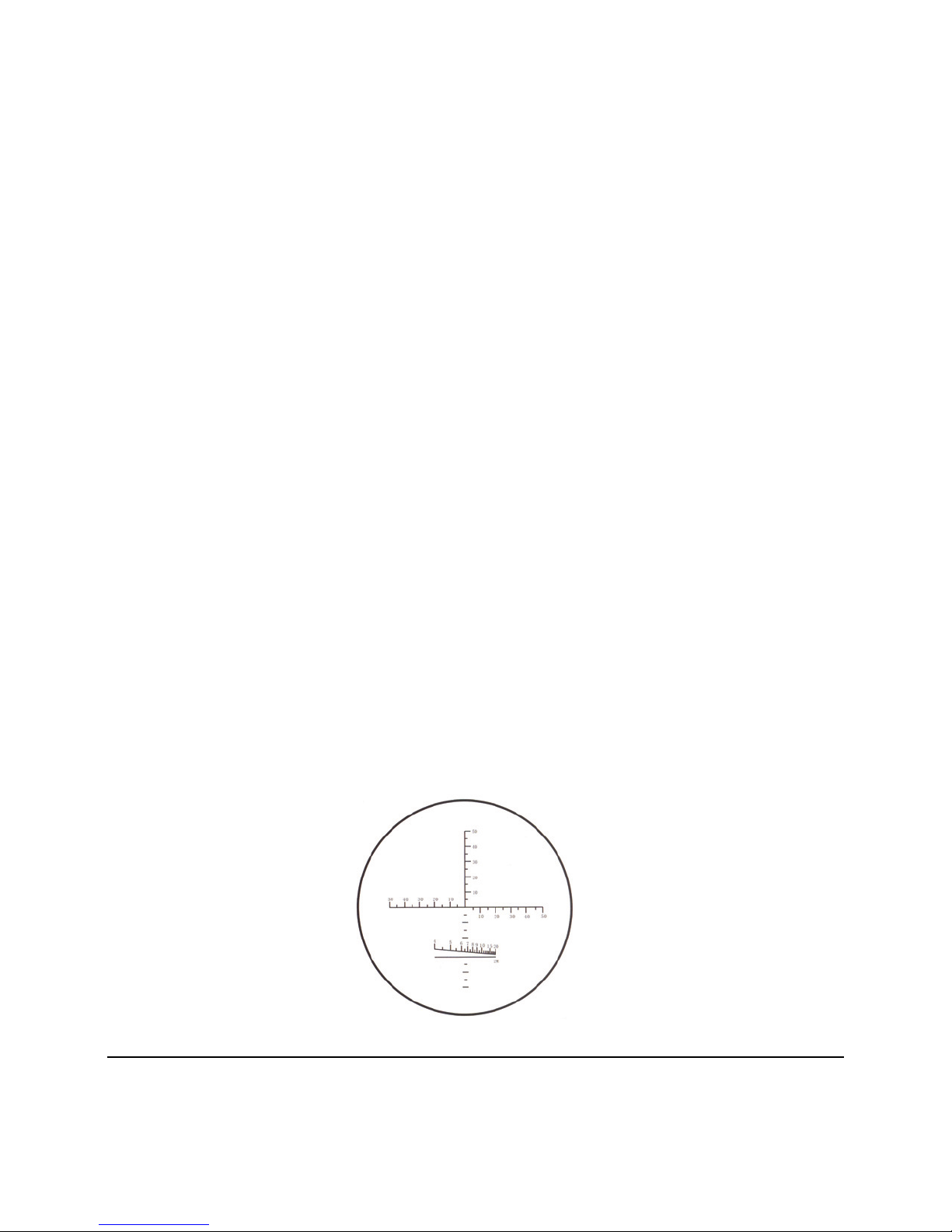

3.2 Reticle
Reticle lens (3, Fig. 1) contains vertical and horizontal
lines that constitute an M22 reticle. Though reticle scales
may form a cross or upside down T (Fig. 2, B) they share
the same scale division value: each small division on both
vertical and horizontal lines is 5 mils and each big
division is 10 mils (360º equals 6400 mils).
Reticle may have an addition scale composed of two lines
(B, Fig.2).
Fig. 2
6
1

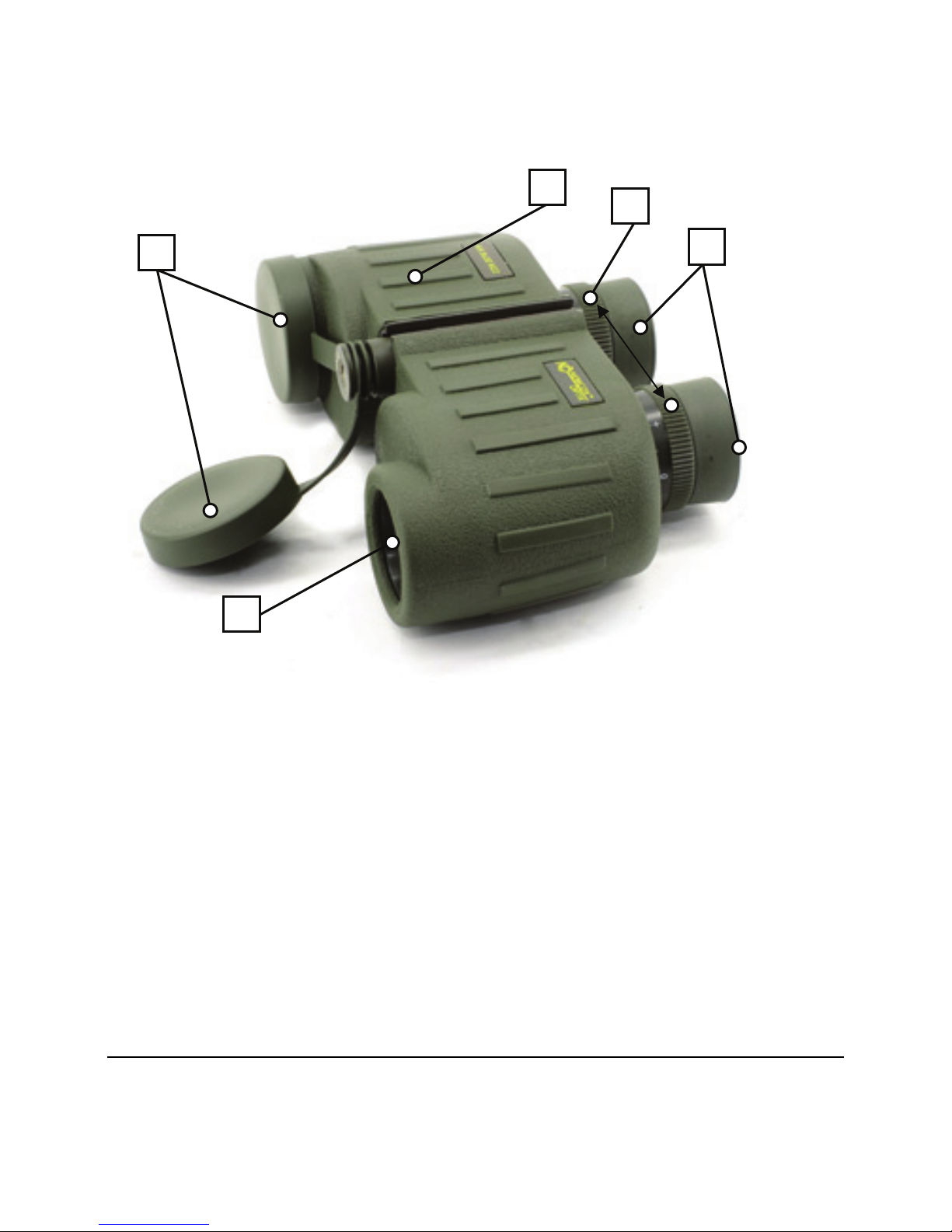

4. BODY ASSEMBLY
1 – Objective lens 2 – Objective protective cap
3 – Binocular body 4 – Individual focus
adjustment rings
5 – Eyepieces
Fig. 3
1
34
5
2
7
5. DELIVERY SET
Q-ty Notes
Binoculars 1
Carrying strap 1
Lens cleaning cloth 1
Soft case with carrying
strap 1
Eyepiece cover 1
Tripod adapter 1
Manual 1
