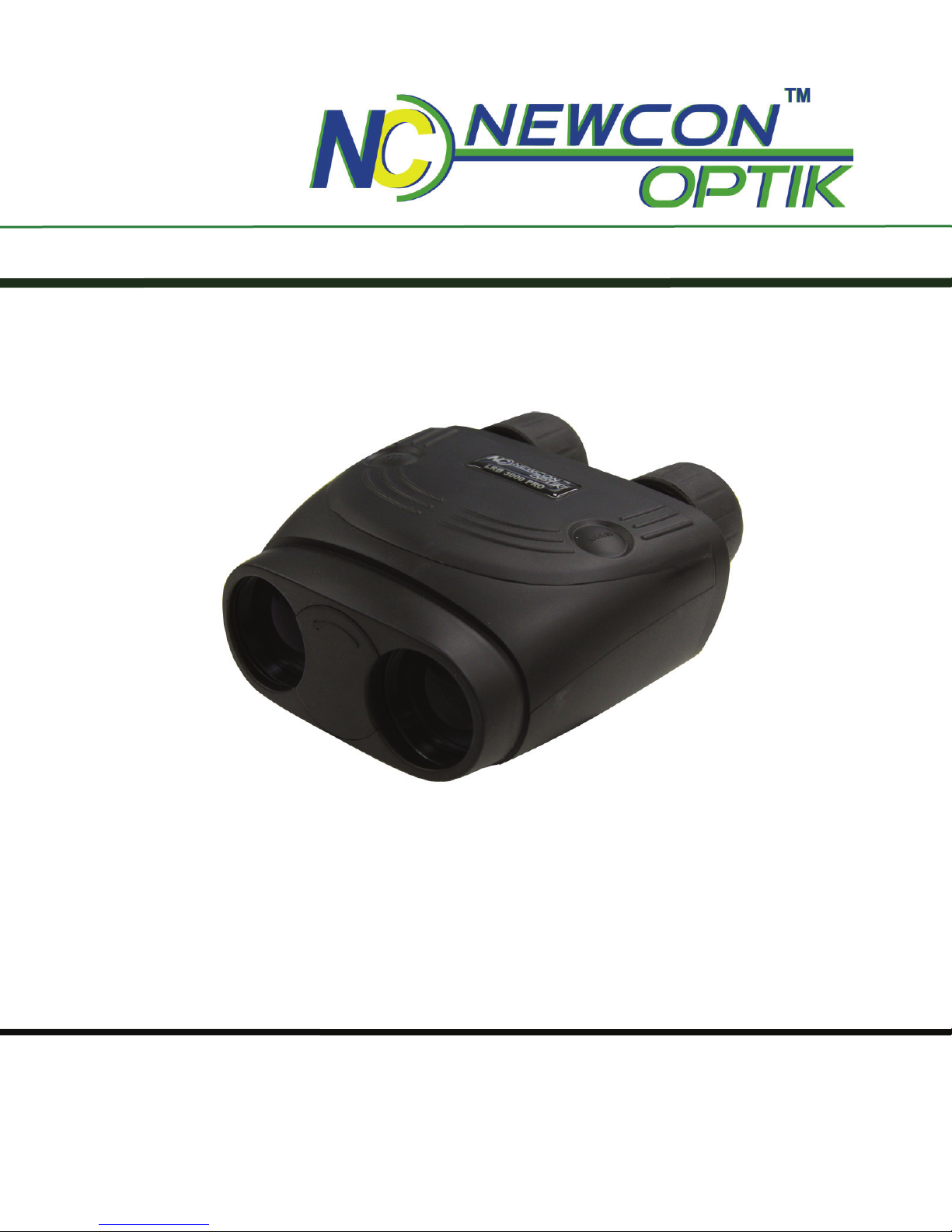

Newcon Optik LRB 3000PRO Manuale utente

Operation Manual

LRB 3000PRO

LASER RANGE FINDER BINOCULARS

NSN: 1240-20-004-5448

105 Sparks Ave., Toronto, ON M2H 2S5, Canada

iii

IMPORTANT INFORMATION

Read prior to activation

You have just purchased a sophisticated electro-optical device

that emits invisible laser radiation. To operate it properly,

please, read this manual carefully.

NEVER direct laser beam at the eyes of people or animals

NEVER aim the unit at the Sun or bright sources of light

NEVER subject the unit to impacts

NEVER transport the unit without its case

NEVER disassemble the unit. This may be hazardous for

you due to high voltage currents

ALWAYS keep the unit out of the reach of children

ALWAYS remove the battery when the device is not in

use for a long period

ALWAYS store the unit in a dry place

Caution - use of controls or adjustments, or performance

of procedures other than those specified herein may result

in hazardous radiation exposure

Caution - use of optical instruments such as binoculars,

loupes, mirrors, lenses, etc. with this product increases eye

hazard

Avoid eye exposure to direct laser beam or its close

reflection

Prevent bright light from focusing through the eyepieces

Never aim the unit at highly reflective objects like mirrors

and retroreflective surfaces, which are in close proximity

to the laser rangefinder. This can lead to the permanent

damage of the photoreceiver incorporated into the device.

TABLE OF CONTENTS

1.BRIEF DESCRIPTION.......................................2

Principle of operation..................................................2

Key Features ...............................................................3

2.DEVICE APPEARANCE ...................................4

3.DELIVERY SET.................................................7

Standard delivery set...................................................7

Optional accessories....................................................7

4.SPECIFICATIONS .............................................7

5.OPERATION INSTRUCTIONS ........................9

Preparing device for operation....................................9

Measurement procedure............................................10

Factors affecting measuring distance ........................11

Target selection logic................................................12

Individual Measurement and Scanning regimes .......12

Operation and service modes ....................................13

Accuracy correction ..................................................15

Compass calibration..................................................16

Data Recall mode......................................................17

6.BEST MEASURING TECHNIQUE.................18

7.STORAGE AND MAINTENANCE.................19

8.TROUBLESHOOTING....................................20

9.WARRANTY....................................................21

10.CUSTOMER SUPPORT...................................22

11.QUALITY CERTIFICATE...............................23

CAREFULLY READ ALL THE INSTRUCTIONS

BEFORE USING!

FAILURE TO OBEY THE INSTRUCTIONS WILL

VOID THE WARRANTY!

1. BRIEF DESCRIPTION

The LRB 3000PRO Laser Rangefinder Binoculars

(System) is an advanced laser range finder that enables instant

distance, speed, elevation and azimuth measurements.

The unit complies with CFR 21, Part 1040.10 and Part

1040.11.

An outstanding fully multi-coated optics coupled with an

original circuitry design creates a system that outperforms

any other product in its class and price range.

Principle of operation

The unit sends invisible, eye safe laser beam pulses to the

target. The pulses reflected from the target are captured and

processed by the digital circuitry. The time-of-flight delay

between the sent and received pulses allows calculating the

distance to the target.

A built-in digital compass measures azimuth simultaneously

with ranging.

A built-in digital inclinometer measures the elevation

simultaneously with ranging, in its turn elevation

measurement allows height calculation. The unit also

provides azimuth readings.

Key Features

Modern digital circuitry allows targeting through most

types of glass

Speed detector

Selection of the first, last or the most reflective target

Distance is displayed in meters or yards

Original digital circuitry allows ranging through most

types of glass, bushes and other obstacles

Three channel optical solution (optical, laser and

receiver) provides high accuracy

Two reticle shapes: -¦- or ⁯

Built-in digital compass and inclinometer

On-board memory keeps results of last 10 measurements,

that can be recalled to the LCD

The unit automatically turns off when no button is

pressed for 16 seconds

2. DEVICE APPEARANCE

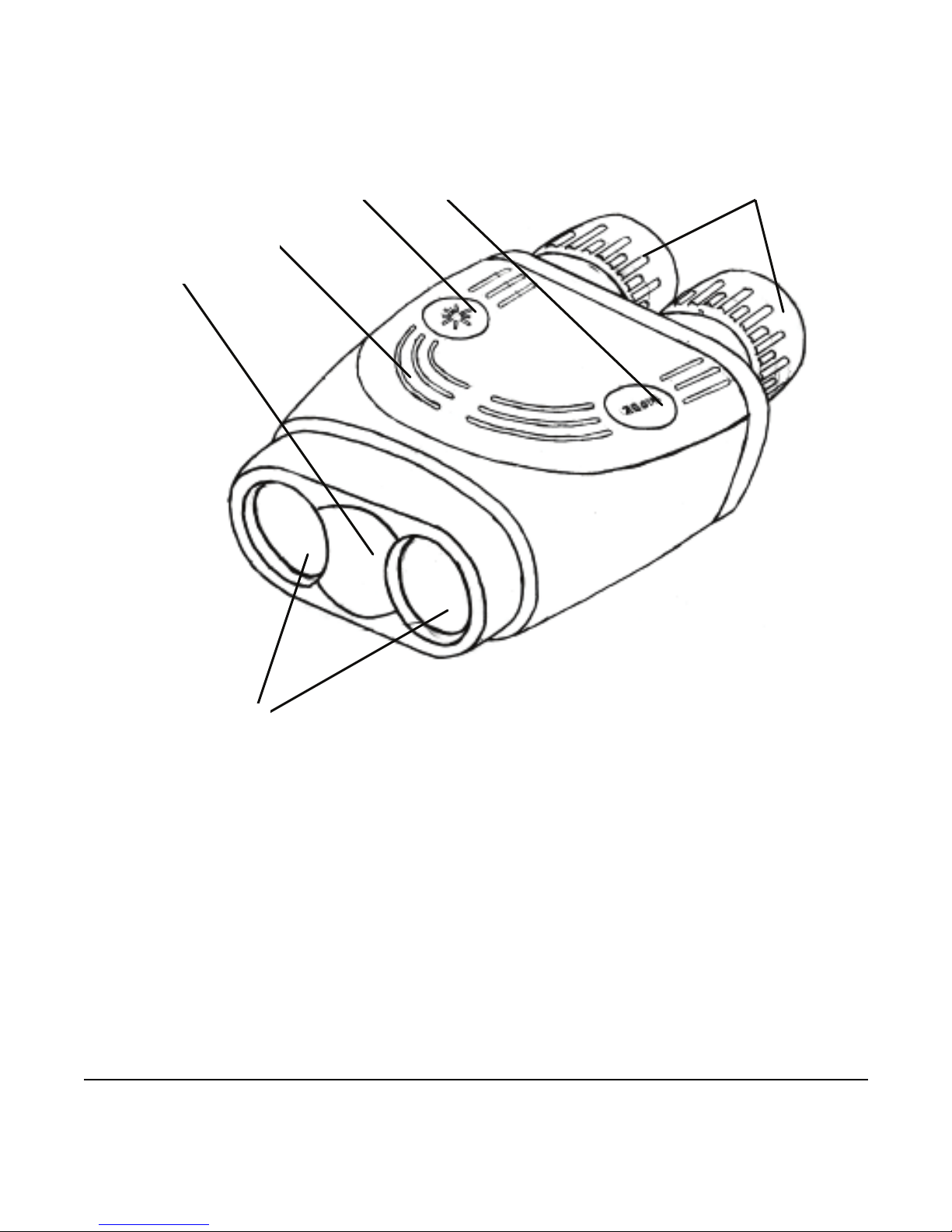

Fig. 1. Front view

1 – Eyepieces 2 – Objective lens

3 – Mode button 4 – Action button

5 – Battery compartment cover 6 – Rubber grip

4 13

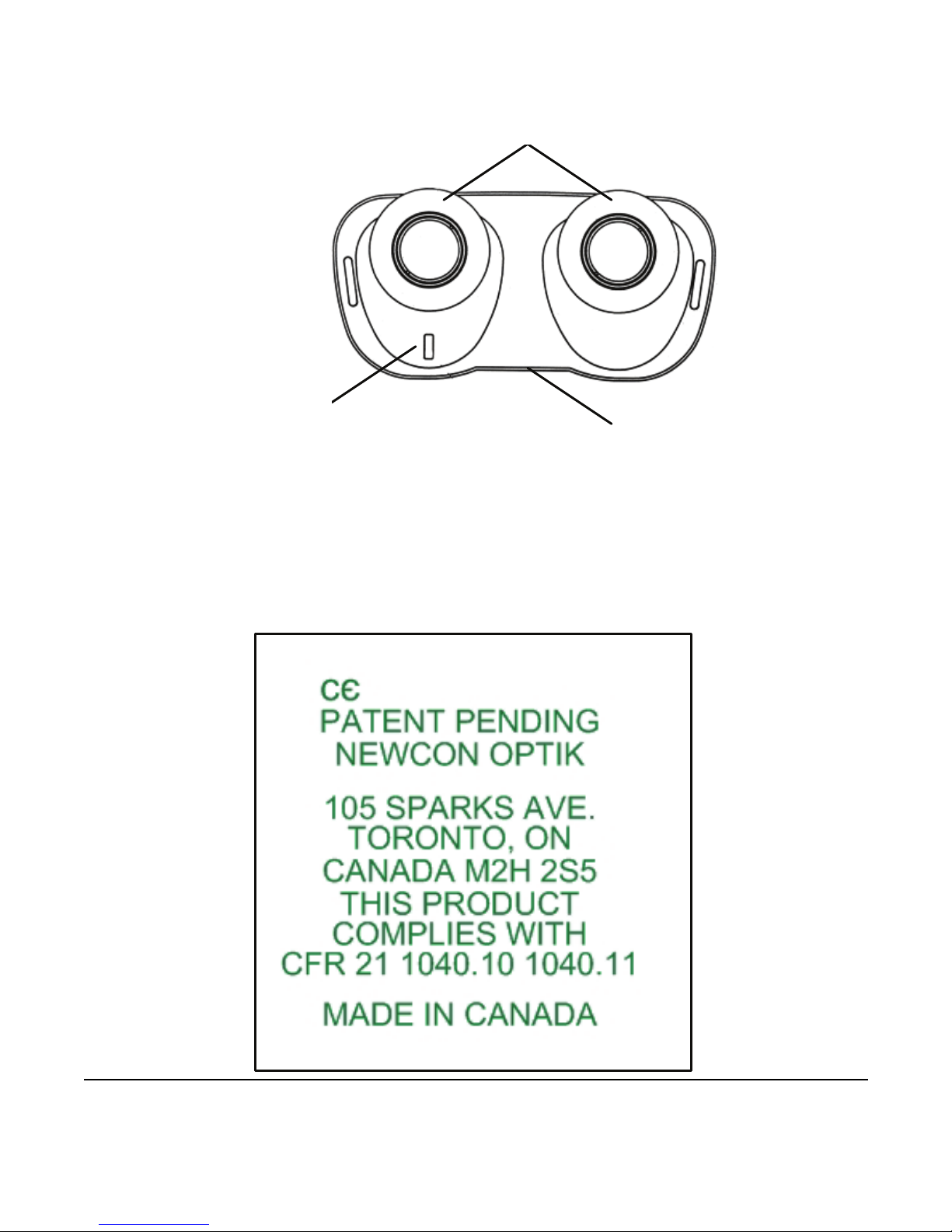

Fig. 2. Rear view

1 – Eyepieces;

7 – Interpupillary distance adjustment lever;

8 – Identification and certification label (located at the

bottom):

Fig. 3 Display

1 – Low battery indicator 2 – Reticle (either -¦- or ⁯)

3 – Units of measurement 4 – Measurement result

5 – Laser active indicator 6 – Ready mode indicator

7 – Setup mode indicator
