Newcon Optik LRB 6000CI Manuale utente
Operation Manual
LRB 6000CI
LASER RANGE FINDER
BINOCULARS
105 Sparks Ave., Toronto, ON M2H 2S5, Canada
ii
iii
IMPORTANT INFORMATION
Read prior to activation
You have just purchased a sophisticated electro-optical
device that emits invisible laser radiation. To operate it
properly, please read this manual carefully.
NEVER direct laser beam at the eyes of people or
animals
NEVER aim the unit at the Sun or bright sources of
light
NEVER subject the unit to impacts
NEVER transport the unit without its case
NEVER disassemble the unit. This may be hazardous
for you due to high voltage currents in the system
ALWAYS keep the unit out of children’s reach
ALWAYS remove the battery when the device is not
in use for a long period
ALWAYS store in a dry place
Caution - use of controls or adjustments, or
performance of procedures other than those specified
herein may result in hazardous radiation exposure
iv
Caution - use of optical instruments such as
binoculars, loupes, mirrors, lenses, etc. with this
product increases eye hazard
Note: Avoid eye exposure to direct laser beam or its
close reflection
Prevent bright light from focusing through the
eyepieces
Never aim the unit at highly reflective objects like
mirrors and retroreflective surfaces, which are in close
proximity to the laser rangefinder. This can lead to the
permanent damage of the photoreceiver incorporated
into the device.
TABLE OF CONTENTS
1. BRIEF DESCRIPTION.................................................. 2
2. DEVICE APPEARANCE .............................................. 4
3. DELIVERY SET............................................................ 7
4. SPECIFICATIONS ........................................................ 8
5. OPERATION INSTRUCTIONS.................................. 10
Installing the battery..................................................... 10
Using the Device .......................................................... 11
Factors affecting measuring distance ........................... 12
Target selection logic ................................................... 13
Operation and service modes ....................................... 14
Accuracy correction ..................................................... 16
Compass calibration ..................................................... 18
Setting interface format................................................ 18
Gating mode ................................................................. 19
Data Recall mode ......................................................... 20
Computer interconnectivity.......................................... 21
GPS interconnectivity .................................................. 22
Short mode switching scheme ...................................... 22
6. BEST MEASURING TECHNIQUE............................ 23
7. STORAGE AND MAINTENANCE............................ 25
8. TROUBLESHOOTING ............................................... 26
9. WARRANTY............................................................... 27
10. CUSTOMER SUPPORT.............................................. 28
11. QUALITY CERTIFICATE.......................................... 29
2
CAREFULLY READ ALL THE INSTRUCTIONS
PRIOR TO USE!
FAILURE TO OBEY THE INSTRUCTIONS WILL
VOID THE WARRANTY AND MAY CAUSE
INJURY!
1. BRIEF DESCRIPTION
LRB 6000CI Laser Rangefinder Binoculars (System) is
an advanced laser range finder system that enables instant
distance, speed, vertical and horizontal angular
measurements. An outstanding optics provides a sharp,
clear image under any observation conditions.
The unit utilises time-of-flight method of distance and
speed measurement. The System sends invisible, eye
safe laser pulses to the target. The returned pulses are
captured by the digital circuitry. The time difference is
used to calculate the distance to the target. A built-in
digital compass measures an angle between the optical
axis and direction to the magnetic North Pole.
The unit complies with CFR 21, Part 1040.10 and Part
1040.11.
A built-in inclinometer allows elevation angle
measurements and height (depth) calculations.
3
Key Features of the LRB 6000CI Laser Rangefinder
Binoculars
Modern digital circuitry allows targeting through
most types of glass
First, last or the most reflective target acquisition
Meters/Yards/Mils/Degrees/KMH/MPH display
Last 10 measurements recall
Selectable reticle shape (+ or )
Gating capability
Speed detector
Accurate digital compass
Accurate digital inclinometer
RS-232 bidirectional communication
GPS interoperability (PLGR/DAGR protocol)
Auto shutoff time – 16 seconds
4
2. DEVICE APPEARANCE
1 – Eyepieces 2 – Objective / receiving lens
3 – Objective / emitting
lens
4 – Dioptric adjustment rings
5 – Mode button 6 – Action button
7 – Body of the device 8 – Rubber grip
2
3
4
5
6
7
1
8
Fig. 1. Front view
5

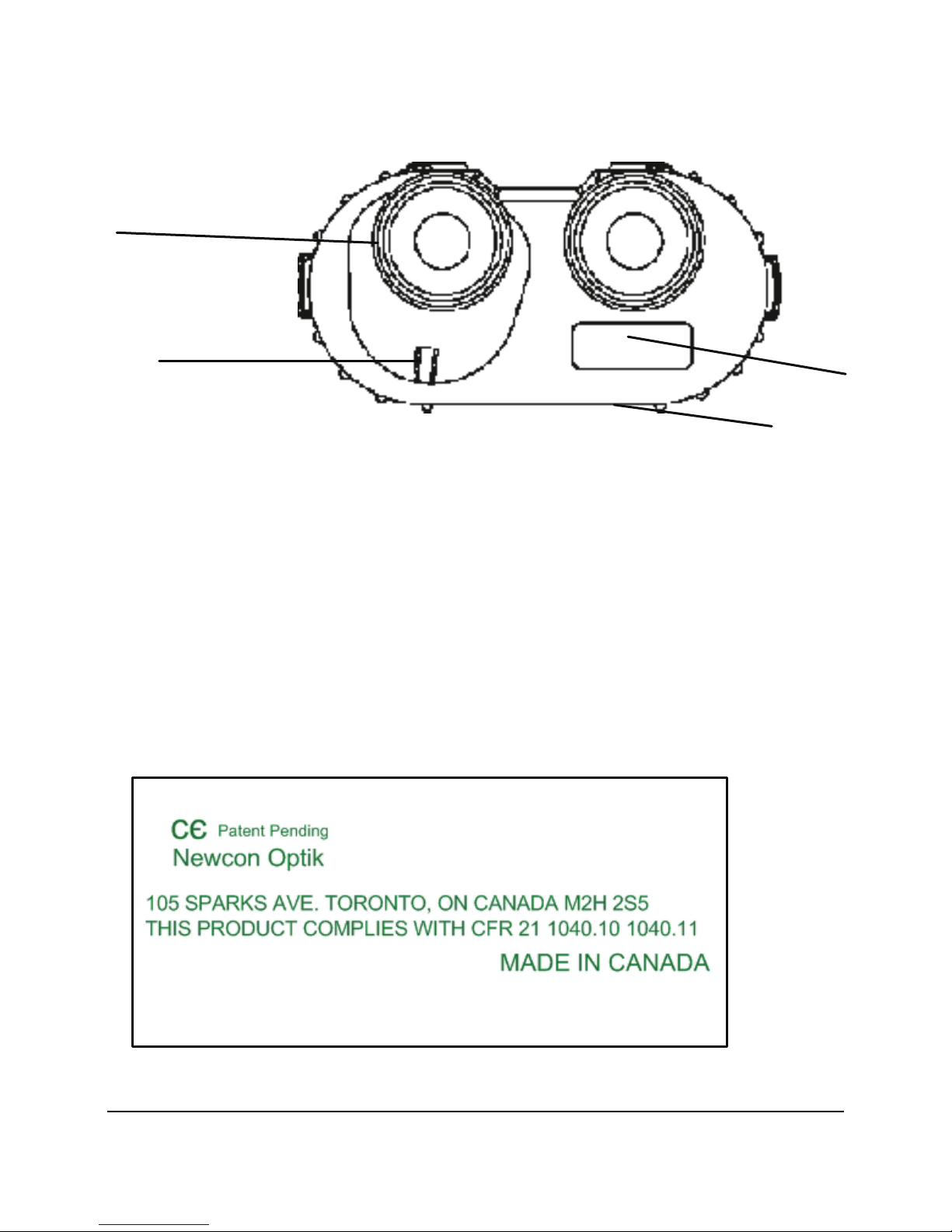

1 – Eyepiece
9 – Interpupillary distance adjustment lever
10 – Model Identification label
11 – Identification and certification label (at the bottom):
10
9
1
11
Fig. 2 Rear view
6
Fig. 3 Display
1 – Low battery indicator 2 – Reticle (either -¦- or )
3 – Units of measurement 4 – Measurement result
5 – Gating indicator 6 – Laser active indicator
7 – Ready mode indicator 8 – Setup mode indicator
4
6
2
1
3
7
8
