Newcon Optik NVS 15 Manuale utente
Operation Manual
NIGHT VISION GOGGLES
NVS 15
105 Sparks Ave., Toronto, ON, M2H 2S5, Canada
ii
IMPORTANT INFORMATION
Read prior to activation.
You have purchased a sophisticated electronic device. To
operate it properly, please read this manual carefully.
Ignoring operation procedures described in this manual will
void your warranty.
NEVER disassemble the unit. This device contains a source
of high voltage, which may be hazardous to your health.
NEVER expose objective lens of an active unit to bright
light, including daylight. In the daytime objective lens must
be covered by cap. A tiny hole in lens cap provides enough
light for daytime testing.
NEVER aim an active unit at intense light sources, such as
lights, headlamps, campfires, the Moon, etc.
NEVER reverse the polarity of a battery.
NEVER connect the unit to the external power supplies.
ALWAYS remove battery when not in use for a long period.
ALWAYS keep the objective lenses covered when not in use.
ALWAYS store the unit in a warm dry place.
iii
Precautions
NVS 15 is a sophisticated precise optical instrument equipped
with electronics. It should be handled with due care:
Do not touch the optical surfaces other than for cleaning.
Doing so may damage the anti-reflection coating.
Clean optical surfaces with professional lens cleaning
supplies.
Use only a soft clean cloth to clean the exterior of the device.
Keep the unit away from sources of heat, such as heating
appliances, sunlight or central heating.
Switch off the unit and remove the battery during the
extended periods of non-operation.
Do not apply an excessive force or pressure to the lens
assembly, movable parts and thread connections.
Small dark and/or light spots may be seen in the field of view
due to considerable optical magnification of the eyepiece.
This does not affect the operational capabilities of the device.
1
TABLE OF CONTENTS
1.OVERVIEW .................................................................... 3
2.DELIVERY SET.............................................................. 5
2.1Optional accessories.............................................. 5
3.SPECIFICATIONS.......................................................... 6
4.UNIT DESIGN................................................................. 7
5.OPERATION INSTRUCTIONS ..................................... 8
5.1Installing battery ................................................... 8
5.2Switching the unit on ............................................ 8
5.3Switching the unit off............................................ 9
5.4Adjusting to individual vision............................... 9
5.5Focusing.............................................................. 10
5.6Manual gain adjustment ...................................... 10
5.7Auto shut OFF at bright light.............................. 11
5.8Using the unit with headgear or helmet .............. 11
5.9Swinging head mounted unit for unobstructed view12
5.10Using IR illuminator ........................................... 12
5.11Installation of add-on lenses................................ 13
5.12Demist shield and sacrificial window ................. 13
5.13Using the camera / video adapter ........................ 14
5.14Using the helmet mount ...................................... 14
5.15Mounting on a rifle ............................................. 16
5.16Using with a daytime riflescope.......................... 17
2
5.17Binocular configuration ...................................... 18
6.TROUBLESHOOTING................................................. 19
6.1No green light through eyepieces........................ 19
6.2Image is unclear .................................................. 19
6.3Image flashes ...................................................... 19
6.4Condensation accumulates on the parts .............. 19
6.5Visibility decreased or disappeared..................... 19
7.WARRANTY................................................................. 20
8.CUSTOMER SUPPORT ............................................... 21
9.ACCEPTANCE CERTIFICATE ................................... 23
3
1. OVERVIEW
NVS 15 (the unit) is an optoelectronic monocular, intended for
observation of objects and orientation at night or under dark
conditions. The unit is equipped with a generation 3 image
intensifier tube, which amplifies low light, such as moonlight,
starlight or man-made light.
An add-on lens can be attached to the unit to increase
magnification.
Two units are combined to form a binocular configuration.
NVS 15 goggles in binocular configuration can be mounted on a
helmet (headgear).
Some typical activities where NVS 15 can be useful:
Law enforcement
Wildlife observation
Security
Search and rescue
Hunting
Dark room photography (connected to a camera)
Features
Swing arm mechanism provides for unobstructed vision
when the unit is mounted on headgear or helmet
Built-in infrared illuminator enables observation in total
darkness (i.e. basement, cave or dark room);
Optional helmet mount allows combatant operations
4
Optional weapon mount allows night shooting or also be
used in conjunction with halosight
Soft rubber eyecup makes viewing comfortable
Unit can be connected to photo or video camera
Please read all the instructions carefully before using it.
Manufacturer reserves the right to introduce minor design
changes without notice.
5
2. DELIVERY SET
Standard* Delivery Set includes:
Quantity
NVS 15 1
NVS bridge 1
Headgear set 1
Lens cap / Battery cover 2
Manual 1
Lens cleaning kit 2
Carrying bag (soft) 1
AA Battery 2
Warranty card 1
2.1 Optional accessories
US clip mount Hard case
Demist shield Lens brush
Sacrificial window Camera / video adapter
3x add-on lens Helmet mount
5x add-on lens
Weapon mount
*Exact Delivery Set is subject to the specific contract terms.
6
3. SPECIFICATIONS
NVS 15
Magnification 1x
Field of view 40
Focus range, m 0.25-
Interpupillary distance,mm 58-72
Exit pupil diameter, mm 20
Eye relief, mm 25
Dioptric correction +5 … -6
Power supply
3V CR-123 Lithium battery, 1 pc.
or
1.5 V AA Alkaline battery, 1 pc.
Battery life, hours 20 hours with I/R
40 hours without I/R
Size, mm 118x120x69
Weight, goggles only, g 720
NOTE: Due to continuous design improvements parameters
may vary from those given above.
7
4. UNIT DESIGN

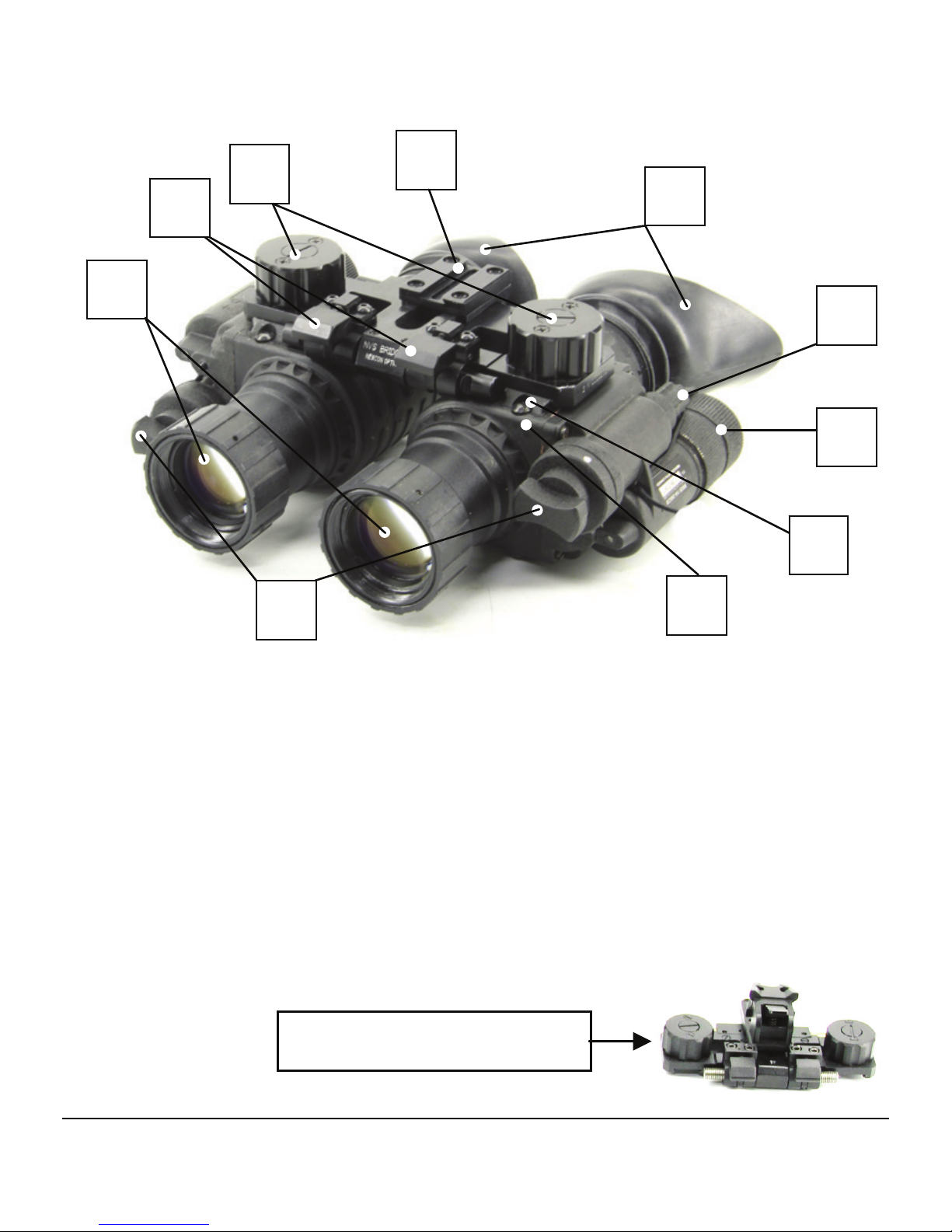

1. On / Off and IR illuminator switch
2. Objective lens
3. Eyepiece with eyecup
4. NVS 15 housing
5. Standard Headgear/helmet mount
6. Interpupillary adjustment buttons
7. Battery compartment cover
with battery type adapter
8. Quick release knobs
9. Dovetail platform
10. Manual gain adjustment knob
FIGURE 1
1
2
7
10
5
8 3
9
6
NVS bridge with US Mount
4
