Newland NLS-HR200 Manuale utente

NLS-HR200

General Scanner

User Guide

Latest:20080826

nlscan.com Page II

About This Reference 1

Introducation 1

Graphic Emphasis 1

Chapter Description 1

Getting Start 2

Introducation 2

Getting start HR200 3

Unpacking 3

Outline 3

Data Interface 4

Connect HR200 & Host 5

Communication Ports 5

Connect HR200 & Host 6

Install USB Cable 6

Install RS232 Cable 7

Install PS/2 Cable 8

Remove Cable 9

Remove Cable Off HR200 9

Remove Cable off Other Ports 9

ON, OFF, IDLE, RESTART 10

Power On 10

Power Off 10

IDLE Mode 10

RESTART 10

Programming Outline 11

Introducation 11

Code Programming 11

Command Programming 12

Reading 13

Illumination 14

Aiming 15

Reading Mode 16

Mode Selection 16

Sensor Mode Timeout 16

Sensor Mode Sensitivity 17

Hands-Free Mode 18

Reading Stance 19

Constrain Multi-reading 20

Default 21

Factory Default 21

User Default 21

Beep 22

Beep Denotation 22

nlscan.com Page III

Program Beeper 22

System Information 23

The system information is provided in such format 23

Maintenance 24

USB Interface 25

Introduction 25

USB HID-KBW 26

USB Country Keyboard Types 27

USB Country Keyboard Types 28

Unknown Characters, Beep 29

Function Key Mapping 31

ASCII Function Key Mapping Table 32

Keystroke Delay 33

CAPS Lock Override 33

Convert Case 34

Emulate Numeric Keypad 35

USB DataPipe 36

USB Visual RS232 37

RS232 Interface 38

Inteuduction 38

Baud Rate 39

Parity Check 40

Data Bits Transmitted 41

Stop Bits 42

PS/2 Interface 43

Intruducation 43

Introduction 44

Symbologies Selections 44

Symbologies 44

General Options 45

Prohibit Reading All 45

Allow Reading All 45

Allow Reading All 1D 45

Prohibit Reading All 1D 45

Allow Reading All 2D 45

Prohibit Reading All 2D 45

Code 128 46

Load Factory Default 46

Read/Abort Code 128 46

Check Digit 46

Select Message Length 47

UCC/EAN-8 48

Load Factory Default 48

nlscan.com Page IV

Read/Abort UCC/EAN-8 48

Check Byte 48

2 Digits Addenda Code 49

5 Digits Addenda Code 49

EAN-8 expand to EAN-13 50

EAN-13 51

Load Factory Default 51

Read/Abort EAN-13 51

Check Byte 51

2 Digits Addenda Code 52

5 Digits Addenda Code 52

UPC-E 53

Load Factory Default 53

Read/Abort UPC-E 53

Check Byte 53

Transmit First ‘0’Selections 55

Extend To UPC-A Selections 55

UPC-A 56

Load Factory Default 56

Read/Abort UPC-A 56

Check Byte 56

2 Digits Addenda Code 57

5 Digits Addenda Code 57

Transmit Selections 58

Interleaved 2 of 5 59

Load Factory Default 59

Read/Abort Interleaved 2 of 5 59

Select Message Length 60

Check Byte 61

Fixed Length Selection 62

ITF-14 63

ITF-6 64

China Post 25 65

Load Factory Default 65

Read/Abort China Post 25 65

Select Message Length 66

Check Byte 67

Code 39 68

Load Factory Default 68

Read/Abort Code 39 68

Transmit Start & Stop Character. 68

Select Message Length 69

Check Byte 70

Decode ASCII 71

Codabar 72

Load Factory Default 72

Read/Abort Codabar 72

Transmit Start & Stop Character 72

nlscan.com Page V

Select Message Length 73

Check Byte 74

Code 93 75

Load Factory Default 75

Read/Abort Code 93 75

Select Message Length 76

Check Byte 77

UCC/EAN-128 78

Load Factory Default 78

Read/Abort UCC/EAN-128 78

PDF417 79

Load Factory Default 79

Read/Abort PDF417 79

Select Message Length 80

QR Code 81

Load Factory Default 81

Read/Abort QR Code 81

Select Message Length 82

QR Twin Code 83

Aztec Code 84

Load Factory Default 84

Read/Abort Aztec Code 84

Select Message Length 85

Multi-Barcode Processing feature 86

Data Matrix 87

Load Factory Default 87

Read/Abort Data Matrix 87

Select Message Length 88

Data Matrix Twin Code 89

Chinese-Sensible Code 90

Load Factory Default 90

Read/Abort Chinese-Sensible Code 90

Select Message Length 91

OCR Selections 92

Inrtuducation 92

Preﬁx/Sufﬁx 93

Intruducation 93

General Programming 94

Prohibit or Allow Preﬁx/Sufﬁx 94

Preﬁx Sequences 94

User Preﬁx 95

Prohibit or Allow User Preﬁx 95

Program User Preﬁx 95

AIM Preﬁx 96

Code ID Preﬁx 97

nlscan.com Page VI

Code ID Default 97

Modify Code ID 98

8.4 User Sufﬁx 100

Prohibit or Allow User Sufﬁx 100

Program User Sufﬁx 100

Stop Preﬁx 101

Prohibit or Allow Stop Sufﬁx 101

Program Stop Sufﬁx 101

Message Intersect & Pack 102

Introducation 102

Message Intersect 103

introduction 103

1D, Program Intersect Option 104

How to clear a certain 1D barcode Intersection Setting? 104

Message Intersect 105

2D, Program Intersect Option 105

How to clear a certain 2D barcode Intersection Setting? 105

Symbologies ID Number：106

Message Pack 107

Introduction 107

Normal Pack 107

ESC_Bank Pack 108

ESC_AddLen Pack 109

Batch Programming 110

Itruducation 110

Appendix 111

Digit Code 111

Save and Abort 112

nlscan.com Page 1

Introducation

This product reference introduces a Newland Auto-ID Image product —NLS-

HR200 (ab. " HR200").

Graphic Emphasis

TOOL, facilitate use of the manual

ATTENTION, be aware & read through

E.g., help understand a certain operation.

TIPS, help understand better.

Chapter Description

About This Reference

nlscan.com Page 2

Getting Start

Introducation

HR200 is an omnidirectional Imager to capture, decode and transfer 1D & 2D

barcode. Newland Auto-ID patented UIMG™ technology ensure its fast and acurate

performance, and thus provide the best value.

It works at hand-held and hands-free modes in a stand. The ergonomic design

allows comfort and easy use.

Chapter One presents a holistic picture of how to use and step-by-step manner

guide. Please have a HR200 and a stand on hand.

This chapter is recommended to general users, maintenance staff and software

programmers.

Getting Start

nlscan.com Page 3

Unpacking

Unpack HR200 and accessories. Check with the packing list to make sure that there is none damaged or missing.

If any, please keep the original package and contact your supplier for services.

Outline

Power Indicator

Led

Beeper

Scan Windows

Tag（S/N，Cetiﬁcations，etc）

Trigger

Getting start HR200

nlscan.com Page 4

Getting Start

Dismount hole

Cable slot

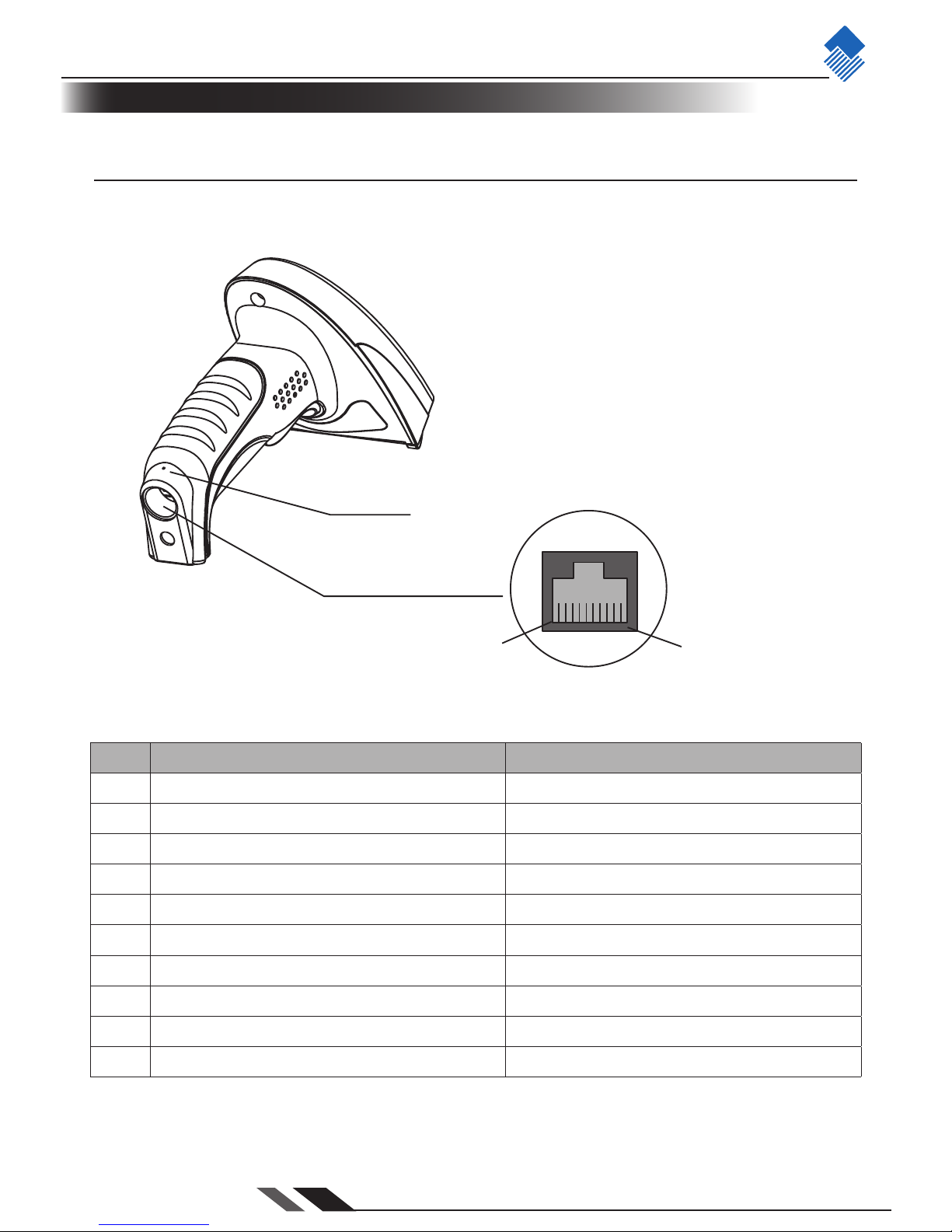

Data Interface

PIN Functions I/O

1 GND

2 VIN

3 VIN

4 RS232 - TXD OUT

5 RS232 - RXD IN

6 RS232 - CTS IN

7 RS232 - RTS OUT

8 GND

9 USBC_D-

10 USBC_D+

PIN 1

PIN 10

Getting start HR200
