Nexcom EBC340 Manuale utente

www.nexcom.com

Single Board Computer

EBC340

User’s Manual

Apr.-01-2009 Build

User’s Manual is subject to change without prior notice.

For any update, please visit our website: www.nexcom.comk

EBC340 User’s Manual 2 Table of Content

Preface

This publication, including all photographs, illustrations and software, is protected under international

transmitted in any form or by any means without the prior written consent from NEXCOM International

Co., Ltd.

Version 1.3

Disclaimer

The information in this document is subject to change without prior notice and does not represent

commitment from NEXCOM International Co., LTD. However, users may update their knowledge of any

product in use by constantly checking its manual posted on our website: http://www.nexcom.com.

NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out

of the use of any product, nor for any infringements upon the rights of third parties, which may result from

such use. Any implied warranties of merchantability of fitness for any particular purpose is also

disclaimed.

Acknowledgements

The EBC 340 series is a trademark of NEXCOM international CO., LTD. All other product names

mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the

system CE compliant.

Federal Communications Commission (FCC) For ClassA Device

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant

to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses,

EBC340 User’s Manual 3 Table of Content

and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. Operation of this equipment in a residential area

(domestic environment) is likely to cause harmful interference, in which case the user will be required to

correct the interference (take adequate measures) at their own expense.

CE Certification

The product(s) described in this manual complies with all applicable European Union (CE) directives if it

has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used.

Maintaining CE compliance also requires proper cable and cabling techniques.

Safety Information

Before installing and using the EBC340, note the following precautions:

Read all instructions carefully.

Do not place the unit on an unstable surface, cart, or stand.

Follow all warnings and cautions in this manual.

When replacing parts, ensure that your service technician uses parts specified by the manufacturer.

Avoid using the system near water, in direct sunlight, or near a hearing device.

WARNINGS

Read and adhere to all warnings, cautions, and notices in this guide and

the documentation supplied with the chassis, power supply, and accessory

modules. If the instructions for the chassis and power supply are inconsistent

with these instructions or the instructions for accessory modules, contact

the supplier to find out how you can ensure that your computer meets

safety and regulatory requirements.

CAUTION

Electrostatic discharge (ESD) can damage NSA components. Do the

described procedures only at an ESD workstation. If no such station is

available, you can provide some ESD protection by wearing an antistatic

wrist strap and attaching it to a metal part of the computer chassis.

EBC340 User’s Manual 4 Table of Content

Table of Content

Preface……………...……………..……………………………………….………….……..……………..2

Disclaimer………………………..………………………………..……………………………………….. 2

Acknowledgements……………………………………………..………………………..………..…..……2

Regulatory Compliance Statements……………………..…………………………………….……………2

Federal Communications Commission (FCC) For Class A Device……………..……….…………..…..…2

CE Certification………………………………………………………………………….……….………...3

Safety Information……………………………………………………………………….………..………..3

Table of Content……………………………………………………………………………………....…….4

Chapter 1 General Information

1.1 Specification…………………………………………………….…………………………………….. 6

1.2 Power Consumption Measurement……………………………………………………………………..8

1.3 Board Layout…………………………………………………………………….… …………………. 9

1.4 Board Dimensions……………………………………………………….………… …….…………… 9

Chapter 2Jumper Setting

2.1 Before You Begin……………………………………………..….……………………………………11

2.2 Precautions………………………………………………………………………………………...…..11

2.3 Setting Jumpers………………………………………………………………………………………..12

2.4 Location of Jumpers……………………………………………………………………………….…..13

2.5 Function of Jumpers and Connectors…………….………………………………………………........14

GPIO Programming Guide………………………………………………………………………………28

Chapter 3 Expansion

3.1 System Memory…………………………………………………………………………………..…….31

3.2 Installing Compact Flash……………….……...………………………………………..…………….. 32

Chapter 4 BIOS Setting

4.1 Entering Setup………………………………………………………………………………………….34

4.2 Getting Help……………………………………………………………………………………………34

4.3 The Main Menu………………………………………………………………………………………...36

EBC340 User’s Manual 5 Chapter 1

Chapter 1

General Information

EBC340 User’s Manual 6 Chapter 1

1.1 Specification

CPU Support

Intel® Atom™ Processor N270 1.6GHZ

Main Memory

1 x DDR2 SO-DIMM Socket (up to 1GB)

Chipset

Intel 945GSE Express chipset

Intel® 82801GBM (ICH7-M)

Graphic

Intel® 945GSE integrated graphics

Support Dual Independent Display:CRT+LVDS

CRT: 1 x DB15 VGA CON

LVDS: 1x DF13 20-pin connector

Storage

Support 1x Type I/II Compact Flash socket

EBC340 User’s Manual 7 Chapter 1

uDOC mechanical dimension to support USB interface SSD

1x 7-pin SATA connector

Expansion

1x PCI-104

Audio

Realtek ALC888 CODEC

Mic-In x1 / Line out x1 Phone Jack

Network

LAN Chip: Realtek RTL8111C-GR

Support Boot From LAN (PXE)

I/O

1 x Parallel Port 26-pin Box header

COM1 by DB9 Male CON

COM2 support RS232/422/485 w/10pin Box header

2 x 10pin Box Header for COM3~COM4

1 x USB 2.0 Port

1 x 2.0mm Jst Connector for USB

1 x 10Pin Header for USB

1 x 10pin header for GPIO

1 x Power LED pin header

1 x HDD Active LED Pin header

1 x LAN Link-Active LED Pin header

1 x 3pin fan connector(Reserved)

Power Supply

+12V/+5V AT/ATX mode

6pin Power CON

System Management

Derived from Super I/O to support system monitor

Monitoring of 5 voltages For +5V, Vcore,+12V, +3.3V, +1.5V5 voltage

2 Temperatures (CPU, System)

RTC

On chip RTC with battery back up / External Li-ion Battery

RTC Torrance less than 2sec (24 hours) under 25˚C

BIOS

Award system BIOS

8M bits SPI ROM

Operating Systems

Windows XP,XP Embedded, CE

Certification

CE

EBC340 User’s Manual 8 Chapter 1

FCC Class A

100% RoHS competed

Environment

Operating temperatures: 0°C to 60°C

Storage temperatures:-20˚C to 85˚C

Relative Humidity:

Operating 10%~90%, non-condensing

1.2 Power Consumption Measurement

EBC340 Power Consumption

Power Type +12V +5v +12v-to-Vcore

DC/DC

+12v-to-1.8v

DC/DC

+12v-to-0.9v

DC/DC

5v-to-1.5v

DC/DC

5v-to-1.05v

DC/DC

+12v-to-3.3v

DC/DC

Consumed watts 18W 34.75W 4.4W 5.544W 0.9W 5.79W 7.581W 19W

Consumed

currents

(Item A )

1.5A 6.95A 0.367A 0.462A 0.075A 1.158A 1.5162A 1.584A

Actually

required

currents

(Item A/0.80 )

0.46A 0.578A 0.01A 1.448A 1.896A 1.98A

12v needed 4.528A

5v needed 10.294A

EBC340 User’s Manual 9 Chapter 1

1.3 Board Layout

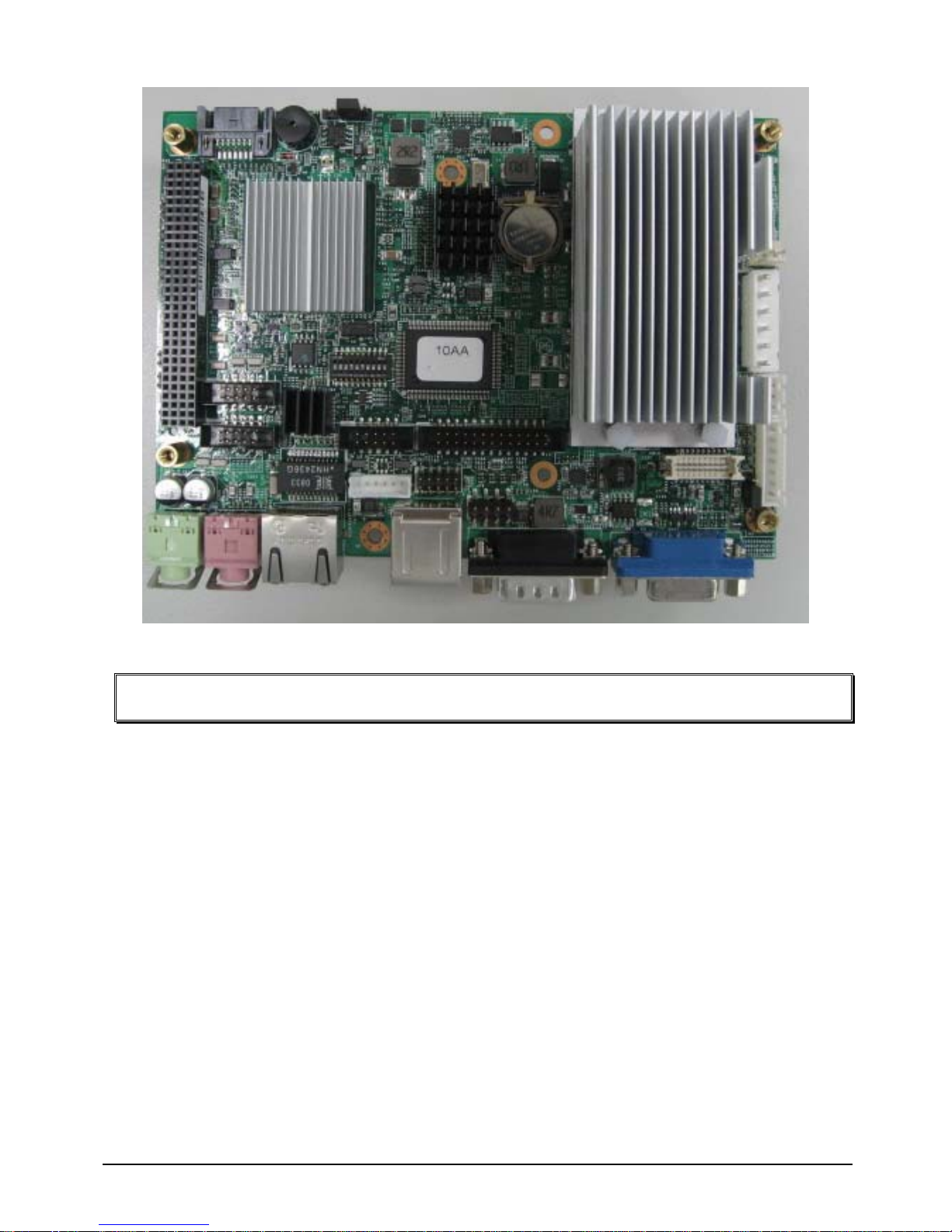

Figure 1.2: Overview of EBC 340

1.4Board Dimensions

Figure 1.3: Mechanical Drawing of the EBC 340

EBC 340 User’s Manual 10

Chapter 2

Jumper Setting
