Nexo P15 Under 2xL18 Rigging System Manuale utente

PAGE 1 OF 4

- Read this document before using.

- Keep this document.

- Observe all warnings and cautions.

PNI-P15TO2L18

DP5656 –01d - DI

P15 Under 2xL18 Rigging System

Contents:

X1 Ceiling Plate

X1 Left Plate

X2 Main Plate

X1 Right Plate

X8 M10x30 (a)

X2 M10x25 (a)

X12 M10x18 (a)

X2 M6x25 (a)

X2 L18 Plate

(a) : The type of the screws may differ from the representation

Weight: 27.3 kg / 60 lb

PAGE 2 OF 4

- Read this document before using.

- Keep this document.

- Observe all warnings and cautions.

Dimensions:

For fixation, you have the choice between M8 and M10

WARNINGS

Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary

equipment and cables.

Use only the provided screws (thread lock coated) and accessories.

Implementation of L18

Prepare the Main plates by screwing the M10x30 screws on the holes (see picture below), do not tighten completely

and leave at least 6mm.

Assemble the Plates on each side of L18 using the M10x18 screws.

CARDIO mode

OMNI Mode







 



























PAGE 3 OF 4

- Read this document before using.

- Keep this document.

- Observe all warnings and cautions.

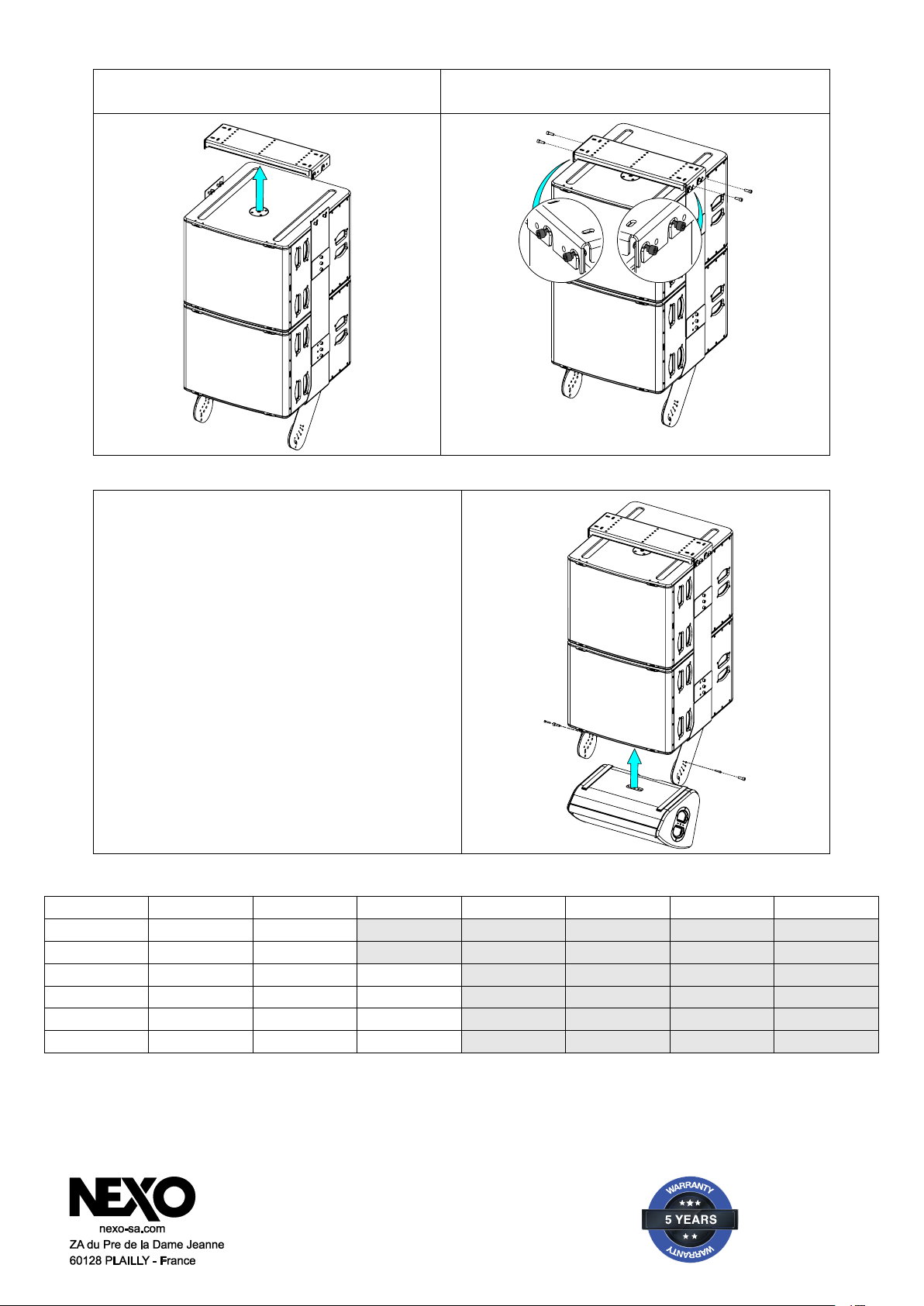

Assembly on the ceiling plate

Place the assembly below the ceiling plate.

Tighten the screws. Secure with the 4 provided M10x30

screws.

Implementation of P15

Place P15 between the plates, position at the chosen

angle, fasten with M10x25 screws and secure with

M6x25 screws.

PNI-P15TO2L18 frame tilt

P15

Holes 1

Holes 2

Holes 3

Holes 4

Holes 5

Holes 6

Holes 7

0°

4,00°

2,00°

-0,25°

-2,50°

-4,50°

-6,75°

-8,75°

-15°

4,00°

2,00°

-0,25°

-2,50°

-4,50°

-6,75°

-8,75°

-25°

4,50°

2,25°

0,00°

-2,00°

-4,25°

-6,50°

-8,50°

-35°

4,75°

2,50°

0,50°

-1,75°

-4,00°

-6,00°

-8,25°

-45°

5,00°

2,75°

0,50°

-1,50°

-3,75°

-6,00°

-8,00°

-55°

5,00°

3,00°

0,75°

-1,50°

-3,75°

-5,75°

-8,00°

Note 1 : Holes 1 are those toward F.O.H.

Note 2 : All angles measurements have been done without cables weight.

Note 3 : Angles are in relation to Horizontal position ( 0° )

PAGE 4 OF 4

- Read this document before using.

- Keep this document.

- Observe all warnings and cautions.

Standard inclinations :

0°

-15°

-25°

-35°

-45°

-55°

•NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself.

•Please check the web site nexo-sa.com for the latest update.
