Nextar N7-203 Manuale utente

Note

It may cause damage to the SD card/USB device and

the unit when any memory card or USB device is

inserted or removed without turning off the unit.

Safety precaution

1) Use only the supplied adaptor with Input 100-240V,

Output 5V.

2) Turn off power before cleaning. Use only a soft

cloth to clean the unit

Do not use liquid cleaners.

3) Avoid exposing the unit to extreme heat.

4) Do not disassemble the Digital Photo Frame,

otherwise it may result in electric shock and void

your warranty.

Content

Note............................................................................1

Safety precaution......................................................1

Content......................................................................2

Introduction...............................................................3

1、Features.........................................................3

2、Packaging Check List ....................................4

3、Specifications.................................................4

Product Diagram.......................................................5

A. Top View .........................................................5

B. Front View.......................................................5

C. Rear View.......................................................6

D. Side View........................................................6

Using Your Digital Photo Frame...............................7

Viewing Modes....................................................7

File Saving...........................................................7

Technical Notes.........................................................8

Question/Troubleshooting Guide ............................8

Introduction

Your new Digital Photo Frame lets you view digital

pictures from memory cards easily and quickly.

No computer or printer is needed

Includes convenient slide show mode, which starts

automatically when the Frame is turned on.

Supports many popular memory card types.

Easy to take with you to share photos with family and

friends anywhere.

Astep beyond the traditional photo frame. View tens or

even hundreds of digital photos without the need to

pay for printing.

1、Features

7 inch TFT LCD

Supports Secure Digital (SD), Multimedia Card (MMC),

Memory Stick (MS) memory card formats and USB

JUMP DRIVE

View the pictures from memory cards directly

Resolution: 480X234 pixels

Supports high-resolution photos

Automatic start of slide show

2、Packaging Check List

Digital Photo Frame

User Manual Quick Start Guide

AC Adaptor

3、Specifications

Panel Size 7 inches

Resolution 480X234

Brightness 200 CD/M²

Contrast 300

View Angle (U/D/L/R) (CR≥10) 40/60/60/60

Response Time 15ms Ton

Screen Size Mode 16:9

File Format Type JPEG

Max.Photo Size 10 mega pixels

Power Requirement 5V DC

Power Consumption <10 W

Operating Temperature 14~158℉(-10~70℃)

Storage Temperature -4~176℉(-20~80℃)

Product Diagram

A. Top View

1. Button

Pause or resume the playback.

2. Button

Go to the previous picture.

3. Button

Go to the next picture.

4. Rotate Button

Rotate the current picture.

5. MODE Button

Change the display mode

between Pan Scan, Fill, Original

and Auto Fit.

Change the aspect ratio among

16:9 and 4:3. (Press and hold for

a moment).

6. P-SAVE Button

Enter the power save mode.

Then press it again to exit the

power save mode.

B. Front View

1. LCD Screen

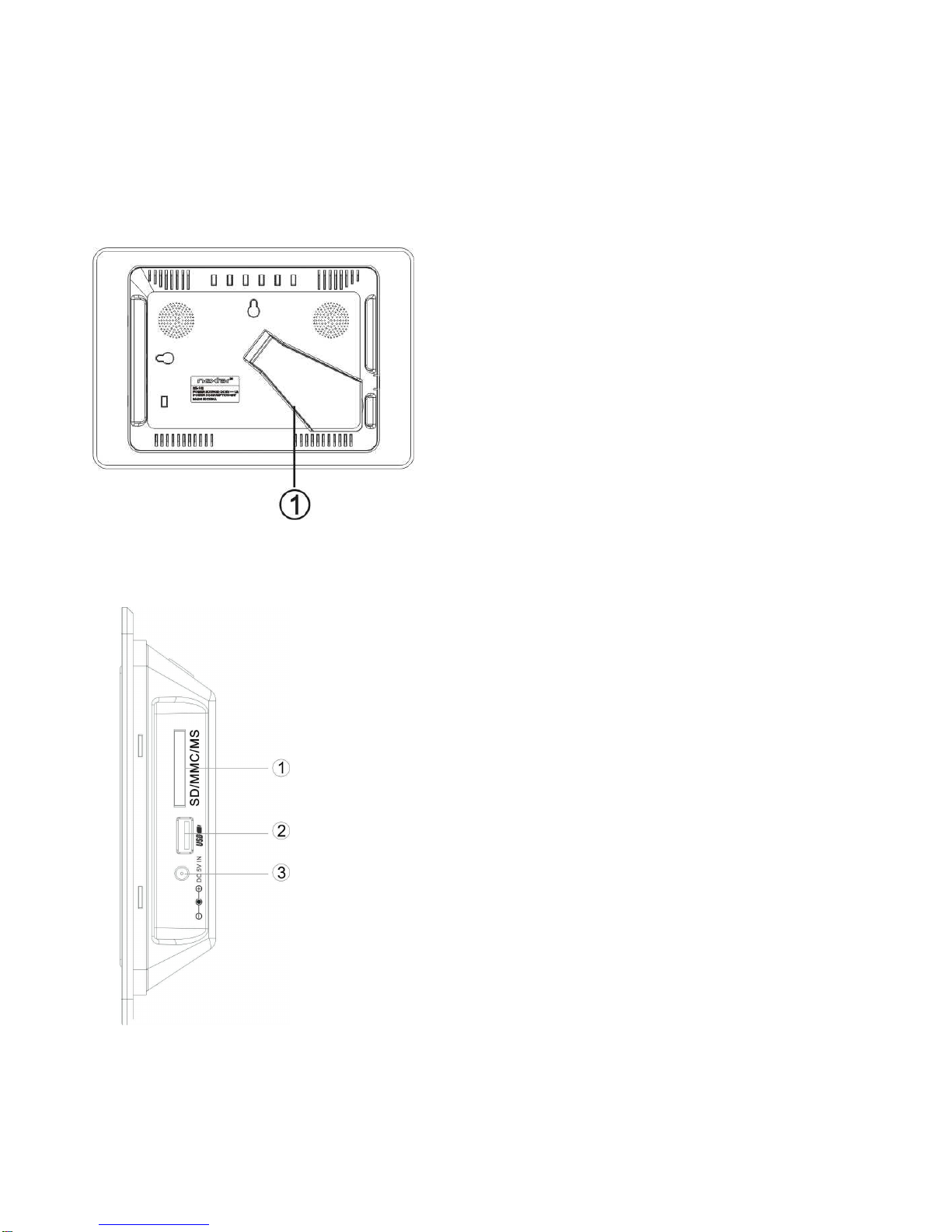

C. Rear View

1. Stand

Support the Digital Photo Frame.

D. Side View

1. SD/MS/MMC Card Port

Insert SD/MS/MMC card into this port.

Or pull out the SD/MMC/MS card from the port.

2. USB Port

Connect USB device, such as USB flash disk.

3. DC 5V IN

Connect the supplied adaptor.

Using Your Digital Photo Frame

Install the stand for tabletop display. Connect the AC adaptor.

Insert a memory card in the Digital Photo Frame (with the card’s

electrical contacts towards the front of the unit.). A slide show will

begin automatically.

To enter the power save, press the P-SAVE button.

Press the button, the word Pause will appear on the screen

briefly and the slide show will be stopped. The current photo will

remain on the screen until the button is pressed again, at which time

the slide show will resume.

To display the previous or next picture, press the  button.

The Rotate button allows photos to be turned proper viewing. Press

repeatedly to rotate the current picture clockwise:

90° 180° 270°.

Viewing Modes

Press the MODE button to select display mode: Pan Scan, Fill,

Original and Auto Fit. Press the MODE button and hold for a moment

to change the aspect ratio between 16:9 and 4:3.

File Saving

Photos must be saved in the JPEG format in order to be viewed on

the Digital Photo Frame. Nearly all digital cameras will save in this

format by default. Photos that have been saved with certain image

editing programs can fail to display properly.

Technical Notes

1. Your Digital Photo Frame is a sophisticated electronic device.

Do not drop or subject the unit to jarring or strong vibrations.

2. Avoid placing the Digital Photo Frame in areas of high humidity

or where it might be subjected to splashing.

3. The panel is made of plastic and can be easily damaged. Avoid

sharp objects.

4. Use only a soft dry cloth to clean the screen.

Question/Troubleshooting Guide

This chapter presents some troubleshooting problems you may

encounter while using the device. Even if the following guide fails to

solve your problem, please do not disassemble the device, but leave

the problems to professional staff.

1.Question: What kind of photos does this device’s supports?

Answer: The Frame will display digital photos that are stored in the

JPEG format which is the standard format for nearly all digital

cameras. Some cameras allow images to be stored as TIFF or with

the Frame.

RAW files as well as JPEG. Only the JPEG format is compatible

2.Question: What should I do if the system does not respond

when the power is turned on?

Answer: Make sure the unit is properly connected to a power source.

Then turn it off, reconnect the power and turn it on again.

3.Question: Why is the memory card not recognized?

Answer: The memory card might be inserted rearwards or is not

pushed in far enough. After inserting the memory card in the right

direction, if the card still cannot be read, please turn off the unit and

then power it again.
